Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 36.1 MB | Download |
| Print-ready chart, no georeferencing | 77.1 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 77.1 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

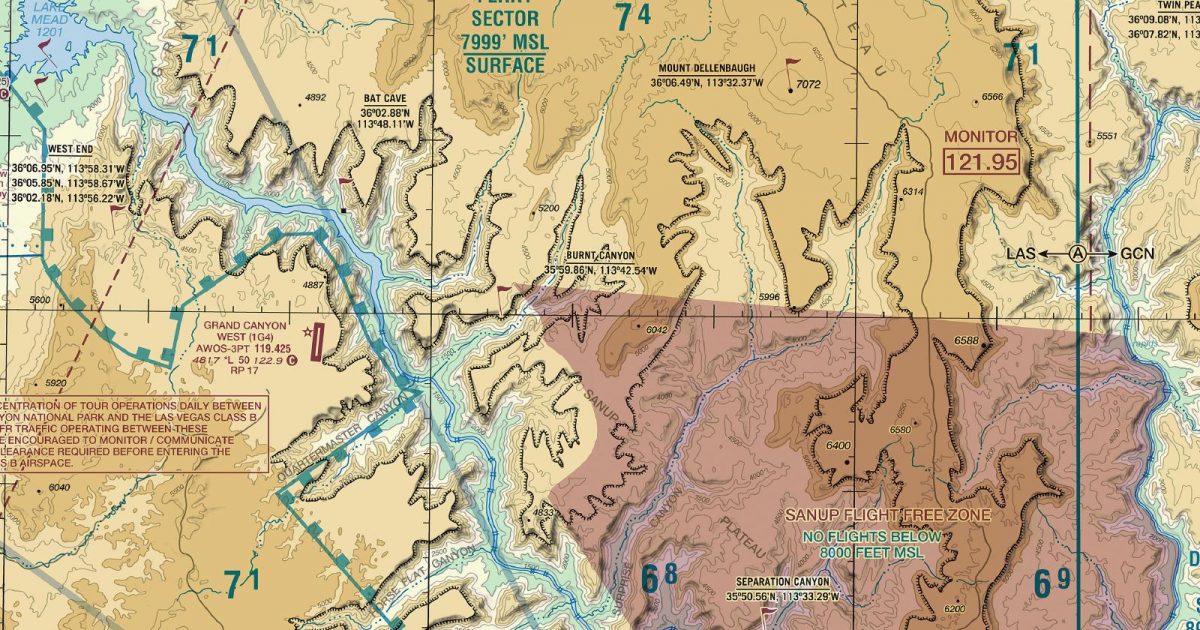

Go PROFollowing the Colorado River across northern Arizona, this sheet spans the Grand Canyon from the Lake Mead area in the west to the high desert and plateau country east of the main gorge. Its narrow north–south footprint keeps the canyon corridor central, while also taking in the surrounding rims, tributary canyons and broad uplands on both sides.
The defining feature is the abrupt contrast between deeply incised canyon terrain and the elevated plateaux beyond it. Western desert country gives way eastwards to a more extensive maze of cliffs, side canyons and exposed high ground. The sheet is particularly well shaped for routes tracing the Colorado or crossing between the North and South Rim country, where modest map distances can span pronounced changes in terrain.
At roughly 157 nautical miles wide and 70 nautical miles tall, the chart has a strongly east–west format. It has no adjoining chart of the same type, so its coverage forms a single, purpose-shaped view of the Grand Canyon region.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KGCN GCN | Grand Canyon Ntl Park | GRAND CANYON, AZ | 6,608 ft | 1 | 8,999 ft |
| T03 | Tuba City | TUBA CITY, AZ | 4,513 ft | 1 | 6,230 ft |
| 1G4 | Grand Canyon West | PEACH SPRINGS, AZ | 4,816 ft | 1 | 5,000 ft |
| U08 | Perkins Fld | OVERTON, NV | 1,365 ft | 1 | 4,811 ft |
| 1Z1 | Grand Canyon Bar Ten Airstrip | WHITMORE, AZ | 4,100 ft | 1 | 4,600 ft |
| 40G | Valle | GRAND CANYON, AZ | 5,999 ft | 1 | 4,199 ft |
| U30 | Temple Bar | TEMPLE BAR, AZ | 1,549 ft | 1 | 3,500 ft |
| 0L9 | Echo Bay | OVERTON, NV | 1,535 ft | 1 | 3,400 ft |
| L25 | Pearce Ferry | MEADVIEW, AZ | 2,941 ft | 1 | 2,900 ft |
9 public-use airports within this chart's coverage, ordered by runway length. A further 4 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
It spans 35.6°N to 36.8°N and 114.5°W to 111.3°W. Airports on the sheet fall within Arizona and Nevada. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (36.1 MB). Take the PDF to print it or read it on a second screen (77.1 MB); it is the same chart without georeferencing.
This is the FAA edition effective 3 September 2026, which is superseded on 29 October 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
FAA public-domain products, mirrored unmodified. Fly Away Simulation is not affiliated with or endorsed by the FAA. Chart licensing and terms.
