TAMUNING, GU · 15 FAA charts · cycle 6 Aug 2026
12 published instrument approaches: 2 ILS approaches, 8 RNAV (GPS), 1 VOR, 1 NDB, serving 4 runway ends.
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| Tower | 118.1 | Agana |
| Ground | 121.9 | Agana |
| ATIS | 119.0 | Agana |
| Emergency | 121.5 | Agana |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 06L/24R | 12,014 ft | 150 ft | Asphalt over concrete Good | High intensity |

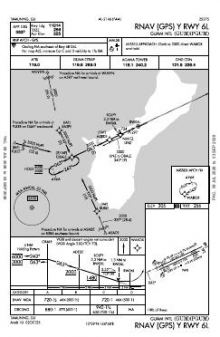

| 06L 65°T | ILS/DME · PAPI (4-box) 3° · MALSR approach lighting · displaced threshold 1,000 ft | |||

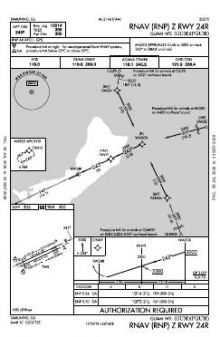

| 24R 245°T | PAPI (4-box) 3° · right-hand circuit | |||
| 06R/24L | 10,014 ft | 150 ft | Asphalt over concrete Good | High intensity |

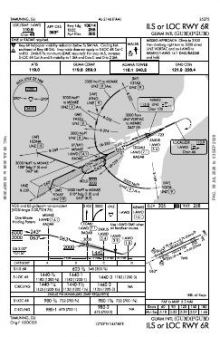

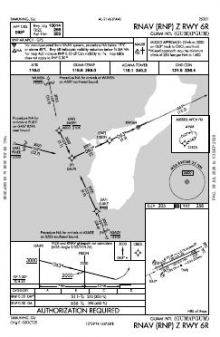

| 06R 65°T | ILS/DME · PAPI (4-box) 3° · MALSR approach lighting | |||

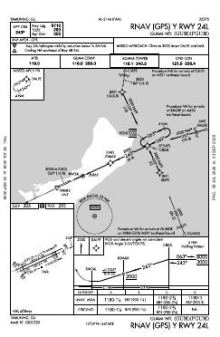

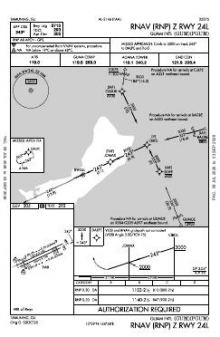

| 24L 245°T | PAPI (4-box) 3° · displaced threshold 1,004 ft · right-hand circuit | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
13.4839520, 144.7971290
305 ft3 nm NEPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Both parallel runways exceed 10,000 ft, and all four ends have a published approach. Only 06L/24R can meet a runway-length requirement above 10,014 ft, while requirements below that figure can be met by either strip. The procedure mix is centred on RNAV (GPS), with ILS, localiser, VOR and NDB options adding coverage that does not rely on a single approach type. The airport diagram clarifies the parallel-runway layout.
Andersen AFB has the broader published set, with 20 charts against Guam International’s 15. Benjamin Taisacan Manglona International is much more lightly covered with six, making its procedure set markedly thinner than those of the other two fields.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| PGUA | Andersen AFB | YIGO, GU | 10 nm NE | 20 |
| PGRO | Benjamin Taisacan Manglona Intl | ROTA ISLAND, MP | 49 nm NE | 6 |
15 current FAA charts for Guam Intl, including 12 instrument approachs, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Tower 118.1; Ground 121.9; ATIS 119.0. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Guam Intl has 2 runways. The longest is 06L/24R at 12,014 ft by 150 ft, asphalt over concrete. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 2 ILS procedures are published. In total PGUM has 12 published instrument approaches, of which 8 are RNAV (GPS).

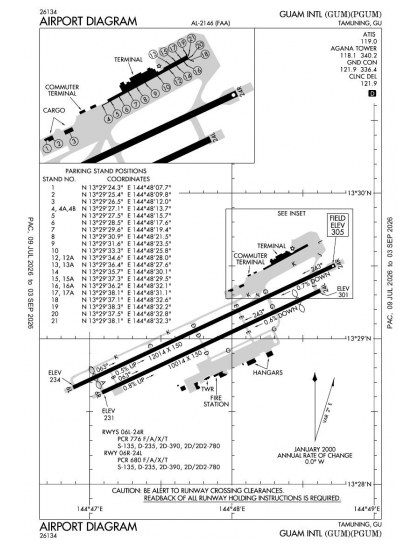

The official FAA airport diagram for Guam Intl is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.
Yes. Guam Intl has an operating control tower, within Guam Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
