CORDOVA, AK · 8 FAA charts · cycle 6 Aug 2026
3 published instrument approaches: 1 ILS approach, 2 RNAV (GPS).
| Chart | Amendment | ||
|---|---|---|---|

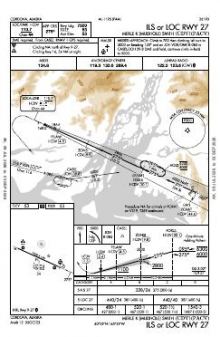

 | ILS OR LOC RWY 27 | 12 | |

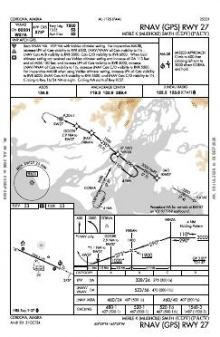

 | RNAV (GPS) RWY 27 | 2D | |

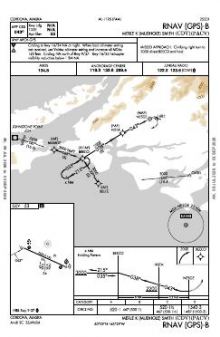

 | RNAV (GPS)-B | 2C |
| Chart | Amendment | ||
|---|---|---|---|

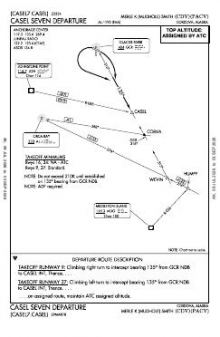

 | CASEL SEVEN | — | |

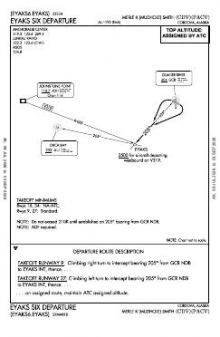

 | EYAKS SIX | — |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 123.6 |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 09/27 | 7,500 ft | 150 ft | Asphalt Good | High intensity |
| 09 114°T | VASI (4-bar) 3° · Omnidirectional approach lights · right-hand circuit | |||
| 27 294°T | ILS/DME · VASI (4-bar) 3° · MALSR approach lighting | |||
| 16/34 | 1,934 ft | 30 ft | Gravel Fair | |
Runway and approach-aid data from the FAA NASR 28-day subscription.
60.4916400, -145.4775580
53 ft11 nm SEPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
All published approaches at Merle K (Mudhole) Smith serve a single runway end. The mix includes ILS and localiser procedures alongside two RNAV (GPS) options, giving that end both ground-based and satellite-based coverage while leaving the remaining runway ends without published approaches.
The 7,500 ft asphalt runway provides substantially more usable length than the 1,934 ft gravel cross-runway; aircraft requiring more than the shorter distance cannot treat the two as equivalent. Among nearby fields, Valdez Pioneer Field has the closer comparison in chart breadth, while Tatitlek’s two-chart set is much thinner. The Anchorage and Seward sectionals add broader visual-navigation context beyond the airport diagram and terminal procedures.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| PAKA | Tatitlek | TATITLEK, AK | 42 nm NW | 2 |
| PAVD | Valdez Pioneer Fld | VALDEZ, AK | 45 nm NW | 5 |
8 current FAA charts for Merle K (Mudhole) Smith, including 3 instrument approachs, 2 departure procedures, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
CTAF 123.6. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Merle K (Mudhole) Smith has 2 runways. The longest is 09/27 at 7,500 ft by 150 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 1 ILS procedure is published. In total PACV has 3 published instrument approaches, of which 2 are RNAV (GPS).

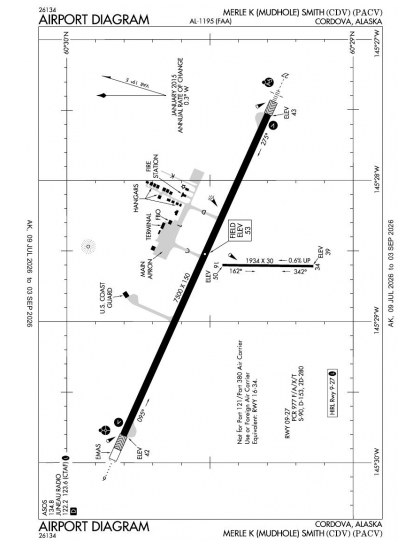

The official FAA airport diagram for Merle K (Mudhole) Smith is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.
Every published approach serves one runway end. There is no instrument procedure to the reciprocal direction, so an arrival in instrument conditions commits to that single approach direction regardless of the wind.
No — Merle K (Mudhole) Smith has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
