Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 65.3 MB | Download |
| Print-ready chart, no georeferencing | 133.3 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 133.3 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

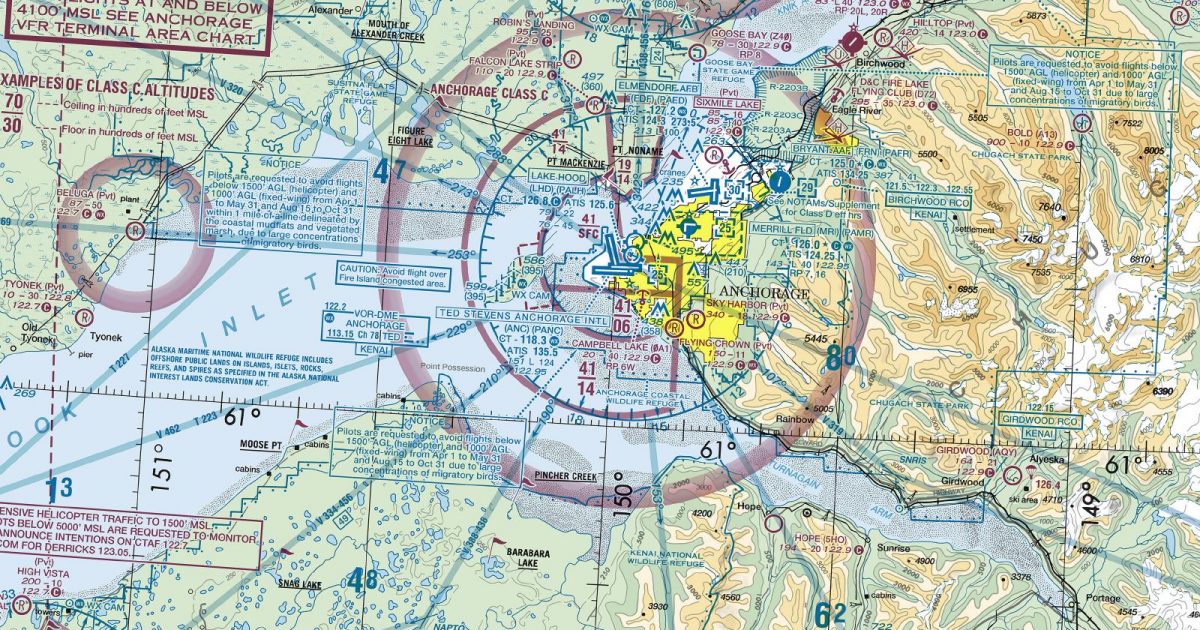

Go PROAnchorage, Cook Inlet and Prince William Sound sit near the centre of a sheet extending from the Gulf of Alaska coast north across the Alaska Range into the interior. To the west it takes in Lake Clark and the western approaches to Cook Inlet; eastwards, the coverage reaches across the Wrangell and Saint Elias mountains towards the Canadian border and the country around Yakutat.
The flying landscape is markedly varied: intricate coastline and island-studded water in the south, broad inlet country around Anchorage, then extensive glaciers, high mountain terrain and sparsely settled interior valleys. Routes crossing the sheet can therefore move quickly between maritime and continental settings.
Southbound coverage continues on the Seward sheet. Beyond the western edge, Kodiak adjoins the southern portion and McGrath the northern portion. Fairbanks lies to the north-west, while Dawson continues coverage to the north-east. At the eastern and south-eastern margins, the Juneau sheet provides the onward connection along the Gulf coast and towards south-eastern Alaska.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| PANC ANC | Ted Stevens Anchorage Intl | ANCHORAGE, AK | 151 ft | 3 | 12,400 ft |
| CKU | Cordova Muni | CORDOVA, AK | 59 ft | 2 | 8,000 ft |
| PAKA 7KA | Tatitlek | TATITLEK, AK | 61 ft | 2 | 8,000 ft |
| PAEN ENA | Kenai Muni | KENAI, AK | 99 ft | 5 | 7,855 ft |
| PAYA YAK | Yakutat | YAKUTAT, AK | 39 ft | 2 | 7,732 ft |
| PACV CDV | Merle K (Mudhole) Smith | CORDOVA, AK | 53 ft | 2 | 7,500 ft |
| PAHO HOM | Homer | HOMER, AK | 84 ft | 1 | 6,701 ft |
| PAVD VDZ | Valdez Pioneer Fld | VALDEZ, AK | 128 ft | 1 | 6,500 ft |
| PAAQ PAQ | Warren "bud" Woods Palmer Muni | PALMER, AK | 248 ft | 4 | 6,006 ft |
| PAOR ORT | Northway | NORTHWAY, AK | 1,720 ft | 1 | 5,100 ft |
| PAGK GKN | Gulkana | GULKANA, AK | 1,586 ft | 2 | 5,001 ft |
| PASX SXQ | Soldotna | SOLDOTNA, AK | 113 ft | 2 | 5,001 ft |
| TSG | Tanacross | TANACROSS, AK | 1,559 ft | 4 | 4,963 ft |
| PALH LHD | Lake Hood | ANCHORAGE, AK | 79 ft | 4 | 4,541 ft |
| PAUO UUO | Willow | WILLOW, AK | 215 ft | 1 | 4,400 ft |
| PAWD SWD | Seward | SEWARD, AK | 27 ft | 2 | 4,249 ft |
| PAMH MHM | Minchumina | MINCHUMINA, AK | 681 ft | 1 | 4,184 ft |
| PABV BCV | Birchwood | BIRCHWOOD, AK | 83 ft | 2 | 4,012 ft |
| PAMR MRI | Merrill Fld | ANCHORAGE, AK | 143 ft | 3 | 4,000 ft |
| PAST UMM | Summit | SUMMIT, AK | 2,409 ft | 1 | 3,814 ft |
| CYXQ | Beaver Creek | BEAVER CREEK | 2,129 ft | 1 | 3,745 ft |
| PAWS IYS | Wasilla | WASILLA, AK | 353 ft | 2 | 3,700 ft |
| PAMX 15Z | Mccarthy | MCCARTHY, AK | 1,532 ft | 1 | 3,501 ft |
| PATK TKA | Talkeetna | TALKEETNA, AK | 365 ft | 1 | 3,500 ft |
| PASW SKW | Skwentna | SKWENTNA, AK | 148 ft | 1 | 3,400 ft |
| 3T4 | Tetlin | TETLIN, AK | 1,670 ft | 1 | 3,300 ft |
| PAMD MDO | Middleton Island | MIDDLETON ISLAND, AK | 100 ft | 2 | 3,158 ft |
| PFCB C05 | Chenega Bay | CHENEGA, AK | 68 ft | 1 | 3,000 ft |
| CZN | Chisana | CHISANA, AK | 3,348 ft | 1 | 3,000 ft |
| Z40 | Goose Bay | GOOSE BAY, AK | 78 ft | 1 | 3,000 ft |
| PAIN INR | Mc Kinley Ntl Park | MCKINLEY PARK, AK | 1,720 ft | 1 | 3,000 ft |
| PAHV HRR | Healy River | HEALY, AK | 1,275 ft | 1 | 2,910 ft |
| PAAO Z55 | Lake Louise | LAKE LOUISE, AK | 2,480 ft | 1 | 2,900 ft |
| PAAX CXC | Chitina | CHITINA, AK | 556 ft | 1 | 2,850 ft |
| MYK | May Creek | MAY CREEK, AK | 1,681 ft | 1 | 2,700 ft |
| PAAN AK7 | Gold King Creek | FAIRBANKS, AK | 1,720 ft | 1 | 2,558 ft |
| K55 | Thompson Pass | VALDEZ, AK | 2,080 ft | 1 | 2,530 ft |
| PFTO 6K8 | Tok Junction | TOK, AK | 1,642 ft | 1 | 2,509 ft |
| PAAY CKX | Chicken | CHICKEN, AK | 1,640 ft | 1 | 2,500 ft |
| D66 | Delta Junction | DELTA JUNCTION, AK | 1,150 ft | 1 | 2,500 ft |
| PAGQ BGQ | Big Lake | BIG LAKE, AK | 162 ft | 1 | 2,450 ft |
| 5KS | Kasilof | KASILOF, AK | 125 ft | 1 | 2,400 ft |
| NIN | Ninilchik | NINILCHIK, AK | 276 ft | 1 | 2,400 ft |
| 9Z9 | Lawing | LAWING, AK | 484 ft | 1 | 2,355 ft |
| BYA | Boundary | BOUNDARY, AK | 2,940 ft | 1 | 2,325 ft |
| PASP SMU | Sheep Mountain | SHEEP MOUNTAIN, AK | 2,750 ft | 1 | 2,270 ft |
| 5BK | Black Rapids | BLACK RAPIDS, AK | 2,125 ft | 1 | 2,250 ft |
| Z93 | Copper Center 2 | COPPER CENTER, AK | 1,150 ft | 1 | 2,200 ft |
| JLA | Quartz Creek | COOPER LANDING, AK | 466 ft | 1 | 2,200 ft |
| A68 | Situk | YAKUTAT, AK | 60 ft | 1 | 2,150 ft |
| 6AK | Rainy Pass Lodge | RAINY PASS, AK | 1,900 ft | 1 | 2,100 ft |
| AQY | Girdwood | GIRDWOOD, AK | 164 ft | 1 | 2,095 ft |
| PATW TTW | Cantwell | CANTWELL, AK | 2,190 ft | 1 | 2,080 ft |
| CZO | Chistochina | CHISTOCHINA, AK | 1,860 ft | 1 | 2,060 ft |
| 5HO | Hope | HOPE, AK | 193 ft | 1 | 2,040 ft |
| PAFL TNW | Tin Creek | FAREWELL LAKE, AK | 1,185 ft | 1 | 2,000 ft |
| Z90 | Stampede | KANTISHNA, AK | 1,852 ft | 1 | 1,960 ft |
| PAXK PXK | Paxson | PAXSON, AK | 2,653 ft | 1 | 1,900 ft |
| 2K5 | Telida | TELIDA, AK | 650 ft | 1 | 1,900 ft |
| PAAH 5Z5 | Kantishna | KANTISHNA, AK | 1,578 ft | 1 | 1,887 ft |
| PASO SOV | Seldovia | SELDOVIA, AK | 29 ft | 1 | 1,845 ft |
| AK1 | Butte Muni | PALMER, AK | 64 ft | 1 | 1,806 ft |
| 2AN | Tischner Air | ANDERSON, AK | 647 ft | 1 | 1,520 ft |
| PAWR IEM | Whittier | WHITTIER, AK | 39 ft | 1 | 1,480 ft |
| KGZ | Glacier Creek | GLACIER CREEK, AK | 2,380 ft | 1 | 1,400 ft |
| 8KA | Tatitna | TATITNA, AK | 1,490 ft | 1 | 1,200 ft |
| Z14 | Tazlina | TAZLINA, AK | 2,450 ft | 1 | 1,200 ft |
| 01A | Purkeypile | PURKEYPILE, AK | 2,041 ft | 1 | 1,176 ft |
| A13 | Bold | ANCHORAGE, AK | 900 ft | 1 | 1,000 ft |
| AK0 | Jakes Bar | MCCARTHY, AK | 1,074 ft | 1 | 1,000 ft |
| 4Z9 | Jakolof Bay | JAKOLOF BAY, AK | 5 ft | 1 | 1,000 ft |
| 2Z3 | Eva Creek | EVA CREEK, AK | 2,817 ft | 1 | 950 ft |
| 4Z5 | Horsfeld | HORSFELD, AK | 3,620 ft | 1 | 900 ft |
| 9AK | Totatlanika River | TOTATLANIKA RIVER, AK | 2,717 ft | 1 | 780 ft |
74 public-use airports within this chart's coverage, ordered by runway length. A further 220 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Alaska is available as a single 140.9 MB archive (594 charts) — see the Alaska airports.
It spans 59.4°N to 64.3°N and 153.8°W to 139.3°W. Airports on the sheet fall within Alaska. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (65.3 MB). Take the PDF to print it or read it on a second screen (133.3 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Seward to the south, McGrath to the west, Fairbanks to the north-west, Dawson to the north-east, Kodiak to the west and Juneau to the east. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
FAA public-domain products, mirrored unmodified. Fly Away Simulation is not affiliated with or endorsed by the FAA. Chart licensing and terms.
