FSX / P3D

FSX GippsAero GA-8 Airvan

GippsAero GA-8 Airvan brings Brian Gladden’s rugged utility single into Microsoft Flight Simulator X with refreshed exterior and cabin textures, a tuned virtual cockpit-only workflow, updated flight dynamics, and improved sounds. Two variants model Lycoming IO-540 and turbocharged TIO-540 power, supported by pop-up mini-panel, engine monitoring display, and a functional overhead and pedestal.

4.9k downloads 125.24 MB Scanned clean
Flight Simulator X Prepar3D

This is the second version of FSX port-over of Brian Gladden’s GA8 Airvan, initially designed for FS9. With permission of the original model designer, there were made some improvements of exterior and interior texture, virtual cockpit, aircraft configuration, flight dynamics and sound files. The FSX aircraft is operated from VC only but has several auxiliary pop-up panels to expand control capabilities (mini-panel for external view flight; display, providing detailed engine operations features; pedestal panel with engine, pitch trim, wing flaps and parking brake controls).

Airvan in flight​The FSX GyppsAero Airvan package represents two plane options - GA-8 with Lycoming IO-540- A1K1 engine and turbocharged GA-8 TC-320 with Lycoming TIO-540-AH1A. Unfortunately, due to the original model limitations, the second option exterior is not authentic visually, as the turbocharged plane has a 3-blade propeller. Meanwhile, MP/FP and RPM gauges for both engine options looks properly.

For detailed aircraft technical and operational information refer to the “Documents” folder, containing type certificates, pilot operations and service manuals and some promotion articles.

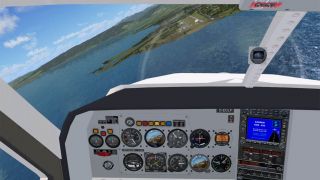

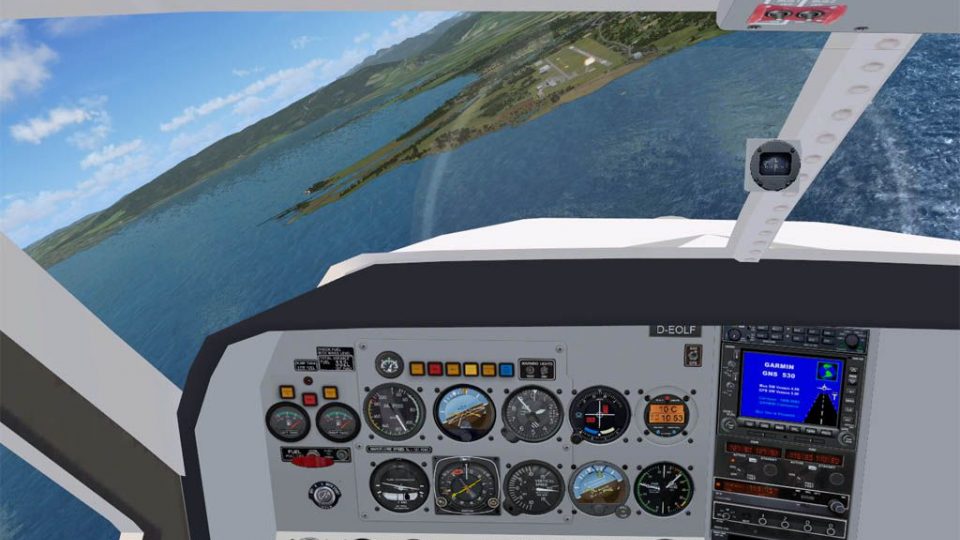

This panel option is close to the basic factory one (the real plane basic IFR avionics package is Honey- well Bendix/King: a KMA-24 audio panel, a KMD-150 GPS/multifunction display, a KX-165 nav/com, a KY-97A com, and a KT-76C digital transponder).

Overhead Panel

The overhead panel contains a set of electric switches and circuit breakers to provide power for avionics, exterior and interior lights, engine start, de-ice and auxiliary support systems. Its configuration can be different and depends on the proper combination of the onboard equipment installed at the exact plane. All switches are functional.

The real plane has a two-bus power supply system. The bus 1 master switch is simulated by battery switch and bus 2 one - by alternator switch.

Pitch Trim Wheel and Flaps

Controlled through Pedestal pop-up panel (Shift+4). The pitch trim wheel moves the horizontal stabilizer, which is used as pitch trim surface (2 degrees up and 5 - down). The wing flaps have two positions (14 and 38 degrees) and operated manually by a handle. Depending on loading pattern (pax, combi or cargo) the proper use of the pitch trim and flaps is important for smooth take-off and landing.

Ready to download GippsAero GA-8 Airvan?

Free for all simmers · 125.24 MB · Scanned clean

File information

Filename
fsx_ga8_airvan_v2.zip
File size
125.24 MB
Virus scan
Clean (scanned with ClamAV)
Access
Freeware
Content rating
Everyone

Download speed: Free tier is capped at 0.5 Mbps (this file takes approximately 35 mins at the cap). PRO members download at full line speed.

This is a freeware file — use is subject to our freeware copyright terms.

How to install this mod

FSX / P3D add-on

  1. Extract the downloaded archive

    Use 7-Zip (free) or WinRAR to extract the ZIP to a temporary folder. Don't install while still zipped — the simulator can't read inside ZIP files.

  2. Place files per the readme

    Most FSX add-ons go into one of: SimObjects\Airplanes\, Addon Scenery\, Effects\, or Gauges\.

  3. Always read the included readme

    Every mod ships with a readme.txt or README file. It tells you exactly where files go, what dependencies are needed, and any quirks specific to this add-on.
Still stuck? The readme included with the file is the authoritative source for this specific mod. Visit our Flight School tutorials or ask in our Q&A forum.

What’s inside this archive

The archive fsx_ga8_airvan_v2.zip has 2052 files and directories contained within it.

File Contents

This list displays the first 500 files in the package. If the package has more, you will need to download it to view them.

Filename/Directory File Date File Size
Documents07.24.160 B
FS-450 Fuel Flow.pdf05.25.16393.51 kB
GA8_POH.pdf05.23.161.56 MB
GA8_POH_service_letter_hot_engine_start.pdf07.15.1639.14 kB
GA8_Service Manual.pdf05.21.162.32 MB
GA8Airvan_Features_and_Specifications.pdf05.22.16853.96 kB
Mini Hercules.pdf05.24.161.79 MB
TAR_Revision 4 Gippsland_GA8.pdf05.21.1678.90 kB
Turbo-Airvan-Spec-Sheet.pdf05.25.161019.55 kB
Type_Certificate_GA8_FAA_TCDS.pdf05.21.16267.08 kB
Type_Certificate_va503.pdf05.21.16372.30 kB
GA-8_thumb_L.jpg07.24.1689.44 kB

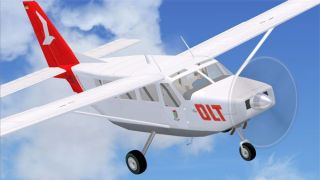

GA-8_thumb_S.jpg07.24.1649.22 kB
liveries07.24.160 B

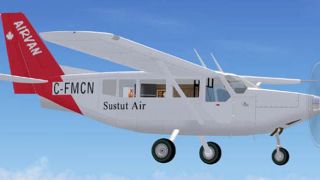

C-FMCN.jpg07.22.1639.77 kB

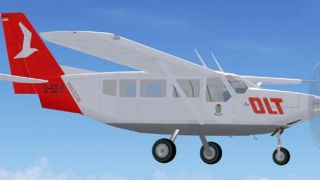

D-EOLF.jpg07.22.1639.42 kB

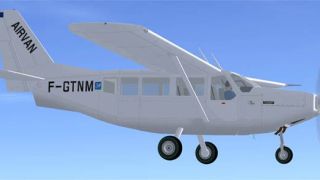

F-GTNM.jpg07.22.1663.05 kB

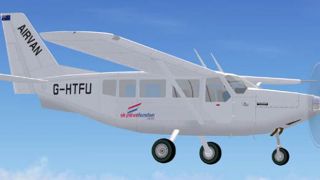

G-HTFU.jpg07.22.1664.44 kB

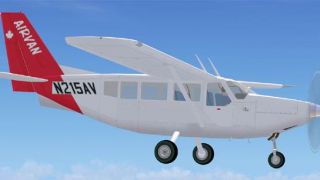

N215AV.jpg07.22.1639.00 kB

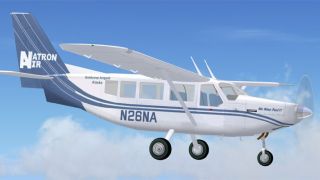

N26NA.jpg07.23.1676.83 kB

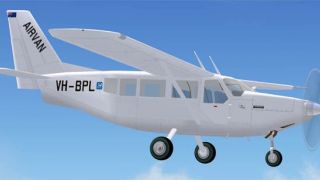

VH-BPL.jpg07.22.16136.59 kB

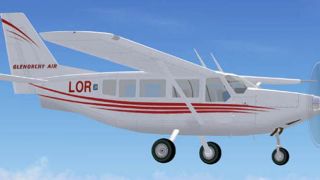

ZK-LOR.jpg07.22.1640.10 kB

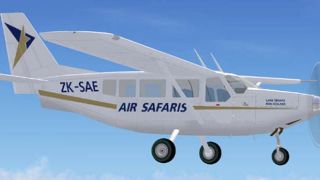

ZK-SAE.jpg07.22.1638.59 kB
