Terminal Procedures

E45 — Groveland/Yosemite

GROVELAND, CA · 3 FAA charts · cycle 6 Aug 2026

Elevation 2,932 ft1 runwayLongest 3,624 ftNon-toweredFuel 100LL avgasVolume SW-2Not for navigation

2 published instrument approaches: 1 RNAV (GPS), serving 2 runway ends.

All 3 E45 charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 3 charts is roughly 19 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

	Chart	Amendment

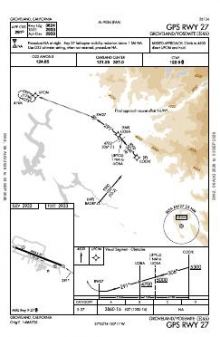

	GPS RWY 27	0E	PDF

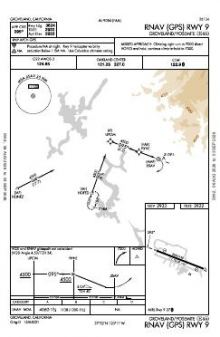

	RNAV (GPS) RWY 09	0D	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

E45 airport information

Control tower: No
Attendance: Unattended
ARTCC: Oakland Center
Flight service: Rancho Murieta
NOTAM facility: RIU (NOTAM-D available)
Magnetic variation: 15E
Beacon: White-green (lighted land airport), sunset to sunrise
Wind indicator: Lighted
Segmented circle: Yes
Fuel: 100LL avgas
Bottled oxygen: None
Parking: Tie-downs
Activated: February 1970
Airport area: 52 acres
Ownership: Publicly owned
Sectional: San Francisco
Last FAA inspection: 2025-01-28

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

E45 radio frequencies

Service	Frequency	Call sign
CTAF	122.9

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at E45, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
09/27	3,624 ft	50 ft	Asphalt Good	Medium intensity
09 110°T	VASI (2-bar) 4.5°
27 290°T	PAPI (2-box) 4° · right-hand circuit

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where E45 is

Latitude, longitude37.8616670, -120.1785560

Elevation2,932 ft

From Groveland3 nm NE

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for E45

THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
TREES IN APCHS ARE TO BE TOPPED OR REMOVED.
TRANSIENT PARKING AVBL.
ACTVT MIRL RY 09/27 - CTAF.
OFFICE AT COLUMBIA, CA ARPT.
200 FT GRVL RY SAFETY AREA WEST END; 100 FT GRVL RY SAFETY AREA EAST END.
PAPI RY 27 UNUSABLE BYD 7 DEG LEFT AND RIGHT OF CENTERLINE.
FEE FOR OVERNIGHT PARKING.
(E81) RWY EXIT LGTS.
DEER ON & INVOF ARPT AT ALL TIMES.
FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
SAYWEATHER ADZY WX SYS AVBL. NOT AN FAA AWOS. CTAF ACTIVATION: 5 CLICKS FOR RWY LGTS, 4 CLICKS FOR FULL WX, 3 CLICKS FOR WINDS.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near E45

ID	Airport	City	Distance	Charts
O22	Columbia	COLUMBIA, CA	15 nm NW	4
KMPI	Mariposa-Yosemite	MARIPOSA, CA	22 nm S	4
KCPU	Calaveras County/Maury Rasmussen Fld	SAN ANDREAS, CA	28 nm NW	3
O27	Oakdale	OAKDALE, CA	30 nm W	3
O15	Turlock Muni	TURLOCK, CA	33 nm SW	2
KMER	Castle	ATWATER, CA	34 nm SW	7
KMCE	Merced Yosemite Rgnl	MERCED, CA	38 nm SW	5
KMOD	Modesto City-County-Harry Sham Fld	MODESTO, CA	39 nm W	5

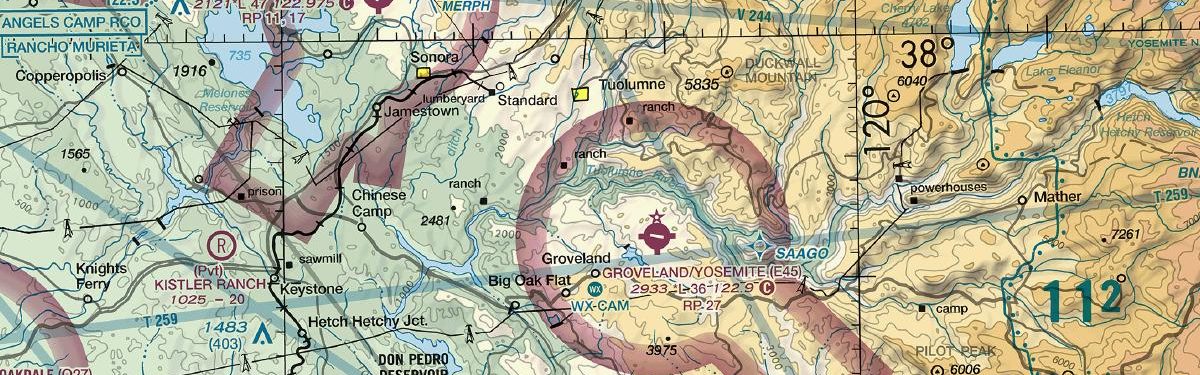

VFR charts covering E45

San FranciscoSectional Chart

Common questions about E45

What charts are available for E45?

3 current FAA charts for Groveland/Yosemite, including 2 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for E45?

CTAF 122.9. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at E45?

Groveland/Yosemite has 1 runway. The longest is 09/27 at 3,624 ft by 50 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does E45 have an ILS approach?

No ILS is published. In total E45 has 2 published instrument approaches, of which 1 are RNAV (GPS).

Is E45 a towered airport?

No — Groveland/Yosemite has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these E45 charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
