ATWATER, CA · 7 FAA charts · cycle 6 Aug 2026
3 published instrument approaches: 1 ILS approach, 2 RNAV (GPS), serving 2 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

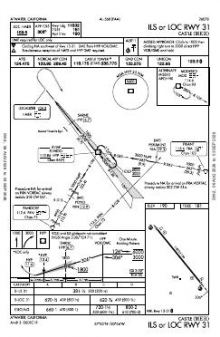

 | ILS OR LOC RWY 31 | 3 | |

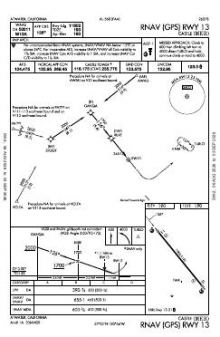

 | RNAV (GPS) RWY 13 | 1A | |

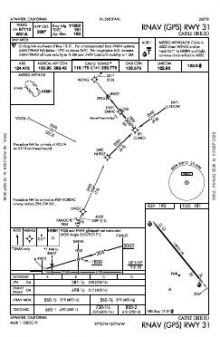

 | RNAV (GPS) RWY 31 | 1 |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
| Chart | Amendment | ||
|---|---|---|---|
 | HOT SPOT | — |
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 118.175 | |
| UNICOM | 122.95 | |
| Ground | 133.575 | Castle |
| ATIS | 124.475 | Castle |
| Approach | 120.95 | Castle |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 13/31 | 11,802 ft | 150 ft | Asphalt over concrete Good | High intensity |
| 13 141°T | PAPI (4-box) 3° · ALSF-1 approach lighting | |||
| 31 321°T | LOC/GS · PAPI (4-box) 3° · ALSF-1 approach lighting · right-hand circuit | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
37.3804840, -120.5681860
190 ft3 nm NEPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Castle’s single 11,802 ft runway has procedures serving both ends, rather than concentrating instrument access on one direction. The mix of ILS, localiser and RNAV (GPS) guidance provides both ground-based and satellite-based approaches, with precision guidance included. Its runway length is the defining physical feature, giving aircraft requiring a long landing or take-off distance considerably more available pavement than a short general-aviation strip.
Merced Yosemite Regional and Modesto City-County-Harry Sham Field have the closest comparable breadth of published procedure coverage, while Turlock Municipal’s set is notably thinner. Los Banos Municipal and Oakdale also have smaller collections. The San Francisco Sectional adds the broader visual-navigation setting and surrounding aeronautical detail not conveyed by Castle’s airport diagram and terminal procedure charts.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KMCE | Merced Yosemite Rgnl | MERCED, CA | 6 nm SE | 5 |
| O15 | Turlock Muni | TURLOCK, CA | 9 nm NW | 2 |
| KMOD | Modesto City-County-Harry Sham Fld | MODESTO, CA | 24 nm NW | 5 |
| KLSN | Los Banos Muni | LOS BANOS, CA | 24 nm SW | 3 |
| O27 | Oakdale | OAKDALE, CA | 25 nm NW | 3 |
| KMPI | Mariposa-Yosemite | MARIPOSA, CA | 26 nm E | 4 |
| F34 | Firebaugh | FIREBAUGH, CA | 32 nm S | 2 |
| KMAE | Madera Muni | MADERA, CA | 32 nm SE | 4 |
7 current FAA charts for Castle, including 3 instrument approachs, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Ground 133.575; ATIS 124.475; CTAF 118.175; UNICOM 122.95. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Castle has 1 runway. The longest is 13/31 at 11,802 ft by 150 ft, asphalt over concrete. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 1 ILS procedure is published. In total KMER has 3 published instrument approaches, of which 2 are RNAV (GPS).

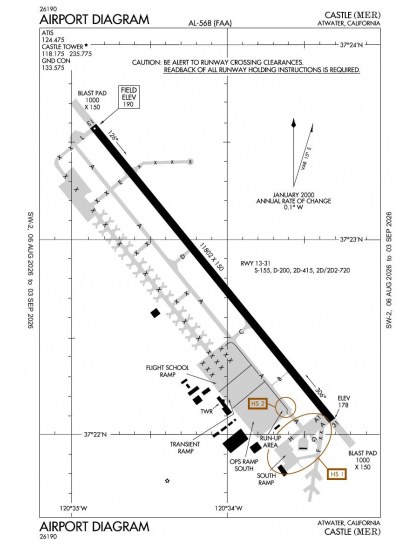

The official FAA airport diagram for Castle is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.
Yes. Castle has an operating control tower, within Oakland Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
