Terminal Procedures

KAAO — Colonel James Jabara

WICHITA, KS · 6 FAA charts · cycle 6 Aug 2026

FAA AAOElevation 1,420 ft1 runwayLongest 6,101 ftNon-toweredFuel 100LL avgas, Jet AVolume NC-2Not for navigation

4 published instrument approaches: 1 ILS approach, 3 RNAV (GPS), serving 2 runway ends.

All 6 KAAO charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 6 charts is roughly 38 sec of downloading — they queue one behind another.
PRO members only

Instrument approach procedures

ChartAmendment

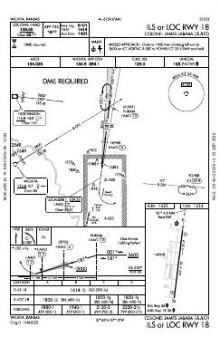

ILS OR LOC RWY 18 chart previewILS OR LOC RWY 180DPDF

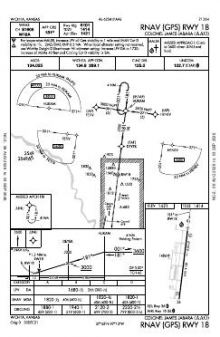

RNAV (GPS) RWY 18 chart previewRNAV (GPS) RWY 180DPDF

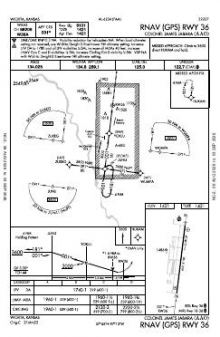

RNAV (GPS) RWY 36 chart previewRNAV (GPS) RWY 360CPDF

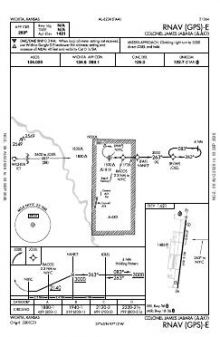

RNAV (GPS)-E chart previewRNAV (GPS)-E0BPDF

Takeoff and alternate minimums

ChartAmendment
TAKEOFF MINIMUMS chart previewTAKEOFF MINIMUMS—PDF
ALTERNATE MINIMUMS chart previewALTERNATE MINIMUMS—PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

KAAO airport information

Control tower
No
Attendance
Continuous
ARTCC
Kansas City Center
Flight service
Wichita
NOTAM facility
AAO (NOTAM-D available)
Magnetic variation
6E
Beacon
White-green (lighted land airport), sunset to sunrise
Wind indicator
Lighted
Segmented circle
Yes
Fuel
100LL avgas, Jet A
Airframe service
Major
Powerplant service
Major
Bottled oxygen
None
Parking
Tie-downs
Customs
Landing rights airport
Activated
July 1944
Airport area
819 acres
Ownership
Publicly owned
Sectional
Wichita
Last FAA inspection
2025-10-01

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KAAO radio frequencies

ServiceFrequencyCall sign
CTAF122.7
Clearance delivery125.0Wichita
Approach134.8Wichita

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

6,101 × 100 ft1836N500 ft
Runway layout at KAAO, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.
RunwayLengthWidth SurfaceLighting
18/366,101 ft100 ftConcrete GoodMedium intensity
  18 187°TILS/DME · PAPI (4-box) 3° · MALSR approach lighting · right-hand circuit
  36 7°TPAPI (4-box) 3°

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KAAO is

Latitude, longitude37.7475740, -97.2211180
Elevation1,420 ft
From Wichita9 nm NE

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KAAO

  • RWY 18/36 HAS NO OBJECTION.
  • ACTVT MIRL RWY 18/36, MALSR RWY 18, REIL RWY 36 - CTAF.
  • ATTENDED CONTINUOUSLY.
  • MCCONNELL AFB 9 MILES S AND BEECH FACTORY ARPT 3 MILES S.
  • BEECH FACTORY ARPT CLASS D AIRSPACE 1 MILE S RWY 18.
  • SOUTHERLY AND SOUTHEASTERLY VFR ARR AND DEP NOT RECOMMENDED WITHOUT ATC RADAR SVCS DUE TO BEECH FACTORY ARPT AND MCCONNELL AFB CLASS D AIRSPACE.
  • VFR ARR AND DEP RECOMMENDED TO RMN AT OR BLW 2,500 MSL WITHIN 5 MILES DUE TO HEAVY MIL TFC 3,000 MSL.
  • NO LINE OF SIGHT BETWEEN RWY ENDS.
  • RWY 36 DSGND CALM WIND RWY.
  • ENGINE RUN-UPS NOT PERMITTED ON ACFT RAMPS.
  • PPR FOR ACFT CARRYING CLASS 1 DIVISION 1.1, 1.2 OR 1.3 EXPLOSIVES AS DEFINED BY 49 CFR 173.50.
  • BIRDS ON AND IN VCNTY OF ARPT.
  • MIGRATORY BIRDS ON AND INVOF OF ARPT.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Approach coverage on the single runway

Colonel James Jabara’s four approach plates serve both ends of Runway 18/36, so the procedure set is not concentrated on one arrival direction. The mix combines RNAV (GPS) coverage with ILS and localiser capability. With only one 6,101 ft runway, however, there is no second alignment represented in the chart set, and no separate airport diagram is published.

Nearby chart coverage and VFR context

Among nearby fields, Mc Connell AFB has a substantially broader published procedure set. Beech Factory and Augusta Municipal are closer to Jabara’s overall chart count, while Lloyd Stearman Field and Cessna Aircraft Field have much thinner coverage. The Kansas City and Wichita sectional charts add the wider VFR context that the airport-specific instrument procedures do not show.

Airports near KAAO

IDAirportCity DistanceCharts
KBECBeech FactoryWICHITA, KS3 nm S4
1K1Lloyd Stearman FldBENTON, KS5 nm E2
KCEACessna Acft FldWICHITA, KS6 nm S1
KIABMc Connell AFBWICHITA, KS8 nm S14
3AUAugusta MuniAUGUSTA, KS8 nm SE4
K50Cook AirfieldROSE HILL, KS11 nm S2
KICTWichita Dwight D Eisenhower NtlWICHITA, KS12 nm SW22
KEWKNewton-City-CountyNEWTON, KS19 nm N5

VFR charts covering KAAO

Kansas CitySectional ChartWichitaSectional Chart

Common questions about KAAO

What charts are available for KAAO?

6 current FAA charts for Colonel James Jabara, including 4 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KAAO?

CTAF 122.7; Clearance delivery 125.0. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KAAO?

Colonel James Jabara has 1 runway. The longest is 18/36 at 6,101 ft by 100 ft, concrete. Full runway dimensions, lighting and approach aids are listed on this page.

Does KAAO have an ILS approach?

Yes — 1 ILS procedure is published. In total KAAO has 4 published instrument approaches, of which 3 are RNAV (GPS).

Is KAAO a towered airport?

No — Colonel James Jabara has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these KAAO charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
