BAKERSFIELD, CA · 13 FAA charts · cycle 6 Aug 2026
6 published instrument approaches: 1 ILS approach, 4 RNAV (GPS), 1 VOR, serving 4 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

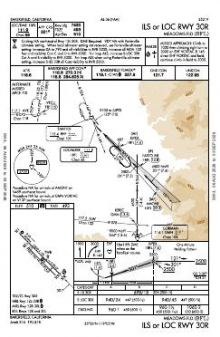

 | ILS OR LOC RWY 30R | 31A | |

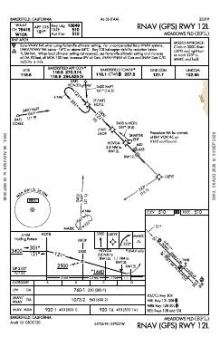

 | RNAV (GPS) RWY 12L | 1D | |
 | RNAV (GPS) RWY 12R | 0 | |

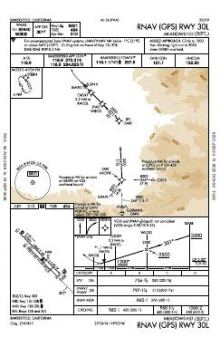

 | RNAV (GPS) RWY 30L | 0 | |

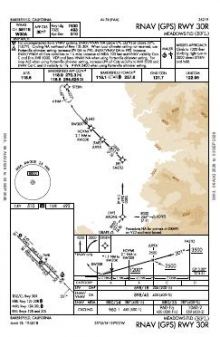

 | RNAV (GPS) RWY 30R | 2B | |
 | VOR-A | 0B |
| Chart | Amendment | ||
|---|---|---|---|

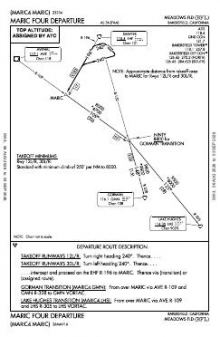

 | MARIC FOUR | — | |
 | OILDALE ONE | — | |
 | WRING FIVE | — |
| Chart | Amendment | ||
|---|---|---|---|

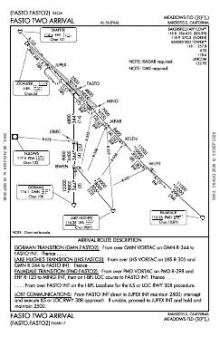

 | FASTO TWO | — |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 118.1 | |
| UNICOM | 122.95 | |
| Ground | 121.7 | Bakersfield |
| ATIS | 118.6 | Bakersfield |
| Approach | 118.8South118.9North119.075 | Bakersfield |
| Departure | 126.45North/South | Bakersfield |
| Emergency | 121.5 | Bakersfield |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 12L/30R | 10,849 ft | 150 ft | Asphalt Good | High intensity |
| 12L 135°T | PAPI (4-box) 3° | |||
| 30R 315°T | ILS/DME · PAPI (4-box) 3° · MALSR approach lighting · displaced threshold 3,419 ft · right-hand circuit | |||
| 12R/30L | 7,700 ft | 100 ft | Asphalt Excellent | Medium intensity |
| 12R 135°T | PAPI (4-box) 3° · right-hand circuit | |||
| 30L 315°T | PAPI (4-box) 3° · displaced threshold 1,499 ft | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
35.4338610, -119.0576670
509 ft3 nm NWPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
At Meadows Field, published approaches reach all four ends of the parallel runway pair, rather than concentrating instrument coverage on one direction or strip. RNAV (GPS) predominates, supplemented by ILS, localiser and VOR options. The runway lengths differ by 3,149 ft; for an aircraft requiring more than 7,700 ft of available runway, only 12L/30R can meet that basic length threshold.
Every listed nearby field has markedly thinner procedure coverage. Porterville Municipal has the fullest of those smaller chart sets, while Mefford Field has the thinnest. The Las Vegas and Los Angeles sectionals add broader VFR context beyond the airport diagram and procedure-specific instrument charts.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| L45 | Bakersfield Muni | BAKERSFIELD, CA | 7 nm SE | 4 |
| KMIT | Shafter-Minter Fld | SHAFTER, CA | 8 nm NW | 3 |
| KDLO | Delano Muni | DELANO, CA | 21 nm NW | 4 |
| KPTV | Porterville Muni | PORTERVILLE, CA | 36 nm N | 5 |
| KTLR | Mefford Fld | TULARE, CA | 45 nm N | 2 |
| KMHV | Mojave Air & Space Port/Rutan Fld | MOJAVE, CA | 50 nm SE | 9 |
| L71 | California City Muni | CALIFORNIA CITY, CA | 54 nm E | 4 |
| KVIS | Visalia Muni | VISALIA, CA | 56 nm N | 5 |
13 current FAA charts for Meadows Fld, including 6 instrument approachs, 3 departure procedures, 1 arrival procedure, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Ground 121.7; ATIS 118.6; CTAF 118.1; UNICOM 122.95. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Meadows Fld has 2 runways. The longest is 12L/30R at 10,849 ft by 150 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 1 ILS procedure is published. In total KBFL has 6 published instrument approaches, of which 4 are RNAV (GPS).

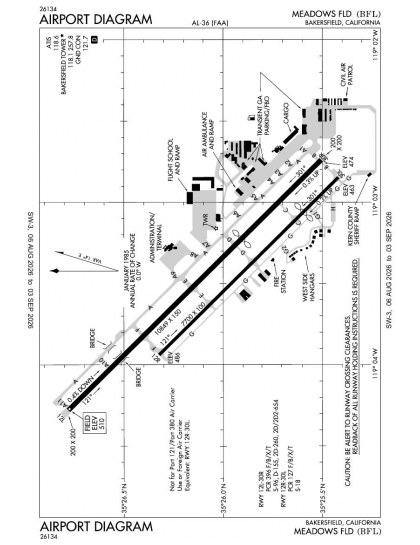

The official FAA airport diagram for Meadows Fld is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.
Yes. Meadows Fld has an operating control tower, within Los Angeles Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
