LAFAYETTE, IN · 8 FAA charts · cycle 6 Aug 2026
4 published instrument approaches: 1 ILS approach, 2 RNAV (GPS), 1 VOR, serving 2 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

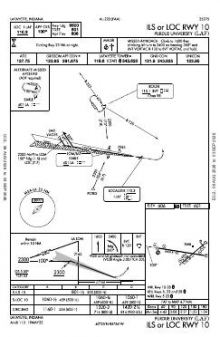

 | ILS OR LOC RWY 10 | 11D | |

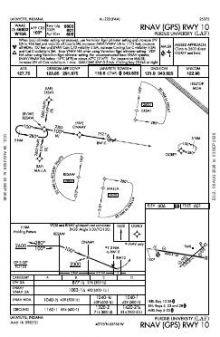

 | RNAV (GPS) RWY 10 | 1B | |

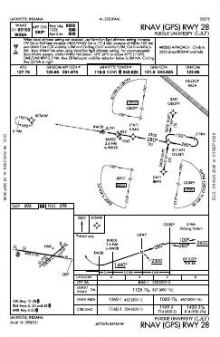

 | RNAV (GPS) RWY 28 | 1B | |

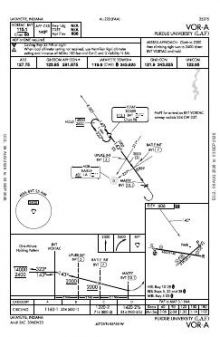

 | VOR-A | 26C |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
| Chart | Amendment | ||
|---|---|---|---|
 | LAHSO | — |
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 119.6 | |
| UNICOM | 122.95 | |
| Ground | 121.9 | Lafayette |
| ATIS | 127.75 | Lafayette |
| Approach | 123.85 | Lafayette |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 10/28 | 6,600 ft | 150 ft | Asphalt Good | High intensity |
| 10 99°T | ILS · PAPI (4-box) 3° · MALSR approach lighting | |||
| 28 279°T | VASI (4-bar) 3° | |||
| 05/23 | 4,225 ft | 100 ft | Asphalt Good | Medium intensity |
| 05 50°T | PAPI (2-box) 3° | |||
| 23 230°T | PAPI (2-box) 3° · displaced threshold 323 ft | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
40.4123040, -86.9368980
605 ft2 nm SWPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Instrument approaches serve only two of Purdue University Airport’s four runway ends. The four plates combine ILS and localiser coverage with two RNAV (GPS) procedures and a VOR option, providing both ground-based and satellite-based approaches but concentrating them on half of the available runway directions. The 6,600 ft runway offers 2,375 ft more length than runway 05/23, so runway selection materially changes the distance available.
Crawfordsville Regional’s six-chart set is the closest nearby comparison in breadth. Frankfort Clinton County Regional and White County each have four charts, while Delphi Municipal and Kentland Municipal have notably thinner coverage. The Chicago Sectional adds the wider visual-navigation context that airport diagrams and terminal procedures do not provide.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| 1I9 | Delphi Muni | DELPHI, IN | 14 nm NE | 3 |
| KFKR | Frankfort Clinton County Rgnl | FRANKFORT, IN | 19 nm SE | 4 |
| KMCX | White County | MONTICELLO, IN | 19 nm NE | 4 |
| KCFJ | Crawfordsville Rgnl | CRAWFORDSVILLE, IN | 26 nm S | 6 |
| 50I | Kentland Muni | KENTLAND, IN | 31 nm NW | 2 |
| KGGP | Logansport/Cass County | LOGANSPORT, IN | 31 nm NE | 3 |
| KDNV | Vermilion Rgnl | DANVILLE, IL | 33 nm SW | 6 |
| KRZL | Jasper County | RENSSELAER, IN | 34 nm N | 4 |
8 current FAA charts for Purdue University, including 4 instrument approachs, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Ground 121.9; ATIS 127.75; CTAF 119.6; UNICOM 122.95. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Purdue University has 2 runways. The longest is 10/28 at 6,600 ft by 150 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 1 ILS procedure is published. In total KLAF has 4 published instrument approaches, of which 2 are RNAV (GPS).

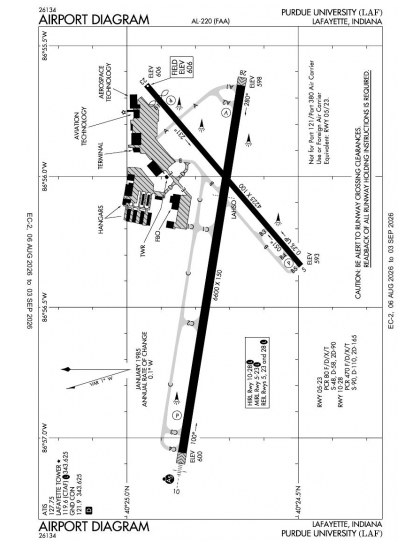

The official FAA airport diagram for Purdue University is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.
Yes. Purdue University has an operating control tower, within Chicago Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
