PORT ISABEL, TX · 4 FAA charts · cycle 6 Aug 2026
2 published instrument approaches: 1 RNAV (GPS), 1 VOR.
| Chart | Amendment | ||
|---|---|---|---|

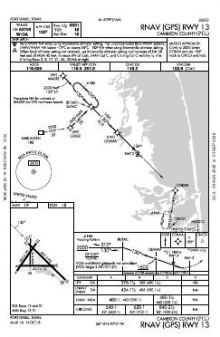

 | RNAV (GPS) RWY 13 | 1A | |

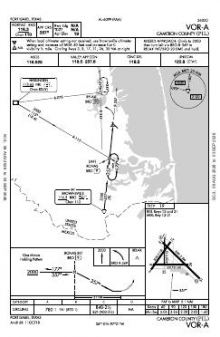

 | VOR-A | 6B |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 122.8 | |
| Clearance delivery | 119.2 | Valley |
| Approach | 119.5 | Valley |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 13/31 | 8,001 ft | 200 ft | Asphalt over concrete Good | Medium intensity |
| 13 135°T | PAPI (2-box) 2° | |||
| 31 315°T | PAPI (2-box) 3° | |||
| 08/26 | 5,317 ft | 150 ft | Concrete Poor | |
| 03/21 | 5,000 ft | 150 ft | Asphalt over concrete Poor | |
| 17/35 | 4,200 ft | 75 ft | Asphalt over concrete Good | |
Runway and approach-aid data from the FAA NASR 28-day subscription.
26.1661940, -97.3458890
18 ft10 nm NWPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Cameron County has eight runway ends, but both published approaches serve just one of them. The choice is between RNAV (GPS) and VOR procedures rather than coverage for different landing directions. With no published airport diagram, the chart set provides no dedicated view of the four-runway ground layout. Runway 13/31, at 8,001 ft, is substantially longer than the other three, which range from 4,200 to 5,317 ft.

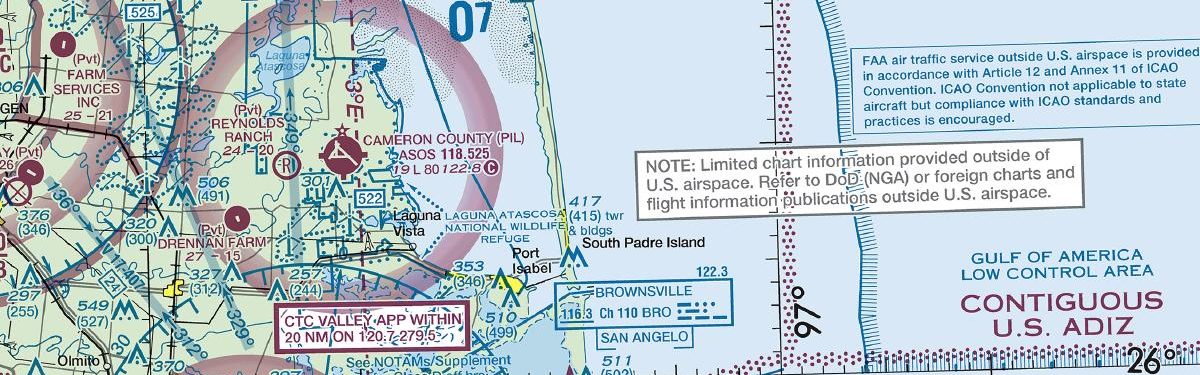

Nearby procedure coverage varies sharply. Valley International has the broadest set at 23 charts, while Brownsville/South Padre Island International and Mc Allen International also exceed Cameron County’s four-chart set. Mid Valley and South Texas International at Edinburg match it. The Brownsville Sectional supplies wider VFR context, while the US Gulf Coast Helicopter Route Chart adds helicopter-route coverage absent from the instrument procedures.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KBRO | Brownsville/South Padre Island Intl | BROWNSVILLE, TX | 16 nm S | 9 |
| KHRL | Valley Intl | HARLINGEN, TX | 17 nm W | 23 |
| KTXW | Mid Valley | WESLACO, TX | 34 nm W | 4 |
| KEBG | South Texas Intl At Edinburg | EDINBURG, TX | 45 nm W | 4 |
| KMFE | Mc Allen Intl | MC ALLEN, TX | 48 nm W | 10 |
4 current FAA charts for Cameron County, including 2 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
CTAF 122.8; Clearance delivery 119.2. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Cameron County has 4 runways. The longest is 13/31 at 8,001 ft by 200 ft, asphalt over concrete. Full runway dimensions, lighting and approach aids are listed on this page.
No ILS is published. In total KPIL has 2 published instrument approaches, of which 1 are RNAV (GPS).
Every published approach serves one runway end. There is no instrument procedure to the reciprocal direction, so an arrival in instrument conditions commits to that single approach direction regardless of the wind.
No — Cameron County has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.
4, which is why the chart set is as large as it is — each runway end that supports an instrument approach needs its own plates. The runway diagram on this page shows the layout to scale.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
