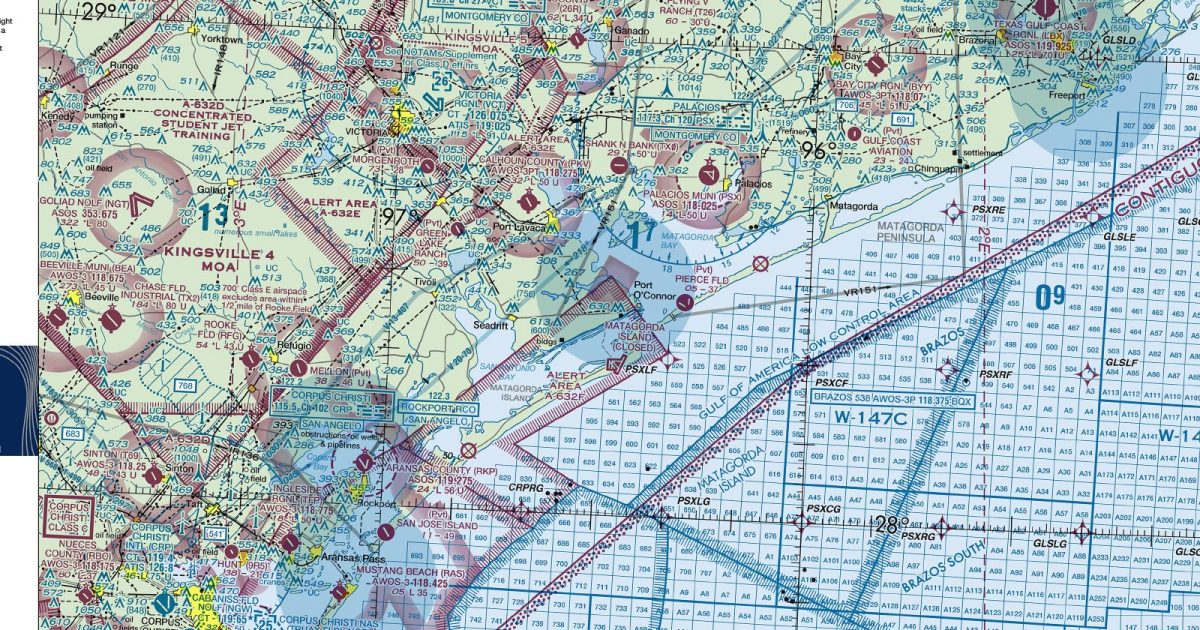

Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 36.2 MB | Download |
| Print-ready chart, no georeferencing | 77.7 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 77.7 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.
Go PROFrom South Texas to the eastern Gulf, this sheet follows the broad arc of the American coastline and reaches far into offshore waters. Its northern edge includes the low coastal plain from Texas through Louisiana, Mississippi and Alabama to the Florida Panhandle, while the southern extent covers a large part of the central Gulf. At roughly 780 nautical miles across, it brings long coastal and offshore routes onto one chart.
The western side combines South Texas scrub and plain country with a deeply indented shore. Farther east, the landscape becomes a complex sequence of bays, barrier islands, river mouths and extensive Louisiana wetlands before continuing along the narrower shores of Mississippi and Alabama. The eastern portion reaches the sandy coastline and shallow coastal waters of the Florida Panhandle. Much of the sheet is open water, making the contrast between broad Gulf crossings, marsh-fringed coast and limited inland terrain its defining geographical feature.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KAUS AUS | Austin-Bergstrom Intl | AUSTIN, TX | 541 ft | 5 | 12,250 ft |
| KVPS VPS | Eglin AFB/Destin-Ft Walton Beach | VALPARAISO/DESTIN-FT WALTON BEACH, FL | 84 ft | 2 | 12,004 ft |
| KIAH IAH | George Bush Intcntl/Houston | HOUSTON, TX | 95 ft | 5 | 12,001 ft |
| KSKF SKF | Kelly Fld | SAN ANTONIO, TX | 690 ft | 1 | 11,550 ft |
| KCWF CWF | Chennault Intl | LAKE CHARLES, LA | 16 ft | 1 | 10,702 ft |
| KMSY MSY | Louis Armstrong New Orleans Intl | NEW ORLEANS, LA | 3 ft | 4 | 10,104 ft |
| KECP ECP | Northwest Florida Beaches Intl | PANAMA CITY, FL | 68 ft | 1 | 10,000 ft |
| KBFM BFM | Mobile Intl | MOBILE, AL | 26 ft | 2 | 9,618 ft |
| KHRL HRL | Valley Intl | HARLINGEN, TX | 36 ft | 3 | 9,400 ft |
| KVCT VCT | Victoria Rgnl | VICTORIA, TX | 115 ft | 3 | 9,111 ft |
| KGPT GPT | Gulfport-Biloxi Intl | GULFPORT, MS | 28 ft | 2 | 9,002 ft |
| KEFD EFD | Ellington | HOUSTON, TX | 32 ft | 3 | 9,001 ft |
| KSAT SAT | San Antonio Intl | SAN ANTONIO, TX | 809 ft | 3 | 8,505 ft |
| KMOB MOB | Mobile Rgnl | MOBILE, AL | 218 ft | 5 | 8,502 ft |
| KHSA HSA | Stennis Intl | BAY ST LOUIS, MS | 22 ft | 1 | 8,498 ft |
| KCEW CEW | Bob Sikes | CRESTVIEW, FL | 213 ft | 1 | 8,006 ft |
| KARA ARA | Acadiana Rgnl | NEW IBERIA, LA | 24 ft | 3 | 8,002 ft |
| KPIL PIL | Cameron County | PORT ISABEL, TX | 18 ft | 4 | 8,001 ft |
| TX2 | Chase Fld Industrial | BEEVILLE, TX | 184 ft | 1 | 8,000 ft |
| KLFT LFT | Lafayette Rgnl/Paul Fournet Fld | LAFAYETTE, LA | 40 ft | 3 | 8,000 ft |
| KSGR SGR | Sugar Land Rgnl | HOUSTON, TX | 81 ft | 1 | 8,000 ft |
| KHOU HOU | William P Hobby | HOUSTON, TX | 46 ft | 3 | 7,602 ft |
| KCRP CRP | Corpus Christi Intl | CORPUS CHRISTI, TX | 46 ft | 2 | 7,510 ft |
| KCXO CXO | Conroe/North Houston Rgnl | HOUSTON, TX | 244 ft | 2 | 7,501 ft |
| KBTR BTR | Baton Rouge Metro, Ryan Fld | BATON ROUGE, LA | 69 ft | 3 | 7,500 ft |
| KBRO BRO | Brownsville/South Padre Island Intl | BROWNSVILLE, TX | 22 ft | 2 | 7,399 ft |
| KMFE MFE | Mc Allen Intl | MC ALLEN, TX | 107 ft | 2 | 7,120 ft |
| KDWH DWH | David Wayne Hooks Meml | HOUSTON, TX | 152 ft | 7 | 7,009 ft |
| KPNS PNS | Pensacola Intl | PENSACOLA, FL | 120 ft | 2 | 7,004 ft |
| KCLL CLL | Easterwood Fld | COLLEGE STATION, TX | 320 ft | 2 | 7,000 ft |
| KLBX LBX | Texas Gulf Coast Rgnl | ANGLETON/LAKE JACKSON, TX | 25 ft | 1 | 7,000 ft |
| KJKA JKA | Gulf Shores Intl/Jack Edwards Fld | GULF SHORES, AL | 17 ft | 2 | 6,962 ft |
| KNEW NEW | Lakefront | NEW ORLEANS, LA | 7 ft | 3 | 6,879 ft |
| KBPT BPT | Jack Brooks Rgnl | BEAUMONT/PORT ARTHUR, TX | 14 ft | 2 | 6,751 ft |
| KTME TME | Houston Exec | HOUSTON, TX | 165 ft | 1 | 6,610 ft |
| KCQF CQF | H L Sonny Callahan | FAIRHOPE, AL | 91 ft | 1 | 6,604 ft |
| KHUM HUM | Houma-Terrebonne | HOUMA, LA | 8 ft | 2 | 6,509 ft |
| KBAZ BAZ | New Braunfels Ntl | NEW BRAUNFELS, TX | 658 ft | 2 | 6,503 ft |
| KHDC HDC | Hammond Northshore Rgnl | HAMMOND, LA | 46 ft | 2 | 6,502 ft |
| KPQL PQL | Trent Lott Intl | PASCAGOULA, MS | 16 ft | 1 | 6,501 ft |
| KLCH LCH | Lake Charles Rgnl | LAKE CHARLES, LA | 14 ft | 2 | 6,500 ft |
| KGAO GAO | South Lafourche Leonard Miller Jr | GALLIANO, LA | 0 ft | 2 | 6,500 ft |
| KHYI HYI | San Marcos Rgnl | AUSTIN, TX | 594 ft | 3 | 6,330 ft |
| KEDC EDC | Austin Exec | AUSTIN, TX | 620 ft | 2 | 6,025 ft |
| KBKS BKS | Brooks County | FALFURRIAS, TX | 111 ft | 2 | 6,006 ft |
| KCOT COT | Cotulla-La Salle County | COTULLA, TX | 474 ft | 1 | 6,005 ft |
| KERV ERV | Kerrville Muni/Louis Schreiner Fld | KERRVILLE, TX | 1,616 ft | 2 | 6,004 ft |
| 11R | Brenham Muni | BRENHAM, TX | 317 ft | 1 | 6,003 ft |
| KTXW TXW | Mid Valley | WESLACO, TX | 69 ft | 1 | 6,002 ft |
| KHDO HDO | South Texas Rgnl At Hondo | HONDO, TX | 930 ft | 4 | 6,002 ft |
| KMAI MAI | Marianna Muni | MARIANNA, FL | 110 ft | 2 | 6,001 ft |
| KGLS GLS | Scholes Intl At Galveston | GALVESTON, TX | 5 ft | 2 | 6,001 ft |
| KIKG IKG | Kleberg County | KINGSVILLE, TX | 130 ft | 1 | 6,000 ft |
| KOPL OPL | St Landry Parish | OPELOUSAS, LA | 74 ft | 2 | 5,999 ft |
| KALI ALI | Alice Intl | ALICE, TX | 178 ft | 2 | 5,997 ft |
| KDZB DZB | Horseshoe Bay Resort | HORSESHOE BAY, TX | 1,093 ft | 1 | 5,977 ft |
| KRKP RKP | Aransas County | ROCKPORT, TX | 23 ft | 2 | 5,608 ft |
| 1R8 | Bay Minette Muni | BAY MINETTE, AL | 248 ft | 1 | 5,500 ft |
| KJAS JAS | Jasper County/Bell Fld | JASPER, TX | 212 ft | 1 | 5,500 ft |
| KORG ORG | Orange County | ORANGE, TX | 13 ft | 2 | 5,500 ft |
| KDRI DRI | Beauregard Rgnl | DE RIDDER, LA | 201 ft | 2 | 5,494 ft |
| KAAF AAF | Apalachicola Rgnl-Cleve Randolph Fld | APALACHICOLA, FL | 19 ft | 3 | 5,425 ft |
| KPTN PTN | Harry P Williams Meml | PATTERSON, LA | 8 ft | 2 | 5,399 ft |
| KBCR BCR | Tri-County | BONIFAY, FL | 86 ft | 1 | 5,398 ft |
| KAPS APS | Port Of South Louisiana Exec Rgnl | RESERVE, LA | 6 ft | 1 | 5,151 ft |
| KBYY BYY | Bay City Rgnl | BAY CITY, TX | 44 ft | 1 | 5,107 ft |
| 54T | Rwj Airpark | BAYTOWN, TX | 33 ft | 3 | 5,035 ft |
| T30 | Mc Kinley Fld | PEARSALL, TX | 586 ft | 1 | 5,027 ft |
| 5C1 | Boerne Stage Airfield | SAN ANTONIO, TX | 1,383 ft | 1 | 5,006 ft |
| KUTS UTS | Huntsville Muni | HUNTSVILLE, TX | 362 ft | 1 | 5,005 ft |
| KPKV PKV | Calhoun County | PORT LAVACA, TX | 32 ft | 2 | 5,004 ft |
| KGTU GTU | Georgetown Exec | GEORGETOWN, TX | 789 ft | 2 | 5,004 ft |
| KARM ARM | Wharton Rgnl | WHARTON, TX | 100 ft | 1 | 5,004 ft |
| KHZR HZR | False River Rgnl | NEW ROADS, LA | 39 ft | 1 | 5,003 ft |
| KHBV HBV | Jim Hogg County | HEBBRONVILLE, TX | 662 ft | 1 | 5,003 ft |
| KREG REG | Louisiana Rgnl | GONZALES, LA | 14 ft | 1 | 5,003 ft |
| 60R | Navasota Muni | NAVASOTA, TX | 229 ft | 1 | 5,003 ft |
| KBXA BXA | George R Carr Meml Air Fld | BOGALUSA, LA | 119 ft | 1 | 5,002 ft |
| T82 | Gillespie County | FREDERICKSBURG, TX | 1,694 ft | 1 | 5,002 ft |
| KAXH AXH | Houston/Southwest | HOUSTON, TX | 68 ft | 1 | 5,002 ft |
| 3R7 | Jennings | JENNINGS, LA | 22 ft | 3 | 5,002 ft |
| TX0 | Shank N Bank | LA WARD, TX | 29 ft | 1 | 5,002 ft |
| KASD ASD | Slidell | SLIDELL, LA | 28 ft | 1 | 5,002 ft |
| KBMQ BMQ | Burnet Muni/Kate Craddock Fld | BURNET, TX | 1,283 ft | 1 | 5,001 ft |
| KCVB CVB | Castroville Muni | CASTROVILLE, TX | 773 ft | 1 | 5,001 ft |
| 6R3 | Cleveland Muni | CLEVELAND, TX | 150 ft | 1 | 5,001 ft |
| KDTS DTS | Destin Exec | DESTIN, FL | 22 ft | 1 | 5,001 ft |
| 4R7 | Eunice | EUNICE, LA | 42 ft | 1 | 5,001 ft |
| KPSX PSX | Palacios Muni | PALACIOS, TX | 14 ft | 3 | 5,001 ft |
| KUXL UXL | Southland Fld | SULPHUR, LA | 10 ft | 1 | 5,001 ft |
| KIYA IYA | Abbeville Chris Crusta Meml | ABBEVILLE, LA | 15 ft | 2 | 5,000 ft |
| KACP ACP | Allen Parish | OAKDALE, LA | 107 ft | 1 | 5,000 ft |
| 3T5 | Fayette Rgnl Air Center | LA GRANGE, TX | 324 ft | 1 | 5,000 ft |
| KMJD MJD | Picayune Muni | PICAYUNE, MS | 55 ft | 1 | 5,000 ft |
| KEBG EBG | South Texas Intl At Edinburg | EDINBURG, TX | 75 ft | 1 | 5,000 ft |
| KSSF SSF | Stinson Muni | SAN ANTONIO, TX | 577 ft | 2 | 5,000 ft |
| KAPY APY | Zapata County | ZAPATA, TX | 422 ft | 1 | 5,000 ft |
| KTFP TFP | Ingleside Rgnl | INGLESIDE, TX | 17 ft | 1 | 4,999 ft |
| 5R8 | De Quincy Industrial Airpark | DE QUINCY, LA | 82 ft | 1 | 4,997 ft |
| KBEA BEA | Beeville Muni | BEEVILLE, TX | 272 ft | 2 | 4,553 ft |
| 2H5 | Houston Fort Bend | HOUSTON, TX | 105 ft | 1 | 4,400 ft |
| KRFG RFG | Rooke Fld | REFUGIO, TX | 54 ft | 1 | 4,361 ft |
| KHPY HPY | Baytown | BAYTOWN, TX | 33 ft | 1 | 4,334 ft |
| T69 | Sinton | SINTON, TX | 47 ft | 2 | 4,323 ft |
| KLVJ LVJ | Pearland Rgnl | HOUSTON, TX | 43 ft | 1 | 4,313 ft |
| 3R2 | Le Gros Meml | CROWLEY, LA | 14 ft | 2 | 4,304 ft |
| 45R | Hawthorne Fld | KOUNTZE/SILSBEE, TX | 70 ft | 1 | 4,303 ft |
| KELA ELA | Eagle Lake | EAGLE LAKE, TX | 184 ft | 1 | 4,280 ft |
| A51 | Costin | PORT ST JOE, FL | 13 ft | 1 | 4,230 ft |
| KAQO AQO | Llano Muni | LLANO, TX | 1,101 ft | 2 | 4,202 ft |
| 88R | Spicewood | SPICEWOOD, TX | 830 ft | 1 | 4,185 ft |
| T41 | La Porte Muni | LA PORTE, TX | 25 ft | 2 | 4,165 ft |
| 54J | Defuniak Springs | DEFUNIAK SPRINGS, FL | 289 ft | 2 | 4,146 ft |
| KBMT BMT | Beaumont Muni | BEAUMONT, TX | 31 ft | 1 | 4,001 ft |
| KLHB LHB | Hearne Muni | HEARNE, TX | 284 ft | 1 | 4,001 ft |
| 50R | Lockhart Muni | LOCKHART, TX | 531 ft | 1 | 4,001 ft |
| X13 | Carrabelle-Thompson | CARRABELLE, FL | 20 ft | 1 | 4,000 ft |
| KCFD CFD | Coulter Fld | BRYAN, TX | 366 ft | 1 | 4,000 ft |
| KGYB GYB | Giddings-Lee County | GIDDINGS, TX | 484 ft | 1 | 4,000 ft |
| 61R | Newton Muni | NEWTON, TX | 322 ft | 1 | 4,000 ft |
| KPEZ PEZ | Pleasanton Muni | PLEASANTON, TX | 430 ft | 1 | 4,000 ft |
| M13 | Poplarville/Pearl River County | POPLARVILLE, MS | 318 ft | 1 | 4,000 ft |
| 67R | Rio Grande City Muni | RIO GRANDE CITY, TX | 290 ft | 1 | 4,000 ft |
| 84R | Smithville Crawford Muni | SMITHVILLE, TX | 323 ft | 1 | 4,000 ft |
| T74 | Taylor Muni | TAYLOR, TX | 600 ft | 1 | 4,000 ft |
| 09R | Tyler County | WOODVILLE, TX | 388 ft | 1 | 4,000 ft |
| 2R5 | St Elmo | ST ELMO, AL | 132 ft | 1 | 3,998 ft |
| KIWS IWS | West Houston | HOUSTON, TX | 111 ft | 1 | 3,953 ft |
| 3R9 | Lakeway Airpark | LAKEWAY, TX | 909 ft | 1 | 3,930 ft |
| KRYW RYW | Lago Vista Tx/Rusty Allen | LAGO VISTA, TX | 1,230 ft | 1 | 3,808 ft |
| T78 | Liberty Muni | LIBERTY, TX | 69 ft | 1 | 3,801 ft |
| 66Y | Diamondhead | DIAMONDHEAD, MS | 14 ft | 1 | 3,800 ft |
| 66R | Robert R Wells Jr | COLUMBUS, TX | 242 ft | 1 | 3,800 ft |
| 8T6 | Live Oak County | GEORGE WEST, TX | 128 ft | 1 | 3,799 ft |
| T12 | Kirbyville | KIRBYVILLE, TX | 121 ft | 2 | 3,746 ft |
| F95 | Calhoun County | BLOUNTSTOWN, FL | 121 ft | 1 | 3,729 ft |
| T92 | Mason County | MASON, TX | 1,514 ft | 1 | 3,716 ft |
| 00R | Livingston Muni | LIVINGSTON, TX | 150 ft | 1 | 3,704 ft |
| 2R4 | Peter Prince Fld | MILTON, FL | 81 ft | 1 | 3,703 ft |
| 5R4 | Holk Fld At Foley Muni | FOLEY, AL | 74 ft | 1 | 3,700 ft |
| KRBO RBO | Nueces County | ROBSTOWN, TX | 79 ft | 1 | 3,700 ft |
| T90 | Chambers County/Winnie Stowell | WINNIE/STOWELL, TX | 24 ft | 1 | 3,600 ft |
| M24 | Dean Griffin Meml | WIGGINS, MS | 273 ft | 1 | 3,500 ft |
| 5R2 | Ocean Springs | OCEAN SPRINGS, MS | 20 ft | 1 | 3,500 ft |
| 2TX | Salado | SALADO, TX | 689 ft | 1 | 3,494 ft |
| KRAS RAS | Mustang Beach | PORT ARANSAS, TX | 5 ft | 1 | 3,482 ft |
| T85 | Yoakum Muni | YOAKUM, TX | 365 ft | 1 | 3,444 ft |
| T51 | Dan Jones Intl | HOUSTON, TX | 166 ft | 1 | 3,440 ft |
| E70 | Huber Airpark Civic Club Llc | SEGUIN, TX | 556 ft | 1 | 3,415 ft |
| 24R | Dilley Airpark | DILLEY, TX | 542 ft | 1 | 3,400 ft |
| 23R | Devine Muni | DEVINE, TX | 702 ft | 1 | 3,399 ft |
| 26R | Jackson County | EDNA, TX | 61 ft | 1 | 3,393 ft |
| X09 | Covey Trails | FULSHEAR, TX | 130 ft | 1 | 3,352 ft |
| F47 | St George Island | APALACHICOLA, FL | 3 ft | 1 | 3,339 ft |
| KRWV RWV | Caldwell Muni | CALDWELL, TX | 390 ft | 1 | 3,252 ft |
| 82J | Roscoe Fld | PENSACOLA, FL | 32 ft | 1 | 3,225 ft |
| 2R9 | Kenedy Rgnl | KENEDY, TX | 288 ft | 1 | 3,218 ft |
| 34R | Hallettsville Muni | HALLETTSVILLE, TX | 277 ft | 1 | 3,210 ft |
| 51R | Madisonville Muni | MADISONVILLE, TX | 286 ft | 1 | 3,205 ft |
| 07R | Bishop-Windham | BISHOP, TX | 55 ft | 1 | 3,200 ft |
| T35 | Cameron Muni Airpark | CAMERON, TX | 402 ft | 1 | 3,200 ft |
| T05 | Charles R Johnson | PORT MANSFIELD, TX | 10 ft | 1 | 3,200 ft |
| T19 | Duval-Freer | FREER, TX | 564 ft | 1 | 3,200 ft |
| T20 | Roger M Dreyer Meml | GONZALES, TX | 354 ft | 1 | 3,200 ft |
| 67T | Old Hoppe Place | AGUA DULCE, TX | 96 ft | 1 | 3,164 ft |
| T54 | Lane Airpark | ROSENBERG, TX | 94 ft | 1 | 3,013 ft |
| 2R6 | Bunkie Muni | BUNKIE, LA | 62 ft | 1 | 3,005 ft |
| T00 | Chambers County | ANAHUAC, TX | 21 ft | 2 | 3,005 ft |
| L31 | St Tammany Rgnl | COVINGTON, LA | 37 ft | 1 | 3,004 ft |
| LA3 | Feliciana Airpark | JACKSON, LA | 204 ft | 1 | 3,000 ft |
| 2R7 | Franklinton | FRANKLINTON, LA | 175 ft | 1 | 3,000 ft |
| 4R9 | Jeremiah Denton | DAUPHIN ISLAND, AL | 4 ft | 1 | 3,000 ft |
| 1T7 | Kestrel Airpark | SAN ANTONIO, TX | 1,261 ft | 1 | 3,000 ft |
| 2R1 | Le Maire Meml | JEANERETTE, LA | 14 ft | 1 | 3,000 ft |
| 8T8 | San Geronimo Airpark | SAN ANTONIO, TX | 1,040 ft | 1 | 3,000 ft |
| L83 | Thibodaux Muni | THIBODAUX, LA | 9 ft | 1 | 2,999 ft |
| T26 | Flying V Ranch | LOUISE, TX | 60 ft | 1 | 2,990 ft |
| KRCK RCK | H H Coffield Rgnl | ROCKDALE, TX | 474 ft | 1 | 2,962 ft |
| 3T2 | Wolfe Air Park | MANVEL, TX | 55 ft | 1 | 2,910 ft |
| T71 | Cuero Muni | CUERO, TX | 214 ft | 1 | 2,800 ft |
| 53T | Cannon Fld | SOMERSET, TX | 610 ft | 1 | 2,790 ft |
| 1T8 | Bulverde Airpark | SAN ANTONIO, TX | 1,088 ft | 1 | 2,783 ft |
| 6R1 | Welsh | WELSH, LA | 18 ft | 2 | 2,700 ft |
| 2KL | Sunrise Beach | SUNRISE BEACH VILLAGE, TX | 854 ft | 1 | 2,649 ft |
| T79 | Skyway Manor | PEARLAND, TX | 55 ft | 1 | 2,525 ft |
| 74R | Horizon | SAN ANTONIO, TX | 551 ft | 2 | 2,360 ft |
| 9R5 | Hunt | PORTLAND, TX | 38 ft | 2 | 2,350 ft |
| 81D | Flyin Tiger | ANGLETON, TX | 30 ft | 2 | 2,261 ft |
| T94 | Twin-Oaks | SAN ANTONIO, TX | 873 ft | 1 | 2,225 ft |
| 94R | Gav Air | WHARTON, TX | 90 ft | 1 | 2,167 ft |
| 1J9 | Fort Walton Beach | NAVARRE, FL | 22 ft | 1 | 2,100 ft |
| 7R9 | Bailes | ANGLETON, TX | 21 ft | 1 | 2,060 ft |
| 2G5 | Granite Shoals/ Bob Sylvester Airpark | GRANITE SHOALS, TX | 860 ft | 1 | 2,000 ft |
| 15A | Mark Reynolds/North Mobile County | CREOLA, AL | 8 ft | 1 | 2,000 ft |
| 5R7 | Roy E Ray | BAYOU LA BATRE, AL | 87 ft | 1 | 2,000 ft |
| 6R5 | Alvin Airpark | ALVIN, TX | 43 ft | 3 | 1,500 ft |
196 public-use airports within this chart's coverage, ordered by runway length. A further 608 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Texas is available as a single 393.0 MB archive (2,019 charts) — see the Texas airports.
It spans 23.8°N to 31.0°N and 99.3°W to 84.7°W. Airports on the sheet fall within Alabama, Florida, Louisiana, Mississippi and Texas. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (36.2 MB). Take the PDF to print it or read it on a second screen (77.7 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Houston to the north-west. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
FAA public-domain products, mirrored unmodified. Fly Away Simulation is not affiliated with or endorsed by the FAA. Chart licensing and terms.
