LOUISVILLE, KY · 47 FAA charts · cycle 6 Aug 2026

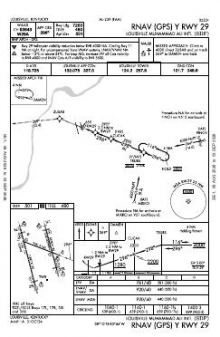

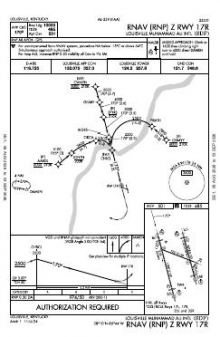

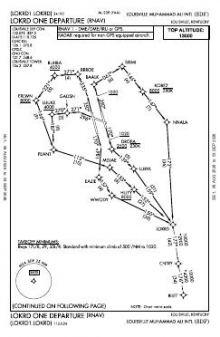

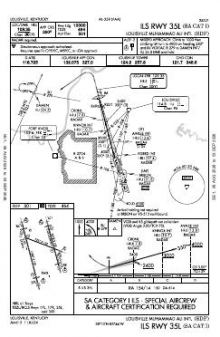

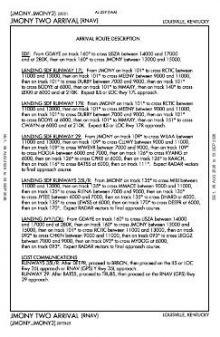

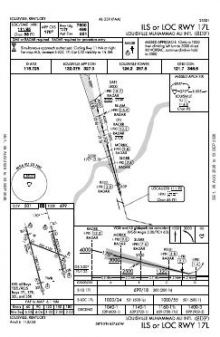

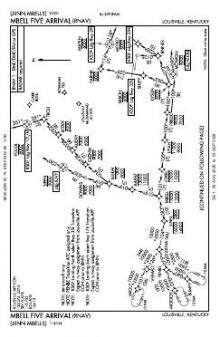

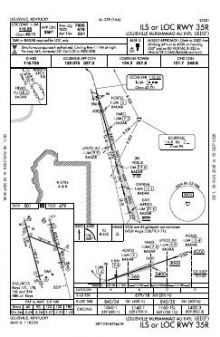

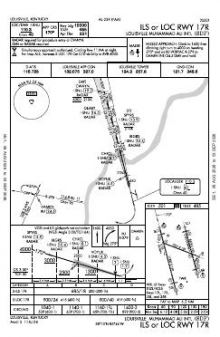

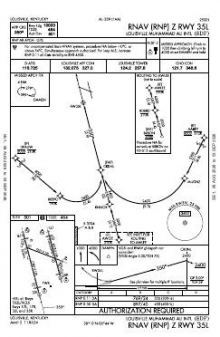

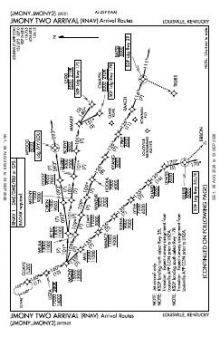

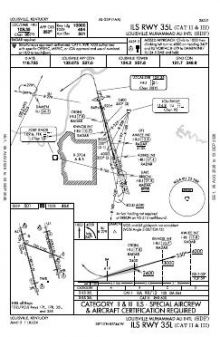

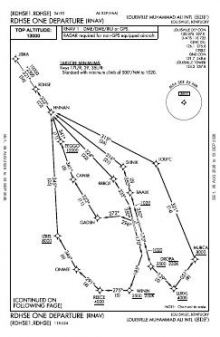

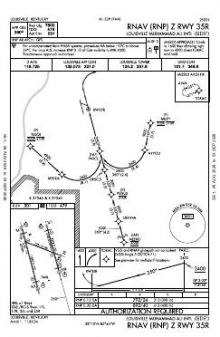

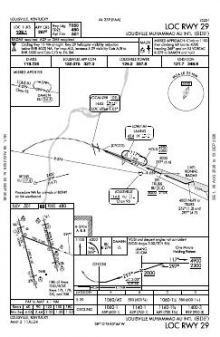

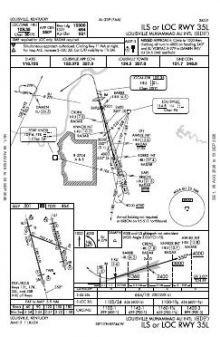

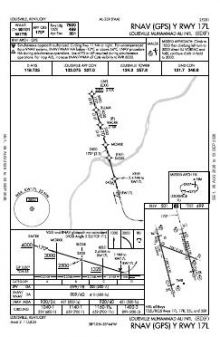

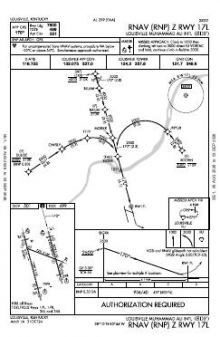

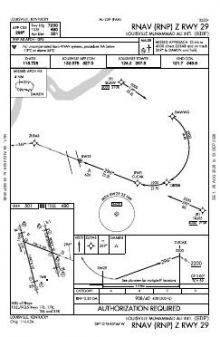

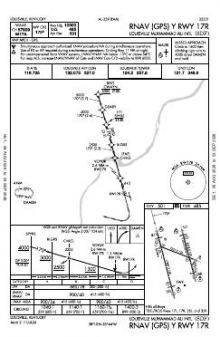

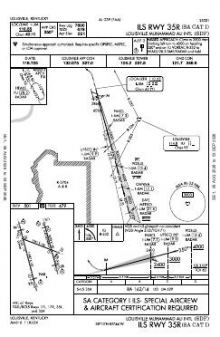

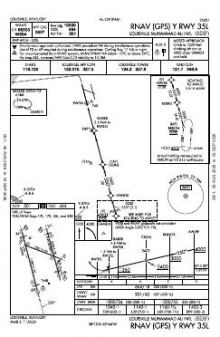

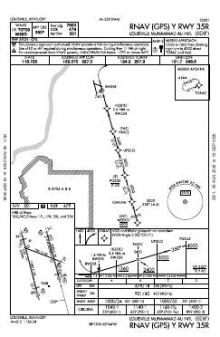

19 published instrument approaches: 8 ILS approaches including CAT II/III minima, 10 RNAV (GPS), serving 5 runway ends.
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
| Chart | Amendment | ||
|---|---|---|---|
 | HOT SPOT | — |
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| UNICOM | 122.95 | |
| Tower | 124.2 | Louisville |
| Ground | 121.7 | Louisville |
| Clearance delivery | 126.1 | Louisville |
| ATIS | 118.725 | Louisville |
| Approach | 123.675170-349132.075350-169134.15 | Louisville |
| Emergency | 121.5 | Louisville |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 17R/35L | 11,887 ft | 150 ft | Concrete Good | High intensity |
| 17R 165°T | ILS/DME · PAPI (4-box) 3° · MALSR approach lighting · displaced threshold 846 ft | |||
| 35L 345°T | ILS/DME · PAPI (4-box) 3° · ALSF-2 approach lighting · displaced threshold 1,040 ft | |||
| 17L/35R | 8,578 ft | 150 ft | Concrete Good | High intensity |
| 17L 165°T | ILS/DME · PAPI (4-box) 3° · MALSR approach lighting · displaced threshold 328 ft | |||
| 35R 345°T | ILS/DME · PAPI (4-box) 3° · ALSF-2 approach lighting · displaced threshold 449 ft | |||
| 11/29 | 7,251 ft | 150 ft | Concrete Good | High intensity |
| 11 111°T | PAPI (4-box) 3° | |||
| 29 291°T | LOCALIZER · PAPI (4-box) 3° · MALSR approach lighting | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
38.1740850, -85.7364940
500 ft4 nm SPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

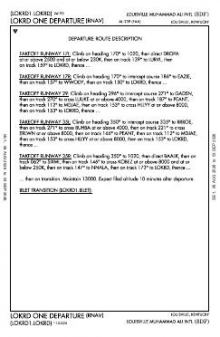

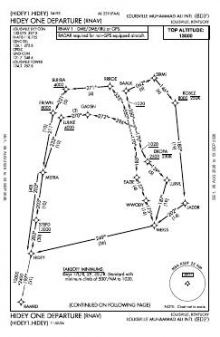

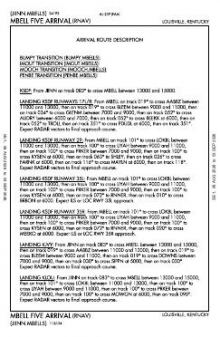

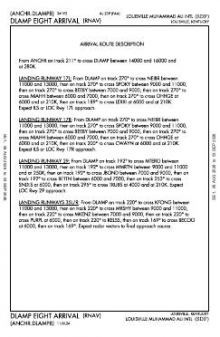

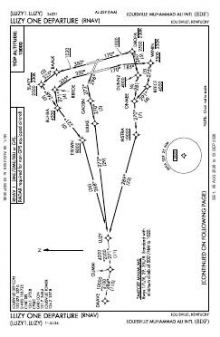

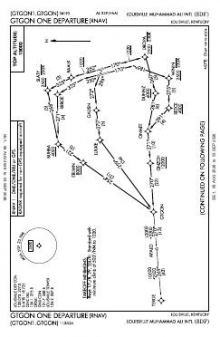

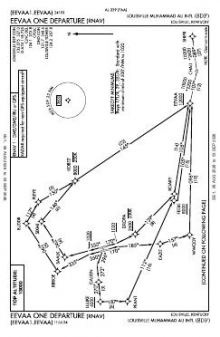

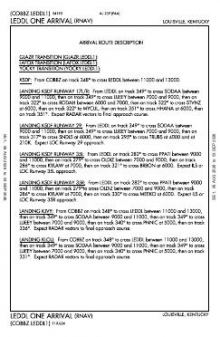

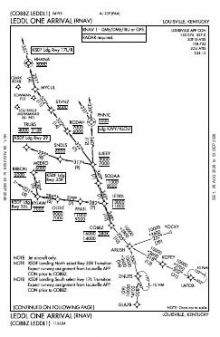

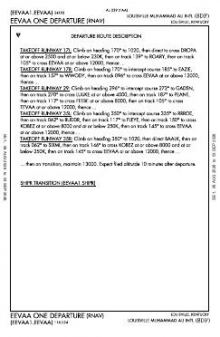

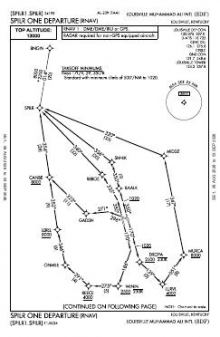

Five of Louisville Muhammad Ali International’s six runway ends have published approaches, leaving one end without instrument approach coverage. The mix is notably deep: ILS and RNAV (GPS) procedures are supplemented by localiser options, while two ILS procedures include CAT II/III minima. Fourteen departure and ten arrival charts also show that the procedure set extends well beyond the approaches themselves.
The parallel 17/35 runways and differently aligned 11/29 provide two runway orientations. A 4,636 ft difference between the longest and shortest runways means the three cannot be treated as dimensionally interchangeable. Among nearby fields, Bowman Field and Clark Regional have the broadest chart sets, though both are much thinner than SDF’s; Samuels Field has the sparsest coverage. The Cincinnati and St Louis sectionals add wider visual context beyond the terminal procedures.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KLOU | Bowman Fld | LOUISVILLE, KY | 5 nm NE | 13 |
| KJVY | Clark Rgnl | JEFFERSONVILLE, IN | 12 nm N | 12 |
| KFTK | Godman AAF | FORT KNOX, KY | 20 nm SW | 9 |
| KBRY | Samuels Fld | BARDSTOWN, KY | 24 nm SE | 4 |
| KEKX | Addington Fld | ELIZABETHTOWN, KY | 31 nm S | 6 |
| KIMS | Madison Rgnl | MADISON, IN | 37 nm N | 5 |
| KFFT | Capital City | FRANKFORT, KY | 39 nm E | 6 |
| 6I2 | Lebanon Springfield/George Hoerter Fld | SPRINGFIELD, KY | 40 nm SE | 4 |

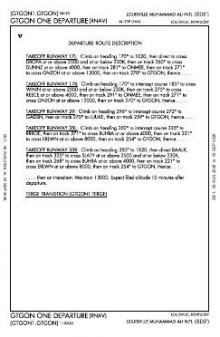

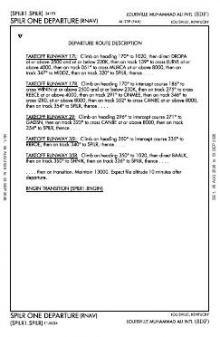

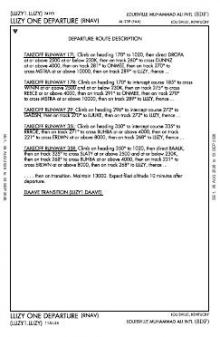

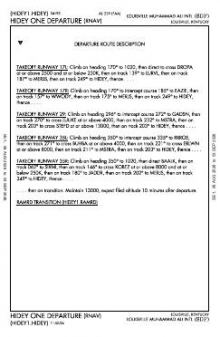

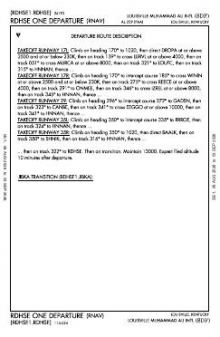

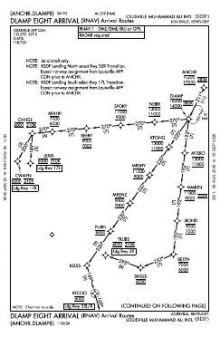

47 current FAA charts for Louisville Muhammad Ali Intl, including 19 instrument approachs, 14 departure procedures, 10 arrival procedures, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Tower 124.2; Ground 121.7; ATIS 118.725; UNICOM 122.95; Clearance delivery 126.1. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Louisville Muhammad Ali Intl has 3 runways. The longest is 17R/35L at 11,887 ft by 150 ft, concrete. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 8 ILS procedures are published, including CAT II/III minima. In total KSDF has 19 published instrument approaches, of which 10 are RNAV (GPS).

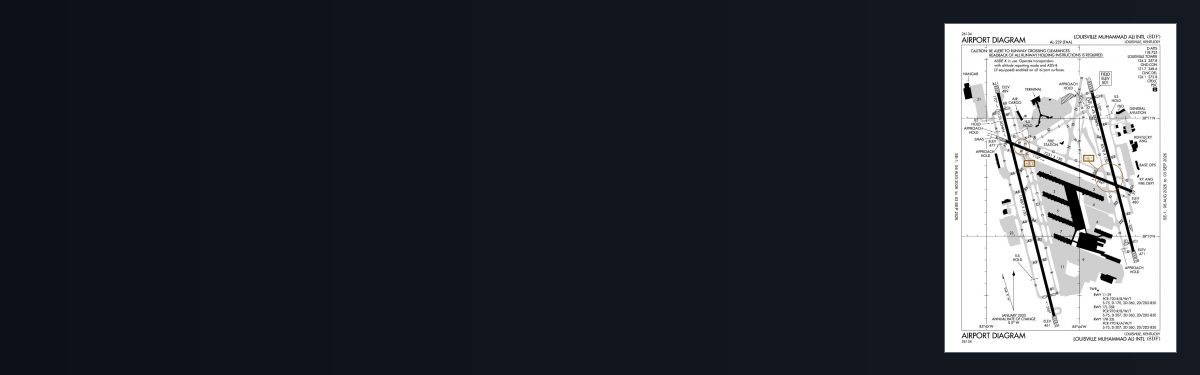

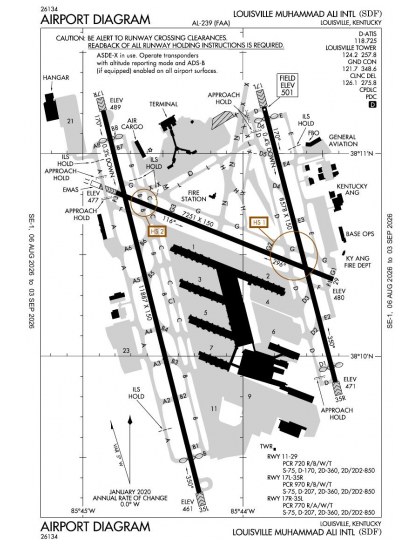

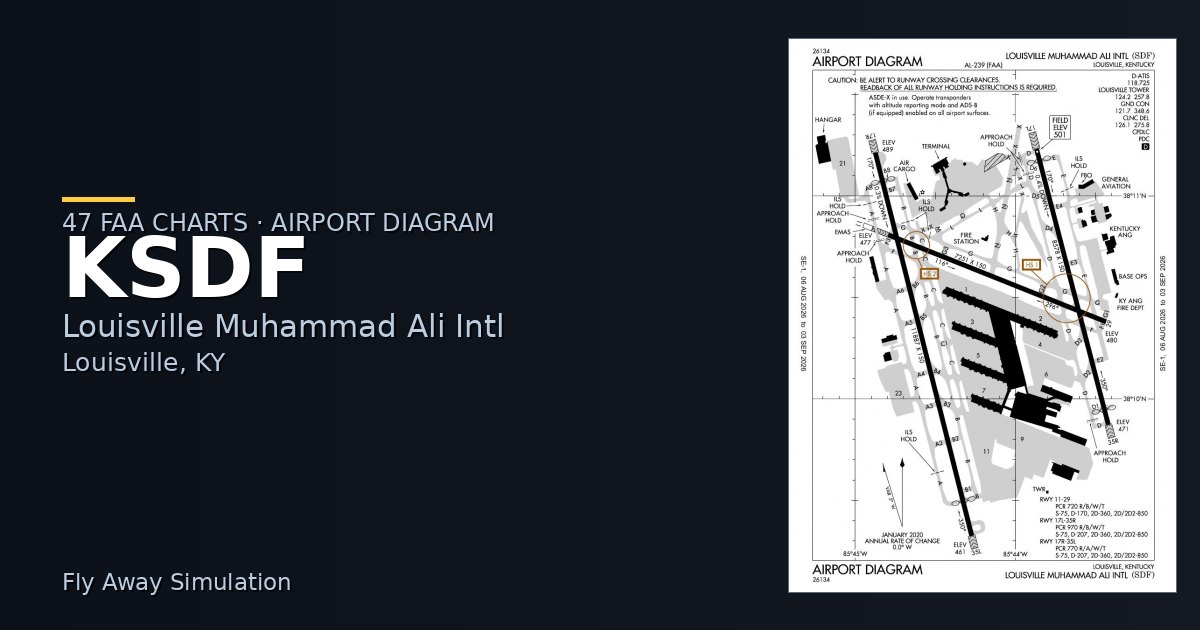

The official FAA airport diagram for Louisville Muhammad Ali Intl is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.

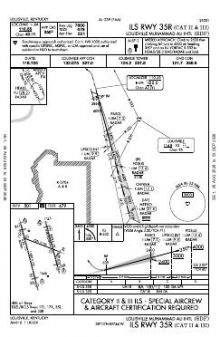

Yes. 2 of the published ILS procedures carry CAT II/III minima, which allow approaches in lower visibility than a standard CAT I ILS. Those plates are listed separately in the approach table above, marked CAT II or CAT III in the chart name.
Yes. Louisville Muhammad Ali Intl has an operating control tower, within Indianapolis Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
