FS2004 Lockheed L-1049 Performance Charts

Lockheed L-1049G/H Super Constellation and EC-121 Warning Star performance charts for FS2004 deliver authentic Composite Cruise Control Charts, engine power schedules, and fuel management guidance drawn from pilot-manual data. Coverage spans transport and AEW radome configurations, includes high and low blower variants, and supports 7-, 9-, and 10-tank layouts.

A composite cruise control chart displays intersecting lines for power, speed, fuel flow, and gross weight against density altitude for a C-121G aircraft.

A composite cruise control chart displays power available, speed power, and fuel flow curves for a four-engine EC-121T aircraft at various altitudes and weights.

A detailed composite cruise control chart displays intersecting lines for power, speed, fuel flow, and gross weight against density altitude values.

A composite cruise control chart displays power available, speed power, and fuel flow curves against density altitude and gross weight for a four-engine aircraft.

217 downloads Microsoft Flight Simulator 2004

File: super_constellation_performance_charts.zip
Size:3.65 MB
Scan: Clean (5d)
Access:Freeware
Content:Everyone

Screenshots 8

Description

Comments

File Contents

This mod

Lockheed L-1049 Performance Charts

• 217 downloads • 3.65 MB • Clean (5d)

Additional performance charts for the Lockheed L-1049G/H Super Constellation and EC-121 Warning Star. By Volker Bohme, Luis Pallas, Bill Tyne and Stefan Werner.

Engine Power Schedule Table.

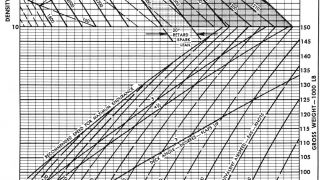

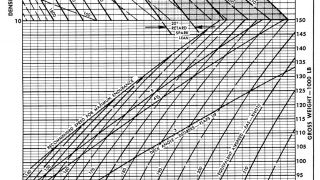

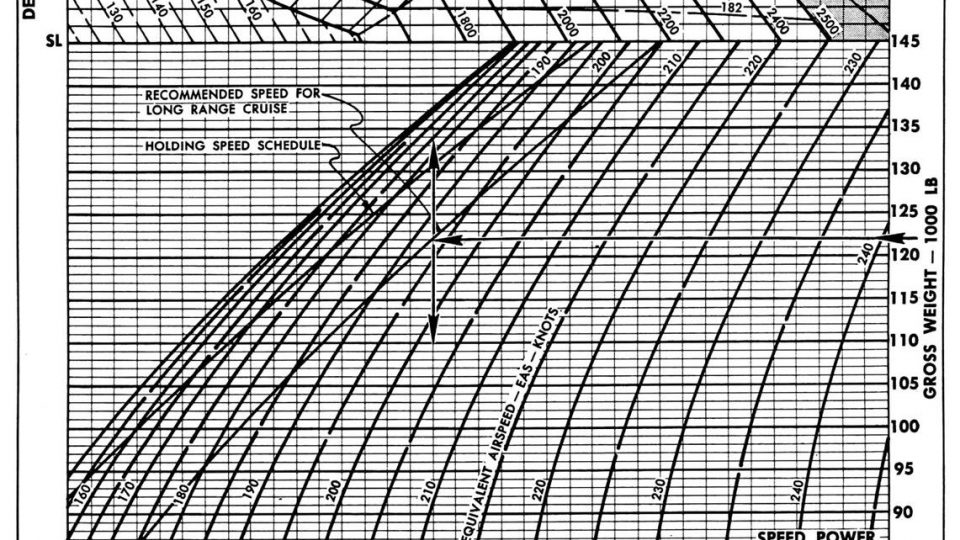

These Composite Cruise Control Charts (CCCC) are extracts from an EC-121 pilot's manual. There are 4 CCCC's, two covering the transport/airliner configuration (C-121G) and the other set the Airborne Early Warning (AEW) version with search radome installed. Both high and low blower versions are included.

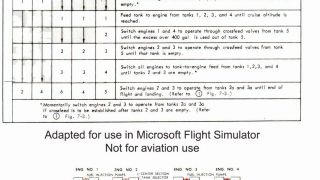

Also included are charts for fuel management for 7-tank (no wing tip tanks), 9-tank (with wing tip tanks installed) and 10-tank (EC-121D) configuration and the Engine Power Schedule table.

Images & Screenshots

8 total

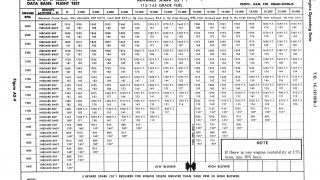

A detailed engine power schedule table lists RPM, BHP, and BMEP values by altitude for the R3350-93A engine, including blower settings.

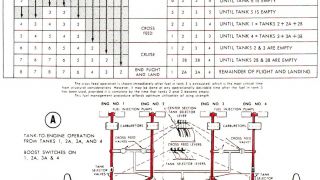

A detailed fuel system management chart for the EC121 shows a sequence table, fuel usage procedures, and a labeled diagram of tank-to-engine connections.

A detailed fuel system management chart for tip tanks shows fuel sequence tables, engine assignments, and a schematic of fuel flow paths.

A detailed fuel system management chart for the C-121G displays fuel usage procedures, tank sequences, and a labeled diagram of engine fuel flow.

The archive super_constellation_performance_charts.zip has 12 files and directories contained within it.
