FSXControls Utility V2.1

PreviewFSXControls is a set of programs for FSX. (1) GUI multifunction application for: set up button & keyboard FSX controls; set up an unique GhostMouse technology; set some parameters of FSX cameras system; and more. (2) Charts and maps viewer gauge with nearest airport and navaids info. (3) GhostMou...

Screenshot 1Screenshot 2Screenshot 3Screenshot 4
Download hits
586
Compatibility
Microsoft Flight Simulator X (FSX) including Steam Edition & Prepar3D (P3D)
Filename
fsxctl21.zip
File size
977.01 KB
Virus Scan
Scanned 23 days ago (clean)
Access to file
Free (Freeware)
Content Rating
Everyone

FSXControls is a set of programs for FSX. (1) GUI multifunction application for: set up button & keyboard FSX controls; set up an unique GhostMouse technology; set some parameters of FSX cameras system; and more. (2) Charts and maps viewer gauge with nearest airport and navaids info. (3) GhostMouse driver module for FSX with scripting capabilities now. By Eugene Motorny.

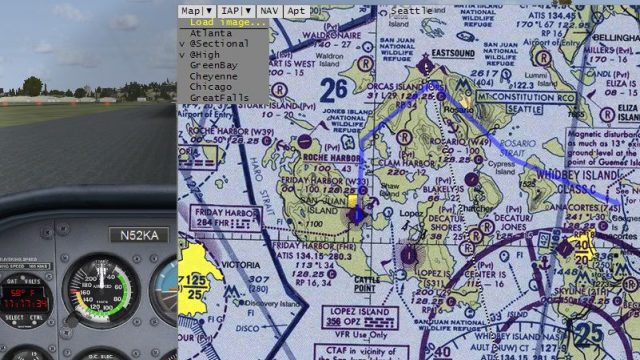

Screenshot of map displayed in the cockpit.

Screenshot of map displayed in the cockpit.

Finally, here it is! FSXControls is a set of three program modules:

  • GUI multifunction application (FSXControls.exe).
  • Chart viewer and airport info gauge (EQgauges.dll).
  • Control input handling module (EQmodule.dll) implementing technology that I named GhostMouse.

This set is provided for free for NON commercial use for all MS Flight Simulator X funs. Of cause, this set is designed primarily for advanced FS pilots, but it can be used by everyone who wants to enhance one's simulator experience. The programs are easy to use but require a bit of FSX knowledge & experience for understanding. Sorry, this is just a result of my hobby & I can't provide comprehensive manual or full support for the software. The program will be enhanced but it'll be always in beta stage. No risk -' no fun.

Whom this software is for?

  • FSXControls.exe is for owners of advanced controller system with a lot of programmable buttons (home cockpits, joystick set, CHProducts' MFCpanel etc).
  • ChartViewer.dll is for virtual pilots who prefer to fly with paper charts but not with artificial moving map. Real world pilots do not have moving map except GNS, but extensively use paper charts.
  • EQModule.dll (GhostMouse driver) is for owners of advanced payware add-on aircrafts. Unfortunately add-on aircrafts mostly lack of feature that maps keyboard or joystick input to the advanced aircraft control. EQModule.dll do also many other neat tricks.

Technologies Used:

  • GhostMouse is the Easter Egg of the program. I'm proud to share it among MSFS enthusiast community.
  • The programs were developed using MS Visual Studio Express edition. Great thanks for Microsoft for this free amazing development platform. I really enjoyed the process.

Installation Prerequisites:

  • Windows XP SP2 or SP3. (It should work on Vista too but I have not tested that).
  • Properly installed MS FSX SP2 with SimConnect. (FSX SP1 is supported from version 1.2.1 of FSXControls). I'm not sure whether it works on FSX Acceleration Pack. In theory it should do, but I don't have it to test. "Properly installed" means that FSX was installed by the native installer. FSXControls relies on registry information and installed SimConnect runtime shipped with FSX.
  • .NET 2.0 with latest service pack. Get it from Microsoft.
  • Properly installed latest version of DirectX 9c. (DirectX 10 on Vista) The program relies on managed DirectX libraries.
  • Full access (read, write, create) permissions to FSX installation folder & all its subfolders.

What's new in version 2.1:

  • GhostMouse:
  • GhostMouse configuration is loaded in flight without need for FSX restart.
  • Optional script for event. Script is any expression for FSX XML gauges (see FSX SDK).
  • Catching FSX internal events in addition to input event.
  • Fine grain aircraft filter for pseudo gauge commands.
  • ChartViewer:
  • Fixed: error loading images just after start & on switch over between full screen and windowed FSX modes.

Images & Screenshots

Screenshot 1Screenshot 2Screenshot 3Screenshot 4Screenshot 5

The archive fsxctl21.zip has 19 files and directories contained within it.

File Contents

This list displays the first 500 files in the package. If the package has more, you will need to download it to view them.

Filename/Directory File Date File Size
Map.jpg07.22.09263.96 kB
FSXcontrols08.20.090 B
EQgauges.dll07.31.09206.50 kB
EQmodule.dll07.31.09143.00 kB
FSXControls Manual 2.1 (Eng).url08.20.09153 B
FSXControls Manual 2.1 (Rus).url08.20.09254 B
FSXcontrols.exe08.07.09394.50 kB
SP108.20.090 B
EQmodule.dll08.18.09143.00 kB
Aircrafts.gif07.15.0973.94 kB
Cameras.gif07.15.0967.91 kB
Controls.gif07.15.0951.63 kB
FILE_ID.DIZ08.20.09372 B
FSXcontrols.txt08.20.0925.17 kB
FSXCTL21.gif09.10.0812.18 kB
GhostMouse.gif08.20.0988.23 kB
Legal Terms.txt07.15.09947 B
flyawaysimulation.txt10.29.13959 B
Go to Fly Away Simulation.url01.22.1652 B
