Terminal Procedures

C47 — Portage Muni

PORTAGE, WI · 2 FAA charts · cycle 6 Aug 2026

Elevation 824 ft2 runwaysLongest 3,770 ftNon-toweredFuel 100LL avgas, UL91 unleadedVolume EC-3Not for navigation

1 published instrument approach: 1 RNAV (GPS).

All 2 C47 charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 2 charts is roughly 13 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

	Chart	Amendment

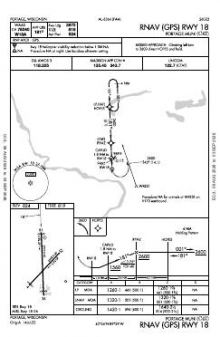

	RNAV (GPS) RWY 18	0A	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

C47 airport information

Control tower: No
Attendance: All mon-fri 0900-1500
ARTCC: Chicago Center
Flight service: Green Bay
NOTAM facility: GRB (NOTAM-D available)
Magnetic variation: 3W
Beacon: White-green (lighted land airport), sunset to sunrise
Wind indicator: Yes
Segmented circle: Yes
Fuel: 100LL avgas, UL91 unleaded
Bottled oxygen: None
Parking: Tie-downs
Customs: Landing rights airport
Activated: October 1941
Airport area: 106 acres
Ownership: Publicly owned
Sectional: Chicago
Last FAA inspection: 2026-06-18

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

C47 radio frequencies

Service	Frequency	Call sign
CTAF	122.7
Approach	120.1135.45	Madison

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at C47, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
18/36	3,770 ft	60 ft	Asphalt Good	Non-standard
18 178°T	PAPI (2-box) 3.75° · displaced threshold 98 ft
36 358°T	displaced threshold 262 ft
04/22	2,668 ft	40 ft	Asphalt Fair
04 43°T	displaced threshold 109 ft

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where C47 is

Latitude, longitude43.5602620, -89.4829110

Elevation824 ft

From Portage2 nm NW

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for C47

EXISTED PRIOR TO 1959.
CONFIRM AVBL WITH AMGR.
EXT 104.
RWY NOT PLOWED DURG WINTER, CFM COND WITH AMGR.
MIRL NSTD. RWY 18 FIRST 100 FT NOT LGTD; RWY 36 FIRST 193 FT NOT LGTD.
40 FT TREES 40 FT FM RWY END; 100 FT L.
2 FT RD AT RWY END; 170 FT R; 24 FT TREES 25 FT FM RWY END, 75 L.
6 FT TRRN AT THR; 90 FT L.
14 FT RD 42 FT FM RWY END; 28 FT POLE 30 FT FM RWY END, 125 FT L.
CTLG OBSTN EXCEEDS A 45 DEG SLP.
APCH RATIO 15:1 TO DTHR; 61 FT TREES 940 FT FM DTHR, 285 R.
APCH RATIO 8:1 TO DTHR; 75 FT TREES 587 FT FM DTHR, 220 L AND 110 FT PLINE 1580 FT FM DTHR.
DEER ON & INVOF OF ARPT.
RWY 36 LRG HNGRS & TREE 200 FT W OF MAY CAUSE WIND SHEAR WITH STRONG NW WINDS.
FOR CD CTC MADISON APP/DEP CON AT 608-249-8240. WHEN MADISON APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Limited instrument coverage

Portage Municipal’s instrument set is concentrated on a single RNAV (GPS) approach serving just one of the airport’s four runway ends. The other three ends have no published approach this cycle, and there is no published airport diagram. Runway 18/36 provides the greater available length at 3,770 ft; 04/22 is 1,102 ft shorter, making runway choice material where required take-off or landing distance approaches the available length.

Wider chart context

Nearby procedure coverage varies sharply. Dane County Regional/Truax Field has a much broader chart set, while Sauk/Prairie and Reedsburg Municipal are only slightly less sparse than Portage. Baraboo/Wisconsin Dells Regional and Middleton Municipal/Morey Field sit between those extremes. The Chicago Sectional adds broader visual-navigation and surrounding airspace context absent from the airport’s small instrument set.

Airports near C47

ID	Airport	City	Distance	Charts
KDLL	Baraboo/Wisconsin Dells Rgnl	BARABOO, WI	13 nm W	6
91C	Sauk/Prairie	PRAIRIE DU SAC, WI	20 nm SW	3
C35	Reedsburg Muni	REEDSBURG, WI	22 nm W	4
KMSN	Dane County Rgnl/Truax Fld	MADISON, WI	26 nm S	21
C29	Middleton Muni/Morey Fld	MIDDLETON, WI	27 nm S	6
63C	Adams County Legion Fld	FRIENDSHIP (ADAMS), WI	27 nm NW	2
Y50	Wautoma Muni	WAUTOMA, WI	30 nm N	4
87Y	Blackhawk Airfield	MADISON, WI	30 nm SE	2

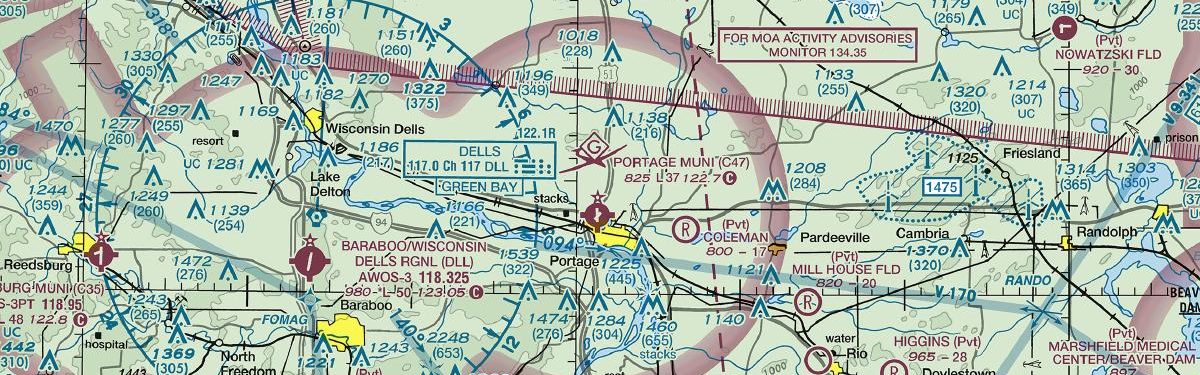

VFR charts covering C47

ChicagoSectional Chart

Common questions about C47

What charts are available for C47?

2 current FAA charts for Portage Muni, including 1 instrument approach. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for C47?

CTAF 122.7. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at C47?

Portage Muni has 2 runways. The longest is 18/36 at 3,770 ft by 60 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does C47 have an ILS approach?

No ILS is published. In total C47 has 1 published instrument approach, of which 1 are RNAV (GPS).

Which runway do instrument approaches serve at C47?

Every published approach serves one runway end. There is no instrument procedure to the reciprocal direction, so an arrival in instrument conditions commits to that single approach direction regardless of the wind.

Is C47 a towered airport?

No — Portage Muni has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these C47 charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
