MADISON, WI · 21 FAA charts · cycle 6 Aug 2026

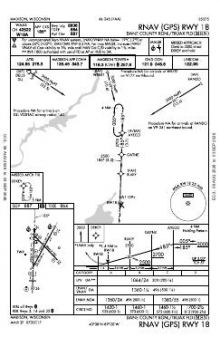

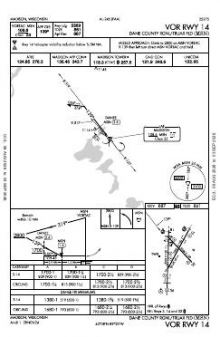

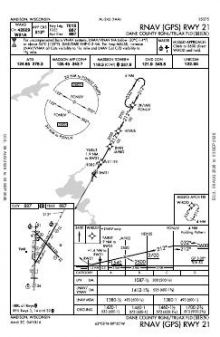

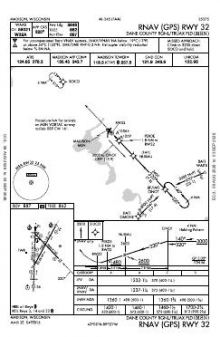

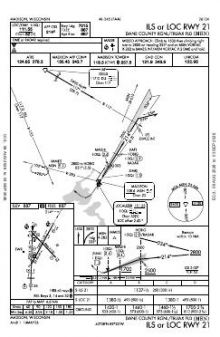

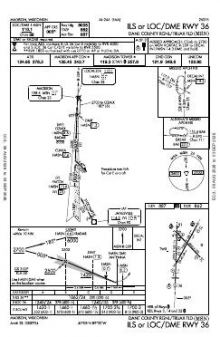

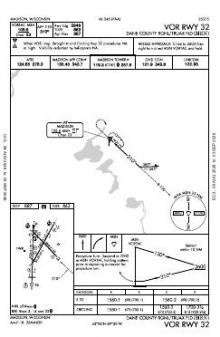

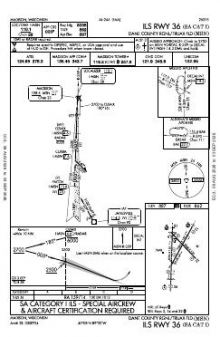

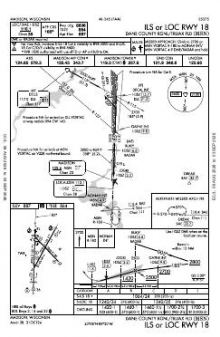

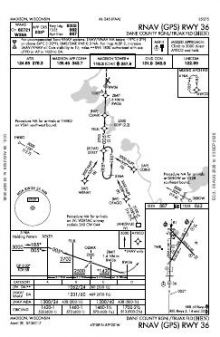

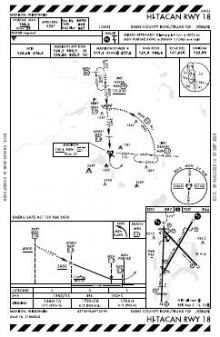

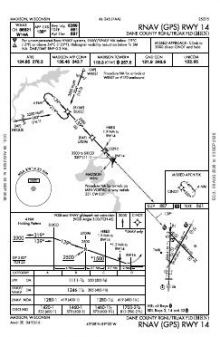

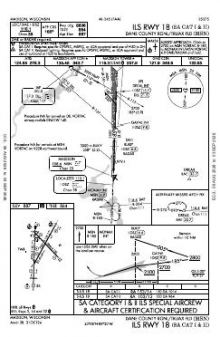

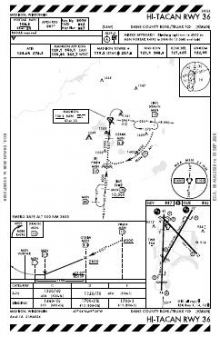

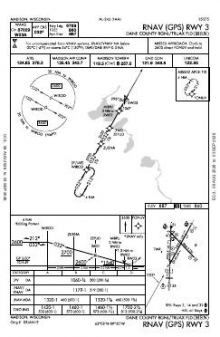

16 published instrument approaches: 6 ILS approaches including CAT II/III minima, 6 RNAV (GPS), 2 VOR, serving 6 runway ends.
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
| Chart | Amendment | ||
|---|---|---|---|
 | HOT SPOT | — |
| Chart | Amendment | ||
|---|---|---|---|
 | LAHSO | — |
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 119.3 | |
| UNICOM | 122.95 | |
| Ground | 121.9 | Madison |
| Clearance delivery | 121.625 | Madison |
| ATIS | 124.65 | Madison |
| Approach | 120.1East135.45West | Madison |
| Emergency | 121.5 | Madison |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 18/36 | 9,006 ft | 150 ft | Concrete Fair | High intensity |
| 18 182°T | ILS/DME · PAPI (4-box) 3° · MALSR approach lighting · displaced threshold 400 ft | |||
| 36 2°T | ILS/DME · PAPI (4-box) 3° · ALSF-2 approach lighting · displaced threshold 1,001 ft | |||
| 03/21 | 7,200 ft | 150 ft | Concrete Good | High intensity |
| 03 29°T | PAPI (4-box) 3° · displaced threshold 431 ft | |||
| 21 209°T | ILS/DME · PAPI (4-box) 3° · MALSR approach lighting | |||
| 14/32 | 5,846 ft | 150 ft | Concrete Good | High intensity |
| 14 136°T | PAPI (4-box) 3° · displaced threshold 477 ft | |||
| 32 316°T | PAPI (4-box) 3° | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
43.1398790, -89.3375040
886 ft5 nm NEPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Dane County Regional/Truax Field has published approaches to all six runway ends. The mix is unusually broad: ILS and RNAV (GPS) procedures are supplemented by VOR and localiser approaches, while one ILS includes CAT II/III minima. The chart set is therefore strongly approach-focused, with no departure procedures listed for this cycle.
Runway 18/36 is 1,806 ft longer than 03/21 and 3,160 ft longer than 14/32, making runway selection significant in terms of physical length. Among nearby fields, Middleton Municipal/Morey Field has the broadest chart coverage, though still much thinner than MSN; the other listed airports have only two or three charts each. The Chicago Sectional adds the wider visual-navigation context around Madison that terminal procedure charts do not provide.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| 87Y | Blackhawk Airfield | MADISON, WI | 7 nm E | 2 |
| C29 | Middleton Muni/Morey Fld | MIDDLETON, WI | 9 nm W | 6 |
| 91C | Sauk/Prairie | PRAIRIE DU SAC, WI | 21 nm NW | 3 |
| 61C | Fort Atkinson Muni | FORT ATKINSON, WI | 25 nm SE | 3 |
| C47 | Portage Muni | PORTAGE, WI | 26 nm N | 2 |
| KRYV | Watertown Muni | WATERTOWN, WI | 27 nm E | 6 |
| KDLL | Baraboo/Wisconsin Dells Rgnl | BARABOO, WI | 30 nm NW | 6 |
| KUNU | Dodge County | JUNEAU, WI | 33 nm NE | 6 |
21 current FAA charts for Dane County Rgnl/Truax Fld, including 16 instrument approachs, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Ground 121.9; ATIS 124.65; CTAF 119.3; UNICOM 122.95; Clearance delivery 121.625. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Dane County Rgnl/Truax Fld has 3 runways. The longest is 18/36 at 9,006 ft by 150 ft, concrete. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 6 ILS procedures are published, including CAT II/III minima. In total KMSN has 16 published instrument approaches, of which 6 are RNAV (GPS).

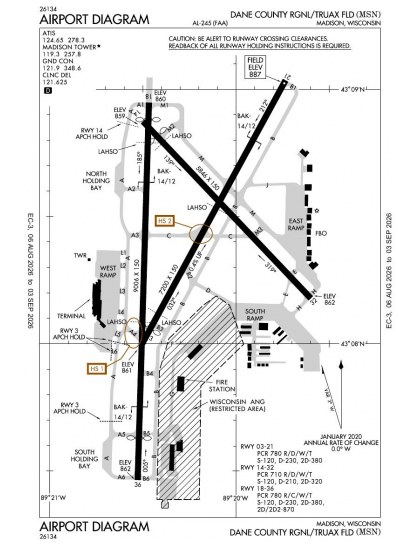

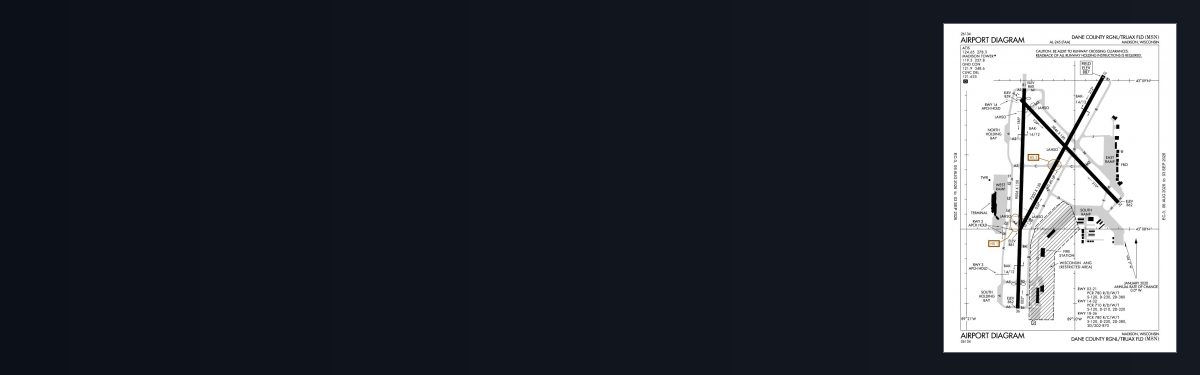

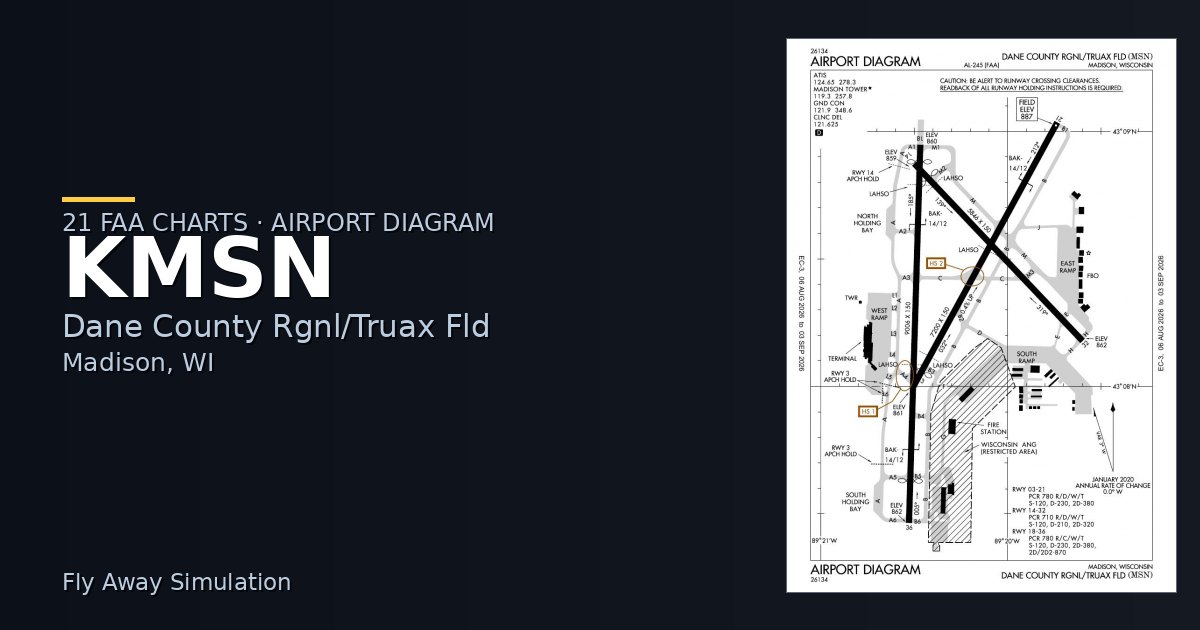

The official FAA airport diagram for Dane County Rgnl/Truax Fld is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.

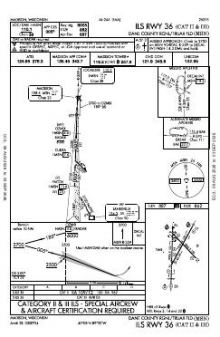

Yes. 1 of the published ILS procedures carry CAT II/III minima, which allow approaches in lower visibility than a standard CAT I ILS. Those plates are listed separately in the approach table above, marked CAT II or CAT III in the chart name.
Yes. Dane County Rgnl/Truax Fld has an operating control tower, within Chicago Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
