Terminal Procedures

KPJY — Pinckneyville/Du Quoin

PINCKNEYVILLE, IL · 3 FAA charts · cycle 6 Aug 2026

FAA PJYElevation 400 ft1 runwayLongest 3,999 ftNon-toweredFuel 100LL avgasVolume EC-3Not for navigation

2 published instrument approaches: 2 RNAV (GPS), serving 2 runway ends.

All 3 KPJY charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 3 charts is roughly 19 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

	Chart	Amendment

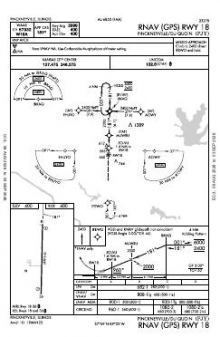

	RNAV (GPS) RWY 18	1D	PDF

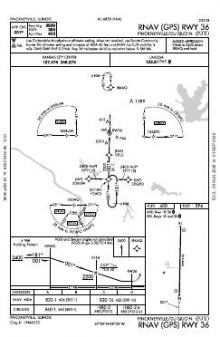

	RNAV (GPS) RWY 36	0D	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

KPJY airport information

Control tower: No
Attendance: Ireg
ARTCC: Kansas City Center
Flight service: Saint Louis
NOTAM facility: STL (NOTAM-D available)
Magnetic variation: 0E
Traffic pattern altitude: 400 ft
Beacon: White-green (lighted land airport), sunset to sunrise
Wind indicator: Lighted
Fuel: 100LL avgas
Bottled oxygen: None
Parking: Tie-downs
Activated: February 1978
Airport area: 157 acres
Ownership: Publicly owned
Sectional: St Louis
Last FAA inspection: 2024-05-23

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KPJY radio frequencies

Service	Frequency	Call sign
CTAF	122.8

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at KPJY, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
18/36	3,999 ft	60 ft	Asphalt Fair	Medium intensity
18 181°T	PAPI (2-box) 3°
36 1°T	PAPI (2-box) 3°

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KPJY is

Latitude, longitude37.9778840, -89.3604490

Elevation400 ft

From Pinckneyville6 nm SE

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KPJY

FOR SVC CALL ACFT MAINT, 618-443-2002.
ACTVT REIL RWY 18 & 36. MIRL RWY 18/36 PRESET TO LOW INTST, TO INCR INTST & ACTVT - CTAF.
TPA: 400 FT AGL ULTRALIGHTS, 800 FT AGL ALL OTR ACFT.
RWY 18 PAPI UNUSBL BYD 8 DEGS RIGHT OF CNTRLN.
ULTRALIGHT OPS ON AND INVOF ARPT.
WILDLIFE ON & INVOF ARPT.
FUEL IS SELF SVC WITH CREDIT CARD.
FOR EMERG CALL POLICE DEPT 618-357-8231 OR 911.
ULTRALIGHT TKOF AND LDG OPS ON GRASS ON WEST SIDE OF RWY.
FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near KPJY

ID	Airport	City	Distance	Charts
KMDH	Southern Illinois	CARBONDALE/MURPHYSBORO, IL	13 nm SE	8
KSAR	Sparta Community-Hunter Fld	SPARTA, IL	19 nm NW	4
H96	Benton Muni	BENTON, IL	20 nm E	2
KMWA	Veterans Airport Of Southern Illinois	MARION, IL	21 nm SE	8
KPCD	Perryville Rgnl	PERRYVILLE, MO	25 nm W	4
KMVN	Mount Vernon	MOUNT VERNON, IL	31 nm NE	6
KENL	Centralia Muni	CENTRALIA, IL	35 nm N	3
KHSB	Harrisburg-Raleigh	HARRISBURG, IL	40 nm E	4

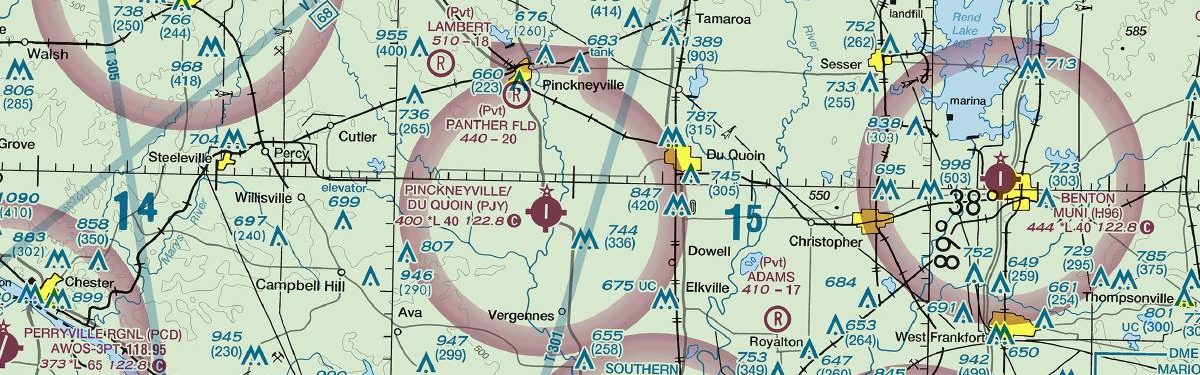

VFR charts covering KPJY

St LouisSectional Chart

Common questions about KPJY

What charts are available for KPJY?

3 current FAA charts for Pinckneyville/Du Quoin, including 2 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KPJY?

CTAF 122.8. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KPJY?

Pinckneyville/Du Quoin has 1 runway. The longest is 18/36 at 3,999 ft by 60 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does KPJY have an ILS approach?

No ILS is published. In total KPJY has 2 published instrument approaches, of which 2 are RNAV (GPS).

Is KPJY a towered airport?

No — Pinckneyville/Du Quoin has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these KPJY charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
