Terminal Procedures

19N — Pine Valley

BERLIN, NJ · 4 FAA charts · cycle 6 Aug 2026

Elevation 150 ft1 runwayLongest 3,094 ftNon-toweredFuel Jet AVolume NE-2Not for navigation

3 published instrument approaches: 2 RNAV (GPS), 1 VOR, serving 2 runway ends.

All 4 19N charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 4 charts is roughly 25 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

Chart	Amendment

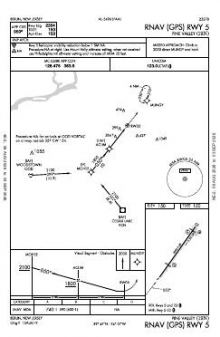

RNAV (GPS) RWY 05	0F	PDF

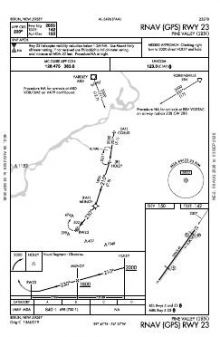

RNAV (GPS) RWY 23	0C	PDF

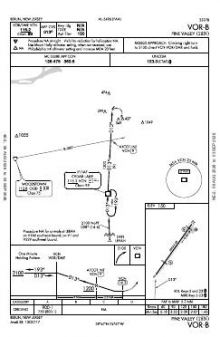

VOR-B	2B	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

19N airport information

Control tower: No
Attendance: All all 0900-1500
ARTCC: New York Center
Flight service: Millville
NOTAM facility: MIV (NOTAM-D available)
Magnetic variation: 12W
Beacon: White-green (lighted land airport), see remarks
Wind indicator: Lighted
Fuel: Jet A
Airframe service: Major
Powerplant service: Major
Bottled oxygen: None
Parking: Tie-downs
Activated: July 1935
Airport area: 75 acres
Ownership: Privately owned
Sectional: Washington
Last FAA inspection: 2025-05-27

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

19N radio frequencies

Service	Frequency	Call sign
CTAF	123.0
Approach	126.475	Mc Guire

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at 19N, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
05/23	3,094 ft	45 ft	Asphalt Good	Medium intensity
05 38°T	PSIR 4° · displaced threshold 740 ft
23 218°T	PSIR 4° · displaced threshold 239 ft

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where 19N is

Latitude, longitude39.7784440, -74.9478060

Elevation150 ft

From Berlin1 nm SW

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for 19N

ACTVT ROTG BCN - CTAF.
TREES ALONG NW SIDE OF RWY 05/23.
ACTVT REIL RWY 05/23; MIRL RWY 05/23 - CTAF.
UNATTND CHRISTMAS AND NEW YEARS DAY.
+28 FT POLE 7 FT FROM RWY END 74 FT L.
+44 FT TREE 37 FT FROM RWY END 206 FT R.
OTS INDEF.
+74 FT TREE, DIST 16 FT, 82 FT L, 0:1 BASED ON DSPLCD THLD.
+47 FT TREE, DIST 6 FT, 140 FT R, 0:1 BASED ON DSPLCD THLD.
LRG LONGL CRACK IN MID OF RWY.
DEER AND GEESE ON AND INVOF ARPT.
NON-STANDARD RWY AND TWY LGT SPACING.
FOR CD CTC MC GUIRE APCH AT 609-754-2767.
TWY LINES & RWY HOLD LNS VERY FADED.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near 19N

ID	Airport	City	Distance	Charts
17N	Cross Keys	CROSS KEYS, NJ	6 nm SW	2
KVAY	South Jersey Rgnl	MOUNT HOLLY, NJ	11 nm NE	7
N81	Hammonton Muni	HAMMONTON, NJ	11 nm SE	3
N14	Flying W	LUMBERTON, NJ	11 nm NE	6
KPHL	Philadelphia Intl	PHILADELPHIA, PA	15 nm NW	38
KPNE	Northeast Philadelphia	PHILADELPHIA, PA	18 nm N	13
KWRI	Mc Guire Fld (Joint Base Mc Guire Dix Lakehurst)	WRIGHTSTOWN, NJ	22 nm NE	22
KMIV	Millville Muni	MILLVILLE, NJ	25 nm S	9

VFR charts covering 19N

New YorkSectional Chart WashingtonSectional Chart PhiladelphiaTerminal Area Chart

Common questions about 19N

What charts are available for 19N?

4 current FAA charts for Pine Valley, including 3 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for 19N?

CTAF 123.0. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at 19N?

Pine Valley has 1 runway. The longest is 05/23 at 3,094 ft by 45 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does 19N have an ILS approach?

No ILS is published. In total 19N has 3 published instrument approaches, of which 2 are RNAV (GPS).

Is 19N a towered airport?

No — Pine Valley has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these 19N charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
