URBANA, OH · 4 FAA charts · cycle 6 Aug 2026
2 published instrument approaches: 2 RNAV (GPS), serving 2 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

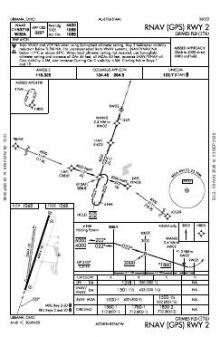

 | RNAV (GPS) RWY 02 | 1C | |

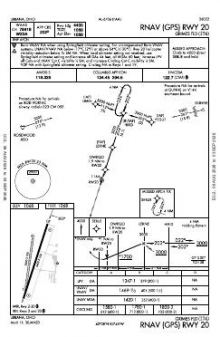

 | RNAV (GPS) RWY 20 | 1B |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 122.7 | |
| Approach | 134.45 | Columbus |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 02/20 | 4,400 ft | 100 ft | Asphalt Fair | Medium intensity |
| 02 18°T | PAPI (4-box) 3° | |||
| 20 198°T | PAPI (4-box) 3° | |||
| 01/19 | 3,000 ft | 100 ft | Grass Good | |
Runway and approach-aid data from the FAA NASR 28-day subscription.
40.1323720, -83.7540630
1,067 ft1 nm NPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Grimes Field pairs two RNAV (GPS) approaches with two served runway ends, leaving the other two ends without a published instrument approach. Its 4,400 ft asphalt runway is 1,400 ft longer than the turf runway; aircraft needing more than 3,000 ft of runway are therefore limited by length to 02/20.

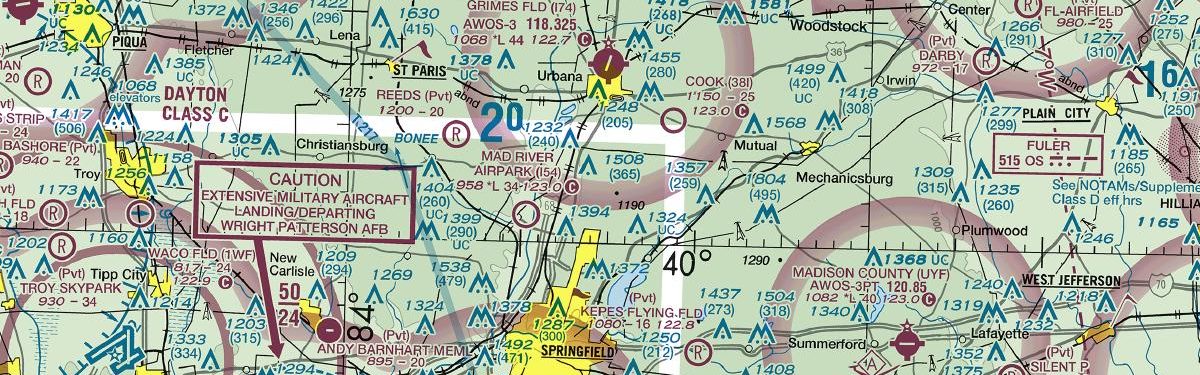

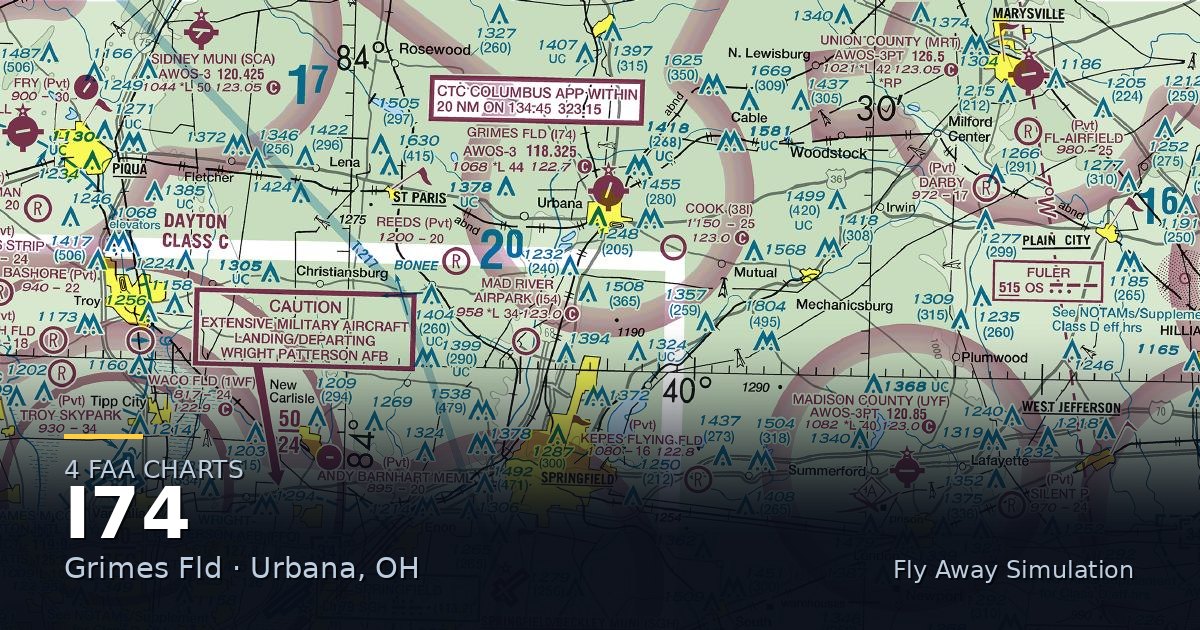

Springfield/Beckley Municipal has the broadest nearby procedure set, with twice Grimes Field’s chart coverage. Madison County, Sidney Municipal and Union County match Grimes in chart count, while Bellefontaine Regional is slightly thinner. The Cincinnati, Detroit and St Louis sectional charts add broad-area VFR context beyond the airport-specific instrument procedures.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KEDJ | Bellefontaine Rgnl | BELLEFONTAINE, OH | 15 nm N | 3 |
| KSGH | Springfield/Beckley Muni | SPRINGFIELD, OH | 18 nm S | 8 |
| KUYF | Madison County | LONDON, OH | 18 nm SE | 4 |
| KSCA | Sidney Muni | SIDNEY, OH | 19 nm W | 4 |
| KMRT | Union County | MARYSVILLE, OH | 19 nm E | 4 |
| KFFO | Wright-Patterson AFB | DAYTON, OH | 23 nm SW | 13 |
| KDAY | James M Cox Dayton Intl | DAYTON, OH | 25 nm SW | 20 |
| I17 | Piqua/Hartzell Fld | PIQUA, OH | 26 nm W | 3 |
4 current FAA charts for Grimes Fld, including 2 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
CTAF 122.7. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Grimes Fld has 2 runways. The longest is 02/20 at 4,400 ft by 100 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
No ILS is published. In total I74 has 2 published instrument approaches, of which 2 are RNAV (GPS).
No — Grimes Fld has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
