BESSEMER, AL · 5 FAA charts · cycle 6 Aug 2026
4 published instrument approaches: 1 ILS approach, 2 RNAV (GPS), 1 VOR, serving 2 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

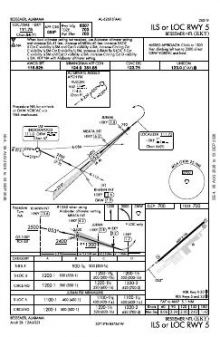

 | ILS OR LOC RWY 05 | 2B | |

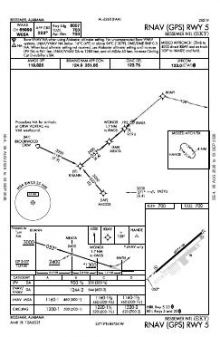

 | RNAV (GPS) RWY 05 | 1B | |

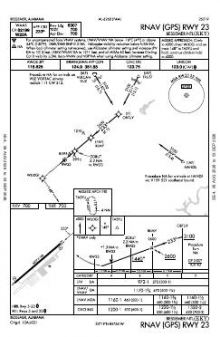

 | RNAV (GPS) RWY 23 | 0B | |

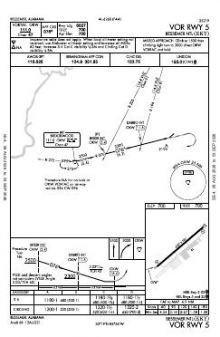

 | VOR RWY 05 | 6B |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 123.0 | |
| Clearance delivery | 123.75 | Birmingham |
| Approach | 124.9 | Birmingham |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 05/23 | 6,007 ft | 100 ft | Asphalt Good | High intensity |
| 05 50°T | ILS/DME · PAPI (4-box) 3° | |||
| 23 230°T | PAPI (4-box) 3° | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
33.3126110, -86.9263060
699 ft3 nm SEPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
KEKY’s four approach charts cover both ends of its sole runway, so instrument procedure coverage is not confined to one direction. The mix includes ILS and localiser guidance, two RNAV (GPS) approaches and a VOR approach. That provides several guidance methods despite the compact chart set. No airport diagram is published.

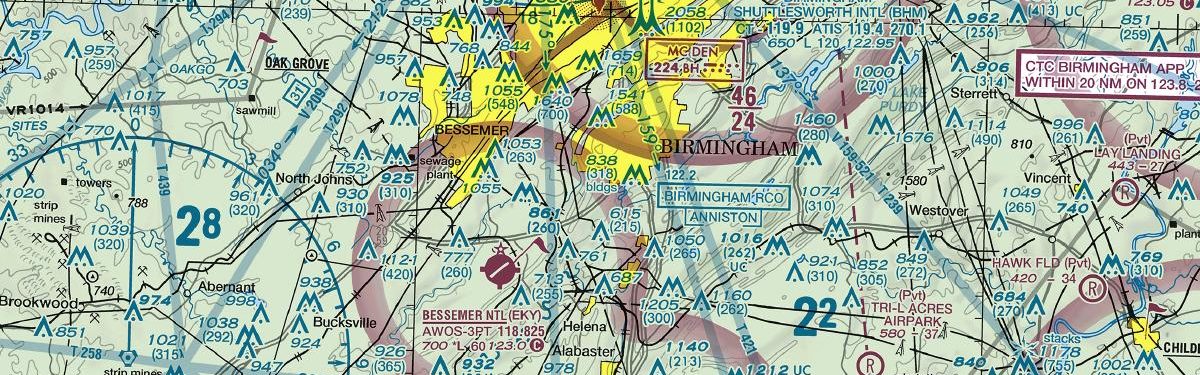

Birmingham-Shuttlesworth International has a substantially broader procedure library, while Shelby County and Merkel Field Sylacauga Municipal are closest to KEKY in chart count. Bibb County and Chilton County have thinner coverage. The Atlanta Sectional adds the wider visual and airspace context that the terminal procedure charts do not provide.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KEET | Shelby County | ALABASTER, AL | 11 nm SE | 4 |
| KBHM | Birmingham-Shuttlesworth Intl | BIRMINGHAM, AL | 17 nm NE | 18 |
| 0A8 | Bibb County | CENTREVILLE, AL | 24 nm S | 3 |
| 02A | Chilton County | CLANTON, AL | 32 nm SE | 3 |
| KSCD | Merkel Fld Sylacauga Muni | SYLACAUGA, AL | 32 nm E | 4 |
| KTCL | Tuscaloosa Ntl | TUSCALOOSA, AL | 35 nm W | 11 |
| KPLR | St Clair County | PELL CITY, AL | 37 nm NE | 4 |
| KJFX | Walker County/Bevill Fld | JASPER, AL | 40 nm NW | 6 |
5 current FAA charts for Bessemer Ntl, including 4 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
CTAF 123.0; Clearance delivery 123.75. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Bessemer Ntl has 1 runway. The longest is 05/23 at 6,007 ft by 100 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 1 ILS procedure is published. In total KEKY has 4 published instrument approaches, of which 2 are RNAV (GPS).
No — Bessemer Ntl has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
