GRAND RAPIDS, MI · 15 FAA charts · cycle 6 Aug 2026

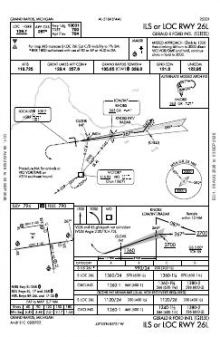

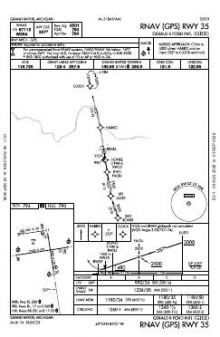

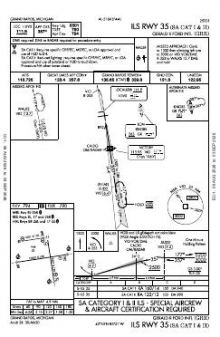

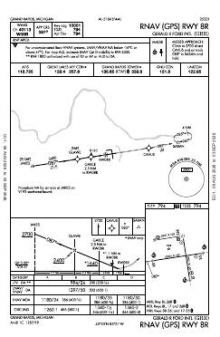

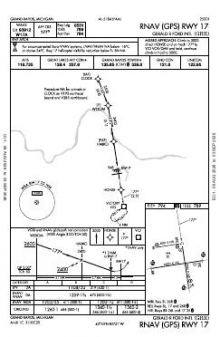

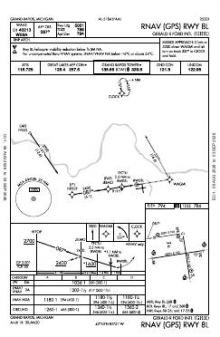

11 published instrument approaches: 4 ILS approaches, 6 RNAV (GPS), 1 VOR, serving 6 runway ends.
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
| Chart | Amendment | ||
|---|---|---|---|
 | HOT SPOT | — |
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 135.65 | |
| UNICOM | 122.95 | |
| Ground | 121.8 | Grand Rapids |
| Clearance delivery | 119.3 | Grand Rapids |
| ATIS | 118.725 | Grand Rapids |
| Approach | 124.6North128.4South | Grand Rapids |
| Emergency | 121.5 | Grand Rapids |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 08R/26L | 10,001 ft | 150 ft | Concrete Good | High intensity |
| 08R 81°T | ILS · MALSR approach lighting | |||
| 26L 261°T | ILS · PAPI (4-box) 3° · MALSR approach lighting | |||
| 17/35 | 8,501 ft | 150 ft | Concrete Good | High intensity |
| 17 171°T | PAPI (4-box) 3° | |||
| 35 351°T | ILS · PAPI (4-box) 3° · MALSR approach lighting | |||
| 08L/26R | 5,001 ft | 100 ft | Asphalt Good | Medium intensity |
| 08L 81°T | VASI (4-bar) 3° | |||
| 26R 261°T | VASI (4-bar) 3° | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
42.8808330, -85.5228060
793 ft6 nm SEPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Every end of Gerald R Ford International’s three runways has a published approach. The 11 approach plates span ILS, localiser, RNAV (GPS) and VOR procedures, providing both satellite-based and conventional coverage across the runway layout rather than concentrating procedures on one alignment. Runway lengths vary markedly: the 10,001 ft and 8,501 ft strips support greater runway-length requirements than the 5,001 ft parallel runway. An airport diagram and separate hotspot chart provide dedicated ground-layout information.
Nearby procedure coverage is much thinner: Hastings, Paul C Miller/Sparta and Ionia County have four charts each, while Ottawa Executive has only two. The Chicago and Detroit sectionals add broader VFR airspace and visual-reference context beyond the airport-specific terminal procedures.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| 9D9 | Hastings | HASTINGS, MI | 15 nm SE | 4 |
| 8D4 | Paul C Miller/Sparta | SPARTA, MI | 16 nm NW | 4 |
| Z98 | Ottawa Exec | ZEELAND, MI | 18 nm W | 2 |
| 6D6 | Greenville Muni | GREENVILLE, MI | 20 nm NE | 3 |
| Y70 | Ionia County | IONIA, MI | 21 nm E | 4 |
| 35D | Padgham Fld | ALLEGAN, MI | 25 nm SW | 3 |
| KBIV | West Michigan Rgnl | HOLLAND, MI | 27 nm W | 5 |
| 3GM | Grand Haven Meml Airpark | GRAND HAVEN, MI | 31 nm W | 3 |
15 current FAA charts for Gerald R Ford Intl, including 11 instrument approachs, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Ground 121.8; ATIS 118.725; CTAF 135.65; UNICOM 122.95; Clearance delivery 119.3. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Gerald R Ford Intl has 3 runways. The longest is 08R/26L at 10,001 ft by 150 ft, concrete. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 4 ILS procedures are published. In total KGRR has 11 published instrument approaches, of which 6 are RNAV (GPS).

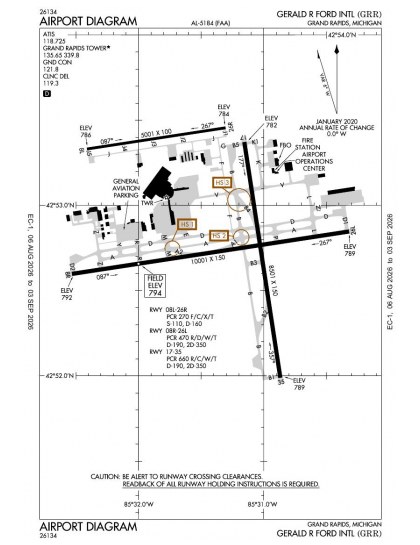

The official FAA airport diagram for Gerald R Ford Intl is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.
Yes. Gerald R Ford Intl has an operating control tower, within Chicago Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
