Terminal Procedures

KGZN — Gregory M Simmons Meml

CISCO, TX · 4 FAA charts · cycle 6 Aug 2026

FAA GZNElevation 1,711 ft1 runwayLongest 6,536 ftNon-toweredFuel 100LL avgas, Jet AVolume SC-2Not for navigation

3 published instrument approaches: 3 RNAV (GPS), serving 2 runway ends.

All 4 KGZN charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 4 charts is roughly 25 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

Chart	Amendment

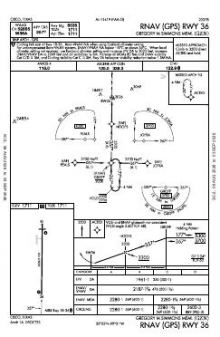

RNAV (GPS) RWY 36	1A	PDF

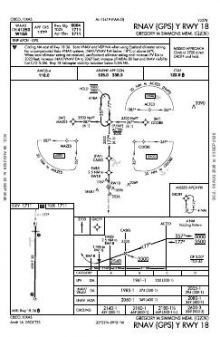

RNAV (GPS) Y RWY 18	1A	PDF

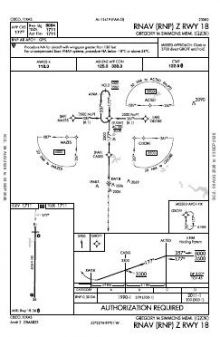

RNAV (RNP) Z RWY 18	2	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

KGZN airport information

Control tower: No
Attendance: All mon-fri 0800-1700
ARTCC: Fort Worth Center
Flight service: Fort Worth
NOTAM facility: FTW (NOTAM-D available)
Magnetic variation: 4E
Wind indicator: Lighted
Segmented circle: Yes
Fuel: 100LL avgas, Jet A
Airframe service: Minor
Powerplant service: Minor
Parking: Tie-downs
Activated: June 2015
Airport area: 191 acres
Ownership: Privately owned
Sectional: Dallas-Ft Worth
Last FAA inspection: 2023-11-09

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KGZN radio frequencies

Service	Frequency	Call sign
CTAF	122.9
Approach	125.0	Abilene

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at KGZN, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
18/36	6,536 ft	100 ft	Concrete Good	Medium intensity
18	PAPI (4-box) 3° · displaced threshold 472 ft · right-hand circuit
36	PAPI (4-box) 3.2°

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KGZN is

Latitude, longitude32.3658330, -99.0236940

Elevation1,711 ft

From Cisco3 nm WSW

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KGZN

ACTVT PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
NO LONGER OFFERING AFT HRS CALL-OUT SVCS.
SPENN@WILKSBROTHERS.COM ALT NO: 254-433-2071
8 FT BLAST WALL 38 FT FM RWY END, BOTH SIDES OF CNTRLN; 8 FT FENCE 38 FT DSTC ACRS APCH.
11 FT PUMP JACK AT THR, 213 FT LEFT; 17 FT LIT POLE AT THR, 213 FT LEFT.
APCH RATIO 51:1 TO DSPLCD THR OVR 28 FT POLE, 888 FT DSTC, 235 FT L.
FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
260 FT AGL LGTD/MKD TWR 0.74 SM E OF RWY.
330 FT AGL LGTD/MKD TWR 0.42 NM SE OF RWY.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near KGZN

ID	Airport	City	Distance	Charts
KETN	Eastland Muni	EASTLAND, TX	11 nm E	4
KBKD	Stephens County	BRECKENRIDGE, TX	22 nm N	4
T23	Albany Muni	ALBANY, TX	25 nm NW	2
KABI	Abilene Rgnl	ABILENE, TX	33 nm W	7
KMKN	Comanche County-City	COMANCHE, TX	34 nm SE	4
KBWD	Brownwood Rgnl	BROWNWOOD, TX	35 nm S	7
KCOM	Coleman Muni	COLEMAN, TX	37 nm SW	4
KDYS	Dyess AFB	ABILENE, TX	42 nm W	12

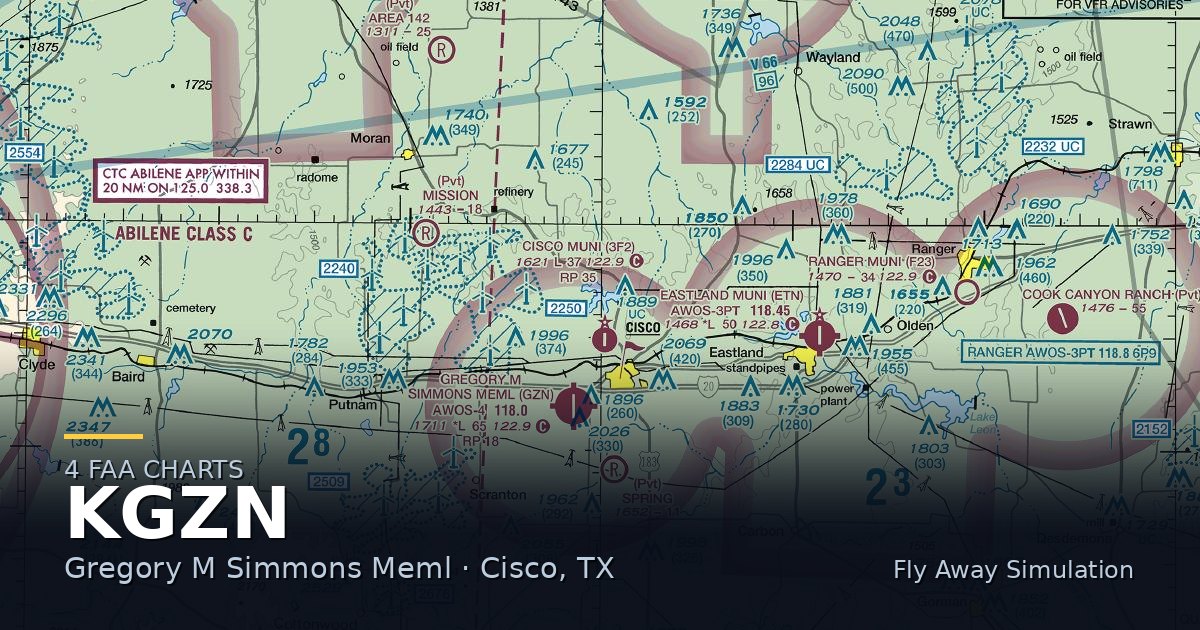

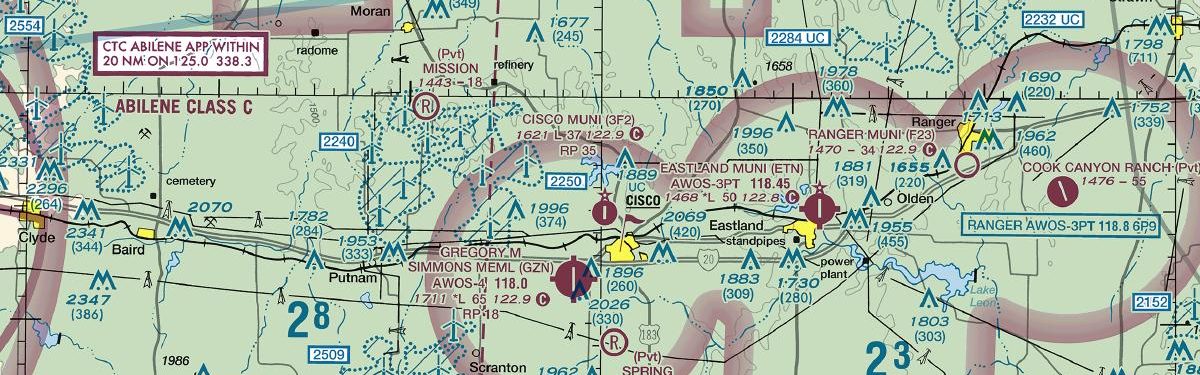

VFR charts covering KGZN

Dallas-Ft WorthSectional Chart

Common questions about KGZN

What charts are available for KGZN?

4 current FAA charts for Gregory M Simmons Meml, including 3 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KGZN?

CTAF 122.9. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KGZN?

Gregory M Simmons Meml has 1 runway. The longest is 18/36 at 6,536 ft by 100 ft, concrete. Full runway dimensions, lighting and approach aids are listed on this page.

Does KGZN have an ILS approach?

No ILS is published. In total KGZN has 3 published instrument approaches, of which 3 are RNAV (GPS).

Is KGZN a towered airport?

No — Gregory M Simmons Meml has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these KGZN charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
