Terminal Procedures

KHES — Healdsburg Muni

HEALDSBURG, CA · 4 FAA charts · cycle 6 Aug 2026

FAA HESElevation 280 ft1 runwayLongest 2,652 ftNon-toweredFuel 100LL avgasVolume SW-2Not for navigation

All 4 KHES charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 4 charts is roughly 25 sec of downloading — they queue one behind another.

PRO members only

Arrival procedures (STAR)

Chart	Amendment
REBAS ONE (RNAV)	—	PDF
REBAS ONE (RNAV), CONT.1	—	PDF
VNYRD ONE (RNAV)	—	PDF
VNYRD ONE (RNAV), CONT.1	—	PDF

KHES airport information

Control tower: No
Attendance: All all 0800-1700
ARTCC: Oakland Center
Flight service: Oakland
NOTAM facility: OAK (NOTAM-D available)
Magnetic variation: 16E
Wind indicator: Lighted
Segmented circle: Yes
Fuel: 100LL avgas
Airframe service: Major
Powerplant service: Major
Bottled oxygen: None
Parking: Tie-downs
Customs: Landing rights airport
Activated: November 1945
Airport area: 50 acres
Ownership: Publicly owned
Sectional: San Francisco
Last FAA inspection: 2025-08-28

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KHES radio frequencies

Service	Frequency	Call sign
CTAF	122.8

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at KHES, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
13/31	2,652 ft	60 ft	Asphalt Good	Medium intensity
13	PAPI (2-box) 4° · right-hand circuit
31	PAPI (2-box) 4°

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KHES is

Latitude, longitude38.6528590, -122.8986420

Elevation280 ft

From Healdsburg3 nm NW

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KHES

ESTABD PRIOR TO 15 MAY 1959.
NO TOUCH & GO. PRACTICE LNDGS LTD TO 3 OPS/DAY.
ACTVT MIRL RY 13/31 - CTAF.
AUTOMATED UNICOM.
ESTIMATED BY OWNER.
RWY 31 DOWNDRAFTS APCH END.
FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
LOCAL ARPT ADZY (NOT FAA APRVD) WX IS AVBL ON CTAF. THREE CLICKS WI 3 SECS GIVES WX INFO.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near KHES

ID	Airport	City	Distance	Charts
O60	Cloverdale Muni	CLOVERDALE, CA	9 nm NW	2
KSTS	Charles M Schulz/Sonoma County	SANTA ROSA, CA	9 nm SE	17
1O2	Lampson Fld	LAKEPORT, CA	20 nm N	3
O69	Petaluma Muni	PETALUMA, CA	27 nm SE	9
KUKI	Ukiah Muni	UKIAH, CA	32 nm NW	8
KDVO	Gnoss Fld	NOVATO, CA	35 nm SE	7
KAPC	Napa County	NAPA, CA	39 nm SE	22
CA35	San Rafael	SAN RAFAEL, CA	42 nm SE	4

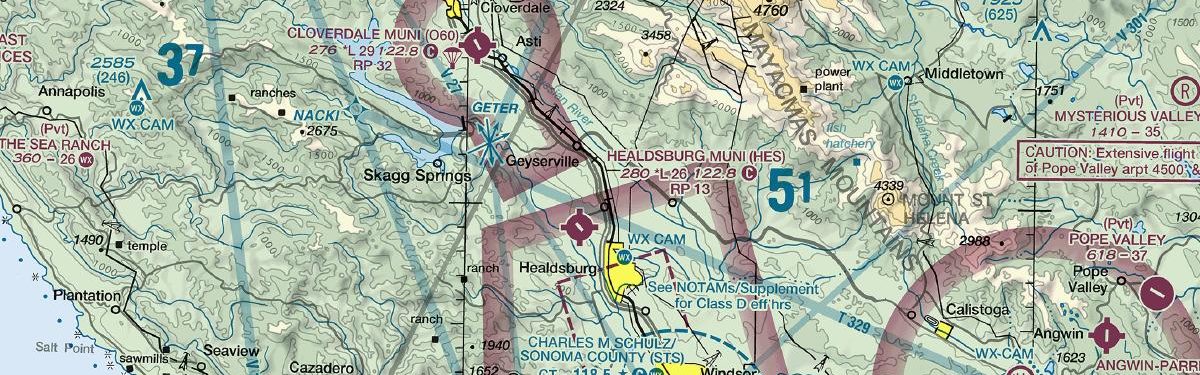

VFR charts covering KHES

San FranciscoSectional Chart

Common questions about KHES

What charts are available for KHES?

4 current FAA charts for Healdsburg Muni, including 4 arrival procedures. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KHES?

CTAF 122.8. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KHES?

Healdsburg Muni has 1 runway. The longest is 13/31 at 2,652 ft by 60 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Is KHES a towered airport?

No — Healdsburg Muni has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these KHES charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
