LITTLE ROCK, AR · 16 FAA charts · cycle 6 Aug 2026

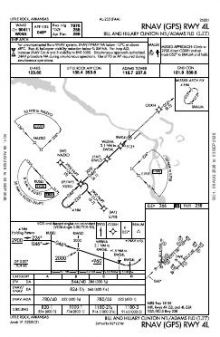

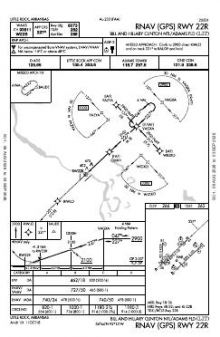

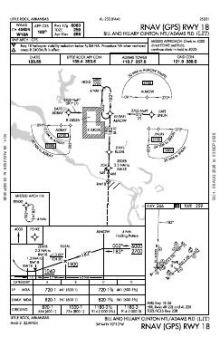

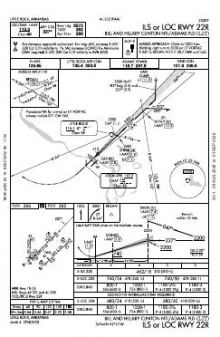

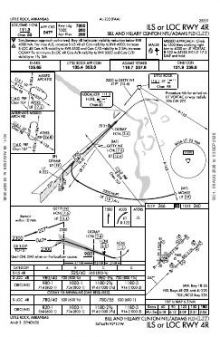

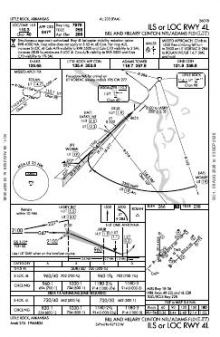

12 published instrument approaches: 6 ILS approaches including CAT II/III minima, 6 RNAV (GPS), serving 6 runway ends.
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
| Chart | Amendment | ||
|---|---|---|---|
 | HOT SPOT | — |
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| UNICOM | 122.95 | |
| Tower | 118.7 | Adams |
| Ground | 121.9 | Adams |
| Clearance delivery | 118.95 | Adams |
| ATIS | 125.65 | Adams |
| Approach | 119.5240-039135.4040-239 | Adams |
| Emergency | 121.5 | Adams |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 04L/22R | 8,273 ft | 150 ft | Concrete Good | High intensity |
| 04L 47°T | ILS/DME · PAPI (4-box) 3° · MALSR approach lighting · displaced threshold 297 ft | |||
| 22R 227°T | ILS/DME · PAPI (4-box) 3° · ALSF-2 approach lighting · right-hand circuit | |||
| 04R/22L | 8,251 ft | 150 ft | Concrete Good | High intensity |
| 04R 47°T | ILS/DME · PAPI (4-box) 3° · MALSR approach lighting · displaced threshold 1,050 ft · right-hand circuit | |||
| 22L 227°T | ILS/DME · PAPI (4-box) 3° · MALSF approach lighting | |||
| 18/36 | 6,224 ft | 150 ft | Concrete Good | Medium intensity |
| 18 182°T | PAPI (4-box) 3° | |||
| 36 2°T | PAPI (4-box) 3.75° · displaced threshold 164 ft | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
34.7294410, -92.2247770
266 ft2 nm EPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Bill and Hillary Clinton National/Adams Field has an even approach pattern: all six ends of its three runways are served. The mix of ILS, localiser and RNAV (GPS) procedures provides instrument coverage across every alignment, with one ILS extending to CAT II/III. The two parallel concrete runways are both just over 8,250 ft, complemented by a shorter 6,224 ft crossing runway.
Little Rock AFB has the nearest comparable procedure set, although its chart coverage is only half as extensive. North Little Rock Municipal and Saline County Regional are thinner, with Conway Regional and Sheridan-Grant County Regional thinner again. The airport diagram and hot-spot sheet cover ground layout, while the Memphis Sectional adds the wider VFR airspace and visual context absent from the terminal procedures.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KORK | North Little Rock Muni | NORTH LITTLE ROCK, AR | 6 nm N | 6 |
| KLRF | Little Rock AFB | JACKSONVILLE, AR | 12 nm N | 8 |
| KSUZ | Saline County Rgnl | BENTON, AR | 15 nm SW | 5 |
| KCXW | Conway Rgnl | CONWAY, AR | 24 nm NW | 3 |
| 9M8 | Sheridan-Grant County Rgnl | SHERIDAN, AR | 25 nm S | 3 |
| 4M3 | Carlisle Muni | CARLISLE, AR | 26 nm E | 4 |
| KSGT | Stuttgart Muni Carl Humphrey Fld | STUTTGART, AR | 33 nm E | 7 |
| KBDQ | Morrilton Muni | MORRILTON, AR | 34 nm NW | 2 |
16 current FAA charts for Bill And Hillary Clinton Ntl/Adams Fld, including 12 instrument approachs, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Tower 118.7; Ground 121.9; ATIS 125.65; UNICOM 122.95; Clearance delivery 118.95. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Bill And Hillary Clinton Ntl/Adams Fld has 3 runways. The longest is 04L/22R at 8,273 ft by 150 ft, concrete. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 6 ILS procedures are published, including CAT II/III minima. In total KLIT has 12 published instrument approaches, of which 6 are RNAV (GPS).
The official FAA airport diagram for Bill And Hillary Clinton Ntl/Adams Fld is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.

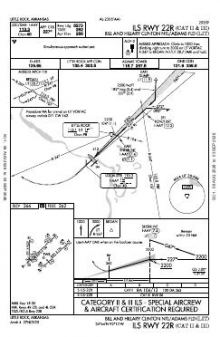

Yes. 1 of the published ILS procedures carry CAT II/III minima, which allow approaches in lower visibility than a standard CAT I ILS. Those plates are listed separately in the approach table above, marked CAT II or CAT III in the chart name.
Yes. Bill And Hillary Clinton Ntl/Adams Fld has an operating control tower, within Memphis Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
