CHICAGO/ROCKFORD, IL · 20 FAA charts · cycle 6 Aug 2026

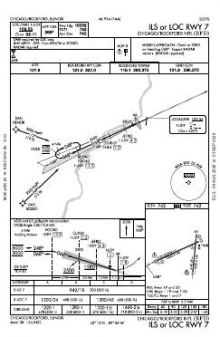

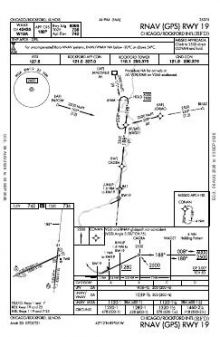

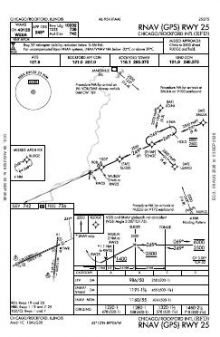

9 published instrument approaches: 4 ILS approaches including CAT II/III minima, 4 RNAV (GPS), serving 4 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

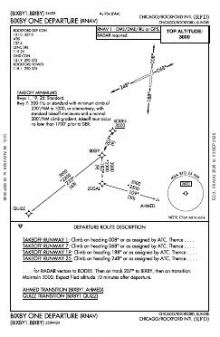

 | BIXBY ONE (RNAV) | — |
| Chart | Amendment | ||
|---|---|---|---|
 | ALEXS ONE (RNAV) | — | |
 | EMMAS ONE (RNAV) | — | |
 | FNLEE ONE (RNAV) | — | |

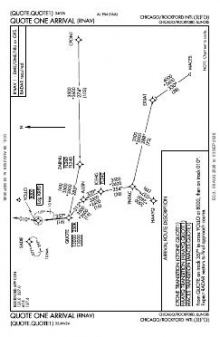

 | QUOTE ONE (RNAV) | — |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — | |
 | RADAR MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
| Chart | Amendment | ||
|---|---|---|---|
 | HOT SPOT | — |
| Chart | Amendment | ||
|---|---|---|---|
 | LAHSO | — |
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| UNICOM | 122.95 | |
| Tower | 118.1 | Rockford |
| Ground | 121.9 | Rockford |
| Clearance delivery | 119.25 | Rockford |
| ATIS | 127.6 | Rockford |
| Approach | 121.0East126.0West | Rockford |
| Emergency | 121.5 | Rockford |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 07/25 | 10,002 ft | 150 ft | Asphalt over concrete Good | High intensity |
| 07 65°T | ILS/DME · PAPI (4-box) 3° · ALSF-2 approach lighting | |||
| 25 245°T | PAPI (4-box) 3° | |||
| 01/19 | 8,200 ft | 150 ft | Asphalt over concrete Good | High intensity |
| 01 5°T | ILS/DME · MALSR approach lighting | |||
| 19 185°T | PAPI (4-box) 3° | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
42.1953610, -89.0972220
742 ft68 nm NWPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Chicago/Rockford’s four runway ends all have published approach coverage. The mix of ILS, RNAV (GPS) and localiser procedures provides more than one form of guidance, while the CAT II/III minima attached to one ILS distinguish a single runway end within the set. With two runway alignments and neither runway shorter than 8,200 ft, the layout offers substantial available length in either direction.
Nearby procedure coverage is markedly thinner. De Kalb Taylor Municipal has the broadest neighbouring set at seven charts, while Poplar Grove and Beloit each have only two. The Chicago Sectional supplies the wider VFR context around the field; the Chicago Terminal Area Chart adds a more detailed view of the surrounding terminal area than the instrument procedures provide.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| C77 | Poplar Grove | POPLAR GROVE, IL | 14 nm NE | 2 |
| KRPJ | Rochelle Muni/Koritz Fld | ROCHELLE, IL | 18 nm S | 4 |
| 44C | Beloit | BELOIT, WI | 19 nm N | 2 |
| KFEP | Albertus | FREEPORT, IL | 22 nm W | 5 |
| KDKB | De Kalb Taylor Muni | DE KALB, IL | 23 nm SE | 7 |
| KJVL | Southern Wisconsin Rgnl | JANESVILLE, WI | 26 nm N | 10 |
| C73 | Dixon Muni-Charles R Walgreen Fld | DIXON, IL | 27 nm SW | 3 |
| KEFT | Monroe Muni | MONROE, WI | 33 nm NW | 5 |
20 current FAA charts for Chicago/Rockford Intl, including 9 instrument approachs, 1 departure procedure, 4 arrival procedures, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Tower 118.1; Ground 121.9; ATIS 127.6; UNICOM 122.95; Clearance delivery 119.25. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Chicago/Rockford Intl has 2 runways. The longest is 07/25 at 10,002 ft by 150 ft, asphalt over concrete. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 4 ILS procedures are published, including CAT II/III minima. In total KRFD has 9 published instrument approaches, of which 4 are RNAV (GPS).

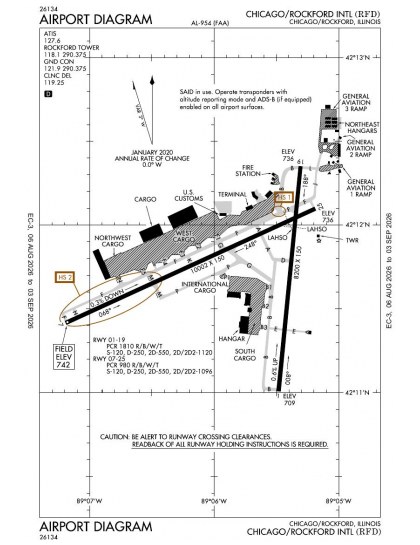

The official FAA airport diagram for Chicago/Rockford Intl is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.

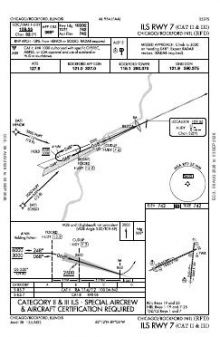

Yes. 1 of the published ILS procedures carry CAT II/III minima, which allow approaches in lower visibility than a standard CAT I ILS. Those plates are listed separately in the approach table above, marked CAT II or CAT III in the chart name.
Yes. Chicago/Rockford Intl has an operating control tower, within Chicago Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
