Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 16.9 MB | Download |
| Print-ready chart, no georeferencing | 33.8 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 33.8 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

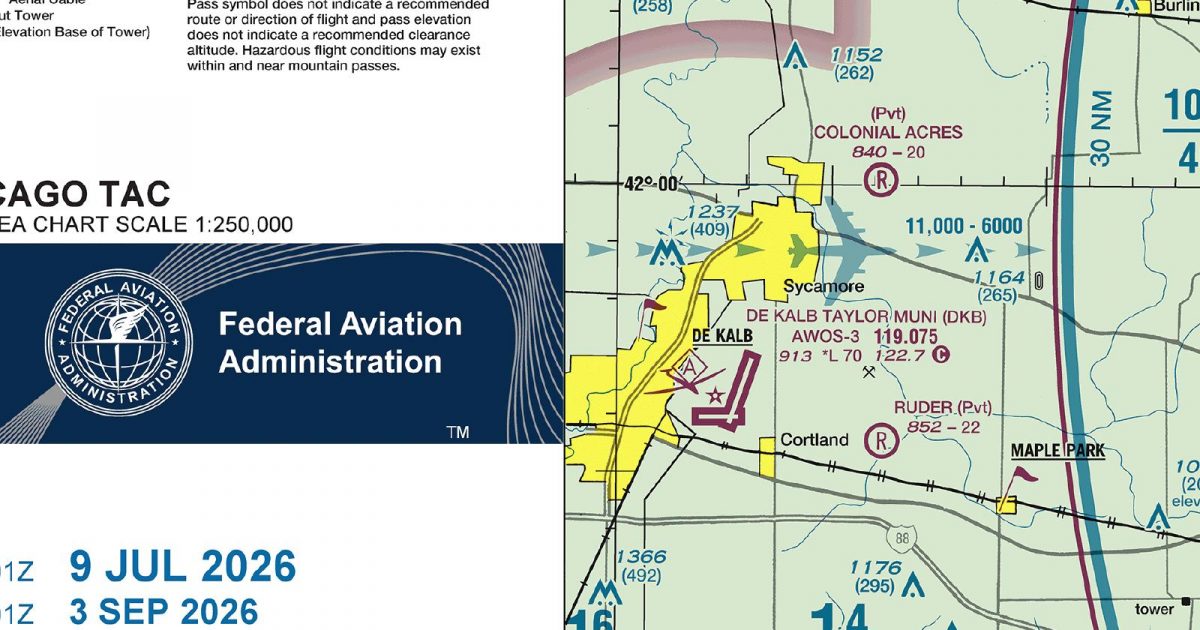

Go PROChicago’s dense urban core and long Lake Michigan frontage anchor this sheet. Coverage extends across the city and its suburbs, west over northern Illinois towards Rockford, north to the Wisconsin state line, and east into north-western Indiana. The landscape shifts from tightly developed lakeshore districts to flatter plains, outlying communities and agricultural ground. That contrast makes the sheet particularly useful for reproducing the visual complexity of metropolitan flying alongside the strong geographical reference provided by the shoreline.
The Terminal Area Chart gives Chicago and its surroundings more concentrated treatment than the Sectional Aeronautical Chart, which places the same area within a much broader regional view. For routes that continue well beyond the metropolitan area, the sectional supplies that wider context. The Helicopter Route Chart covers the same place with a purpose tailored to helicopter operations, rather than serving as a direct substitute for the terminal-area presentation. Together, the three products offer distinct views of one of the Midwest’s largest urban and lakeside flying environments.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KORD ORD | Chicago O'Hare Intl | CHICAGO, IL | 680 ft | 10 | 13,000 ft |
| KRFD RFD | Chicago/Rockford Intl | CHICAGO/ROCKFORD, IL | 742 ft | 2 | 10,002 ft |
| KGYY GYY | Gary/Chicago Intl | GARY/CHICAGO, IN | 596 ft | 2 | 8,859 ft |
| KDPA DPA | Dupage | CHICAGO/WEST CHICAGO, IL | 758 ft | 4 | 7,571 ft |
| KDKB DKB | De Kalb Taylor Muni | DE KALB, IL | 912 ft | 2 | 7,026 ft |
| KMDW MDW | Chicago Midway Intl | CHICAGO, IL | 619 ft | 4 | 6,522 ft |
| KARR ARR | Aurora Muni | CHICAGO/AURORA, IL | 712 ft | 3 | 6,501 ft |
| KLOT LOT | Lewis University | CHICAGO/ROMEOVILLE, IL | 679 ft | 2 | 6,500 ft |
| KUGN UGN | Waukegan Ntl | CHICAGO/WAUKEGAN, IL | 728 ft | 2 | 6,001 ft |
| C09 | Morris Muni/James R Washburn Fld | MORRIS, IL | 584 ft | 1 | 5,501 ft |
| KPWK PWK | Chicago Exec | CHICAGO/PROSPECT HEIGHTS/WHEELING, IL | 644 ft | 2 | 5,001 ft |
| KRPJ RPJ | Rochelle Muni/Koritz Fld | ROCHELLE, IL | 780 ft | 1 | 5,001 ft |
| 05C | Griffith-Merrillville | GRIFFITH, IN | 634 ft | 1 | 4,899 ft |
| KIGQ IGQ | Lansing Muni | CHICAGO, IL | 619 ft | 2 | 4,002 ft |
| 3CK | Lake In The Hills | CHICAGO/LAKE IN THE HILLS, IL | 887 ft | 1 | 3,800 ft |
| 06C | Schaumburg Rgnl | CHICAGO/SCHAUMBURG, IL | 801 ft | 1 | 3,800 ft |
| C77 | Poplar Grove | POPLAR GROVE, IL | 857 ft | 3 | 3,773 ft |
| 0C0 | Dacy | HARVARD, IL | 913 ft | 3 | 3,589 ft |
| C81 | Campbell | GRAYSLAKE, IL | 788 ft | 2 | 3,573 ft |
| 1C5 | Bolingbrook'S Clow Intl | BOLINGBROOK, IL | 674 ft | 1 | 3,360 ft |
| 44C | Beloit | BELOIT, WI | 817 ft | 1 | 3,300 ft |
| 3HO | Hobart Sky Ranch | HOBART, IN | 630 ft | 1 | 3,125 ft |
| 0C8 | Cushing Fld Ltd | NEWARK, IL | 640 ft | 1 | 2,831 ft |
| KJOT JOT | Joliet Rgnl | JOLIET, IL | 582 ft | 2 | 2,821 ft |
| 10C | Galt Fld | GREENWOOD/WONDER LAKE, IL | 875 ft | 2 | 2,802 ft |
| 0C2 | Hinckley | HINCKLEY, IL | 760 ft | 1 | 2,640 ft |
| C82 | Bresson | COMPTON, IL | 769 ft | 1 | 2,590 ft |
| 1C8 | Cottonwood | ROCKFORD, IL | 741 ft | 1 | 2,540 ft |
28 public-use airports within this chart's coverage, ordered by runway length. A further 75 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Illinois is available as a single 107.3 MB archive (466 charts) — see the Illinois airports.
It spans 41.4°N to 42.5°N and 89.2°W to 87.1°W. Airports on the sheet fall within Illinois, Indiana and Wisconsin. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (16.9 MB). Take the PDF to print it or read it on a second screen (33.8 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
FAA public-domain products, mirrored unmodified. Fly Away Simulation is not affiliated with or endorsed by the FAA. Chart licensing and terms.
