Terminal Procedures

KRKW — Rockwood Muni

ROCKWOOD, TN · 5 FAA charts · cycle 6 Aug 2026

FAA RKWElevation 1,664 ft1 runwayLongest 5,000 ftNon-toweredFuel 100LL avgas, Jet AVolume SE-1Not for navigation

3 published instrument approaches: 2 RNAV (GPS), 1 VOR, serving 2 runway ends.

All 5 KRKW charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 5 charts is roughly 31 sec of downloading — they queue one behind another.
PRO members only

Instrument approach procedures

ChartAmendment

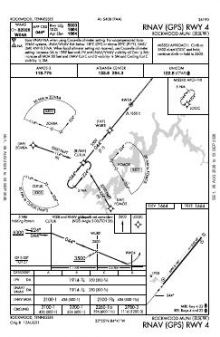

RNAV (GPS) RWY 04 chart previewRNAV (GPS) RWY 040BPDF

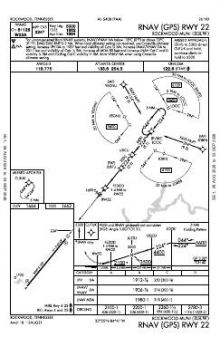

RNAV (GPS) RWY 22 chart previewRNAV (GPS) RWY 221BPDF

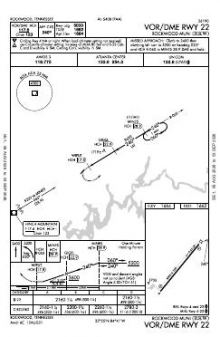

VOR/DME RWY 22 chart previewVOR/DME RWY 226CPDF

Takeoff and alternate minimums

ChartAmendment
TAKEOFF MINIMUMS chart previewTAKEOFF MINIMUMS—PDF
ALTERNATE MINIMUMS chart previewALTERNATE MINIMUMS—PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

KRKW airport information

Control tower
No
ARTCC
Atlanta Center
Flight service
Nashville
NOTAM facility
BNA (NOTAM-D available)
Magnetic variation
5W
Beacon
White-green (lighted land airport), sunset to sunrise
Wind indicator
Lighted
Segmented circle
Yes
Fuel
100LL avgas, Jet A
Parking
Tie-downs
Customs
Landing rights airport
Activated
December 1962
Airport area
572 acres
Ownership
Publicly owned
Sectional
Atlanta
Last FAA inspection
2024-06-14

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KRKW radio frequencies

ServiceFrequencyCall sign
CTAF122.8

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

5,000 × 100 ft0422N1,000 ft
Runway layout at KRKW, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.
RunwayLengthWidth SurfaceLighting
04/225,000 ft100 ftAsphalt GoodMedium intensity
  04 39°TPAPI (2-box) 3°
  22 219°TPAPI (2-box) 3°

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KRKW is

Latitude, longitude35.9223330, -84.6897780
Elevation1,664 ft
From Rockwood3 nm N

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KRKW

  • THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
  • TAX ACFT NOT VISIBLE FM RWY ENDS.
  • ACTVT REIL RWY 04 & 22; MIRL RWY 04/22 - CTAF. REIL RWY 04 & 22; MIRL RWY 04/22 PRESET LOW INTST; INCR INTST - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
  • ALL OTHER TIMES BY APPOINTMENT, 24 HOURS NOTICE
  • FOR CD CTC ATLANTA ARTCC AT 770-210-7692.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near KRKW

IDAirportCity DistanceCharts
KCSVCrossville Meml-Whitson FldCROSSVILLE, TN19 nm W6
KMNVMonroe CountyMADISONVILLE, TN27 nm SE4
2A1Jamestown MuniJAMESTOWN, TN29 nm NW3
2A0Mark AntonDAYTON, TN29 nm SW3
KMMIMcminn CountyATHENS, TN32 nm S4
KSCXScott MuniONEIDA, TN32 nm N4
KTYSMc Ghee TysonKNOXVILLE, TN35 nm E21
KJAUColonel Tommy C Stiner AirfieldJACKSBORO, TN36 nm NE2

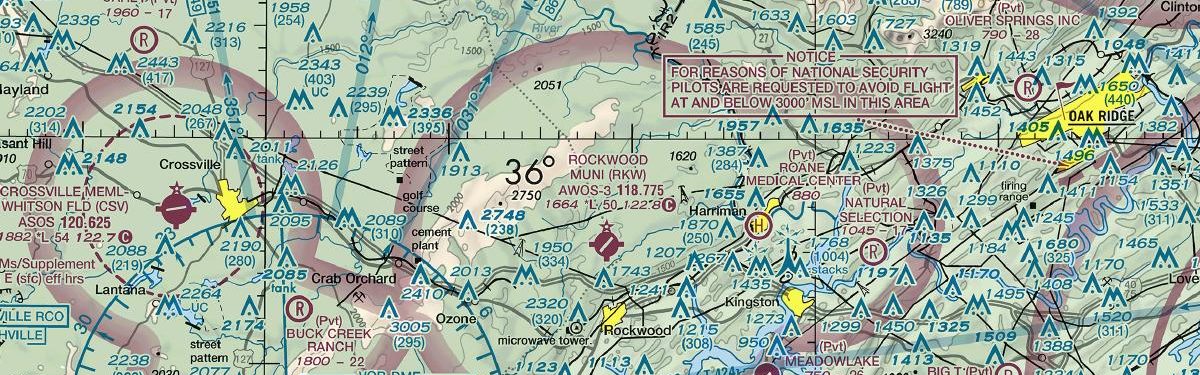

VFR charts covering KRKW

AtlantaSectional ChartCincinnatiSectional ChartSt LouisSectional Chart

Common questions about KRKW

What charts are available for KRKW?

5 current FAA charts for Rockwood Muni, including 3 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KRKW?

CTAF 122.8. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KRKW?

Rockwood Muni has 1 runway. The longest is 04/22 at 5,000 ft by 100 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does KRKW have an ILS approach?

No ILS is published. In total KRKW has 3 published instrument approaches, of which 2 are RNAV (GPS).

Is KRKW a towered airport?

No — Rockwood Muni has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these KRKW charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
