MAYFIELD, KY · 5 FAA charts · cycle 6 Aug 2026
3 published instrument approaches: 3 RNAV (GPS), serving 2 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

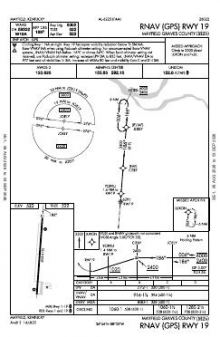

 | RNAV (GPS) RWY 19 | 2 | |

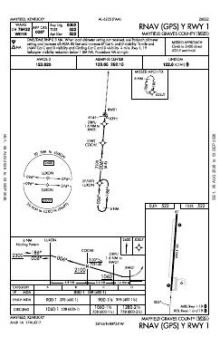

 | RNAV (GPS) Y RWY 01 | 1A | |

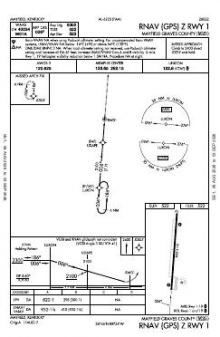

 | RNAV (GPS) Z RWY 01 | 0A |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 122.8 |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 01/19 | 5,002 ft | 100 ft | Asphalt Fair | Medium intensity |
| 01 4°T | PAPI (2-box) 3° | |||
| 19 184°T | PAPI (4-box) 3° | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.

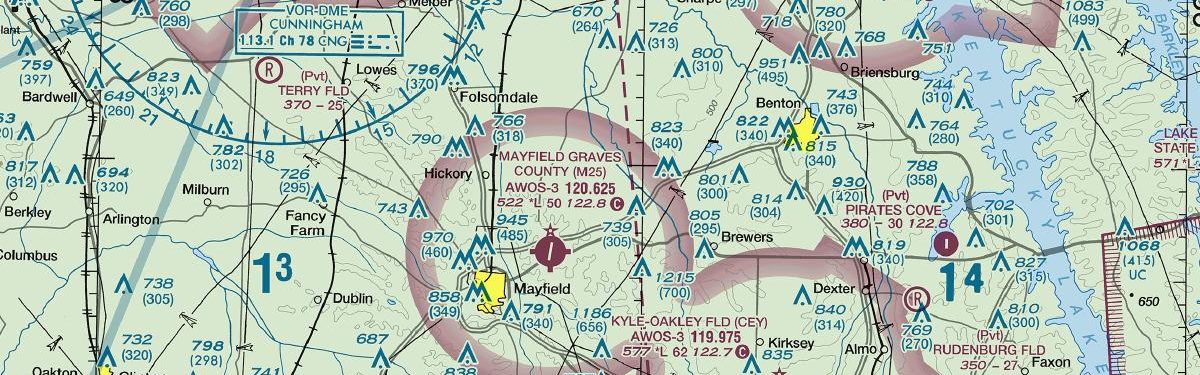

36.7696290, -88.5846680
522 ft3 nm NEPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KCEY | Kyle-Oakley Fld | MURRAY, KY | 12 nm SE | 4 |
| KPAH | Barkley Rgnl | PADUCAH, KY | 20 nm NW | 11 |
| M34 | Kentucky Dam State Park | CALVERT CITY, KY | 20 nm NE | 2 |
| 1M7 | Fulton | FULTON, KY | 22 nm SW | 2 |
| KPHT | Henry County | PARIS, TN | 28 nm S | 4 |
| KUCY | Everett-Stewart Rgnl | UNION CITY, TN | 30 nm SW | 4 |
| KCIR | Cairo Rgnl | CAIRO, IL | 35 nm NW | 4 |
| KCHQ | Mississippi County | CHARLESTON, MO | 38 nm W | 3 |
5 current FAA charts for Mayfield Graves County, including 3 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
CTAF 122.8. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Mayfield Graves County has 1 runway. The longest is 01/19 at 5,002 ft by 100 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
No ILS is published. In total M25 has 3 published instrument approaches, of which 3 are RNAV (GPS).
No — Mayfield Graves County has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
