CALVERT CITY, KY · 2 FAA charts · cycle 6 Aug 2026
1 published instrument approach: 1 RNAV (GPS).
| Chart | Amendment | ||
|---|---|---|---|

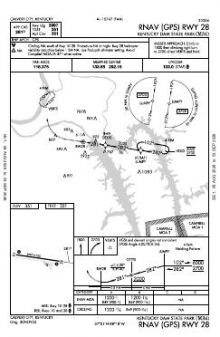

 | RNAV (GPS) RWY 28 | 0 |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 123.0 |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 10/28 | 3,997 ft | 100 ft | Asphalt Good | Medium intensity |
| 10 98°T | PAPI (2-box) 4° | |||
| 28 278°T | PAPI (2-box) 4° | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
37.0098140, -88.2994020
350 ft3 nm SEPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| M25 | Mayfield Graves County | MAYFIELD, KY | 20 nm SW | 5 |
| KCEY | Kyle-Oakley Fld | MURRAY, KY | 21 nm S | 4 |
| KGDA | Marion-Crittenden County James C Johnson Rgnl | MARION, KY | 22 nm NE | 4 |
| 2M0 | Princeton-Caldwell County | PRINCETON, KY | 22 nm E | 3 |
| KPAH | Barkley Rgnl | PADUCAH, KY | 23 nm W | 11 |
| KTWT | Sturgis Muni | STURGIS, KY | 36 nm NE | 3 |
| KPHT | Henry County | PARIS, TN | 41 nm S | 4 |
| KHVC | Hopkinsville-Christian County | HOPKINSVILLE, KY | 42 nm E | 3 |
2 current FAA charts for Kentucky Dam State Park, including 1 instrument approach. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
CTAF 123.0. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Kentucky Dam State Park has 1 runway. The longest is 10/28 at 3,997 ft by 100 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
No ILS is published. In total M34 has 1 published instrument approach, of which 1 are RNAV (GPS).
Every published approach serves one runway end. There is no instrument procedure to the reciprocal direction, so an arrival in instrument conditions commits to that single approach direction regardless of the wind.
No — Kentucky Dam State Park has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
