Terminal Procedures

KHGR — Hagerstown Rgnl/Richard A Henson Fld

HAGERSTOWN, MD · 13 FAA charts · cycle 6 Aug 2026

FAA HGRElevation 703 ft2 runwaysLongest 7,000 ftToweredFuel 100LL avgas, Jet AVolume NE-3Not for navigation

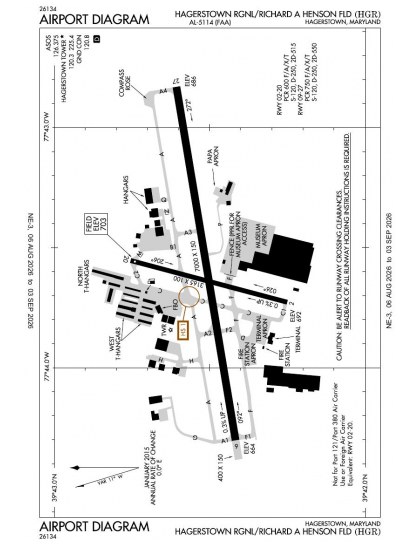

KHGR airport diagram — runways, taxiways and ramp layout
KHGR airport diagram The official FAA airport diagram — runways, taxiways, ramp layout and hold-short positions. Download PDF

7 published instrument approaches: 2 ILS approaches, 4 RNAV (GPS), 1 VOR, serving 2 runway ends.

All 13 KHGR charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 13 charts is roughly 1 min of downloading — they queue one behind another.
PRO members only

Instrument approach procedures

ChartAmendment

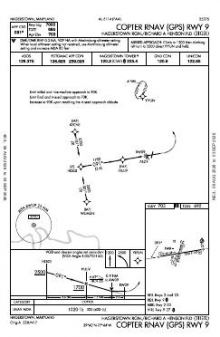

COPTER RNAV (GPS) RWY 09 chart previewCOPTER RNAV (GPS) RWY 090APDF

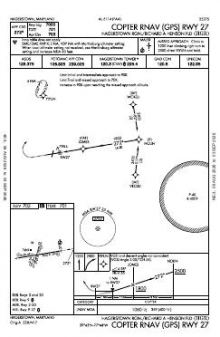

COPTER RNAV (GPS) RWY 27 chart previewCOPTER RNAV (GPS) RWY 270APDF

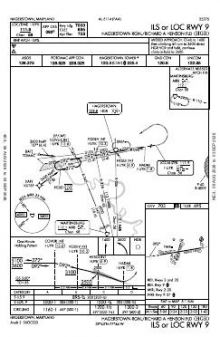

ILS OR LOC RWY 09 chart previewILS OR LOC RWY 092PDF

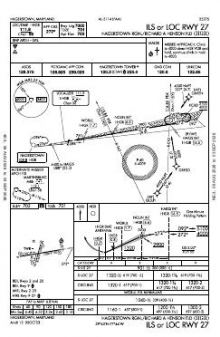

ILS OR LOC RWY 27 chart previewILS OR LOC RWY 2712PDF

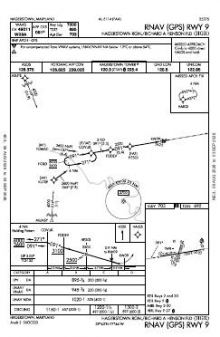

RNAV (GPS) RWY 09 chart previewRNAV (GPS) RWY 092PDF

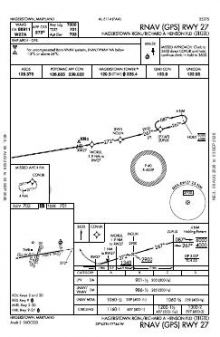

RNAV (GPS) RWY 27 chart previewRNAV (GPS) RWY 272PDF

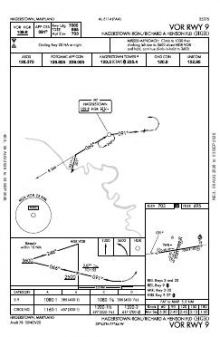

VOR RWY 09 chart previewVOR RWY 097BPDF

Arrival procedures (STAR)

ChartAmendment
TRSTN FOUR (RNAV) chart previewTRSTN FOUR (RNAV)—PDF
TRSTN FOUR (RNAV), CONT.1 chart previewTRSTN FOUR (RNAV), CONT.1—PDF

Takeoff and alternate minimums

ChartAmendment
TAKEOFF MINIMUMS chart previewTAKEOFF MINIMUMS—PDF
ALTERNATE MINIMUMS chart previewALTERNATE MINIMUMS—PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

Hot spots

ChartAmendment
HOT SPOT chart previewHOT SPOT—PDF

KHGR airport information

Control tower
Yes
Attendance
All all 0500-2200
ARTCC
Washington Center
Flight service
Leesburg
NOTAM facility
HGR (NOTAM-D available)
Magnetic variation
11W
Beacon
White-green (lighted land airport), sunset to sunrise
Wind indicator
Lighted
ARFF index
Index B
Fuel
100LL avgas, Jet A
Airframe service
Major
Powerplant service
Major
Bottled oxygen
High/low
Parking
Tie-downs
Landing fee
Yes
Customs
Landing rights airport
Activated
April 1940
Airport area
693 acres
Ownership
Publicly owned
Sectional
Washington
Last FAA inspection
2026-05-11

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KHGR radio frequencies

ServiceFrequencyCall sign
CTAF120.3
UNICOM122.95
Ground120.8Hagerstown
Approach126.825Hagerstown
Emergency121.5Hagerstown

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

7,000 × 150 ft09273,165 × 100 ft0220N2,000 ft
Runway layout at KHGR, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.
RunwayLengthWidth SurfaceLighting
09/277,000 ft150 ftAsphalt GoodHigh intensity
  09 81°TILS/DME · PAPI (4-box) 3°
  27 261°TILS/DME · PAPI (4-box) 3° · MALSR approach lighting
02/203,165 ft100 ftAsphalt GoodMedium intensity
  02 15°TPAPI (2-box) 4°
  20 195°TPAPI (2-box) 4°

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KHGR is

Latitude, longitude39.7085000, -77.7265000
Elevation703 ft
From Hagerstown4 nm N

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KHGR

  • ARFF INDEX C AVBL UPON REQ; CTC AMGR.
  • PPR 24 HRS FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 240-313-2764.
  • WHEN ATCT CLSD ACTVT MALSR RWY 27; REIL RWY 09; HIRL RWY 09/27 - CTAF.
  • AP UNATTND 2200-0500.
  • PCR VALUE: 600/F/A/X/T
  • PCR VALUE: 750/F/A/X/T
  • RWY 02/20 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. NO PART 121/PART 380 OPS EXC FOR TAX.
  • BIRDS ON & INVOF ARPT.
  • LOW LEVEL MIL ACFT 10 NM NORTH ON VR708 OPERATING EAST TO WEST.
  • ULTRALIGHT ACT 12 NM EAST TO 5000 FT MSL.
  • TWY "P" NOT AVBL FOR AIR CARRIER OPS.
  • RWY 02 & 20 CLSD WHEN ATCT CLSD.
  • FOR CD WHEN ATCT IS CLSD CTC POTOMAC APCH AT 866-709-4993.
  • PPR 24 HR PRIOR TO ACES THE MUSEUM APN. FOR MORE INFO CTC MUSEUM MGR AT 240-520-3417.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near KHGR

IDAirportCity DistanceCharts
N68Franklin County RgnlCHAMBERSBURG, PA16 nm N3
W35Potomac AirparkBERKELEY SPRINGS, WV20 nm W3
KMRBEastern Wv Rgnl/Shepherd FldMARTINSBURG, WV22 nm SW23
W05Gettysburg RgnlGETTYSBURG, PA22 nm E3
KFDKFrederick MuniFREDERICK, MD24 nm SE15
KDMWCarroll County Rgnl/Jack B Poage FldWESTMINSTER, MD34 nm E12
2W2Clearview AirparkWESTMINSTER, MD36 nm SE5
N94CarlisleCARLISLE, PA38 nm NE3

VFR charts covering KHGR

CincinnatiSectional ChartDetroitSectional ChartNew YorkSectional ChartWashingtonSectional ChartBaltimore-WashingtonTerminal Area Chart

Common questions about KHGR

What charts are available for KHGR?

13 current FAA charts for Hagerstown Rgnl/Richard A Henson Fld, including 7 instrument approachs, 2 arrival procedures, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KHGR?

Ground 120.8; CTAF 120.3; UNICOM 122.95. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KHGR?

Hagerstown Rgnl/Richard A Henson Fld has 2 runways. The longest is 09/27 at 7,000 ft by 150 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does KHGR have an ILS approach?

Yes — 2 ILS procedures are published. In total KHGR has 7 published instrument approaches, of which 4 are RNAV (GPS).

Where can I download the KHGR airport diagram?

The official FAA airport diagram for Hagerstown Rgnl/Richard A Henson Fld is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.

Is KHGR a towered airport?

Yes. Hagerstown Rgnl/Richard A Henson Fld has an operating control tower, within Washington Center's airspace. Tower, ground and clearance frequencies are listed on this page.

Are these KHGR charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
