KHUA — Redstone AAF

REDSTONE ARSNL HUNTSVILLE, AL · 6 FAA charts · cycle 6 Aug 2026

FAA HUAElevation 685 ft1 runwayLongest 7,300 ftToweredFuel 100LL avgasVolume SE-4Not for navigation

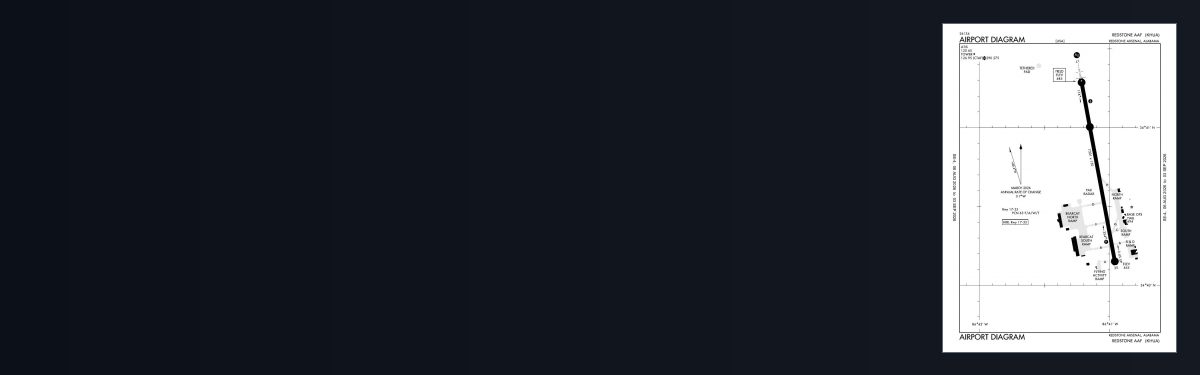

KHUA airport diagram — runways, taxiways and ramp layout

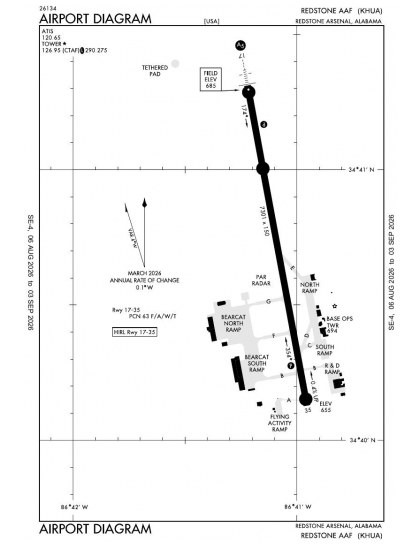

KHUA airport diagram The official FAA airport diagram — runways, taxiways, ramp layout and hold-short positions. Download PDF

3 published instrument approaches: 2 RNAV (GPS), 1 VOR, serving 2 runway ends.

All 6 KHUA charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 6 charts is roughly 38 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

Chart	Amendment

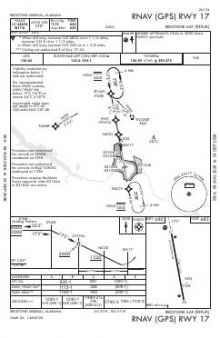

RNAV (GPS) RWY 17	—	PDF

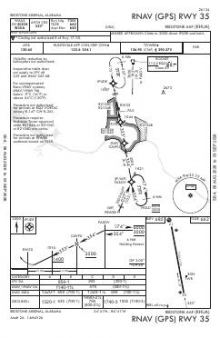

RNAV (GPS) RWY 35	—	PDF

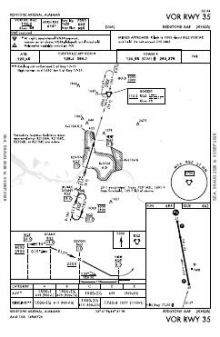

VOR RWY 35	—	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF
	RADAR MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

KHUA airport information

Control tower: Yes
Attendance: All mon-fri 0700-1800
ARTCC: Memphis Center
Flight service: Anniston
NOTAM facility: HUA (NOTAM-D available)
Magnetic variation: 4W
Beacon: Split-white-green (military airport), sunset to sunrise
Fuel: 100LL avgas
Customs: Landing rights airport
Ownership: Privately owned
Sectional: Atlanta

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KHUA radio frequencies

Service	Frequency	Call sign
CTAF	126.95
ATIS	120.65	Redstone
Approach	125.6	Redstone
Emergency	121.5	Redstone

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at KHUA, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
17/35	7,300 ft	150 ft	Asphalt Good	High intensity
17	PAPI (4-box) 3° · MALSR approach lighting
35	PAPI (4-box) 3° · right-hand circuit

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KHUA is

Latitude, longitude34.6786610, -86.6847910

Elevation685 ft

From Redstone Arsnl Huntsville6 nm SW

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KHUA

WHEN ATCT CLSD ACTVT MALSR RWY 17; PAPI RWY 17 & 35; HIRL RWY 17/35 - CTAF.
TFC PAT: RGT TFC RWY 35 R/W 1400 FT, F/W SENG 1700 FT, F/W TURBOPROP/JET 2200 FT, OVERHEAD 2700 FT.
FUEL: A ++ (AVBL 1230-0330Z++ MON-FRI EXC HOL; OT O/R).
TRAN ALERT: LTD SVC.
RSTD: 24 HR PPR ALL ACFT, 48 HR PPR ACFT WITH HAZ CARGO. CTC BASE OPS DSN 746-7916/4299 C256-876-1916/4299. REFUL EXP DELAY. ACFT MUST ADHERE TO PPR ARR BLOCK TIME +/- 30 MIN OF SKED LDG.
MISC: LTD PRK. NO PHOTOGRAPHY ALLOWED WO BASE OPS APVL.
CAUTION: DEER, TUKEY, COYOTE HAZ. ACFT LARGER THAN C-12 USE EXTREME CAUTION WHILE TAXIING DUE TO MIN WG TIP CLNC.
RADAR: SEE TERMINAL FLIP FOR RADAR MINIMA.
PAR AND PAPI RWY 17-35 ARE COINCIDENTAL.
MISC: F/W LARGER THAN C130 RSTD TO TWY D, E, AND N RAMP AREA. LAWRS. ALL TRAN ACFT OPN OTHER THAN KHUA MUST RCV RNG BRIEFING FROM BASE OPS PRIOR TO OPN.
BASE OPS - OPR 1300-0300Z++ MON-FRI EXC HOL. OT O/R. 126.2 OR 239.275.
AVOID OVFT SATELLITE COM COMPLEX BLW 2000 FT 1.8 NM SE OF AFLD.
FOR CD CTC HUNTSVILLE APCH AT 256-542-2070/2080.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
