TACOMA, WA · 7 FAA charts · cycle 6 Aug 2026
3 published instrument approaches: 1 ILS approach, 2 RNAV (GPS), serving 2 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

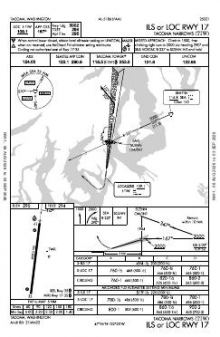

 | ILS OR LOC RWY 17 | 8D | |

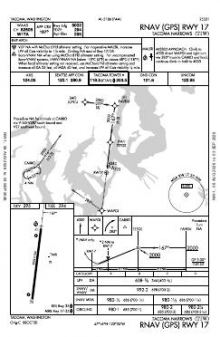

 | RNAV (GPS) RWY 17 | 0C | |

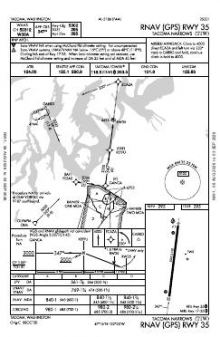

 | RNAV (GPS) RWY 35 | 0C |
| Chart | Amendment | ||
|---|---|---|---|

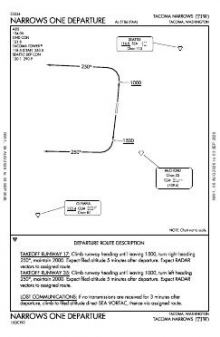

 | NARROWS ONE | — |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 118.5 | |
| UNICOM | 122.95 | |
| Ground | 121.8 | Tacoma |
| ATIS | 124.05 | Tacoma |
| Approach | 120.1 | Tacoma |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 17/35 | 5,002 ft | 100 ft | Asphalt Good | Medium intensity |
| 17 187°T | ILS · PAPI (4-box) 3° · MALSR approach lighting | |||
| 35 7°T | PAPI (4-box) 3° · right-hand circuit | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
47.2679440, -122.5781110
294 ft4 nm WPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Tacoma Narrows has instrument approaches to both ends of its sole 5,002 ft runway, so neither direction is left without a published arrival procedure. The three approach plates collectively provide ILS, localiser and RNAV (GPS) options. With only one published departure procedure, the compact chart set is more developed for arrivals than departures. The single-runway layout also means every procedure uses the same alignment, with no cross-runway option.
Gray AAF has a similarly sized procedure set, while McChord Field and Seattle-Tacoma International have substantially broader coverage. Auburn Municipal and Bremerton National are represented by thinner sets. The Seattle Sectional adds the wider visual-planning context around Tacoma and these neighbouring fields that the airport-specific terminal procedures do not provide.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KTCM | Mcchord Fld (Joint Base Lewis-Mcchord) | TACOMA, WA | 9 nm SE | 21 |
| KGRF | Gray AAF (Joint Base Lewis-Mcchord) | FORT LEWIS/TACOMA, WA | 11 nm S | 8 |
| S50 | Auburn Muni | AUBURN, WA | 15 nm E | 4 |
| KPWT | Bremerton Ntl | BREMERTON, WA | 15 nm NW | 5 |
| KSEA | Seattle-Tacoma Intl | SEATTLE, WA | 15 nm NE | 63 |
| KPLU | Pierce County/Thun Fld | PUYALLUP, WA | 15 nm SE | 3 |
| KBFI | Boeing Fld/King County Intl | SEATTLE, WA | 19 nm NE | 23 |
| KRNT | Renton Muni | RENTON, WA | 20 nm NE | 15 |
7 current FAA charts for Tacoma Narrows, including 3 instrument approachs, 1 departure procedure, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Ground 121.8; ATIS 124.05; CTAF 118.5; UNICOM 122.95. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Tacoma Narrows has 1 runway. The longest is 17/35 at 5,002 ft by 100 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 1 ILS procedure is published. In total KTIW has 3 published instrument approaches, of which 2 are RNAV (GPS).

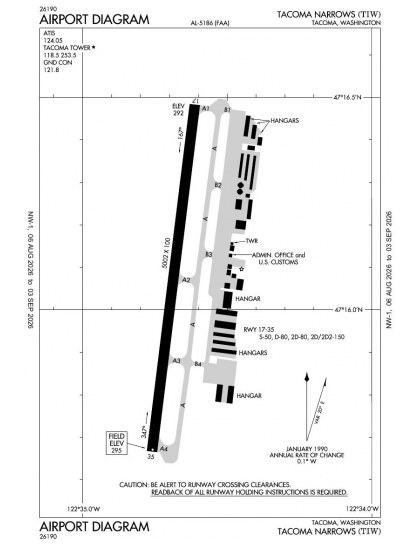

The official FAA airport diagram for Tacoma Narrows is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.
Yes. Tacoma Narrows has an operating control tower, within Seattle Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
