Terminal Procedures

KZEF — Elkin Muni

ELKIN, NC · 3 FAA charts · cycle 6 Aug 2026

FAA ZEFElevation 1,067 ft1 runwayLongest 4,001 ftNon-toweredFuel 100LL avgas, Jet A-1+Volume SE-2Not for navigation

2 published instrument approaches: 2 RNAV (GPS), serving 2 runway ends.

All 3 KZEF charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 3 charts is roughly 19 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

	Chart	Amendment

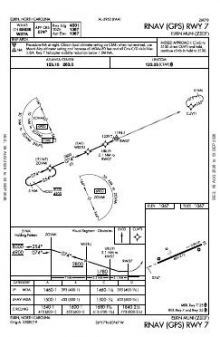

	RNAV (GPS) RWY 07	0A	PDF

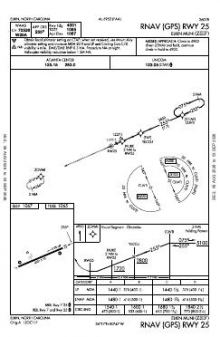

	RNAV (GPS) RWY 25	0A	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

KZEF airport information

Control tower: No
ARTCC: Atlanta Center
Flight service: Raleigh
NOTAM facility: RDU (NOTAM-D available)
Magnetic variation: 8W
Beacon: White-green (lighted land airport), sunset to sunrise
Wind indicator: Lighted
Segmented circle: Yes
Fuel: 100LL avgas, Jet A-1+
Airframe service: Major
Powerplant service: Major
Bottled oxygen: High/low
Parking: Tie-downs
Customs: Landing rights airport
Airport area: 91 acres
Ownership: Publicly owned
Sectional: Cincinnati
Last FAA inspection: 2024-08-16

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KZEF radio frequencies

Service	Frequency	Call sign
CTAF	123.05

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at KZEF, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
07/25	4,001 ft	75 ft	Asphalt Good	Medium intensity
07 67°T	PAPI (2-box) 3°
25 247°T	PAPI (2-box) 3°

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KZEF is

Latitude, longitude36.2800000, -80.7860560

Elevation1,067 ft

From Elkin3 nm NE

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KZEF

ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25 - CTAF.
MIN ALT 500 FT AGL BASE TURN TO FINAL RWY 25.
56 FT TREES 171 FT FM THR OFFSET 228 FT RIGHT OF CNTRLN.
UNUSBL 7 DEG LEFT AND RIGHT OF RCL.
UNUSBL 9 DEG RIGHT OF RCL.
RWY 07 SAFETY AREA HAS 80+ FT DROP-OFF AT END AND 90 FT BOTH SIDES OF CNTRLN.
DEER ON AND INVOF ARPT.
RWY 25 HAS AN UPHILL GRADE.
FOR SERVICE AFTER HOURS CALL (336)-874-7171, (336)-874-2931, (336)-366-7994, OR (336)-926-6243.
FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
RWY 25 HAS UP TO 100+ FT DROP-OFF FIRST 600 FT AND 90 FT BOTH SIDES OF CNTRLN.
RWY 25 HAS UNMARKED POWER LINES 800 FT FM THR BOTH SIDES OF CNTRLN.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near KZEF

ID	Airport	City	Distance	Charts
KUKF	Wilkes County	NORTH WILKESBORO, NC	16 nm W	6
KMWK	Mount Airy/Surry County	MOUNT AIRY, NC	16 nm NE	5
8A7	Twin Lakes	MOCKSVILLE, NC	27 nm SE	2
KINT	Smith Reynolds	WINSTON SALEM, NC	29 nm E	14
KHLX	Twin County	GALAX HILLSVILLE, VA	29 nm N	4
N63	Meadow Brook Fld	WALNUT COVE, NC	31 nm E	2
KGEV	Ashe County	JEFFERSON, NC	32 nm W	5
KSVH	Statesville Rgnl	STATESVILLE, NC	32 nm S	6

VFR charts covering KZEF

AtlantaSectional Chart CharlotteSectional Chart CincinnatiSectional Chart

Common questions about KZEF

What charts are available for KZEF?

3 current FAA charts for Elkin Muni, including 2 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KZEF?

CTAF 123.05. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KZEF?

Elkin Muni has 1 runway. The longest is 07/25 at 4,001 ft by 75 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does KZEF have an ILS approach?

No ILS is published. In total KZEF has 2 published instrument approaches, of which 2 are RNAV (GPS).

Is KZEF a towered airport?

No — Elkin Muni has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these KZEF charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
