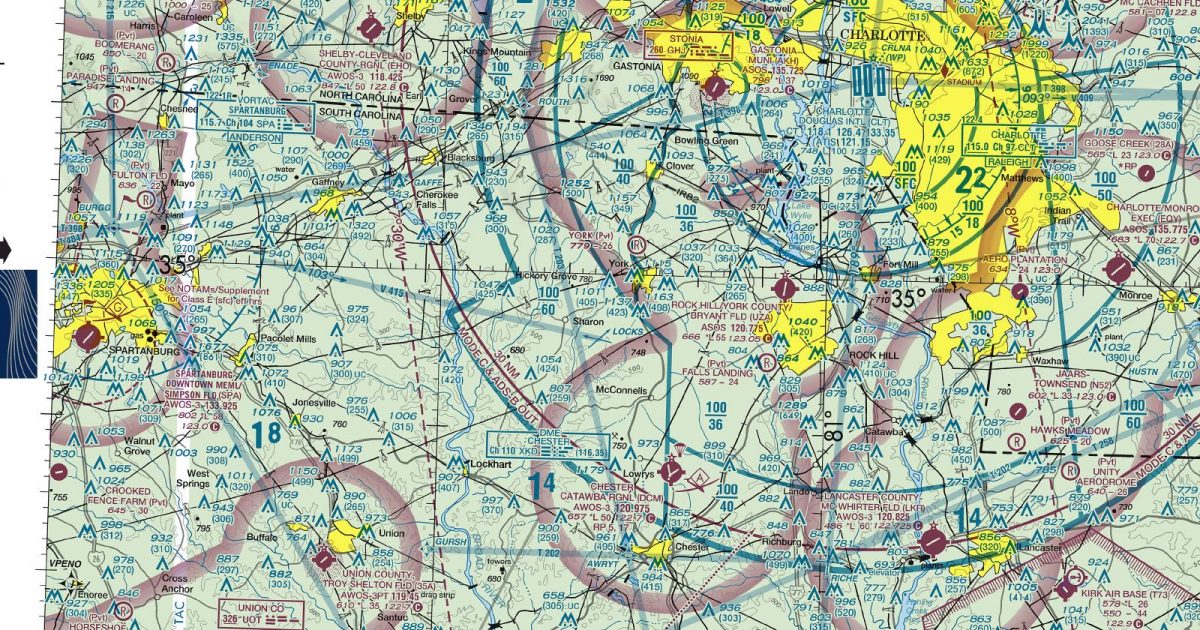

Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 54.1 MB | Download |
| Print-ready chart, no georeferencing | 112.1 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 112.1 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.
Go PROMountain ridges, Carolina Piedmont and a long reach of Atlantic coastline all fall within the Charlotte sheet. Its western side meets the southern Appalachians and Blue Ridge, while the central portion crosses the rolling interior of North and South Carolina. Farther east, the terrain flattens into the coastal plain before reaching the Outer Banks and open ocean. The southern coverage extends into coastal Georgia, and the northern edge reaches southern Virginia.
Routes continuing west pass onto the Atlanta sectional, with Cincinnati adjoining to the north-west. Washington takes over to the north-east, while Jacksonville continues coverage to the south-west. These joins matter particularly on longer inland journeys that cross the Appalachians or follow the Atlantic seaboard, where more than one neighbouring sheet may be needed.
FAA Terminal Area Chart coverage also overlaps part of this region. That product provides a larger-scale treatment of the concentrated terminal environment, while the Charlotte sectional retains the wider regional context across the mountains, Piedmont, coastal plain and offshore reaches.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KISO ISO | Kinston Rgnl Jetport At Stallings Fld | KINSTON, NC | 92 ft | 1 | 11,498 ft |
| KGSP GSP | Greenville Spartanburg Intl | GREER, SC | 963 ft | 1 | 11,001 ft |
| KGSO GSO | Piedmont Triad Intl | GREENSBORO, NC | 925 ft | 3 | 10,001 ft |
| KCLT CLT | Charlotte/Douglas Intl | CHARLOTTE, NC | 747 ft | 3 | 10,000 ft |
| KRDU RDU | Raleigh-Durham Intl | RALEIGH/DURHAM, NC | 435 ft | 3 | 10,000 ft |
| KMYR MYR | Myrtle Beach Intl | MYRTLE BEACH, SC | 25 ft | 1 | 9,503 ft |
| KSAV SAV | Savannah/Hilton Head Intl | SAVANNAH, GA | 50 ft | 2 | 9,351 ft |
| KCHS CHS | Charleston AFB/Intl | CHARLESTON, SC | 46 ft | 2 | 9,001 ft |
| KCAE CAE | Columbia Metro | COLUMBIA, SC | 235 ft | 3 | 8,601 ft |
| KILM ILM | Wilmington Intl | WILMINGTON, NC | 31 ft | 2 | 8,016 ft |
| KAVL AVL | Asheville Rgnl | ASHEVILLE, NC | 2,163 ft | 1 | 8,002 ft |
| KAGS AGS | Augusta Rgnl At Bush Fld | AUGUSTA, GA | 145 ft | 2 | 8,001 ft |
| KGYH GYH | Donaldson Fld | GREENVILLE, SC | 955 ft | 1 | 8,000 ft |
| KFAY FAY | Fayetteville Rgnl/Grannis Fld | FAYETTEVILLE, NC | 189 ft | 2 | 7,709 ft |
| KJQF JQF | Concord-Padgett Rgnl | CONCORD, NC | 704 ft | 2 | 7,402 ft |
| KECG ECG | Elizabeth City Cg Air Station/Rgnl | ELIZABETH CITY, NC | 10 ft | 6 | 7,219 ft |
| KPGV PGV | Pitt-Greenville | GREENVILLE, NC | 26 ft | 2 | 7,175 ft |
| KOAJ OAJ | Albert J Ellis | JACKSONVILLE, NC | 92 ft | 1 | 7,100 ft |
| KRWI RWI | Rocky Mount/Wilson Rgnl | ROCKY MOUNT, NC | 157 ft | 1 | 7,099 ft |
| KSVH SVH | Statesville Rgnl | STATESVILLE, NC | 967 ft | 1 | 7,003 ft |
| KEQY EQY | Charlotte/Monroe Exec | MONROE, NC | 682 ft | 1 | 7,001 ft |
| KINT INT | Smith Reynolds | WINSTON SALEM, NC | 969 ft | 2 | 6,655 ft |
| KMEB MEB | Laurinburg/Maxton | MAXTON, NC | 215 ft | 2 | 6,503 ft |
| KSOP SOP | Moore County | PINEHURST/SOUTHERN PINES, NC | 459 ft | 1 | 6,503 ft |
| KFLO FLO | Florence Rgnl | FLORENCE, SC | 146 ft | 2 | 6,502 ft |
| KTTA TTA | Raleigh Exec Jetport At Sanford-Lee County | SANFORD, NC | 246 ft | 1 | 6,501 ft |
| KLHW LHW | Wright AAF (Fort Stewart)/Midcoast Rgnl | FORT STEWART (HINESVILLE), GA | 46 ft | 5 | 6,500 ft |
| KEWN EWN | Coastal Carolina Rgnl | NEW BERN, NC | 17 ft | 2 | 6,452 ft |
| KBUY BUY | Burlington/Alamance Rgnl | BURLINGTON, NC | 616 ft | 1 | 6,406 ft |
| KHKY HKY | Hickory Rgnl | HICKORY, NC | 1,189 ft | 1 | 6,401 ft |
| KGCY GCY | Greeneville Muni | GREENEVILLE, TN | 1,607 ft | 1 | 6,301 ft |
| KUKF UKF | Wilkes County | NORTH WILKESBORO, NC | 1,303 ft | 1 | 6,201 ft |
| KSBO SBO | East Georgia Rgnl | SWAINSBORO, GA | 327 ft | 1 | 6,021 ft |
| KGGE GGE | Georgetown County | GEORGETOWN, SC | 39 ft | 2 | 6,005 ft |
| KTDF TDF | Raleigh Rgnl At Person County | ROXBORO, NC | 608 ft | 1 | 6,005 ft |
| KLKR LKR | Lancaster County-Mc Whirter Fld | LANCASTER, SC | 485 ft | 1 | 6,004 ft |
| KDPL DPL | Duplin County | KENANSVILLE, NC | 136 ft | 1 | 6,003 ft |
| KAND AND | Anderson Rgnl | ANDERSON, SC | 781 ft | 4 | 6,002 ft |
| KRBW RBW | Lowcountry Rgnl | WALTERBORO, SC | 100 ft | 2 | 6,002 ft |
| KVDI VDI | Vidalia Rgnl | VIDALIA, GA | 274 ft | 2 | 6,002 ft |
| KEDE EDE | Northeastern Rgnl | EDENTON, NC | 18 ft | 1 | 6,001 ft |
| KTBR TBR | Statesboro-Bulloch County | STATESBORO, GA | 186 ft | 2 | 6,000 ft |
| KCRE CRE | Grand Strand | NORTH MYRTLE BEACH, SC | 31 ft | 1 | 5,997 ft |
| KSPA SPA | Spartanburg Downtown Meml/Simpson Fld | SPARTANBURG, SC | 802 ft | 1 | 5,852 ft |
| KIPJ IPJ | Lincoln County Rgnl | LINCOLNTON, NC | 877 ft | 1 | 5,700 ft |
| KHQU HQU | Thomson/Mcduffie County | THOMSON, GA | 501 ft | 1 | 5,514 ft |
| KSUT SUT | Cape Fear Rgnl Jetport/Howie Franklin Fld | OAK ISLAND, NC | 26 ft | 1 | 5,505 ft |
| KLBT LBT | Lumberton Rgnl | LUMBERTON, NC | 124 ft | 2 | 5,505 ft |
| KHBI HBI | Asheboro Rgnl | ASHEBORO, NC | 670 ft | 1 | 5,501 ft |
| KRUQ RUQ | Mid-Carolina Rgnl | SALISBURY, NC | 772 ft | 1 | 5,501 ft |
| KJYL JYL | Plantation Airpark | SYLVANIA, GA | 190 ft | 2 | 5,501 ft |
| KSMS SMS | Sumter | SUMTER, SC | 182 ft | 2 | 5,501 ft |
| KGWW GWW | Wayne Exec Jetport | GOLDSBORO, NC | 133 ft | 1 | 5,501 ft |
| KAIK AIK | Aiken Rgnl | AIKEN, SC | 528 ft | 2 | 5,500 ft |
| KCPC CPC | Columbus County Rgnl | WHITEVILLE, NC | 99 ft | 1 | 5,500 ft |
| KUDG UDG | Darlington County | DARLINGTON, SC | 192 ft | 1 | 5,500 ft |
| KMRN MRN | Foothills Rgnl | MORGANTON, NC | 1,269 ft | 1 | 5,500 ft |
| KJES JES | Jesup-Wayne County | JESUP, GA | 107 ft | 1 | 5,500 ft |
| KJNX JNX | Johnston Rgnl | SMITHFIELD, NC | 164 ft | 1 | 5,500 ft |
| KPMZ PMZ | Plymouth Muni | PLYMOUTH, NC | 36 ft | 1 | 5,500 ft |
| KUZA UZA | Rock Hill/York County/Bryant Fld | ROCK HILL, SC | 666 ft | 1 | 5,500 ft |
| KVUJ VUJ | Stanly County | ALBEMARLE, NC | 609 ft | 2 | 5,499 ft |
| KAFP AFP | Anson County/Jeff Cloud Fld | WADESBORO, NC | 299 ft | 1 | 5,498 ft |
| KLHZ LHZ | Triangle North Exec | LOUISBURG, NC | 368 ft | 1 | 5,498 ft |
| KOGB OGB | Orangeburg Muni | ORANGEBURG, SC | 195 ft | 2 | 5,399 ft |
| KGMU GMU | Greenville Downtown | GREENVILLE, SC | 1,048 ft | 4 | 5,393 ft |
| KJZI JZI | Charleston Exec | CHARLESTON, SC | 18 ft | 2 | 5,350 ft |
| W40 | Mount Olive Muni | MOUNT OLIVE, NC | 166 ft | 1 | 5,254 ft |
| KFDW FDW | Fairfield County | WINNSBORO, SC | 577 ft | 1 | 5,243 ft |
| KCWV CWV | Claxton-Evans County | CLAXTON, GA | 111 ft | 1 | 5,151 ft |
| KBNL BNL | Barnwell Rgnl | BARNWELL, SC | 246 ft | 2 | 5,119 ft |
| KIIY IIY | Washington/Wilkes County | WASHINGTON, GA | 646 ft | 1 | 5,020 ft |
| KAZE AZE | Hazlehurst | HAZLEHURST, GA | 255 ft | 1 | 5,012 ft |
| KCUB CUB | Jim Hamilton L B Owens | COLUMBIA, SC | 193 ft | 1 | 5,011 ft |
| KCTZ CTZ | Clinton-Sampson County | CLINTON, NC | 144 ft | 1 | 5,008 ft |
| KEYF EYF | Curtis L Brown Jr Fld | ELIZABETHTOWN, NC | 131 ft | 1 | 5,006 ft |
| KHRJ HRJ | Harnett Rgnl Jetport | ERWIN, NC | 201 ft | 1 | 5,005 ft |
| KEXX EXX | Davidson County Exec | LEXINGTON, NC | 732 ft | 1 | 5,004 ft |
| KMRH MRH | Michael J Smith Fld | BEAUFORT, NC | 10 ft | 3 | 5,004 ft |
| KBHC BHC | Baxley Muni | BAXLEY, GA | 201 ft | 1 | 5,003 ft |
| KBXG BXG | Burke County | WAYNESBORO, GA | 308 ft | 1 | 5,003 ft |
| KBBP BBP | Marlboro County Jetport/H E Avent Fld | BENNETTSVILLE, SC | 146 ft | 1 | 5,003 ft |
| KRVJ RVJ | Swinton Smith Fld At Reidsville Muni | REIDSVILLE, GA | 195 ft | 1 | 5,003 ft |
| 7W6 | Hyde County | ENGELHARD, NC | 6 ft | 1 | 5,002 ft |
| 2J3 | Louisville Muni | LOUISVILLE, GA | 327 ft | 1 | 5,002 ft |
| KLQK LQK | Pickens County | PICKENS, SC | 1,013 ft | 1 | 5,002 ft |
| KMKS MKS | Berkeley County | MONCKS CORNER, SC | 74 ft | 1 | 5,001 ft |
| KGRD GRD | Greenwood County | GREENWOOD, SC | 631 ft | 2 | 5,001 ft |
| KMHP MHP | John Edwin Jones Sr Fld/Metter Muni | METTER, GA | 197 ft | 1 | 5,001 ft |
| 2J5 | Millen | MILLEN, GA | 240 ft | 1 | 5,001 ft |
| KRCZ RCZ | Richmond County | ROCKINGHAM, NC | 357 ft | 2 | 5,001 ft |
| KEHO EHO | Shelby-Cleveland County Rgnl | SHELBY, NC | 846 ft | 1 | 5,001 ft |
| KOCW OCW | Washington-Warren | WASHINGTON, NC | 37 ft | 2 | 5,001 ft |
| KAMG AMG | Bacon County | ALMA, GA | 199 ft | 1 | 5,000 ft |
| KCQW CQW | Cheraw Muni/Lynch Bellinger Fld | CHERAW, SC | 238 ft | 1 | 5,000 ft |
| KDCM DCM | Chester Catawba Rgnl | CHESTER, SC | 656 ft | 2 | 5,000 ft |
| KHVS HVS | Hartsville Rgnl | HARTSVILLE, SC | 363 ft | 1 | 5,000 ft |
| KHXD HXD | Hilton Head | HILTON HEAD ISLAND, SC | 19 ft | 1 | 5,000 ft |
| KMCZ MCZ | Martin County | WILLIAMSTON, NC | 74 ft | 1 | 5,000 ft |
| KFQD FQD | Rutherford County/Marchman Fld | RUTHERFORDTON, NC | 1,077 ft | 1 | 5,000 ft |
| KSCR SCR | Siler City Muni | SILER CITY, NC | 615 ft | 1 | 5,000 ft |
| KDYB DYB | Summerville | SUMMERVILLE, SC | 55 ft | 1 | 5,000 ft |
| KCKI CKI | Williamsburg Rgnl | KINGSTREE, SC | 66 ft | 1 | 5,000 ft |
| KCDN CDN | Woodward Fld | CAMDEN, SC | 302 ft | 2 | 5,000 ft |
| KAQX AQX | Allendale County | ALLENDALE, SC | 161 ft | 1 | 4,990 ft |
| KMAO MAO | Marion County | MARION, SC | 92 ft | 1 | 4,505 ft |
| W03 | Wilson Industrial Air Center | WILSON, NC | 159 ft | 3 | 4,500 ft |
| KHYW HYW | Conway-Horry County | CONWAY, SC | 34 ft | 1 | 4,401 ft |
| T73 | Kirk Air Base | LANCASTER, SC | 578 ft | 4 | 4,400 ft |
| 6J0 | Lexington County | PELION, SC | 451 ft | 1 | 4,335 ft |
| KMQI MQI | Dare County Rgnl | MANTEO, NC | 12 ft | 2 | 4,306 ft |
| 3J1 | Ridgeland-Claude Dean | RIDGELAND, SC | 84 ft | 1 | 4,200 ft |
| 60J | Odell Williamson Muni | OCEAN ISLE BEACH, NC | 32 ft | 1 | 4,198 ft |
| 7NC | Donald'S Air Park Inc | PLYMOUTH, NC | 18 ft | 1 | 4,195 ft |
| KACZ ACZ | Wallace-Pender | WALLACE, NC | 38 ft | 1 | 4,153 ft |
| KLUX LUX | Laurens County | LAURENS, SC | 697 ft | 1 | 4,051 ft |
| 5W5 | Southern Wake Rgnl | RALEIGH, NC | 243 ft | 1 | 4,005 ft |
| KDNL DNL | Daniel Fld | AUGUSTA, GA | 422 ft | 2 | 4,002 ft |
| 43A | Montgomery County | STAR, NC | 632 ft | 1 | 4,002 ft |
| KZEF ZEF | Elkin Muni | ELKIN, NC | 1,067 ft | 1 | 4,001 ft |
| KEOE EOE | Newberry County | NEWBERRY, SC | 570 ft | 1 | 4,001 ft |
| S17 | Twin Lakes | GRANITEVILLE, SC | 540 ft | 1 | 4,000 ft |
| KETC ETC | Tarboro-Edgecombe | TARBORO, NC | 52 ft | 1 | 3,999 ft |
| 5J5 | Holly Hill | HOLLY HILL, SC | 96 ft | 1 | 3,900 ft |
| KAKH AKH | Gastonia Muni | GASTONIA, NC | 797 ft | 1 | 3,769 ft |
| 51J | Lake City Muni Cj Evans Fld | LAKE CITY, SC | 80 ft | 1 | 3,700 ft |
| KLRO LRO | Mt Pleasant Rgnl-Faison Fld | MOUNT PLEASANT, SC | 11 ft | 1 | 3,700 ft |
| 5J9 | Twin City | LORIS, SC | 99 ft | 1 | 3,694 ft |
| N22 | Sky Manor | JACKSONVILLE, NC | 60 ft | 1 | 3,610 ft |
| 99N | Bamberg County | BAMBERG, SC | 231 ft | 1 | 3,603 ft |
| KMNI MNI | Santee Cooper Rgnl | MANNING, SC | 102 ft | 1 | 3,602 ft |
| 3J0 | Hampton County | HAMPTON, SC | 112 ft | 1 | 3,601 ft |
| S19 | Mc Cormick County | MC CORMICK, SC | 459 ft | 1 | 3,598 ft |
| 35A | Union County, Troy Shelton Fld | UNION, SC | 609 ft | 1 | 3,508 ft |
| 2GC | Grays Creek | FAYETTEVILLE, NC | 160 ft | 1 | 3,500 ft |
| KARW ARW | Beaufort Exec | BEAUFORT, SC | 9 ft | 1 | 3,434 ft |
| 5W4 | P K Airpark | RAEFORD, NC | 304 ft | 1 | 3,402 ft |
| KPYG PYG | Pageland | PAGELAND, SC | 574 ft | 1 | 3,396 ft |
| 9A9 | Shiflet Fld | MARION, NC | 1,212 ft | 1 | 3,340 ft |
| N52 | Jaars-Townsend | WAXHAW, NC | 602 ft | 1 | 3,309 ft |
| 6J2 | St George | ST GEORGE, SC | 84 ft | 1 | 3,201 ft |
| 6J7 | Branhams | DARLINGTON, SC | 166 ft | 1 | 3,200 ft |
| 52J | Lee County/Butters Fld | BISHOPVILLE, SC | 211 ft | 1 | 3,200 ft |
| 6J4 | Saluda County | SALUDA, SC | 539 ft | 1 | 3,189 ft |
| 14A | Lake Norman Airpark | MOORESVILLE, NC | 839 ft | 1 | 3,147 ft |
| 58J | Huggins Meml | TIMMONSVILLE, SC | 143 ft | 1 | 3,090 ft |
| 0A7 | Hendersonville | HENDERSONVILLE, NC | 2,084 ft | 1 | 3,075 ft |
| 3A4 | Greensboro Exec | GREENSBORO, NC | 739 ft | 1 | 3,064 ft |
| KHSE HSE | Billy Mitchell | HATTERAS, NC | 16 ft | 1 | 3,002 ft |
| 7A8 | Avery County/Morrison Fld | SPRUCE PINE, NC | 2,745 ft | 2 | 3,001 ft |
| KPHH PHH | Robert F Swinnie | ANDREWS, SC | 26 ft | 1 | 3,001 ft |
| KDLC DLC | Dillon County | DILLON, SC | 133 ft | 1 | 3,000 ft |
| KFFA FFA | First Flight | KILL DEVIL HILLS, NC | 11 ft | 1 | 3,000 ft |
| 4J8 | Treutlen County | SOPERTON, GA | 345 ft | 1 | 3,000 ft |
| 65J | Wrens Meml | WRENS, GA | 450 ft | 1 | 3,000 ft |
| W95 | Ocracoke Island | OCRACOKE, NC | 4 ft | 2 | 2,998 ft |
| 8A7 | Twin Lakes | MOCKSVILLE, NC | 818 ft | 1 | 2,943 ft |
| 1DS | Dry Swamp | ORANGEBURG, SC | 180 ft | 1 | 2,900 ft |
| 3W6 | Bladenboro | BLADENBORO, NC | 116 ft | 1 | 2,850 ft |
| 33A | Fairview | LANDRUM, SC | 1,046 ft | 1 | 2,770 ft |
| 6J6 | Edgefield County | TRENTON, SC | 611 ft | 2 | 2,640 ft |
| N26 | Derby Aerodrome | PINEHURST, NC | 516 ft | 1 | 2,600 ft |
| 78A | Swan Creek | JONESVILLE, NC | 1,137 ft | 2 | 2,600 ft |
| 9W9 | Clio Crop Care | CLIO, SC | 192 ft | 1 | 2,598 ft |
| BQ1 | Gilliam - Mc Connell Airfield | CARTHAGE, NC | 445 ft | 1 | 2,538 ft |
| N08 | Flanagan Fld | FARMVILLE, NC | 75 ft | 1 | 2,500 ft |
| N97 | Hiatt | THOMASVILLE, NC | 855 ft | 2 | 2,500 ft |
| W88 | Air Harbor | GREENSBORO, NC | 822 ft | 1 | 2,460 ft |
| N92 | Laneys | MAIDEN, NC | 1,025 ft | 2 | 2,400 ft |
| NC2 | Taylorsville | TAYLORSVILLE, NC | 1,090 ft | 1 | 2,400 ft |
| 7S1 | 7 Oaks Flight Park | FAIRFAX, SC | 138 ft | 1 | 2,350 ft |
| 28A | Goose Creek | INDIAN TRAIL, NC | 565 ft | 1 | 2,350 ft |
| E40 | Wilson'S | HICKORY, NC | 985 ft | 1 | 2,175 ft |
| N83 | Ds Butler Farm And Airfield | OAK RIDGE, NC | 950 ft | 1 | 2,000 ft |
| 80C | Lone Hickory | YADKINVILLE, NC | 1,015 ft | 1 | 2,000 ft |
| 4W4 | Whitfield Farms | HURDLE MILLS, NC | 653 ft | 1 | 1,950 ft |
| 05N | South Oaks Aerodrome | WINTERVILLE, NC | 50 ft | 1 | 1,850 ft |
| 2Q0 | Flying W | HARTSVILLE, SC | 292 ft | 1 | 1,606 ft |
| N61 | Hinshaw (Greenacres) | LIBERTY, NC | 750 ft | 1 | 1,400 ft |
| N88 | Kecks | JULIAN, NC | 724 ft | 1 | 1,400 ft |
180 public-use airports within this chart's coverage, ordered by runway length. A further 350 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for North Carolina is available as a single 109.2 MB archive (522 charts) — see the North Carolina airports.
It spans 31.5°N to 36.3°N and 82.8°W to 74.9°W. Airports on the sheet fall within Georgia, North Carolina, South Carolina and Tennessee. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (54.1 MB). Take the PDF to print it or read it on a second screen (112.1 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Atlanta to the west, Cincinnati to the north-west, Washington to the north-east and Jacksonville to the south-west. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
FAA public-domain products, mirrored unmodified. Fly Away Simulation is not affiliated with or endorsed by the FAA. Chart licensing and terms.
