Terminal Procedures

5R4 — Holk Fld At Foley Muni

FOLEY, AL · 3 FAA charts · cycle 6 Aug 2026

Elevation 74 ft1 runwayLongest 3,700 ftNon-toweredFuel 100LL avgasVolume SE-4Not for navigation

2 published instrument approaches: 2 RNAV (GPS), serving 2 runway ends.

All 3 5R4 charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 3 charts is roughly 19 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

	Chart	Amendment

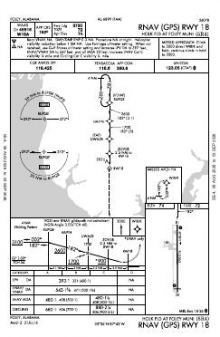

	RNAV (GPS) RWY 18	2	PDF

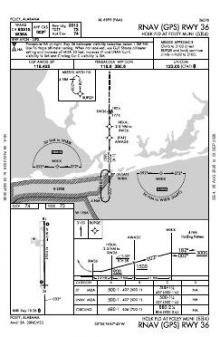

	RNAV (GPS) RWY 36	2A	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

5R4 airport information

Control tower: No
Attendance: All all 0800-1700
ARTCC: Jacksonville Center
Flight service: Anniston
NOTAM facility: ANB (NOTAM-D available)
Magnetic variation: 2W
Beacon: White-green (lighted land airport), sunset to sunrise
Wind indicator: Lighted
Segmented circle: Yes
Fuel: 100LL avgas
Airframe service: Major
Powerplant service: Major
Bottled oxygen: None
Parking: Tie-downs
Customs: Landing rights airport
Activated: February 1967
Airport area: 104 acres
Ownership: Publicly owned
Sectional: New Orleans
Last FAA inspection: 2025-11-07

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

5R4 radio frequencies

Service	Frequency	Call sign
CTAF	123.05
Approach	118.6251-339	Pensacola

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at 5R4, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
18/36	3,700 ft	74 ft	Asphalt Good	Medium intensity
18 180°T	PAPI (2-box) 3° · right-hand circuit
36 360°T	PAPI (2-box) 3° · displaced threshold 187 ft

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where 5R4 is

Latitude, longitude30.4276670, -87.7009720

Elevation74 ft

From Foley3 nm NW

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for 5R4

VFR OPS ONLY.
ACTVT PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF. MIRL RWY 18/36 PRESET LOW INTST; INCR INTST - CTAF.
HOLD SHORT MARKINGS ARE FAIR CONDITION
PAPI UNUSBL BYD 6 DEG LEFT OF CNTRLN.
EXTSV STUDENT TRNG.
CIRCLING APCH NA EAST OF RWY. VOLUNTARY NOISE ABATEMENT PROC IN EFCT MON-SUN NGT TIME. VOLUNTARY RSTRS ON TOUCH AND GO, STOP AND GO, OR HEL OPS MON-SUN NGT TIME. RWY 18 NGT TIME PREFERENTIAL USE RWY FOR ALL ACFT DEP WHEN WINDS PERMIT.
LTD PRKG ON NORTH RAMP. TSNT ACFT URGED TO BRING TIE-DOWN ROPES FOR SOUTH RAMP PKNG. NO RAMP FEES EXCP ACFT OVER NGT PRKG.
FOR CD CTC PENSACOLA APCH AT 850-266-6884 OR 850-266-6885.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near 5R4

ID	Airport	City	Distance	Charts
KJKA	Gulf Shores Intl/Jack Edwards Fld	GULF SHORES, AL	8 nm S	6
KCQF	H L Sonny Callahan	FAIRHOPE, AL	9 nm W	5
KNPA	Pensacola NAS (Forrest Sherman Fld)	PENSACOLA, FL	20 nm E	23
KBFM	Mobile Intl	MOBILE, AL	22 nm NW	11
KPNS	Pensacola Intl	PENSACOLA, FL	27 nm E	11
1R8	Bay Minette Muni	BAY MINETTE, AL	27 nm N	4
2R5	St Elmo	ST ELMO, AL	30 nm W	2
KMOB	Mobile Rgnl	MOBILE, AL	32 nm NW	12

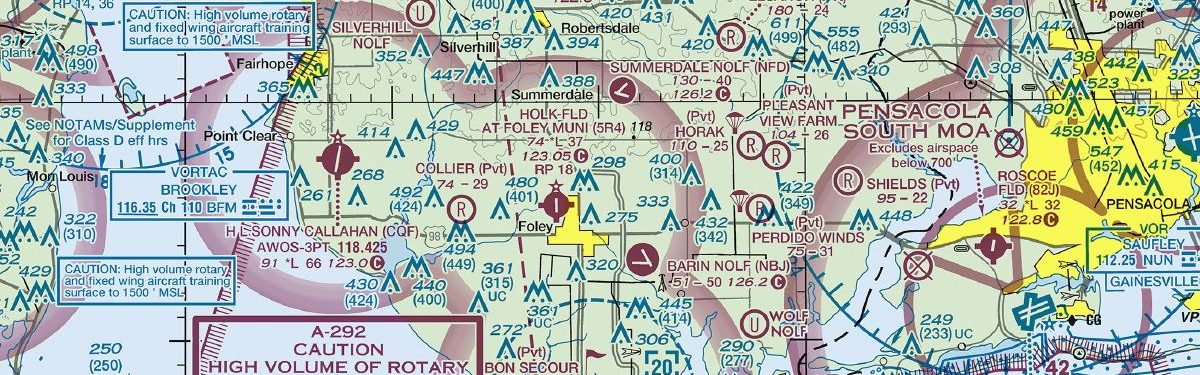

VFR charts covering 5R4

US Gulf CoastHelicopter Route Chart New OrleansSectional Chart

Common questions about 5R4

What charts are available for 5R4?

3 current FAA charts for Holk Fld At Foley Muni, including 2 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for 5R4?

CTAF 123.05. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at 5R4?

Holk Fld At Foley Muni has 1 runway. The longest is 18/36 at 3,700 ft by 74 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does 5R4 have an ILS approach?

No ILS is published. In total 5R4 has 2 published instrument approaches, of which 2 are RNAV (GPS).

Is 5R4 a towered airport?

No — Holk Fld At Foley Muni has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these 5R4 charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
