KJKA — Gulf Shores Intl/Jack Edwards Fld

GULF SHORES, AL · 6 FAA charts · cycle 6 Aug 2026

FAA JKAElevation 17 ft2 runwaysLongest 6,962 ftToweredFuel 100LL avgas, Jet A+Volume SE-4Not for navigation

KJKA airport diagram — runways, taxiways and ramp layout

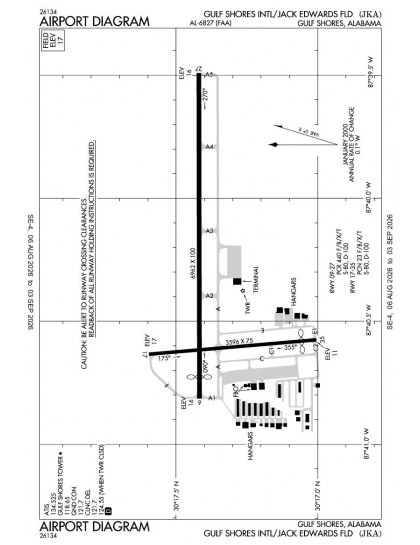

KJKA airport diagram The official FAA airport diagram — runways, taxiways, ramp layout and hold-short positions. Download PDF

3 published instrument approaches: 1 ILS approach, 2 RNAV (GPS), serving 2 runway ends.

All 6 KJKA charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 6 charts is roughly 38 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

Chart	Amendment

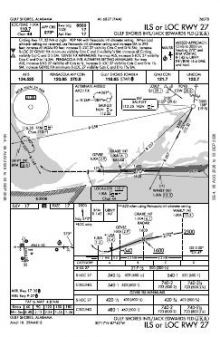

ILS OR LOC RWY 27	1B	PDF

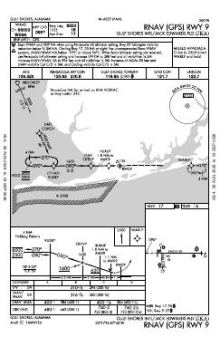

RNAV (GPS) RWY 09	3C	PDF

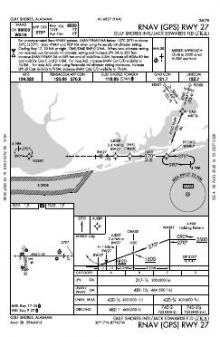

RNAV (GPS) RWY 27	2B	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF
	ALTERNATE MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

KJKA airport information

Control tower: Yes
ARTCC: Jacksonville Center
Flight service: Anniston
NOTAM facility: ANB (NOTAM-D available)
Magnetic variation: 0E
Beacon: White-green (lighted land airport), sunset to sunrise
Wind indicator: Lighted
Segmented circle: Yes
ARFF index: Index A
Fuel: 100LL avgas, Jet A+
Airframe service: Major
Powerplant service: Major
Bottled oxygen: High
Parking: Tie-downs
Customs: Landing rights airport
Activated: March 1978
Airport area: 838 acres
Ownership: Publicly owned
Sectional: New Orleans
Last FAA inspection: 2026-04-01

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KJKA radio frequencies

Service	Frequency	Call sign
CTAF	118.65
UNICOM	122.7
Ground	121.7	Gulf Shores
Clearance delivery	124.55When Twr Clsd	Gulf Shores
ATIS	134.525	Gulf Shores
Approach	120.65	Gulf Shores

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at KJKA, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
09/27	6,962 ft	100 ft	Asphalt Good	High intensity
09 90°T	PAPI (4-box) 3° · displaced threshold 462 ft
27 270°T	ILS/DME · PAPI (4-box) 3° · MALSR approach lighting
17/35	3,596 ft	75 ft	Asphalt Good	Medium intensity
17 175°T	PAPI (2-box) 3.63°
35 355°T	PAPI (2-box) 4° · displaced threshold 320 ft

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KJKA is

Latitude, longitude30.2896390, -87.6717780

Elevation17 ft

From Gulf Shores2 nm N

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KJKA

INDEX B AVAILABLE UPON REQUEST CTC ARPT MGMT 850-501-5257.
WHEN ATCT CLSD ACTVT MALSR RWY 27; PAPI RWYS 09, 27, 17 & 35; HIRL RWY 09/27; MIRL RWY 17/35 - CTAF.
AFT HRS SVC CALL (251) 968-5200.
PCR VALUE: 440/F/B/X/T
EXTSV BANNER TOWING, HEL AND PARA-SAIL OPS ALONG COASTLINE 15 NM MILES W TO 20 NM E OF GULF SHORES/ORANGE BEACH, AND 15 NM WSW TO 20 NM ESE OF JKA.
CAUTION: HOP AT OR BLW 300 FT MSL WI 1 NM OF JKA WHEN LNDG/DEP HELIPAD LCTD 1.6 NM E, DIRECTLY UNDER RWY 27 FINAL. NOLF BARIN LCTD 6 MILES NE OF AP MAY BE MISTAKEN FOR JACK EDWARDS NTL AP. HI VOL OF MIL TFC WILL BE OPRG IN THE BARIN FIELD TFC PAT FROM SFC TO 3000 FT AGL.
FREQ 122.7 FOR UNICOM USE ONLY.
ACR OPNS INVOLVING ACFT WITH MORE THAN 9 PAX SEATS ARE NA IN EXCESS OF 15 MINS BFR OR AFT SKED ARR OR DEP TIMES WO PRIOR CDN WITH ARPT MGMT OR THE ARPT SAFETY DEPT AND CFM THAT ARFF SVCS ARE AVBL PRIOR TO LDG OR TKOF. UNSKED ACR OPNS WITH MORE THAN 30 PAX SEATS SHOULD CTC AMGR (251) 967-3968.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Concentrated approach coverage

Gulf Shores International/Jack Edwards Field has instrument approaches to only two of its four runway ends, so coverage is concentrated rather than available on every alignment. Three plates encompass ILS, localiser and two RNAV (GPS) options, giving the served ends both conventional and GPS-based procedures. At almost twice the length of 17/35, runway 09/27 provides substantially more distance for aircraft with greater runway-length needs.

Nearby chart coverage

KNPA has by far the broadest chart set among the nearby fields, while KPNS and KBFM also have more extensive coverage than JKA. KCQF is comparable in scale and 5R4 is distinctly thinner. The New Orleans Sectional supplies wider VFR context, while the US Gulf Coast Helicopter Route Chart adds helicopter-routing detail not provided by the airport diagram or instrument procedures.

Airports near KJKA

ID	Airport	City	Distance	Charts
5R4	Holk Fld At Foley Muni	FOLEY, AL	8 nm N	3
KCQF	H L Sonny Callahan	FAIRHOPE, AL	15 nm NW	5
KNPA	Pensacola NAS (Forrest Sherman Fld)	PENSACOLA, FL	19 nm E	23
KPNS	Pensacola Intl	PENSACOLA, FL	27 nm NE	11
KBFM	Mobile Intl	MOBILE, AL	29 nm NW	11
2R5	St Elmo	ST ELMO, AL	34 nm W	2
1R8	Bay Minette Muni	BAY MINETTE, AL	36 nm N	4
KMOB	Mobile Rgnl	MOBILE, AL	38 nm NW	12

VFR charts covering KJKA

US Gulf CoastHelicopter Route Chart New OrleansSectional Chart

Common questions about KJKA

What charts are available for KJKA?

6 current FAA charts for Gulf Shores Intl/Jack Edwards Fld, including 3 instrument approachs, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KJKA?

Ground 121.7; ATIS 134.525; CTAF 118.65; UNICOM 122.7; Clearance delivery 124.55. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KJKA?

Gulf Shores Intl/Jack Edwards Fld has 2 runways. The longest is 09/27 at 6,962 ft by 100 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does KJKA have an ILS approach?

Yes — 1 ILS procedure is published. In total KJKA has 3 published instrument approaches, of which 2 are RNAV (GPS).

Where can I download the KJKA airport diagram?

The official FAA airport diagram for Gulf Shores Intl/Jack Edwards Fld is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.

Is KJKA a towered airport?

Yes. Gulf Shores Intl/Jack Edwards Fld has an operating control tower, within Jacksonville Center's airspace. Tower, ground and clearance frequencies are listed on this page.

Are these KJKA charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
