KBLV — Scott AFB/Midamerica St Louis

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF
	ALTERNATE MINIMUMS	—	PDF

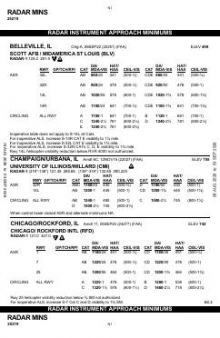

	RADAR MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

Control tower

Yes

Attendance

Continuous

ARTCC

Kansas City Center

Flight service

Saint Louis

NOTAM facility

BLV (NOTAM-D available)

Magnetic variation

2W

Beacon

White-green (lighted land airport), sunset to sunrise

Wind indicator

Yes

ARFF index

Index B

Fuel

100LL avgas, Jet A+

Bottled oxygen

None

Parking

Tie-downs

Landing fee

Yes

Customs

Landing rights airport

Activated

July 1942

Airport area

7,003 acres

Ownership

Privately owned

Sectional

St Louis

Last FAA inspection

2023-03-06

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runway and approach-aid data from the FAA NASR 28-day subscription.

Paste the coordinates into a simulator’s world map to drop straight onto the field.

• ARFF INDEX C AVBL WITH 72 HRS PRIOR NOTICE 618-566-5233.
• LNDG FEE (N/A FOR MIL AIRCRAFT).
• TFC PAT: OVHD, FTR ACFT, 2500 FT; RECTANGULAR 2000 FT; LGT ACFT AND COPTER RECTANGULAR 1500 FT. DURG VFR COND; TKOF, LOW APCH, TOUCH AND GO AND CLSD PAT, ACFT WILL NOT EXCEED 2000 FT TIL FLD BDRY TO AVOID OVHD PAT.
• 375AMW SCOTT AFB BELLEVILLE IL 62225
• 375AMW SCOTT AFB BELLEVILLE IL 62225.
• USAF BASE OPERATION 618-256-1861/KEITH WOLFE 618-256-4101.
• PCR VALUE: 870/R/B/W/T
• HAS 1000 FT OVRN BOTH ENDS.
• MISC: FIRST 6000 FT OF RWY 32L IS ASPH, REMAINING 2006 FT IS CONC; LOCKED WHEEL TURNS ON ASPH PORTION OF RWY PROHIBITED. 180 DEG TURNS ON ASPH PORTION OF RWY IS AUTHORIZED FOR LGT & MED CATAGORY ACFT ONLY.
• SAFB IS UNSUITABLE FOR HAZARDOUS CARGO WITHOUT PRIOR COORDINATION AND SHOULD NOT BE CONSIDERED A ROUTINE LOCATION FOR MISSIONS CARRYING HAZARDOUS CARGO.
• SAFB AIRFIELD OPERATIONS OPEN 24/7.
• TRANSIENT MIL ACFT PARKING ON CIVILLIAN RAMPS CONTACT MIDAMERICA ON 618-566-5265 OR 618-566-5227 FOR AVBL SVCS & PARKING INFO.
• DEER, BIRDS & WATERFOWL ON & INVOF ARPT.
• JASU: SCOTT AFB 6(A/M32A-86) 3(AM32-95). MIDAMERICA 2 (A/M 32A-60B) 1 (AM32-95) 2 (A/M 32A-86) 1 (MD-4).
• CIV ACFT FUEL: A+ 100LL (AGI GROUND, AVBL 1400-0200Z++, C618-566-5265.)
• FLUID: SCOTT AFB SP(MIL) PRESAIR(MIL) LHOX(MIL) LOX(MIL).
• OIL: SCOTT AFB O-133-148(MIL) SOAP(MIL)
• TRAN ALERT SCOTT AFB: OPR 1200-0400Z++ WKD; 1400-2300Z++ WKEND; CLSD FEDERAL HOL. MILITARY SVC AT MIDAMERICA (CIVILIAN SIDE) OPR 1400-0200Z++, 24 HR PPR OT. FBO MILITARY SVC LTD TO REFUELING (DLA CONTRACT) AND DE-ICING. CTC FBO AT C618-566-5265 FOR SPECIFIC PRK AND SVC.
• MILITARY USE: SEE FLIP AP/1 SUPPLEMENTARY REMARKS.
• SAFB PPR DSN 576-1861, C618-256-1861. ALL INBD PAX/CARGO ACFT MUST CTC 375 COMD POST NO LATER THAN 30 MIN PRIOR TO LDG. AMC ACFT RSTD DUR BASH PHASEII AND WHEN ARPT ENTERS BIRD WATCH CONDITIONS MODERATE OR SEVERE.
• SCOTT AFB RSTD: WHEN ARPT IS CODE MODERATE OR SEVER NO LCL IFR/VFR PAT. WHEN ARPT CODE SEVER, TKOF/LDG PROH WO 375 OG/CC APVL. DUR PHASEII, DLY BASH WINDOWS ARE ESTIMATED AS SR+1-SR-1 AND SS+1, SS-1.
• SCOTT AFB RSTD: DUR BASH WINDOW (WHEN CODE LOW) NO TRANS PAT PERMS; INITIAL TKOF/FULL STOP LDG ARE AT AC DISCRETION. CTC ATIS, PTD, 375 AW COMD POST OR TWR FOR CURRENT CODE.
• DENSE CIV AIR TFC ALL QUAD, ALL ALT. USE CAUTION WHEN UTILIZING TWY G, 0.25 NM E OF RY 14R-32L INT, GRAD CHG OF 3 DEG AND A 70 DEG TURN PRESENT, ON COMING TFC MAY NOT BE VIS DUE TO TERRAIN.
• RSTD; SCOTT AFB IS PPR. THE 375 MIL FLIGHT SVC SECTION IS THE SOLE AGENT FOR ISSUING PPR NRS TO MIL ACFT OPRG ON OR FM THE SCOTT AFB SIDE.
• MIL RAMPS CLSD TO CIVIL ACFT WITHOUTPRIOR COORDINATION AND A LANDING PERMIT NR ON FILE.
• PARKING AT THE 126 ARW RAMP IS OFFICIAL BUSINESS ONLY REQUIRING 48 HRS PPR. PPR CALL DSN 760-9977, C 618-229-9977, OR 126TH CP C 618-229-9060.
• ALL INBOUND ACFT ARRIVING SCOTT AFB MUST CTC 375 COMD POST OR 126TH ANG COMD POST NO LATER THAN 30 MIN PRIOR TO LDG.
• ACFT ARRIVING SCOTT AFB WITH MORE THAN 30 PSGR AFTER HRS CTC BASE OPS 24 HRS IN ADVANCE C618-256-1861.
• MIL SUPPORT FROM SAFB MAY NOT BE AVBL ON MIDAMERICA SIDE OF FLD WO PRIOR COORD THRU SCOTT AFB. PPR ISSUED UP TO 7 DAYS PRIOR TO ARR.
• RSTD: FULL WX SVC AVBL H24. COMBAT WX FLIGHT DSN 576-3663, C618-256-3663. BLDG OBST MAY IMPACT PREVAILING VIS 200-320 DEG. ATC WILL ENHANCE SFC OBSN WHEN TWR IS LESS THAN 4 SM AND DIFFERENT THAN RPT VIS.REMOTE BRIEFING SVC AVBL FROM 15 OPERATIONAL SQUADRON, DSN 576-9755, C618-256-9755.
• CIVILIAN FBO AVBL 1200-2030Z++, C618-566-5265.
• LTD DEICING CPBLTY. ACFT CMDRS MUS COORD WITH SAFB COMD POST DSN 576-5891, C618-256-5891 FOR AVAIL AT LEAST 24 HR PRIOR TO DEP.
• SERVICE-FUEL: A++(MIL). SCOTT AFB FUEL SVC AVBL 1100Z-0500Z, OT RQR 1 HR PN.
• MISC: EACH RWY HAS DIFFERENT LEVELS OF ARFF SUPPORT. CONSIDER RWY 14L-32R A CIV AIRPORT PROVIDING FAA INDEX B SUPPORT FOR CIV ACFT. STEADY ARFF COND FOR RWY 14R/32L IS OPTIMUM LEVEL OF SVC (OLS) FOR CATS 1-6, REDUCED LEVEL OF SVC (RLS) FOR CATS 7-8, AND CRITICAL LEVEL OF SVC (CLS) FOR CATS 9-10, 0001-2359++ DLY.
• TWY H CLSD.
• H24 WX SVC AVBL AT DSN 576-5905, C618-256-5905. AN/FMQ-19 AUTOMATED OBSERVING SYS IN USE; AUGMENTED BY HUMAN OBSN WHEN NEC. IF WX FLT UNAVBL, REMOTE SVC AVBL FR 15 OPR WX SQUADRON DSN 576-9755, C618-256-9755.
• CAUTION: UNEXP BUMPS OCCURRING ON TWY G BTN RWYS WHEN CROS BRIDGES AND TUNNELS. USE MIN SPEEDS WHEN OPR IN THE AREA.
• MISC: ACARS AVBL.
• SERVICE-TRAN ALERT: HOT PIT REFUL AVBL TO CERTAIN ACFT WITH 3 HR PN AND MAX OF 2 AT A TIME.
• CTC 375 AMW COMD POST 20 MIN PRIOR TO ARR FOR HOT PIT REQ.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
