Terminal Procedures

KGRB — Green Bay/Austin Straubel Intl

GREEN BAY, WI · 12 FAA charts · cycle 6 Aug 2026

FAA GRBElevation 695 ft2 runwaysLongest 8,700 ftToweredFuel 100LL avgas, Jet AVolume EC-3Not for navigation

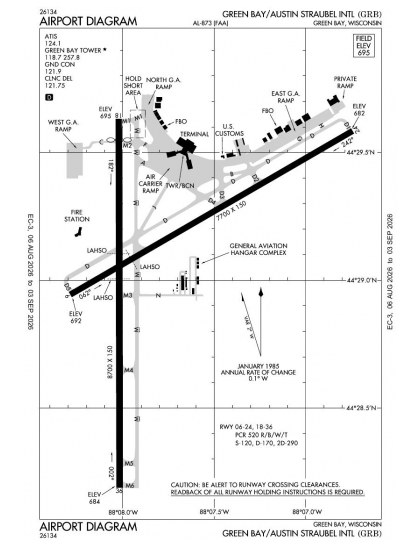

KGRB airport diagram — runways, taxiways and ramp layout
KGRB airport diagram The official FAA airport diagram — runways, taxiways, ramp layout and hold-short positions. Download PDF

7 published instrument approaches: 2 ILS approaches, 4 RNAV (GPS), serving 4 runway ends.

All 12 KGRB charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 12 charts is roughly 1 min of downloading — they queue one behind another.
PRO members only

Instrument approach procedures

ChartAmendment

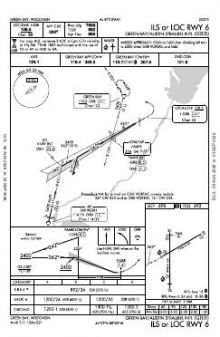

ILS OR LOC RWY 06 chart previewILS OR LOC RWY 0621EPDF

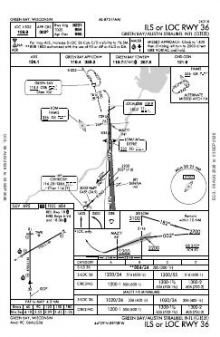

ILS OR LOC RWY 36 chart previewILS OR LOC RWY 36amended9CPDF

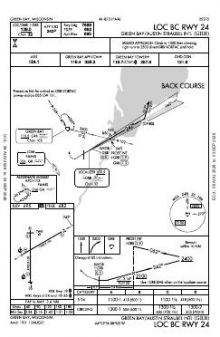

LOC BC RWY 24 chart previewLOC BC RWY 2419DPDF

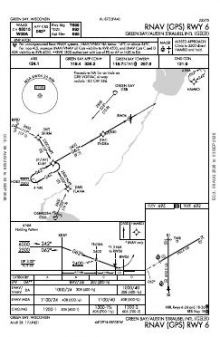

RNAV (GPS) RWY 06 chart previewRNAV (GPS) RWY 062BPDF

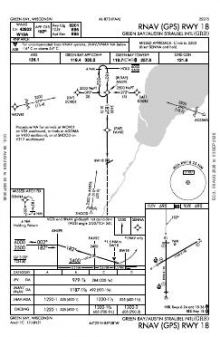

RNAV (GPS) RWY 18 chart previewRNAV (GPS) RWY 181CPDF

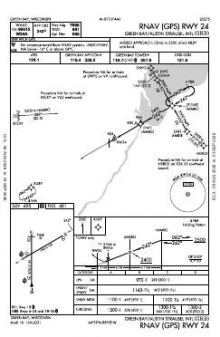

RNAV (GPS) RWY 24 chart previewRNAV (GPS) RWY 241BPDF

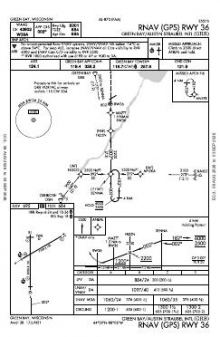

RNAV (GPS) RWY 36 chart previewRNAV (GPS) RWY 363BPDF

Takeoff and alternate minimums

ChartAmendment
TAKEOFF MINIMUMS chart previewTAKEOFF MINIMUMS—PDF
ALTERNATE MINIMUMS chart previewALTERNATE MINIMUMS—PDF
RADAR MINIMUMS chart previewRADAR MINIMUMS—PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

Land and hold short operations

ChartAmendment
LAHSO chart previewLAHSO—PDF

KGRB airport information

Control tower
Yes
Attendance
All all 0500-2200
ARTCC
Minneapolis Center
Flight service
Green Bay
NOTAM facility
GRB (NOTAM-D available)
Magnetic variation
2W
Beacon
White-green (lighted land airport), sunset to sunrise
Wind indicator
Lighted
ARFF index
Index C
Fuel
100LL avgas, Jet A
Airframe service
Major
Powerplant service
Major
Bottled oxygen
High
Parking
Tie-downs
Customs
Landing rights airport
Activated
December 1948
Airport area
2,441 acres
Ownership
Publicly owned
Sectional
Green Bay
Last FAA inspection
2026-05-20

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KGRB radio frequencies

ServiceFrequencyCall sign
CTAF118.7
Ground121.9Green Bay
Clearance delivery121.75Green Bay
ATIS124.1Green Bay
Approach119.4Green Bay
Departure126.55Green Bay
Emergency121.5Green Bay

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

8,700 × 150 ft18367,700 × 150 ft0624N2,000 ft
Runway layout at KGRB, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.
RunwayLengthWidth SurfaceLighting
18/368,700 ft150 ftConcrete GoodHigh intensity
  18 180°TPAPI (4-box) 3° · displaced threshold 499 ft · right-hand circuit
  36 360°TILS · PAPI (4-box) 3° · MALSR approach lighting
06/247,700 ft150 ftConcrete GoodHigh intensity
  06 60°TILS/DME · PAPI (4-box) 3° · MALSR approach lighting
  24 240°TPAPI (4-box) 3°

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KGRB is

Latitude, longitude44.4846340, -88.1297130
Elevation695 ft
From Green Bay7 nm SW

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KGRB

  • ACTVT MALSR RWY 06 & 36; REIL RWY 18; HIRL RWY 06/24 & 18/36 - CTAF. PAPI RWY 06, 18, 24 & 36 OPR CONSLY. WHEN ATCT CLSD PREFERRED RWY PRESET ON LOW OR MED INTST; INCR INTST - CTAF.
  • PCR VALUE: 520/R/B/W/T
  • APCH RATIO 50:1 TO THE DTHR.
  • AVOID NOISE SENSITIVE AREAS N & E OF ARPT 2400-0600.
  • TWY C NOT AVBL FOR ACR MORE THAN 30 PAX SEATS.
  • TWY D WBND NO TURN ONTO TWY J.
  • TWY J SWB NO TURN ONTO NBND TWY M.
  • TWY M SBND NO TURN ONTO TWY J.
  • TWY J SWB NO TURN ONTO EB TWY D.
  • WHEN ATC CLSD FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
  • BIRDS ON & INVOF ARPT.
  • TWY D BTN TWY H & RWY 24 APCH END CLSD TO WINGSPAN GTR THAN 118 FT.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Approach and runway coverage

All four runway ends at Green Bay/Austin Straubel International have published approaches, giving the chart set balanced coverage across both runway alignments. The mix of two ILS procedures, four RNAV (GPS) procedures and three localiser options provides both satellite-based and ground-based approach coverage rather than concentrating procedures on a single end. Runway 18/36 is 1,000 ft longer than 06/24, while both are substantial concrete runways.

Nearby and VFR chart coverage

Appleton International has a nearly comparable chart set, with 11 published charts against Green Bay’s 12. The other listed nearby airports have markedly thinner coverage, ranging from four to six charts. Green Bay also lies on both the Chicago and Green Bay sectional charts, adding wider-area visual context beyond the airport diagram and terminal procedures.

Airports near KGRB

IDAirportCity DistanceCharts
KATWAppleton IntlAPPLETON, WI22 nm SW11
KOCQOconto/J Douglas Bake MuniOCONTO, WI25 nm N4
KEZSShawano MuniSHAWANO, WI26 nm NW4
KCLIClintonville MuniCLINTONVILLE, WI27 nm W6
KMTWManitowoc CountyMANITOWOC, WI29 nm SE5
8D1New Holstein MuniNEW HOLSTEIN, WI32 nm S3
KOSHWittman RgnlOSHKOSH, WI35 nm SW14
KSUEDoor County CherrylandSTURGEON BAY, WI37 nm NE6

VFR charts covering KGRB

ChicagoSectional ChartGreen BaySectional Chart

Common questions about KGRB

What charts are available for KGRB?

12 current FAA charts for Green Bay/Austin Straubel Intl, including 7 instrument approachs, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KGRB?

Ground 121.9; ATIS 124.1; CTAF 118.7; Clearance delivery 121.75. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KGRB?

Green Bay/Austin Straubel Intl has 2 runways. The longest is 18/36 at 8,700 ft by 150 ft, concrete. Full runway dimensions, lighting and approach aids are listed on this page.

Does KGRB have an ILS approach?

Yes — 2 ILS procedures are published. In total KGRB has 7 published instrument approaches, of which 4 are RNAV (GPS).

Where can I download the KGRB airport diagram?

The official FAA airport diagram for Green Bay/Austin Straubel Intl is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.

Is KGRB a towered airport?

Yes. Green Bay/Austin Straubel Intl has an operating control tower, within Minneapolis Center's airspace. Tower, ground and clearance frequencies are listed on this page.

Are these KGRB charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
