OLATHE, KS · 20 FAA charts · cycle 6 Aug 2026
5 published instrument approaches: 1 ILS approach, 4 RNAV (GPS), serving 4 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

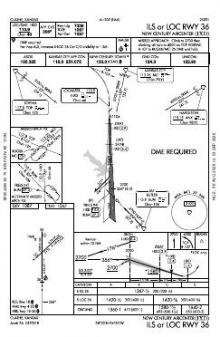

 | ILS OR LOC RWY 36 | 7A | |

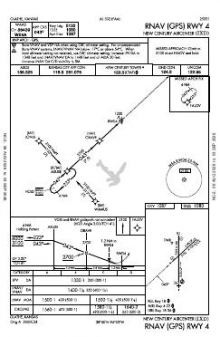

 | RNAV (GPS) RWY 04 | 0A | |

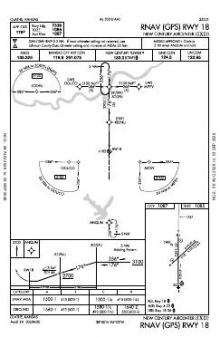

 | RNAV (GPS) RWY 18 | 2A | |

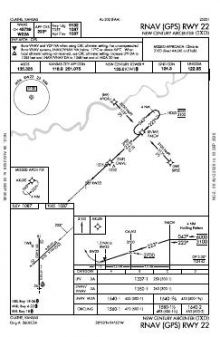

 | RNAV (GPS) RWY 22 | 0A | |

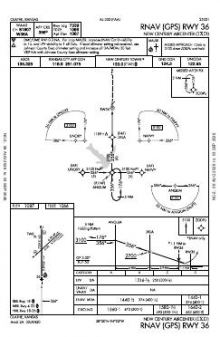

 | RNAV (GPS) RWY 36 | 2A |
| Chart | Amendment | ||
|---|---|---|---|

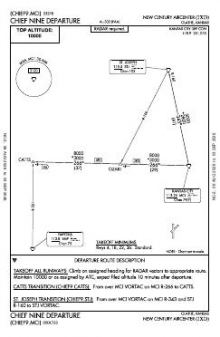

 | CHIEF NINE | — | |

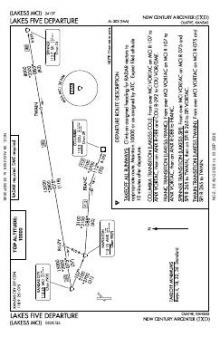

 | LAKES FIVE | — | |

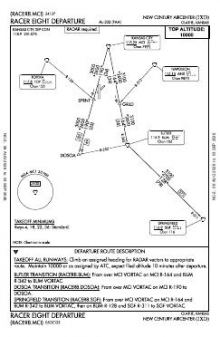

 | RACER EIGHT | — | |

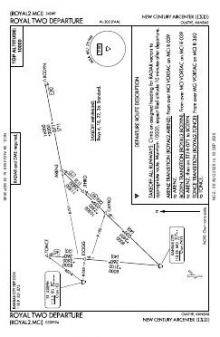

 | ROYAL TWO | — | |
 | TIFTO EIGHT | — | |

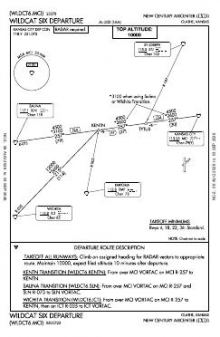

 | WILDCAT SIX | — |
| Chart | Amendment | ||
|---|---|---|---|
 | BRAYMER EIGHT | — | |
 | BRAYMER EIGHT, CONT.1 | — | |
 | JHAWK EIGHT | — | |
 | TYGER SEVEN | — | |
 | TYGER SEVEN, CONT.1 | — |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
| Chart | Amendment | ||
|---|---|---|---|
 | HOT SPOT | — |
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 133.0 | |
| UNICOM | 122.95 | |
| Ground | 124.3 | New Century |
| Approach | 118.9 | New Century |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 18/36 | 7,339 ft | 150 ft | Asphalt Good | High intensity |
| 18 180°T | VASI (2-bar) 3° | |||
| 36 | ILS/DME · MALSR approach lighting · right-hand circuit | |||
| 04/22 | 5,132 ft | 100 ft | Asphalt Fair | Medium intensity |
| 04 47°T | PAPI (4-box) 3° · right-hand circuit | |||
| 22 227°T | PAPI (4-box) 3° | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
38.8309170, -94.8903060
1,087 ft4 nm SWPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
New Century AirCenter has instrument coverage for all four ends of its two runways. Four RNAV (GPS) procedures provide the main approach coverage, supplemented by ILS and localiser options. The six departure procedures and five arrival routes also show that the set extends well beyond approaches. Runway 18/36 offers 2,207 ft more length than 04/22, while the differing alignments provide two distinct runway orientations.
Johnson County Executive and Kansas City Downtown/Wheeler Field have chart sets comparable in breadth to KIXD. Lawrence Regional has a smaller but still varied collection, while Miami County and Ottawa Municipal have much thinner procedure coverage. The Kansas City Sectional supplies broader visual context, and the Terminal Area Chart adds a more detailed view around the terminal area than the airport-specific instrument procedures provide.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KOJC | Johnson County Exec | OLATHE, KS | 7 nm E | 19 |
| K81 | Miami County | PAOLA, KS | 17 nm S | 3 |
| KLWC | Lawrence Rgnl | LAWRENCE, KS | 19 nm NW | 7 |
| KMKC | Kansas City Downtown/Wheeler Fld | KANSAS CITY, MO | 22 nm NE | 22 |
| KOWI | Ottawa Muni | OTTAWA, KS | 24 nm SW | 4 |
| KLXT | Kansas City/Lee'S Summit Rgnl | LEE'S SUMMIT, MO | 25 nm E | 19 |
| KLRY | Lawrence Smith Meml | HARRISONVILLE, MO | 29 nm SE | 4 |
| KMCI | Kansas City Intl | KANSAS CITY, MO | 29 nm N | 48 |
20 current FAA charts for New Century Aircenter, including 5 instrument approachs, 6 departure procedures, 5 arrival procedures, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Ground 124.3; CTAF 133.0; UNICOM 122.95. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
New Century Aircenter has 2 runways. The longest is 18/36 at 7,339 ft by 150 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 1 ILS procedure is published. In total KIXD has 5 published instrument approaches, of which 4 are RNAV (GPS).

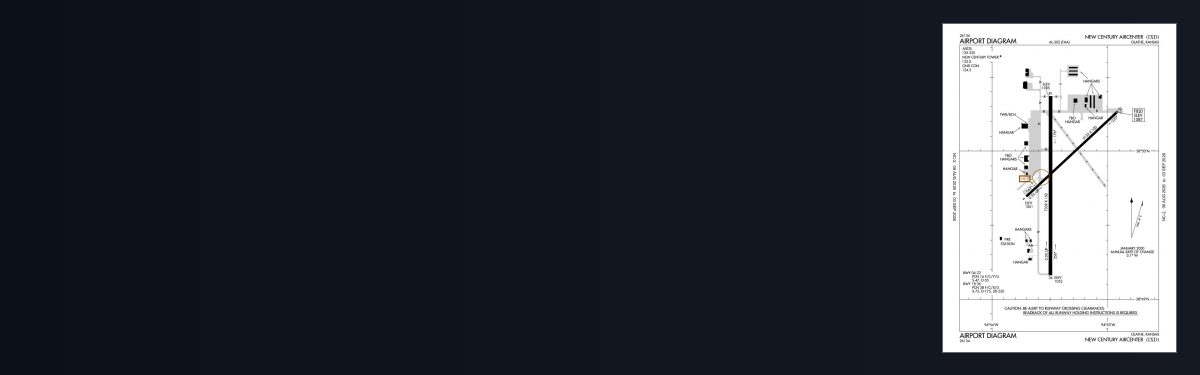

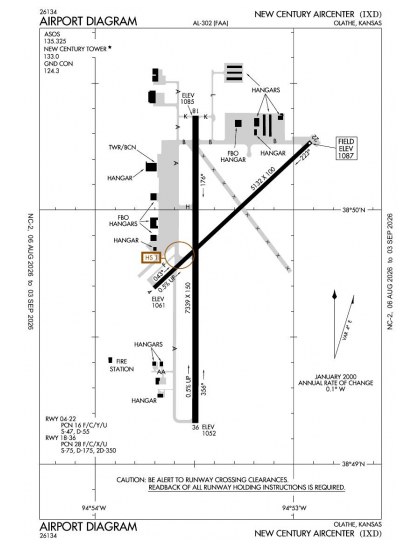

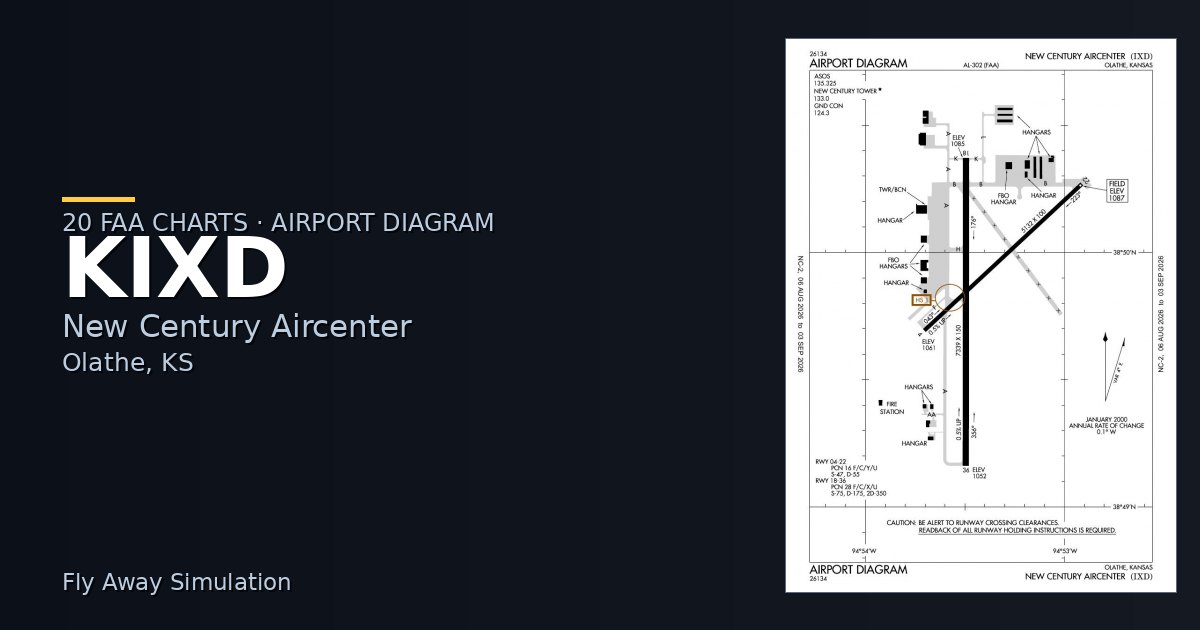

The official FAA airport diagram for New Century Aircenter is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.
Yes. New Century Aircenter has an operating control tower, within Kansas City Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
