JACKSONVILLE, FL · 15 FAA charts · cycle 6 Aug 2026
8 published instrument approaches: 4 RNAV (GPS), serving 2 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

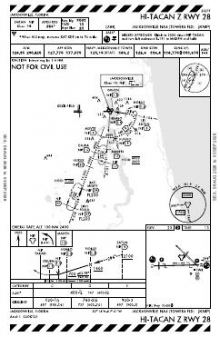

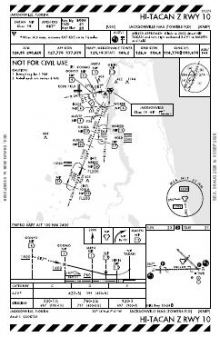

 | HI-TACAN Z RWY 10 | — | |
 | HI-TACAN Z RWY 28 | — | |

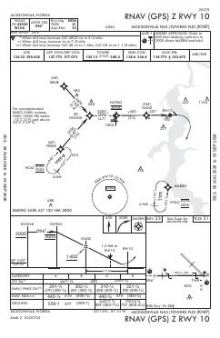

 | RNAV (GPS) Z RWY 10 | — | |

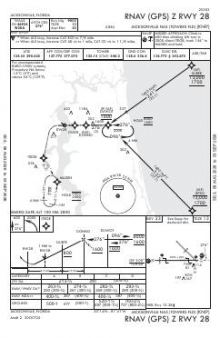

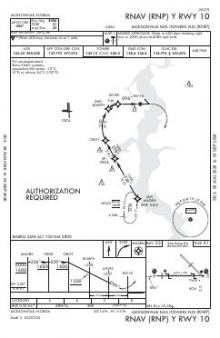

 | RNAV (GPS) Z RWY 28 | — | |
 | RNAV (RNP) Y RWY 10 | — | |

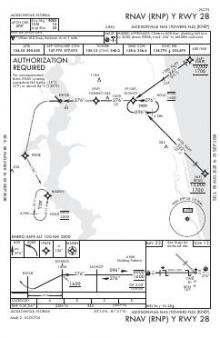

 | RNAV (RNP) Y RWY 28 | — | |

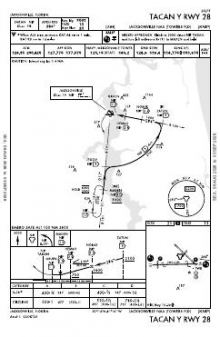

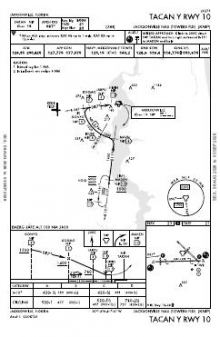

 | TACAN Y RWY 10 | — | |
 | TACAN Y RWY 28 | — |
| Chart | Amendment | ||
|---|---|---|---|
 | ALCRN ONE (RNAV) | — | |
 | HOTAR ONE (RNAV) | — | |
 | POGIE TWO | — | |
 | QUBEN TWO (RNAV) | — |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | RADAR MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 125.15 | |
| Ground | 128.6 | Navy Jacksonville |
| ATIS | 124.35 | Navy Jacksonville |
| Approach | 127.775 | Navy Jacksonville |
| Emergency | 121.5 | Navy Jacksonville |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 10/28 | 9,003 ft | 200 ft | Asphalt Fair | High intensity |
| 10 | ILS/DME · PAPI (4-box) 3° · ALSF-1 approach lighting · displaced threshold 997 ft | |||
| 28 | ILS/DME · PAPI (4-box) 3° · ALSF-1 approach lighting | |||
| 14/32 | 5,978 ft | 200 ft | Asphalt Fair | High intensity |
| 14 135°T | displaced threshold 2,734 ft | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
30.2337060, -81.6760570
22 ft4 nm SPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Jacksonville NAS has RNAV (GPS) approaches to only two of its four runway ends, concentrating instrument access on half of the runway configuration rather than providing coverage for every alignment. The 9,003 ft Runway 10/28 offers substantially more available length than the 5,978 ft Runway 14/32, making runway selection a material planning distinction rather than a choice between equivalent strips.
Jacksonville Executive at Craig and Mayport NS each match Jacksonville NAS with 15 published charts, while Cecil is close behind with 14. Jacksonville International has a markedly broader set at 35 charts; Herlong Recreational is much thinner with four. The Jacksonville Sectional adds the wider visual-navigation context that the airport diagram and terminal procedures do not show.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KHEG | Herlong Recreational | JACKSONVILLE, FL | 7 nm W | 4 |
| KCRG | Jacksonville Exec At Craig | JACKSONVILLE, FL | 10 nm NE | 15 |
| KVQQ | Cecil | JACKSONVILLE, FL | 10 nm W | 14 |
| KJAX | Jacksonville Intl | JACKSONVILLE, FL | 16 nm N | 35 |
| KNRB | Mayport Ns (Adm David L Mcdonald Fld) | MAYPORT, FL | 16 nm NE | 15 |
| KSGJ | St Augustine | ST AUGUSTINE, FL | 24 nm SE | 8 |
| KFHB | Fernandina Beach Muni | FERNANDINA BEACH, FL | 25 nm NE | 9 |
| 42J | Keystone Heights | KEYSTONE HEIGHTS, FL | 30 nm SW | 3 |
15 current FAA charts for Jacksonville NAS (Towers Fld), including 8 instrument approachs, 4 arrival procedures, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Ground 128.6; ATIS 124.35; CTAF 125.15. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Jacksonville NAS (Towers Fld) has 2 runways. The longest is 10/28 at 9,003 ft by 200 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
No ILS is published. In total KNIP has 8 published instrument approaches, of which 4 are RNAV (GPS).

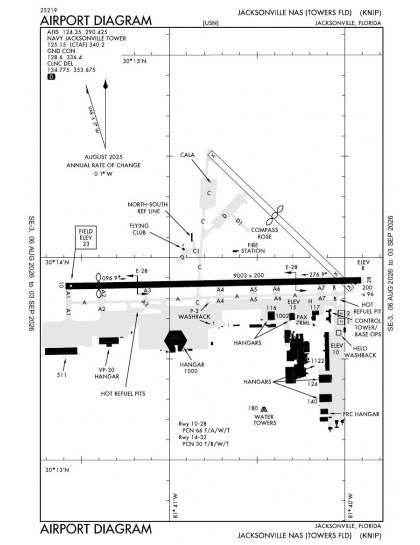

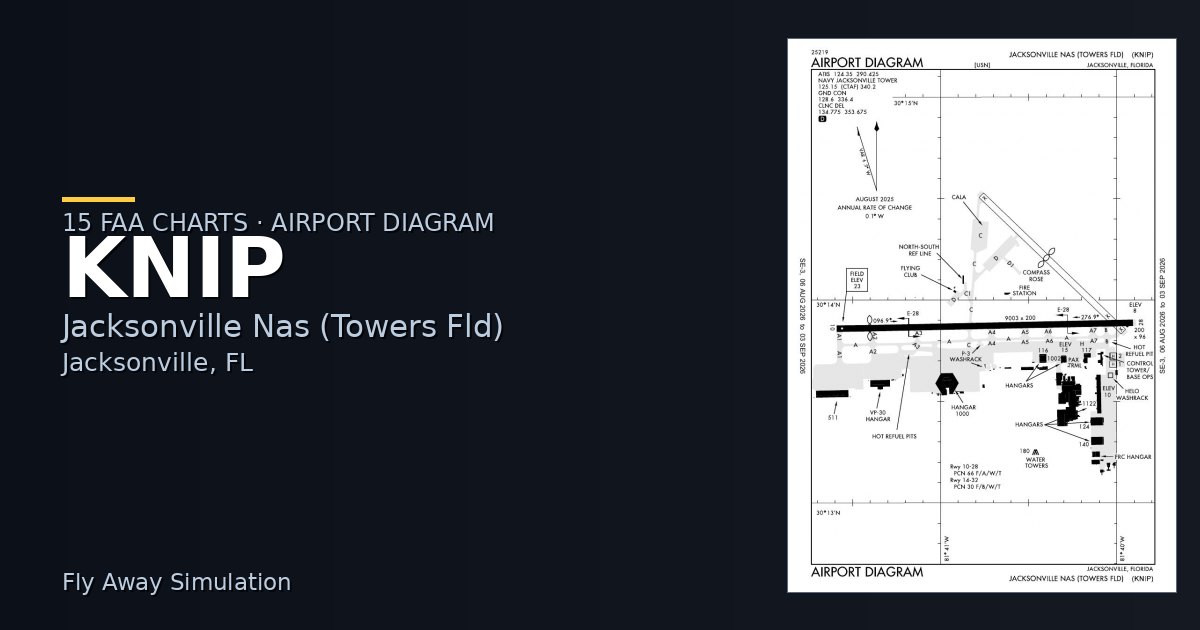

The official FAA airport diagram for Jacksonville NAS (Towers Fld) is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.
Yes. Jacksonville NAS (Towers Fld) has an operating control tower, within Jacksonville Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
