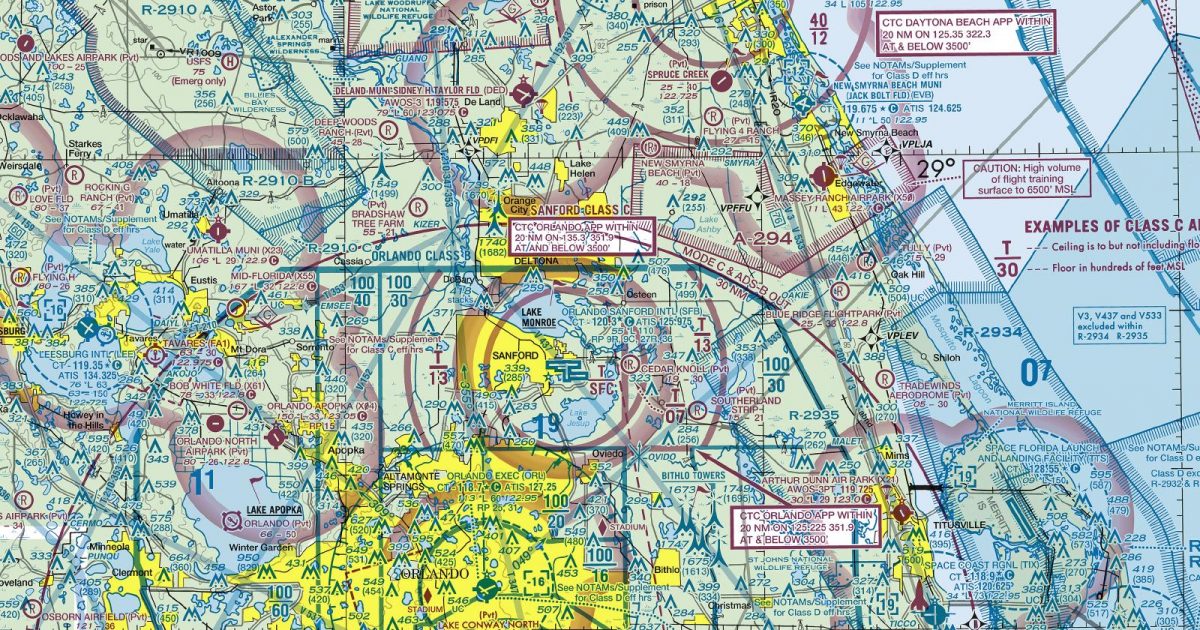

Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 51.0 MB | Download |
| Print-ready chart, no georeferencing | 104.0 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 104.0 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.
Go PROJacksonville anchors a sheet stretching from the central Florida peninsula across the state’s Atlantic and Gulf coasts, then north into southern Georgia and the edge of southeastern Alabama. It takes in the Florida Panhandle, the Big Bend coast and extensive Atlantic waters east of the peninsula. Much of the land is low coastal plain, with forests, wetlands and numerous lakes shaping the view below. Farther north and west, the landscape gradually becomes more rolling while remaining well removed from major mountain terrain.
The surrounding sheets reflect the region’s main route directions. A course continuing west across the Panhandle moves onto the New Orleans chart, while one running northwest into Georgia and Alabama meets Atlanta. Charlotte provides the continuation to the northeast, including routes beyond coastal Georgia, and Miami carries south-easterly journeys farther down the Florida peninsula. Together, these joins make the Jacksonville sheet a central link between Florida, the Gulf states and the south-eastern Atlantic coast.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KLEE LEE | Leesburg Intl | LEESBURG, FL | 76 ft | 3 | 15,000 ft |
| KVQQ VQQ | Cecil | JACKSONVILLE, FL | 79 ft | 6 | 12,504 ft |
| KMCO MCO | Orlando Intl | ORLANDO, FL | 96 ft | 4 | 12,005 ft |
| KSGJ SGJ | St Augustine | ST AUGUSTINE, FL | 9 ft | 6 | 12,000 ft |
| KSFB SFB | Orlando Sanford Intl | ORLANDO, FL | 54 ft | 4 | 11,002 ft |
| KTPA TPA | Tampa Intl | TAMPA, FL | 26 ft | 3 | 11,002 ft |
| KDAB DAB | Daytona Beach Intl | DAYTONA BEACH, FL | 34 ft | 3 | 10,500 ft |
| KMLB MLB | Melbourne Orlando Intl | MELBOURNE, FL | 33 ft | 3 | 10,181 ft |
| KJAX JAX | Jacksonville Intl | JACKSONVILLE, FL | 29 ft | 2 | 10,000 ft |
| KECP ECP | Northwest Florida Beaches Intl | PANAMA CITY, FL | 68 ft | 1 | 10,000 ft |
| KPIE PIE | St Pete-Clearwater Intl | ST PETERSBURG-CLEARWATER, FL | 10 ft | 2 | 9,730 ft |
| KSAV SAV | Savannah/Hilton Head Intl | SAVANNAH, GA | 50 ft | 2 | 9,351 ft |
| KDHN DHN | Dothan Rgnl | DOTHAN, AL | 400 ft | 2 | 8,500 ft |
| KLAL LAL | Lakeland Linder Intl | LAKELAND, FL | 141 ft | 3 | 8,500 ft |
| KLCQ LCQ | Lake City Gateway | LAKE CITY, FL | 200 ft | 2 | 8,003 ft |
| KVLD VLD | Valdosta Rgnl | VALDOSTA, GA | 203 ft | 2 | 8,003 ft |
| KBQK BQK | Brunswick Golden Isles | BRUNSWICK, GA | 25 ft | 1 | 8,001 ft |
| KTLH TLH | Tallahassee Intl | TALLAHASSEE, FL | 83 ft | 2 | 8,000 ft |
| KGNV GNV | Gainesville Rgnl | GAINESVILLE, FL | 151 ft | 2 | 7,504 ft |
| KOCF OCF | Ocala Intl-Jim Taylor Fld | OCALA, FL | 90 ft | 2 | 7,468 ft |
| KTIX TIX | Space Coast Rgnl | TITUSVILLE, FL | 34 ft | 2 | 7,319 ft |
| KVRB VRB | Vero Beach Rgnl | VERO BEACH, FL | 23 ft | 3 | 7,314 ft |
| KBKV BKV | Brooksville-Tampa Bay Rgnl | BROOKSVILLE, FL | 76 ft | 2 | 7,001 ft |
| X60 | Williston Rgnl | WILLISTON, FL | 75 ft | 3 | 6,669 ft |
| KABY ABY | Southwest Georgia Rgnl | ALBANY, GA | 196 ft | 2 | 6,601 ft |
| KEZM EZM | Heart Of Georgia Rgnl | EASTMAN, GA | 303 ft | 1 | 6,506 ft |
| KTMA TMA | Henry Tift Myers | TIFTON, GA | 354 ft | 2 | 6,506 ft |
| KLHW LHW | Wright AAF (Fort Stewart)/Midcoast Rgnl | FORT STEWART (HINESVILLE), GA | 46 ft | 5 | 6,500 ft |
| KFPR FPR | Treasure Coast Intl | FORT PIERCE, FL | 23 ft | 3 | 6,492 ft |
| KZPH ZPH | Zephyrhills Muni | ZEPHYRHILLS, FL | 89 ft | 2 | 6,201 ft |
| KACJ ACJ | Jimmy Carter Rgnl | AMERICUS, GA | 468 ft | 2 | 6,011 ft |
| KORL ORL | Orlando Exec | ORLANDO, FL | 112 ft | 2 | 6,004 ft |
| KTVI TVI | Thomasville Rgnl | THOMASVILLE, GA | 263 ft | 2 | 6,004 ft |
| KVDI VDI | Vidalia Rgnl | VIDALIA, GA | 274 ft | 2 | 6,002 ft |
| KDED DED | Deland Muni-Sidney H Taylor Fld | DELAND, FL | 79 ft | 2 | 6,001 ft |
| KISM ISM | Kissimmee Gateway | ORLANDO, FL | 82 ft | 2 | 6,001 ft |
| KMAI MAI | Marianna Muni | MARIANNA, FL | 110 ft | 2 | 6,001 ft |
| KDQH DQH | Douglas Muni | DOUGLAS, GA | 256 ft | 1 | 6,000 ft |
| KMGR MGR | Moultrie Muni | MOULTRIE, GA | 297 ft | 2 | 6,000 ft |
| 28J | Palatka Muni/Lt Kay Larkin Fld | PALATKA, FL | 47 ft | 2 | 6,000 ft |
| KAYS AYS | Waycross-Ware County | WAYCROSS, GA | 141 ft | 3 | 5,992 ft |
| KSSI SSI | St Simons Island | ST SIMONS ISLAND, GA | 18 ft | 2 | 5,584 ft |
| 17J | Donalsonville Muni | DONALSONVILLE, GA | 147 ft | 1 | 5,512 ft |
| 15J | Cook County | ADEL, GA | 235 ft | 2 | 5,502 ft |
| KBGE BGE | Decatur County Industrial Air Park | BAINBRIDGE, GA | 141 ft | 2 | 5,502 ft |
| KFIN FIN | Flagler Exec | PALM COAST, FL | 33 ft | 4 | 5,500 ft |
| KJES JES | Jesup-Wayne County | JESUP, GA | 107 ft | 1 | 5,500 ft |
| KBIJ BIJ | Early County | BLAKELY, GA | 214 ft | 1 | 5,494 ft |
| KAAF AAF | Apalachicola Rgnl-Cleve Randolph Fld | APALACHICOLA, FL | 19 ft | 3 | 5,425 ft |
| X07 | Lake Wales Muni | LAKE WALES, FL | 126 ft | 2 | 5,400 ft |
| KBCR BCR | Tri-County | BONIFAY, FL | 86 ft | 1 | 5,398 ft |
| KAVO AVO | Avon Park Exec | AVON PARK, FL | 160 ft | 2 | 5,374 ft |
| KFHB FHB | Fernandina Beach Muni | FERNANDINA BEACH, FL | 15 ft | 3 | 5,301 ft |
| 71J | Ozark/Blackwell Fld | OZARK, AL | 357 ft | 1 | 5,152 ft |
| KCWV CWV | Claxton-Evans County | CLAXTON, GA | 111 ft | 1 | 5,151 ft |
| 42J | Keystone Heights | KEYSTONE HEIGHTS, FL | 195 ft | 2 | 5,046 ft |
| KFPY FPY | Perry-Foley | PERRY, FL | 44 ft | 2 | 5,013 ft |
| KAZE AZE | Hazlehurst | HAZLEHURST, GA | 255 ft | 1 | 5,012 ft |
| 11A | Clayton Muni | CLAYTON, AL | 434 ft | 1 | 5,010 ft |
| KCKF CKF | Crisp County-Cordele | CORDELE, GA | 309 ft | 2 | 5,008 ft |
| KCTY CTY | Cross City | CROSS CITY, FL | 42 ft | 2 | 5,005 ft |
| 75J | Turner County | ASHBURN, GA | 388 ft | 1 | 5,005 ft |
| KGIF GIF | Winter Haven Rgnl | WINTER HAVEN, FL | 145 ft | 2 | 5,005 ft |
| KCXU CXU | Camilla-Mitchell County | CAMILLA, GA | 176 ft | 1 | 5,004 ft |
| KBHC BHC | Baxley Muni | BAXLEY, GA | 201 ft | 1 | 5,003 ft |
| KRVJ RVJ | Swinton Smith Fld At Reidsville Muni | REIDSVILLE, GA | 195 ft | 1 | 5,003 ft |
| 4J2 | Berrien County | NASHVILLE, GA | 240 ft | 1 | 5,002 ft |
| 07A | Franklin Fld | UNION SPRINGS, AL | 301 ft | 1 | 5,002 ft |
| KHDL HDL | Headland Muni | HEADLAND, AL | 358 ft | 2 | 5,002 ft |
| KBOW BOW | Bartow Exec | BARTOW, FL | 124 ft | 3 | 5,001 ft |
| KMQW MQW | Telfair-Wheeler | MC RAE, GA | 202 ft | 1 | 5,001 ft |
| 0J0 | Abbeville Muni | ABBEVILLE, AL | 468 ft | 1 | 5,000 ft |
| KAMG AMG | Bacon County | ALMA, GA | 199 ft | 1 | 5,000 ft |
| KFZG FZG | Fitzgerald Muni | FITZGERALD, GA | 364 ft | 2 | 5,000 ft |
| KHXD HXD | Hilton Head | HILTON HEAD ISLAND, SC | 19 ft | 1 | 5,000 ft |
| KINF INF | Inverness | INVERNESS, FL | 64 ft | 1 | 5,000 ft |
| X35 | Marion County | DUNNELLON, FL | 65 ft | 2 | 5,000 ft |
| KEVB EVB | New Smyrna Beach Muni (Jack Bolt Fld) | NEW SMYRNA BEACH, FL | 10 ft | 3 | 5,000 ft |
| 4J5 | Quitman Brooks County | QUITMAN, GA | 184 ft | 1 | 5,000 ft |
| KVDF VDF | Tampa Exec | TAMPA, FL | 21 ft | 2 | 5,000 ft |
| KEUF EUF | Weedon Fld | EUFAULA, AL | 285 ft | 1 | 5,000 ft |
| KHOE HOE | Homerville | HOMERVILLE, GA | 186 ft | 1 | 4,999 ft |
| 2RR | River Ranch Resort | RIVER RANCH, FL | 55 ft | 1 | 4,950 ft |
| 6J8 | Oak Tree Landing | HIGH SPRINGS, FL | 90 ft | 1 | 4,630 ft |
| KCGC CGC | Crystal River/Davis Fld | CRYSTAL RIVER, FL | 8 ft | 2 | 4,557 ft |
| KSYV SYV | Sylvester | SYLVESTER, GA | 403 ft | 1 | 4,525 ft |
| 16J | Dawson Muni | DAWSON, GA | 332 ft | 1 | 4,507 ft |
| KMUL MUL | Spence | MOULTRIE, GA | 292 ft | 1 | 4,500 ft |
| X50 | Massey Ranch Airpark | NEW SMYRNA BEACH, FL | 10 ft | 1 | 4,360 ft |
| A51 | Costin | PORT ST JOE, FL | 13 ft | 1 | 4,230 ft |
| KCLW CLW | Clearwater Exec | CLEARWATER, FL | 71 ft | 1 | 4,108 ft |
| X26 | Sebastian Muni | SEBASTIAN, FL | 21 ft | 2 | 4,023 ft |
| KCRG CRG | Jacksonville Exec At Craig | JACKSONVILLE, FL | 40 ft | 2 | 4,008 ft |
| KOMN OMN | Ormond Beach Muni | ORMOND BEACH, FL | 28 ft | 3 | 4,005 ft |
| 24J | Suwannee County | LIVE OAK, FL | 103 ft | 1 | 4,005 ft |
| KCHN CHN | Wauchula Muni | WAUCHULA, FL | 107 ft | 1 | 4,005 ft |
| KHEG HEG | Herlong Recreational | JACKSONVILLE, FL | 85 ft | 2 | 4,001 ft |
| 4J1 | Brantley County | NAHUNTA, GA | 84 ft | 1 | 4,000 ft |
| 70J | Cairo-Grady County | CAIRO, GA | 263 ft | 1 | 4,000 ft |
| X13 | Carrabelle-Thompson | CARRABELLE, FL | 20 ft | 1 | 4,000 ft |
| X59 | Valkaria | VALKARIA, FL | 25 ft | 2 | 4,000 ft |
| 33J | Geneva Muni | GENEVA, AL | 100 ft | 1 | 3,998 ft |
| KPCM PCM | Plant City | PLANT CITY, FL | 152 ft | 1 | 3,950 ft |
| 0J8 | Flying Ten | ARCHER, FL | 92 ft | 1 | 3,917 ft |
| F95 | Calhoun County | BLOUNTSTOWN, FL | 121 ft | 1 | 3,729 ft |
| 09J | Jekyll Island | JEKYLL ISLAND, GA | 11 ft | 1 | 3,715 ft |
| X05 | Pilot Country | BROOKSVILLE, FL | 80 ft | 1 | 3,700 ft |
| KSPG SPG | Albert Whitted | ST PETERSBURG, FL | 6 ft | 2 | 3,676 ft |
| KCOI COI | Merritt Island | MERRITT ISLAND, FL | 5 ft | 1 | 3,601 ft |
| 01J | Hilliard Airpark | HILLIARD, FL | 59 ft | 1 | 3,600 ft |
| KTPF TPF | Peter O Knight | TAMPA, FL | 7 ft | 2 | 3,583 ft |
| X39 | Tampa North Aero Park | TAMPA, FL | 68 ft | 1 | 3,541 ft |
| F47 | St George Island | APALACHICOLA, FL | 3 ft | 1 | 3,339 ft |
| X61 | Bob White Fld | ZELLWOOD, FL | 78 ft | 1 | 3,300 ft |
| X04 | Orlando Apopka | APOPKA, FL | 150 ft | 1 | 3,284 ft |
| X55 | Mid-Florida | EUSTIS, FL | 167 ft | 1 | 3,200 ft |
| 48X | Manatee | PALMETTO, FL | 27 ft | 1 | 3,120 ft |
| X52 | New Hibiscus Airpark | VERO BEACH, FL | 25 ft | 1 | 3,120 ft |
| X21 | Arthur Dunn Air Park | TITUSVILLE, FL | 30 ft | 2 | 3,026 ft |
| 25J | Randolph County | CUTHBERT, GA | 459 ft | 1 | 3,000 ft |
| 2J9 | Quincy Muni | QUINCY, FL | 221 ft | 1 | 2,974 ft |
| X23 | Umatilla Muni | UMATILLA, FL | 106 ft | 1 | 2,876 ft |
| 2J8 | Pierson Muni | PIERSON, FL | 63 ft | 1 | 2,600 ft |
| 2J0 | Wakulla County | PANACEA, FL | 11 ft | 1 | 2,590 ft |
| 3J6 | Davis Fld | FOLKSTON, GA | 68 ft | 1 | 2,500 ft |
| X49 | South Lakeland | LAKELAND, FL | 110 ft | 1 | 2,412 ft |
| X25 | Chalet Suzanne Air Strip | LAKE WALES, FL | 130 ft | 1 | 2,313 ft |
| KCDK CDK | George T Lewis | CEDAR KEY, FL | 11 ft | 1 | 2,302 ft |
128 public-use airports within this chart's coverage, ordered by runway length. A further 294 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Florida is available as a single 189.2 MB archive (934 charts) — see the Florida airports.
It spans 27.5°N to 32.3°N and 85.9°W to 78.4°W. Airports on the sheet fall within Alabama, Florida, Georgia and South Carolina. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (51.0 MB). Take the PDF to print it or read it on a second screen (104.0 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
New Orleans to the west, Miami to the south-east, Charlotte to the north-east and Atlanta to the north-west. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
