Terminal Procedures

X04 — Orlando Apopka

APOPKA, FL · 4 FAA charts · cycle 6 Aug 2026

Elevation 150 ft1 runwayLongest 3,284 ftNon-toweredFuel 100LL avgas, Jet AVolume SE-3Not for navigation

2 published instrument approaches: 2 RNAV (GPS).

All 4 X04 charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 4 charts is roughly 25 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

	Chart	Amendment
	RNAV (GPS)-A	0A	PDF

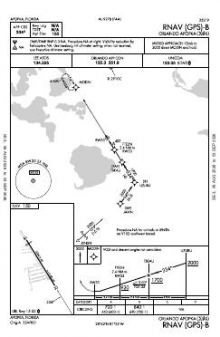

	RNAV (GPS)-B	0A	PDF

Arrival procedures (STAR)

	Chart	Amendment
	SLOAO ONE (RNAV)	—	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

X04 airport information

Control tower: No
Attendance: All all 0800-1800
ARTCC: Jacksonville Center
Flight service: Saint Petersburg
NOTAM facility: PIE (NOTAM-D available)
Magnetic variation: 6W
Beacon: White-green (lighted land airport), sunset to sunrise
Wind indicator: Lighted
Segmented circle: Yes
Fuel: 100LL avgas, Jet A
Airframe service: Major
Powerplant service: Major
Parking: Tie-downs
Customs: Landing rights airport
Airport area: 80 acres
Ownership: Privately owned
Sectional: Jacksonville
Last FAA inspection: 2025-08-18

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

X04 radio frequencies

Service	Frequency	Call sign
CTAF	123.05
Approach	135.3	Orlando

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at X04, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
15/33	3,284 ft	60 ft	Asphalt Fair	Low intensity
15 148°T	displaced threshold 241 ft · right-hand circuit

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where X04 is

Latitude, longitude28.7066440, -81.5813960

Elevation150 ft

From Apopka4 nm NW

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for X04

VFR ONLY
STEEP DROPOFF 63 FT FM SE END & APRXLY 60 FT OFF WEST & EAST EDGE.
ACTVT LIRL RWY 15/33 - CTAF.
RWY 15 HAS 10 FT BERM 200 FT FM RWY END 125 FT LEFT.
RWY 15 APCH RATIO 20:1 FM DSPLCD THLD DUE TO 33 FT RR TRACK 420 FROM END OF RWY 125 FT L OF CNTRLN.
RY 15/33 RR PENETRATES 7:1 TRANS SFC EAST SIDE.
RY 15/33 CLSD TO TOUCH AND GO LNDGS BY TRANSIENT HELICOPTERS.
FOR CD OR TO CNL IFR IF UNA ON FSS FREQ, CTC ORLANDO APPROACH AT 407-852-7500.
AUTOMATED UNICOM WX AND LGT - CTAF.
NO OVNGT PRKG ON APRON BTN TWY A1 AND A2. NO OVNGT RAMP PRKG AVBL - TEXT 951-818-8408 FOR PAID PVT PRKG OPTIONS.
PWRD PARAGLIDERS OPERATING W OF RWY 15/33.
CALM WIND RWY 33.
TOUCH AND GO OPS PROHIBITED IF THREE OR MORE ACFT IN THE TFC PAT.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near X04

ID	Airport	City	Distance	Charts
X23	Umatilla Muni	UMATILLA, FL	14 nm N	3
KLEE	Leesburg Intl	LEESBURG, FL	14 nm NW	19
KORL	Orlando Exec	ORLANDO, FL	16 nm SE	29
KSFB	Orlando Sanford Intl	ORLANDO, FL	19 nm E	28
KMCO	Orlando Intl	ORLANDO, FL	22 nm SE	71
KISM	Kissimmee Gateway	ORLANDO, FL	26 nm S	26
KDED	Deland Muni-Sidney H Taylor Fld	DELAND, FL	27 nm NE	8
7FL6	Spruce Creek	DAYTONA BEACH, FL	36 nm NE	2

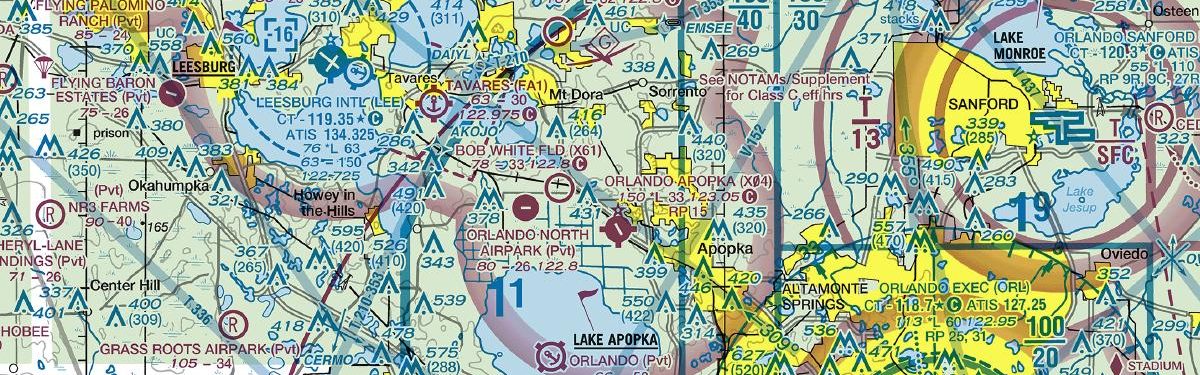

VFR charts covering X04

JacksonvilleSectional Chart

Common questions about X04

What charts are available for X04?

4 current FAA charts for Orlando Apopka, including 2 instrument approachs, 1 arrival procedure. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for X04?

CTAF 123.05. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at X04?

Orlando Apopka has 1 runway. The longest is 15/33 at 3,284 ft by 60 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does X04 have an ILS approach?

No ILS is published. In total X04 has 2 published instrument approaches, of which 2 are RNAV (GPS).

Is X04 a towered airport?

No — Orlando Apopka has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these X04 charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
