KCLT — Charlotte/Douglas Intl

CHARLOTTE, NC · 69 FAA charts · cycle 3 Sep 2026

FAA CLTElevation 747 ft3 runwaysLongest 10,000 ftToweredFuel 100LL avgas, Jet A, A++Volume SE-2Not for navigation

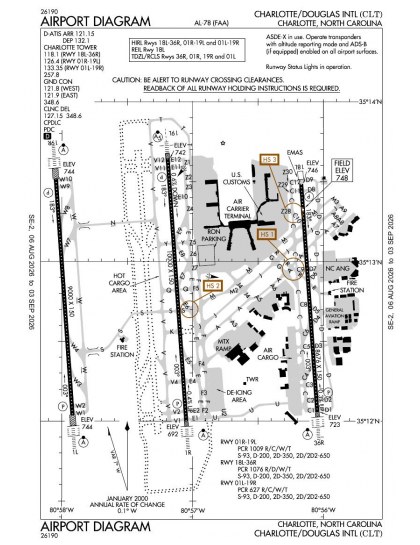

KCLT airport diagram — runways, taxiways and ramp layout
KCLT airport diagram The official FAA airport diagram — runways, taxiways, ramp layout and hold-short positions. Download PDF

21 published instrument approaches: 13 ILS approaches including CAT II/III minima, 8 RNAV (GPS), serving 6 runway ends.

All 69 KCLT charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 69 charts is roughly 7 min of downloading — they queue one behind another.
PRO members only

Instrument approach procedures

ChartAmendment

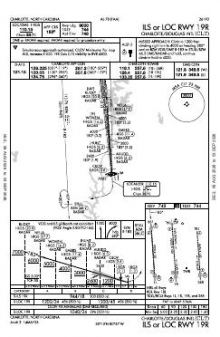

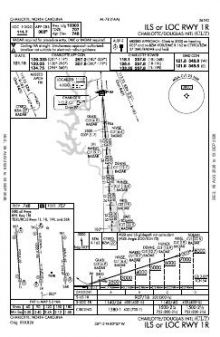

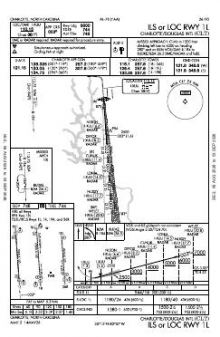

ILS OR LOC RWY 01Lamended2PDF
ILS OR LOC RWY 01Ramended0PDF

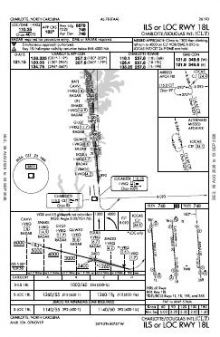

ILS OR LOC RWY 18amended0PDF

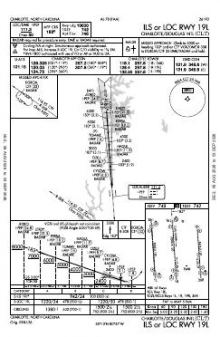

ILS OR LOC RWY 19Lamended0PDF
ILS OR LOC RWY 19Ramended3APDF

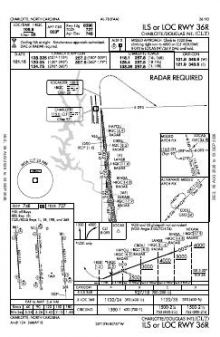

ILS OR LOC RWY 36amended0PDF

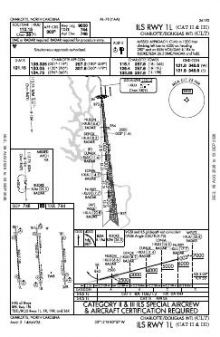

ILS RWY 01L (CAT II - III)amended2PDF

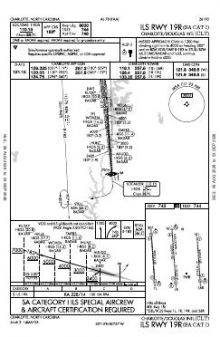

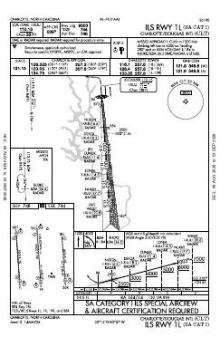

ILS RWY 01L (SA CAT I)amended2PDF

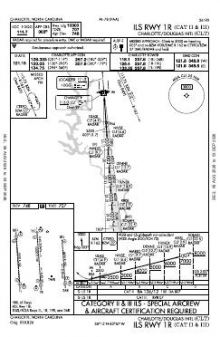

ILS RWY 01R (CAT II - III)amended0PDF

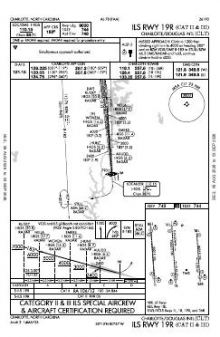

ILS RWY 19R (CAT II - III)amended3APDF
ILS RWY 19R (SA CAT I)amended3APDF

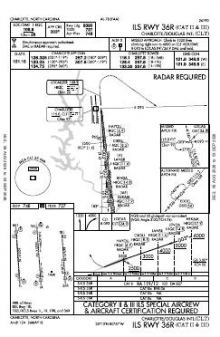

ILS RWY 36 (CAT II - III)amended0PDF

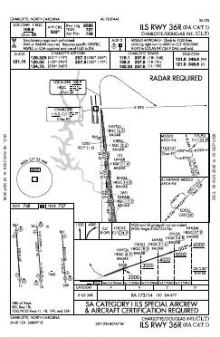

ILS RWY 36 (SA CAT I)amended0PDF

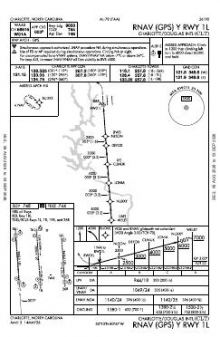

RNAV (GPS) Y RWY 01Lamended2APDF

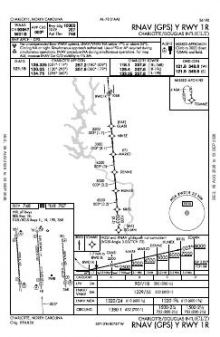

RNAV (GPS) Y RWY 01Ramended0PDF

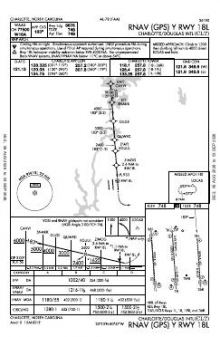

RNAV (GPS) Y RWY 18amended0PDF

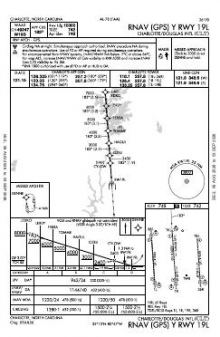

RNAV (GPS) Y RWY 19Lamended0PDF

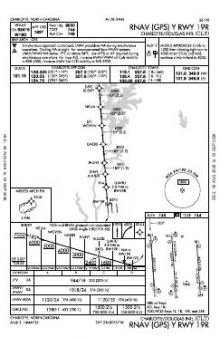

RNAV (GPS) Y RWY 19Ramended3PDF

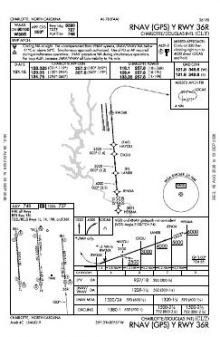

RNAV (GPS) Y RWY 36amended0PDF

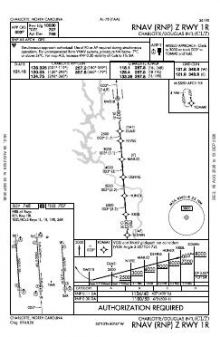

RNAV (RNP) Z RWY 01Ramended0PDF

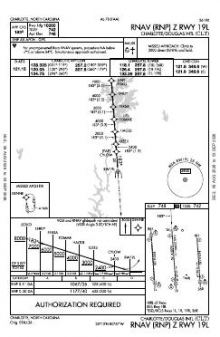

RNAV (RNP) Z RWY 19Lamended0PDF

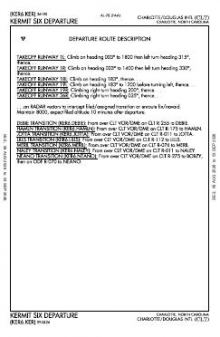

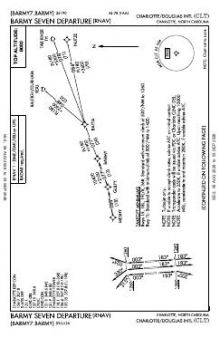

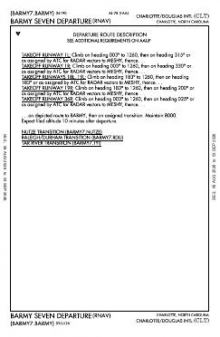

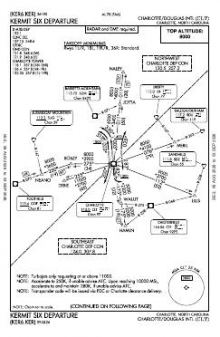

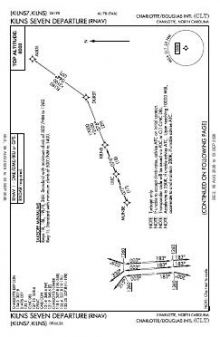

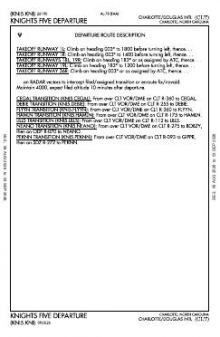

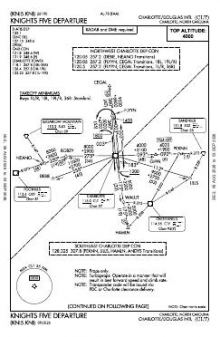

Departure procedures

ChartAmendment
BATTA ONE (RNAV)amended—PDF
BATTA ONE (RNAV), CONT.1amended—PDF

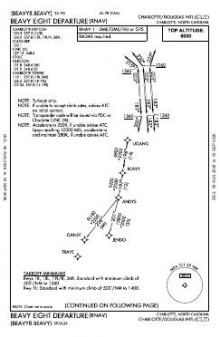

BEAVY NINE (RNAV)amended—PDF
BEAVY NINE (RNAV), CONT.1amended—PDF

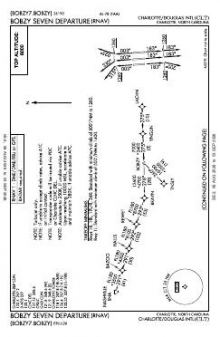

BOBZY EIGHT (RNAV)amended—PDF
BOBZY EIGHT (RNAV), CONT.1amended—PDF

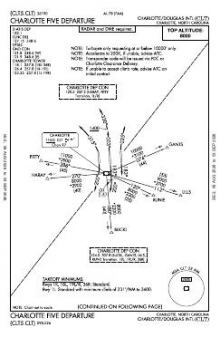

CHARLOTTE SIXamended—PDF
DURST ONE (RNAV)amended—PDF

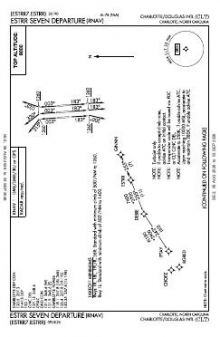

ESTRR EIGHT (RNAV)amended—PDF
ESTRR EIGHT (RNAV), CONT.1amended—PDF

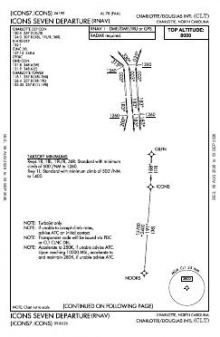

ICONS EIGHT (RNAV)amended—PDF
ICONS EIGHT (RNAV), CONT.1amended—PDF
IRVVV ONE (RNAV)amended—PDF

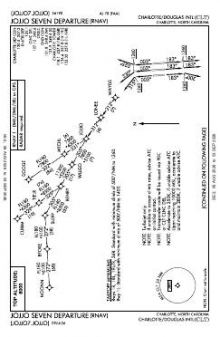

JOJJO EIGHT (RNAV)amended—PDF

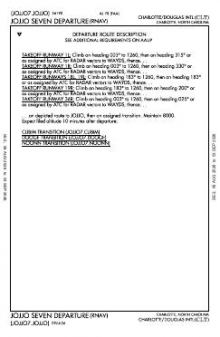

JOJJO EIGHT (RNAV), CONT.1amended—PDF

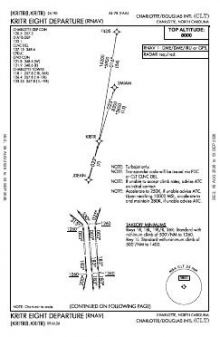

KRITR NINE (RNAV)amended—PDF
KRITR NINE (RNAV), CONT.1amended—PDF

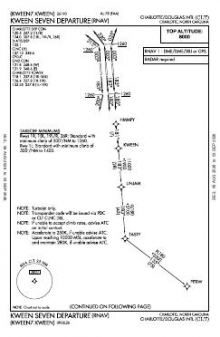

KWEEN EIGHT (RNAV)amended—PDF
KWEEN EIGHT (RNAV), CONT.1amended—PDF

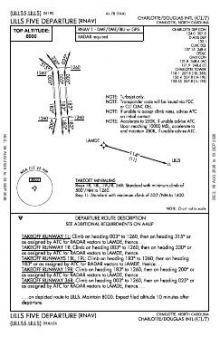

LILLS SIX (RNAV)amended—PDF

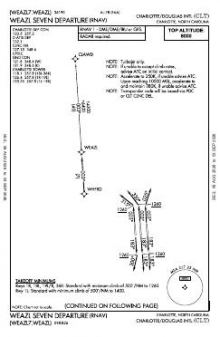

WEAZL EIGHT (RNAV)amended—PDF
WEAZL EIGHT (RNAV), CONT.1amended—PDF

Arrival procedures (STAR)

ChartAmendment

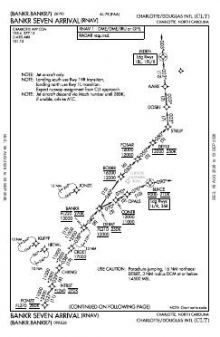

BANKR EIGHT (RNAV)amended—PDF
BANKR EIGHT (RNAV), CONT.1amended—PDF

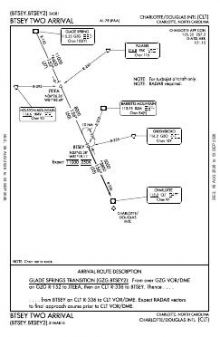

BTSEY ONE (RNAV)amended—PDF

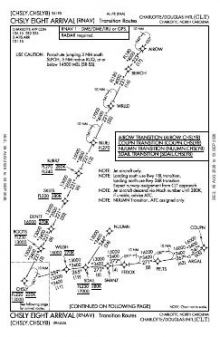

CHSLY NINE (RNAV)amended—PDF

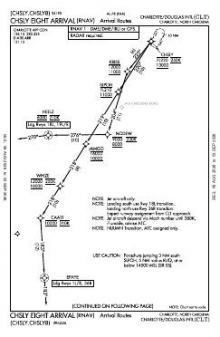

CHSLY NINE (RNAV), CONT.1amended—PDF
CHSLY NINE (RNAV), CONT.2amended—PDF

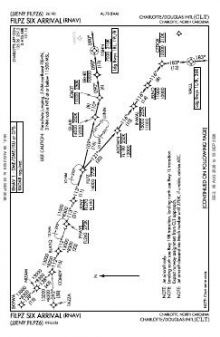

FILPZ SEVEN (RNAV)amended—PDF
FILPZ SEVEN (RNAV), CONT.1amended—PDF
JONZE EIGHT (RNAV)amended—PDF

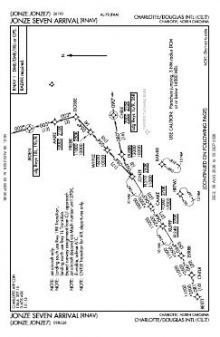

JONZE EIGHT (RNAV), CONT.1amended—PDF
JOOLS FOUR (RNAV)amended—PDF
LIINN ONE (RNAV)amended—PDF
MAJIC ONE (RNAV)amended—PDF

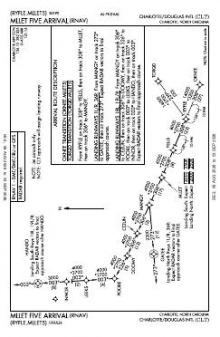

MLLET SIX (RNAV)amended—PDF

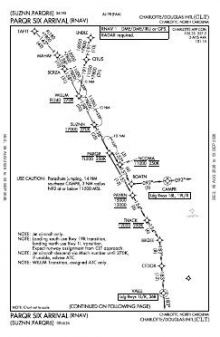

PARQR SEVEN (RNAV)amended—PDF
PARQR SEVEN (RNAV), CONT.1amended—PDF
RASLN ONE (RNAV)amended—PDF

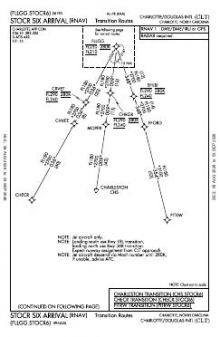

STOCR SEVEN (RNAV)amended—PDF
STOCR SEVEN (RNAV), CONT.1amended—PDF

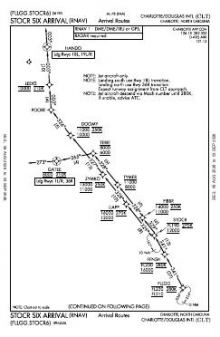

STOCR SEVEN (RNAV), CONT.2amended—PDF

Takeoff and alternate minimums

ChartAmendment
TAKEOFF MINIMUMSamended—PDF
ALTERNATE MINIMUMSamended—PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

Hot spots

ChartAmendment
HOT SPOTamended—PDF

Diverse vector area

ChartAmendment

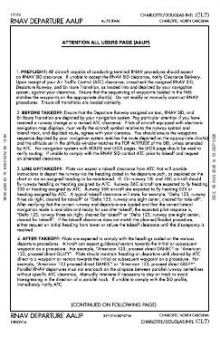

RNAV DP AAUPamended—PDF
RNAV DP AAUP, CONT.1amended—PDF

KCLT airport information

Control tower
Yes
Attendance
Continuous
ARTCC
Atlanta Center
Flight service
Raleigh
NOTAM facility
CLT (NOTAM-D available)
Magnetic variation
7W
Beacon
White-green (lighted land airport), sunset to sunrise
Wind indicator
Lighted
ARFF index
Index E
Fuel
100LL avgas, Jet A, A++
Airframe service
Major
Powerplant service
Major
Bottled oxygen
None
Parking
Tie-downs
Customs
Landing rights airport
Activated
September 1937
Airport area
5,558 acres
Ownership
Publicly owned
Sectional
Charlotte
Last FAA inspection
2026-05-22

From the FAA NASR 28-day subscription, cycle 3 Sep 2026.

KCLT radio frequencies

ServiceFrequencyCall sign
UNICOM122.95
Tower118.1Rwy 18l/36r126.4Rwy 01r/19l133.35Rwy 01l/19rCharlotte
Ground121.8West121.9EastCharlotte
Clearance delivery127.15Charlotte
ATIS121.15Arr132.1DepCharlotte
Approach120.05120-295 8000 Ft & Blw120.5246-074 Abv 8000 Ft124.0075-245 Abv 8000 Ft126.15128.325001-119 8000 Ft & Blw134.75296-360 8000 Ft & BlwCharlotte
Emergency121.5Charlotte

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

10,000 × 150 ft01R19L9,000 × 150 ft01L19R8,676 × 150 ft18L36RN3,000 ft
Runway layout at KCLT, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.
RunwayLengthWidth SurfaceLighting
01R/19L10,000 ft150 ftConcrete GoodHigh intensity
  01R 356°TILS · PAPI (4-box) 3° · ALSF-2 approach lighting
  19L 176°TILS/DME · PAPI (4-box) 3° · MALSR approach lighting
01L/19R9,000 ft150 ftConcrete ExcellentHigh intensity
  01L 356°TILS/DME · PAPI (4-box) 3° · ALSF-2 approach lighting
  19R 176°TILS/DME · PAPI (4-box) 2.8° · ALSF-2 approach lighting
18L/36R8,676 ft150 ftAsphalt over concrete GoodHigh intensity
  18L 176°TILS/DME · PAPI (4-box) 3°
  36R 356°TILS/DME · PAPI (4-box) 3° · ALSF-2 approach lighting

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KCLT is

Latitude, longitude35.2131870, -80.9513790
Elevation747 ft
From Charlotte5 nm W

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KCLT

  • ARPT EXISTED PRIOR TO 1958.
  • LIQUID OXYGEN ALSO AVBL.
  • RY SFC COND INFO DURG DUTY HRS PHONE ANG OPS 704-391-9177 OR AIRBORNE 292.25.
  • J8 FUEL ALSO AVBL.
  • PCR VALUE: 627/R/C/W/T
  • PCR VALUE: 1009/R/C/W/T
  • PCR VALUE: 1076/R/D/W/T
  • ENGINEERED MATERIALS ARRESTING GEAR SYSTEM (EMAS) 255 FT IN LENGTH BY 170 FT IN WIDTH AT THE DEPARTURE END OF RWY 36R.
  • BE ALERT FOR FLOCKS OF MIGRATORY BIRDS ON & INVOF ARPT.
  • MILITARY: ANG: CTC COMD POST 30 MIN PRIOR LDG. AMOPS/COMD POST - 292.25 (CALL NEWSREEL).
  • SUCCESSIVE OR SIMULTANEOUS DEPARTURES FROM RWY 18L AND RWY 19L ARE APPROVED WITH COURSE DIVERGENCE BEGINNING NO FURTHER THAN 4 MILES FROM END OF RWY.
  • RWY STATUS LGTS IN OPR.
  • TWY C4 AND C6: WHEN TAXIING AIRCRAFT WITH COCKPIT TO MAIN GEAR DISTANCE GREATER THAN 90 FT, PILOT MUST PERFORM JUDGEMENTAL OVERSTEERING INSTEAD OF COCKPIT OVER CENTERLINE STEERING.
  • GROUP IV ACFT WITH A WINGSPAN GTR THAN 118 FT ARE PROHIBITED FM EXITING RWY 18L/36R AT TWY C10.
  • TWY C10 UNUSBL FOR TXG ONTO RWY 18L/36R.
  • CLT RAMP, NON-MOVMT AREA, IS CTLD RAMP; CTC RAMP CTL PRIOR TO ENTERING.
  • GROUP III ACFT WITH A WINGSPAN GTR THAN 79 FT ARE PROHIBITED FM MAKING A NBND TURN ONTO TWY C WHEN TAXIING WB ON TWY A.
  • TWY D, RESTRICTED TO 15 MPH OR LESS WITH WINGSPAN 171 FT AND GREATER.
  • GROUP III ACFT WITH A WINGSPAN GTR THAN 79 FT ARE PROHIBITED FM MAKING A SBND TURN ONTO TWY C WHEN TAXIING NWBND ON TWY R.
  • TWY C FROM THE APCH OF RWY 18L TO TWY J AND TWY M FROM THE APRON TO RWY 18L/36R RSTRD TO 15 MPH OR LESS WITH WINGSPAN 171 FT AND GTR.
  • GROUP VI ACFT WITH A WINGSPAN GTR THAN 214 FT (65M) ARE PROHIBITED ON TWY M BETWEEN THE TRML RAMP AND TWY C, AS WELL AS TWY C NORTH OF TWY M.
  • ALL ACFT ARE PROHIBITED FM EXITING RWY 36R SEBD AT TWY R.
  • TRML RAMP ORANGE TXL FROM SPOT 1W TO SPOT 27E MAX WINGSPAN 118 FT.
  • TRML RAMP BLUE TXL FROM SPOT 1E TO SPOT 27W MAX WINGSPAN 118 FT.
  • TRML RAMP ORANGE TXL FROM SPOT 29E TO SPOT 34N MAX WINGSPAN 82 FT.
  • TRML RAMP BLUE TXL AT SPOT 28S BTN CONCOURSE D & E ALLEY MAX WINGSPAN 118 FT.
  • TRML RAMP BLUE TXL FROM SPOT 26N TO SPOT 27W MAX WINGSPAN 118 FT.
  • TRML RAMP ORANGE TXL AT SPOT 28N BETWEEN CONCOURSE D & E ALLEY MAX WINGSPAN 94 FT.
  • ACFT WITH WINGSPAN GTR THAN 118 FT USE JUDGMENTAL OVERSTEER INSTEAD OF COCKPIT OVER CNTRLN STEERING ENTERING AND EXITING RWY 18L/36R.
  • GROUP IV ACFT AND LARGER WITH A WINGSPAN GTR THAN 118 FT (36M) ARE PROHIBITED ON TWY T.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Approach coverage across every runway end

Charlotte/Douglas has three runways and all six ends are served by published approaches. ILS procedures dominate the mix, including four supporting CAT II/III operations, while RNAV (GPS) and localiser procedures add further coverage. Departures outnumber approach charts, and the equally substantial arrival set gives the collection a strong emphasis on published routing into and out of the field. Every runway exceeds 8,600 ft, so the configuration does not rely on a short secondary strip.

Nearby and VFR coverage

The five nearby procedure-equipped airports form a closely grouped second tier of 22–24 charts. Lincoln County Regional has the broadest set and Gastonia Municipal the thinnest, though the difference is small. Two sectionals provide regional VFR context, while the Charlotte Terminal Area Chart adds more detailed terminal-area coverage.

Airports near KCLT

IDAirportCity DistanceCharts
KAKHGastonia MuniGASTONIA, NC10 nm W21
KUZARock Hill/York County/Bryant FldROCK HILL, SC14 nm S22
KJQFConcord-Padgett RgnlCONCORD, NC16 nm NE22
KIPJLincoln County RgnlLINCOLNTON, NC19 nm NW23
KEQYCharlotte/Monroe ExecMONROE, NC20 nm SE22
N52Jaars-TownsendWAXHAW, NC23 nm SE7
14ALake Norman AirparkMOORESVILLE, NC24 nm N2
KDCMChester Catawba RgnlCHESTER, SC28 nm SW8

VFR charts covering KCLT

AtlantaSectional ChartCharlotteSectional ChartCharlotteTerminal Area Chart

Common questions about KCLT

What charts are available for KCLT?

69 current FAA charts for Charlotte/Douglas Intl, including 21 instrument approachs, 22 departure procedures, 20 arrival procedures, 1 airport diagram. All are free to download as PDFs from this page, from the 3 September 2026 cycle.

What are the radio frequencies for KCLT?

Tower 118.1, 126.4, 133.35; Ground 121.8, 121.9; ATIS 121.15, 132.1; UNICOM 122.95; Clearance delivery 127.15. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KCLT?

Charlotte/Douglas Intl has 3 runways. The longest is 01R/19L at 10,000 ft by 150 ft, concrete. Full runway dimensions, lighting and approach aids are listed on this page.

Does KCLT have an ILS approach?

Yes — 13 ILS procedures are published, including CAT II/III minima. In total KCLT has 21 published instrument approaches, of which 8 are RNAV (GPS).

Where can I download the KCLT airport diagram?

The official FAA airport diagram for Charlotte/Douglas Intl is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.

Does KCLT have CAT II or CAT III approaches?

Yes. 4 of the published ILS procedures carry CAT II/III minima, which allow approaches in lower visibility than a standard CAT I ILS. Those plates are listed separately in the approach table above, marked CAT II or CAT III in the chart name.

Is KCLT a towered airport?

Yes. Charlotte/Douglas Intl has an operating control tower, within Atlanta Center's airspace. Tower, ground and clearance frequencies are listed on this page.

Are these KCLT charts current?

They are from the FAA cycle effective 3 September 2026, which is superseded on 1 October 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.

Flying into KCLT? PRO members take all 69 charts as one ZIP instead of 69 separate downloads, at full line speed with no cap — plus every chart family archive and all 24,000+ add-ons in the library.

Go PRO
Ian StephensReviewed by Ian Stephens · Editor-in-ChiefChart sourcing and page templates reviewed for accuracy. The charts themselves are unmodified FAA publications.

Not for navigation. For flight simulation and reference use only. Procedures are superseded on a 28-day cycle — obtain current official charts from the FAA for real-world flight.

FAA public-domain products, mirrored unmodified. Fly Away Simulation is not affiliated with or endorsed by the FAA. Chart licensing and terms.
