Terminal Procedures

KCUB — Jim Hamilton L B Owens

COLUMBIA, SC · 4 FAA charts · cycle 6 Aug 2026

FAA CUBElevation 193 ft1 runwayLongest 5,011 ftNon-toweredFuel 100LL avgas, Jet AVolume SE-2Not for navigation

3 published instrument approaches: 2 RNAV (GPS), 1 localiser, serving 2 runway ends.

All 4 KCUB charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 4 charts is roughly 25 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

Chart	Amendment

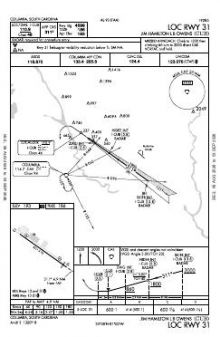

LOC RWY 31	2	PDF

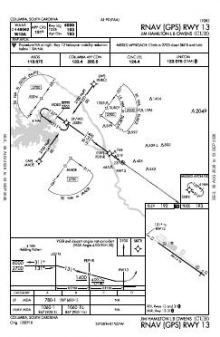

RNAV (GPS) RWY 13	0	PDF

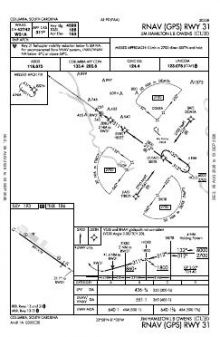

RNAV (GPS) RWY 31	1A	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

KCUB airport information

Control tower: No
Attendance: All all 0600-2200
ARTCC: Jacksonville Center
Flight service: Anderson
NOTAM facility: CUB (NOTAM-D available)
Magnetic variation: 6W
Traffic pattern altitude: 807 ft
Beacon: White-green (lighted land airport), sunset to sunrise
Wind indicator: Lighted
Segmented circle: Yes
Fuel: 100LL avgas, Jet A
Airframe service: Major
Powerplant service: Major
Parking: Tie-downs
Customs: Landing rights airport
Activated: August 1950
Airport area: 182 acres
Ownership: Publicly owned
Sectional: Charlotte
Last FAA inspection: 2023-08-21

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

KCUB radio frequencies

Service	Frequency	Call sign
CTAF	123.075
Clearance delivery	124.4	Columbia
Approach	133.4	Columbia

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at KCUB, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
13/31	5,011 ft	75 ft	Asphalt Fair	Medium intensity
13 125°T	PAPI (2-box) 4° · right-hand circuit
31 305°T	LOC/DME · PAPI (2-box) 3° · displaced threshold 391 ft

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where KCUB is

Latitude, longitude33.9704720, -80.9952500

Elevation193 ft

From Columbia2 nm S

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for KCUB

EXISTED PRIOR TO 1958.
RR SWITCHING YARD PARALLEL TO RY 13/31.
ACTVT MIRL RY 13/31 AND REILS RYS 13 & 31 - CTAF.
TPA: 807 FT AGL / 1000 FT MSL.
FOR SERVICE AFTER HRS CALL 803-771-7915.
FBO EAGLE AVIATION 803-771-7915.
RY 31, 18 FTTREES, 160 FT FM THLD 56 FT LEFT OF CENTERLINE.
400 FT STWY NW END OF RY.
PAPI RWY 13 UNUSBL BYD 8 DEG RT.
RY 13 71 FT TREE 148 FT LEFT OF CNTRLN & 1096 FT FROM THLD, 40 FT POWER LINES 180 FT RIGHT OF CNTRLN & 958 FT FROM THLD, 30 FT BLDG 140 FT RIGHT & 900 FT FM THLD, 27 FT BLDG 653 FT FROM THLD & 172 FT LEFT.
AVOID NOISE SENSITIVE AREA NORTH OF ARPT BLO 1500 FT.
NO NORTHBOUND DEP TURNS EITHER RY BLO 1500 FT.
RY TO TWY SEPARATION IS 206 FT. THE SEPARATION DESIGN CRITERION IS NOT FULLY MET FOR ACFT 12,500 LBS AND LARGER
DUE TO PROXIMITY AND RY ALIGNMENT, AIRCREWS HAVE MISTAKEN CAE (RY 11/29) FOR CUB (RY 13/31) WHICH IS 6 MILES SW.
FOR CD CTC COLUMBIA APCH AT 803-822-5242 OR 803-822-5040.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near KCUB

ID	Airport	City	Distance	Charts
KCAE	Columbia Metro	COLUMBIA, SC	6 nm W	13
KMMT	Mc Entire Jngb	EASTOVER, SC	10 nm E	7
6J0	Lexington County	PELION, SC	16 nm SW	4
KFDW	Fairfield County	WINNSBORO, SC	21 nm N	4
KXNO	North Af Aux	NORTH, SC	22 nm S	5
KSSC	Shaw AFB	SUMTER, SC	26 nm E	12
KCDN	Woodward Fld	CAMDEN, SC	28 nm NE	5
KOGB	Orangeburg Muni	ORANGEBURG, SC	32 nm S	6

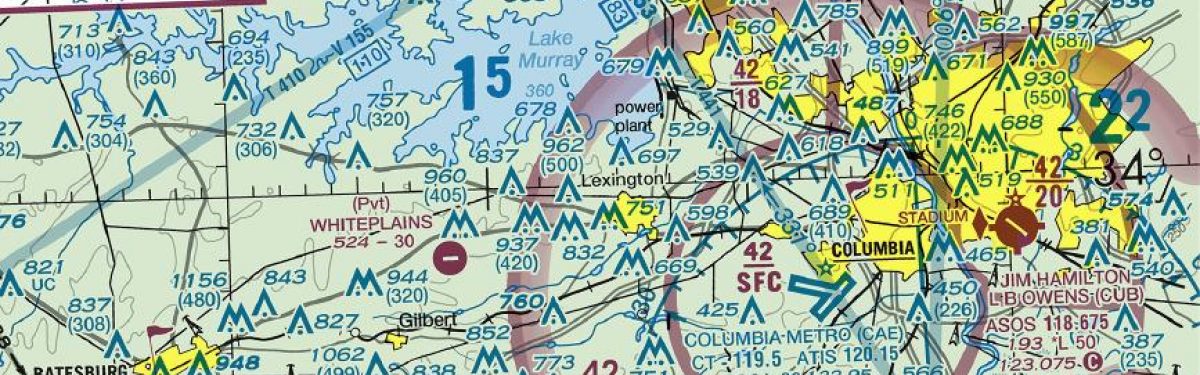

VFR charts covering KCUB

AtlantaSectional Chart CharlotteSectional Chart

Common questions about KCUB

What charts are available for KCUB?

4 current FAA charts for Jim Hamilton L B Owens, including 3 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for KCUB?

CTAF 123.075; Clearance delivery 124.4. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at KCUB?

Jim Hamilton L B Owens has 1 runway. The longest is 13/31 at 5,011 ft by 75 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does KCUB have an ILS approach?

No ILS is published. In total KCUB has 3 published instrument approaches, of which 2 are RNAV (GPS).

Is KCUB a towered airport?

No — Jim Hamilton L B Owens has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these KCUB charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
