CARMI, IL · 4 FAA charts · cycle 6 Aug 2026
2 published instrument approaches: 2 RNAV (GPS), serving 2 runway ends.
| Chart | Amendment | ||
|---|---|---|---|

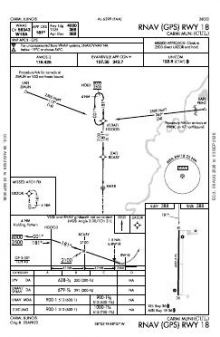

 | RNAV (GPS) RWY 18 | 0B | |

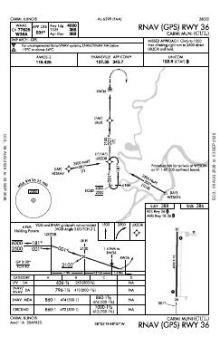

 | RNAV (GPS) RWY 36 | 1A |
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| CTAF | 122.8 | |
| Approach | 127.35 | Evansville |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 18/36 | 4,000 ft | 75 ft | Asphalt Good | Medium intensity |
| 18 180°T | PAPI (2-box) 3° | |||
| 36 | PAPI (2-box) 3° | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.

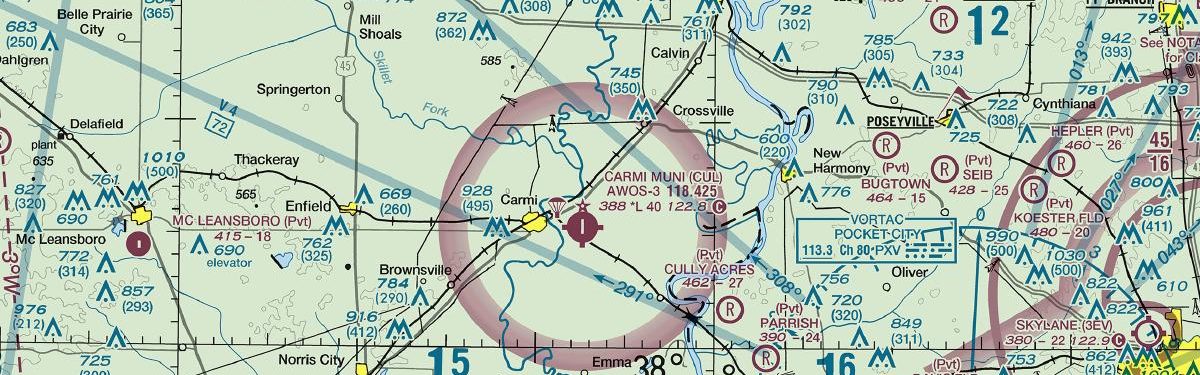

38.0894790, -88.1230610
387 ft2 nm EPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| KFWC | Fairfield Muni | FAIRFIELD, IL | 22 nm NW | 2 |
| KHSB | Harrisburg-Raleigh | HARRISBURG, IL | 26 nm SW | 4 |
| KEHR | Henderson City-County | HENDERSON, KY | 27 nm SE | 5 |
| KEVV | Evansville Rgnl | EVANSVILLE, IN | 28 nm E | 12 |
| KTWT | Sturgis Muni | STURGIS, KY | 34 nm S | 3 |
| KAJG | Mount Carmel Muni | MOUNT CARMEL, IL | 36 nm NE | 4 |
| KMVN | Mount Vernon | MOUNT VERNON, IL | 37 nm W | 6 |
| KFOA | Flora Muni | FLORA, IL | 38 nm NW | 5 |
4 current FAA charts for Carmi Muni, including 2 instrument approachs. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
CTAF 122.8. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Carmi Muni has 1 runway. The longest is 18/36 at 4,000 ft by 75 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.
No ILS is published. In total KCUL has 2 published instrument approaches, of which 2 are RNAV (GPS).
No — Carmi Muni has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
