HOUSTON, TX · 57 FAA charts · cycle 6 Aug 2026

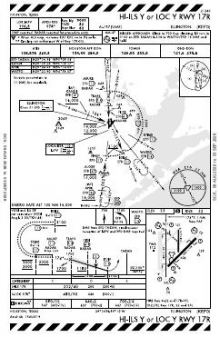

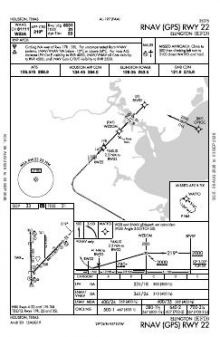

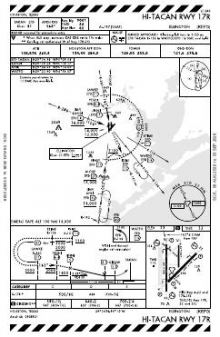

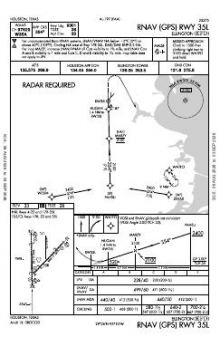

16 published instrument approaches: 6 ILS approaches, 4 RNAV (GPS), serving 4 runway ends.
| Chart | Amendment | ||
|---|---|---|---|
 | TAKEOFF MINIMUMS | — | |
 | ALTERNATE MINIMUMS | — |
Minimums pages cover a whole volume, so the same document is shared by every airport in it.
From the FAA NASR 28-day subscription, cycle 6 Aug 2026.
| Service | Frequency | Call sign |
|---|---|---|
| UNICOM | 122.95 | |
| Tower | 126.05 | Ellington |
| Ground | 121.6 | Ellington |
| ATIS | 135.575 | Ellington |
| Approach | 134.45 | Ellington |
| Emergency | 121.5 | Ellington |
Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.
| Runway | Length | Width | Surface | Lighting |
|---|---|---|---|---|
| 17R/35L | 9,001 ft | 150 ft | Concrete Good | High intensity |
| 17R 179°T | LOC/GS · PAPI (4-box) 3° · MALSF approach lighting | |||
| 35L 359°T | ILS · PAPI (4-box) 3° · MALSF approach lighting · right-hand circuit | |||
| 04/22 | 8,001 ft | 150 ft | Concrete Good | High intensity |
| 04 44°T | PAPI (4-box) 3° · right-hand circuit | |||
| 22 224°T | ILS · PAPI (4-box) 3° · MALSR approach lighting | |||
| 17L/35R | 4,609 ft | 75 ft | Concrete Fair | |
| 35R 359°T | right-hand circuit | |||
Runway and approach-aid data from the FAA NASR 28-day subscription.
29.6073330, -95.1587500
32 ft15 nm SEPaste the coordinates into a simulator’s world map to drop straight onto the field.
Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.
Ellington’s 16 approaches serve four of its six runway ends, leaving instrument coverage concentrated rather than evenly distributed across all three runway alignments. The combination of ILS, localiser and RNAV (GPS) procedures provides both ground-based and satellite-based options, while the unusually large departure set gives outbound procedures greater prominence than approaches. Two runways exceed 8,000 ft, with the third markedly shorter at 4,609 ft, creating a clear distinction in available runway length.
William P Hobby has chart coverage almost identical in breadth to Ellington’s. La Porte Municipal and Houston/Southwest also carry substantial procedure sets, while Pearland Regional and Baytown are more thinly covered. Beyond the instrument material, the Houston sectional and terminal area chart provide broader VFR context, while two helicopter route charts add dedicated routing information for helicopter operations.
| ID | Airport | City | Distance | Charts |
|---|---|---|---|---|
| T41 | La Porte Muni | LA PORTE, TX | 6 nm NE | 40 |
| KHOU | William P Hobby | HOUSTON, TX | 7 nm W | 59 |
| KLVJ | Pearland Rgnl | HOUSTON, TX | 7 nm SW | 30 |
| KHPY | Baytown | BAYTOWN, TX | 15 nm NE | 29 |
| KAXH | Houston/Southwest | HOUSTON, TX | 18 nm W | 41 |
| 54T | Rwj Airpark | BAYTOWN, TX | 19 nm NE | 28 |
| KIAH | George Bush Intcntl/Houston | HOUSTON, TX | 25 nm NW | 102 |
| KGLS | Scholes Intl At Galveston | GALVESTON, TX | 26 nm SE | 47 |

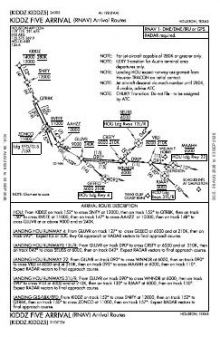

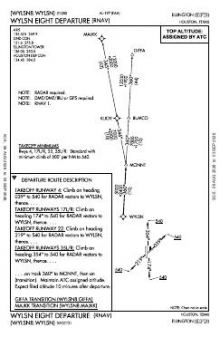

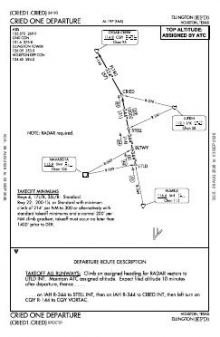

57 current FAA charts for Ellington, including 16 instrument approachs, 23 departure procedures, 15 arrival procedures, 1 airport diagram. All are free to download as PDFs from this page, from the 6 August 2026 cycle.
Tower 126.05; Ground 121.6; ATIS 135.575; UNICOM 122.95. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.
Ellington has 3 runways. The longest is 17R/35L at 9,001 ft by 150 ft, concrete. Full runway dimensions, lighting and approach aids are listed on this page.
Yes — 6 ILS procedures are published. In total KEFD has 16 published instrument approaches, of which 4 are RNAV (GPS).

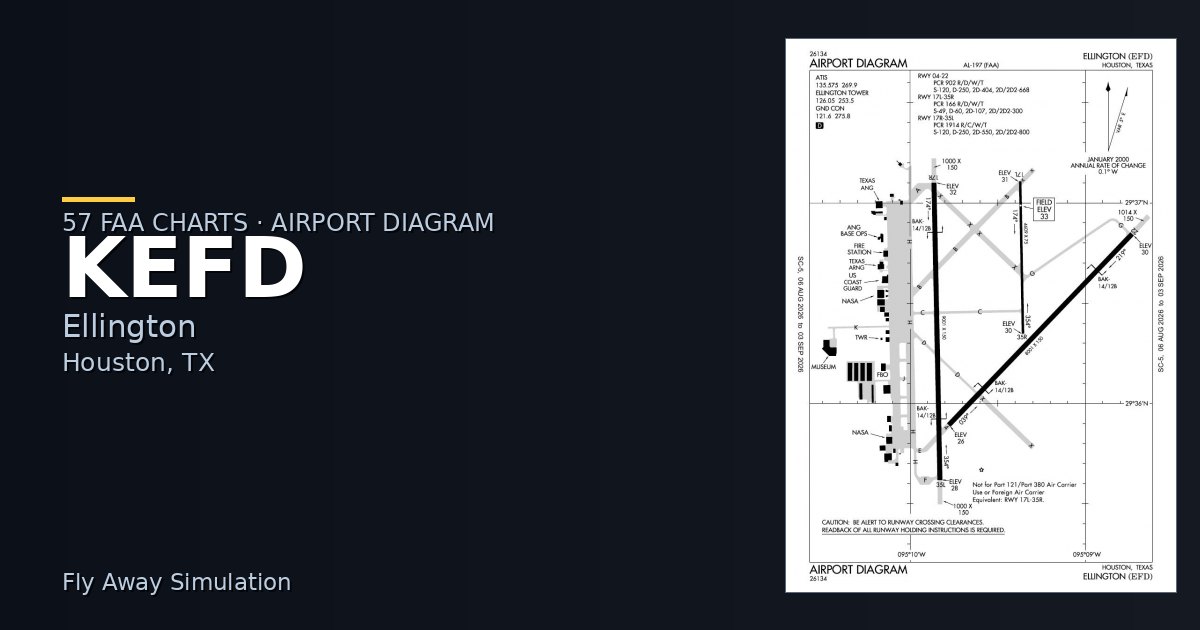

The official FAA airport diagram for Ellington is free to download at the top of this page. It shows runways, taxiways, ramp layout and hold-short positions, and is reissued every 28 days.
Yes. Ellington has an operating control tower, within Houston Center's airspace. Tower, ground and clearance frequencies are listed on this page.
They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
