Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 47.2 MB | Download |
| Print-ready chart, no georeferencing | 102.2 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 102.2 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

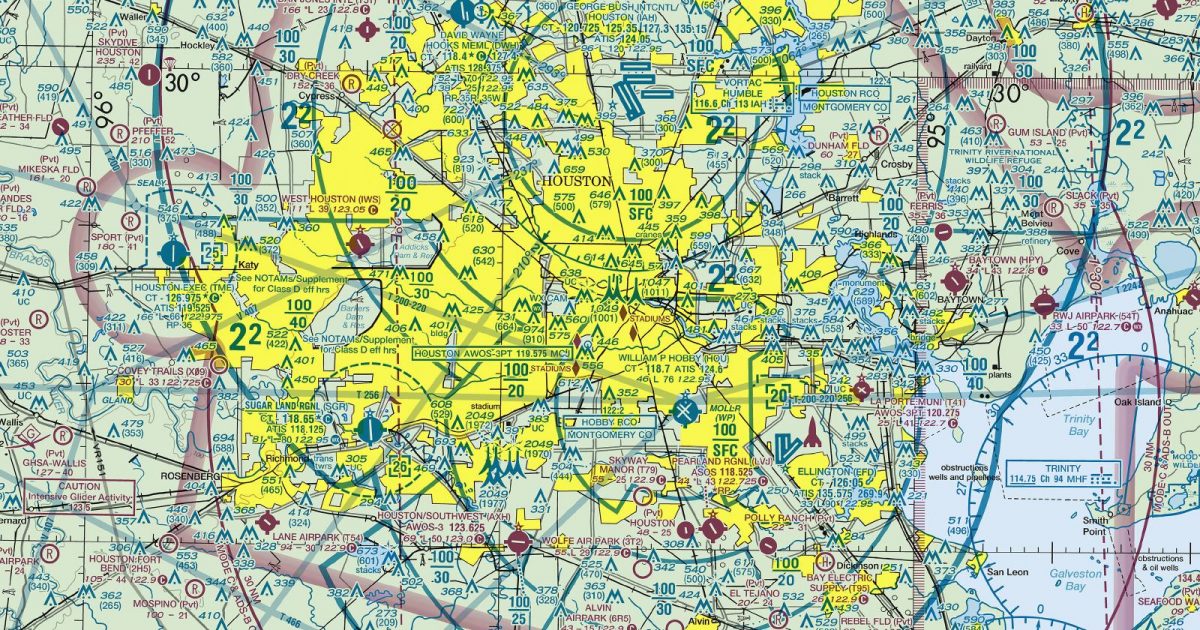

Go PROHouston anchors a sheet spanning south-east Texas, the upper Texas Gulf Coast and western Louisiana, with coverage reaching inland towards central and north-east Texas. The landscape shifts from coastal plains, bays and wetlands along the Gulf to prairie, woodland and the Piney Woods farther north. Routes therefore cross a marked contrast between intricate shorelines, water-rich lowlands and broader inland terrain.
East–west routes continue onto San Antonio to the west or New Orleans to the east. Dallas–Ft Worth adjoins the sheet to the north-west, Memphis to the north-east, and Brownsville to the south-west. Together, these neighbouring sectionals provide continuity for Gulf Coast and inland routes extending beyond the Houston sheet.
FAA Terminal Area Chart coverage provides a larger-scale view of the Houston terminal region, while the Helicopter Route Chart is tailored to metropolitan helicopter operations. Both complement the sectional’s broader regional coverage rather than duplicating its purpose.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KAUS AUS | Austin-Bergstrom Intl | AUSTIN, TX | 541 ft | 5 | 12,250 ft |
| KIAH IAH | George Bush Intcntl/Houston | HOUSTON, TX | 95 ft | 5 | 12,001 ft |
| KCWF CWF | Chennault Intl | LAKE CHARLES, LA | 16 ft | 1 | 10,702 ft |
| KGRK GRK | Robert Gray AAF | FORT HOOD (KILLEEN), TX | 1,015 ft | 4 | 9,997 ft |
| KAEX AEX | Alexandria Intl | ALEXANDRIA, LA | 88 ft | 2 | 9,352 ft |
| KVCT VCT | Victoria Rgnl | VICTORIA, TX | 115 ft | 3 | 9,111 ft |
| KEFD EFD | Ellington | HOUSTON, TX | 32 ft | 3 | 9,001 ft |
| KCNW CNW | Tstc Waco | WACO, TX | 470 ft | 2 | 8,600 ft |
| KARA ARA | Acadiana Rgnl | NEW IBERIA, LA | 24 ft | 3 | 8,002 ft |
| TX2 | Chase Fld Industrial | BEEVILLE, TX | 184 ft | 1 | 8,000 ft |
| KLFT LFT | Lafayette Rgnl/Paul Fournet Fld | LAFAYETTE, LA | 40 ft | 3 | 8,000 ft |
| KSGR SGR | Sugar Land Rgnl | HOUSTON, TX | 81 ft | 1 | 8,000 ft |
| KHOU HOU | William P Hobby | HOUSTON, TX | 46 ft | 3 | 7,602 ft |
| KCRP CRP | Corpus Christi Intl | CORPUS CHRISTI, TX | 46 ft | 2 | 7,510 ft |
| KCXO CXO | Conroe/North Houston Rgnl | HOUSTON, TX | 244 ft | 2 | 7,501 ft |
| KBTR BTR | Baton Rouge Metro, Ryan Fld | BATON ROUGE, LA | 69 ft | 3 | 7,500 ft |
| KACT ACT | Waco Rgnl | WACO, TX | 516 ft | 2 | 7,107 ft |
| KDWH DWH | David Wayne Hooks Meml | HOUSTON, TX | 152 ft | 7 | 7,009 ft |
| KTPL TPL | Draughon-Miller Central Texas Rgnl | TEMPLE, TX | 682 ft | 2 | 7,000 ft |
| KCLL CLL | Easterwood Fld | COLLEGE STATION, TX | 320 ft | 2 | 7,000 ft |
| KLBX LBX | Texas Gulf Coast Rgnl | ANGLETON/LAKE JACKSON, TX | 25 ft | 1 | 7,000 ft |
| KBPT BPT | Jack Brooks Rgnl | BEAUMONT/PORT ARTHUR, TX | 14 ft | 2 | 6,751 ft |
| KTME TME | Houston Exec | HOUSTON, TX | 165 ft | 1 | 6,610 ft |
| KHUM HUM | Houma-Terrebonne | HOUMA, LA | 8 ft | 2 | 6,509 ft |
| KHEZ HEZ | Hardy-Anders Fld/Natchez-Adams County | NATCHEZ, MS | 272 ft | 2 | 6,500 ft |
| KLCH LCH | Lake Charles Rgnl | LAKE CHARLES, LA | 14 ft | 2 | 6,500 ft |
| KHYI HYI | San Marcos Rgnl | AUSTIN, TX | 594 ft | 3 | 6,330 ft |
| KEDC EDC | Austin Exec | AUSTIN, TX | 620 ft | 2 | 6,025 ft |
| 11R | Brenham Muni | BRENHAM, TX | 317 ft | 1 | 6,003 ft |
| KGLS GLS | Scholes Intl At Galveston | GALVESTON, TX | 5 ft | 2 | 6,001 ft |
| KOPL OPL | St Landry Parish | OPELOUSAS, LA | 74 ft | 2 | 5,999 ft |
| KESF ESF | Esler Rgnl | ALEXANDRIA, LA | 111 ft | 2 | 5,998 ft |
| KRKP RKP | Aransas County | ROCKPORT, TX | 23 ft | 2 | 5,608 ft |
| F17 | Center Muni | CENTER, TX | 318 ft | 1 | 5,501 ft |
| KPWG PWG | Mc Gregor Exec | WACO, TX | 591 ft | 2 | 5,501 ft |
| KJAS JAS | Jasper County/Bell Fld | JASPER, TX | 212 ft | 1 | 5,500 ft |
| KORG ORG | Orange County | ORANGE, TX | 13 ft | 2 | 5,500 ft |
| KILE ILE | Skylark Fld | KILLEEN, TX | 847 ft | 1 | 5,495 ft |
| KDRI DRI | Beauregard Rgnl | DE RIDDER, LA | 201 ft | 2 | 5,494 ft |
| KLFK LFK | Angelina County | LUFKIN, TX | 295 ft | 2 | 5,400 ft |
| KPTN PTN | Harry P Williams Meml | PATTERSON, LA | 8 ft | 2 | 5,399 ft |
| KAPS APS | Port Of South Louisiana Exec Rgnl | RESERVE, LA | 6 ft | 1 | 5,151 ft |
| KBYY BYY | Bay City Rgnl | BAY CITY, TX | 44 ft | 1 | 5,107 ft |
| 54T | Rwj Airpark | BAYTOWN, TX | 33 ft | 3 | 5,035 ft |
| KJSO JSO | Cherokee County | JACKSONVILLE, TX | 677 ft | 1 | 5,006 ft |
| 3F3 | C E 'Rusty' Williams | MANSFIELD, LA | 324 ft | 1 | 5,005 ft |
| KUTS UTS | Huntsville Muni | HUNTSVILLE, TX | 362 ft | 1 | 5,005 ft |
| KPSN PSN | Palestine Muni | PALESTINE, TX | 422 ft | 2 | 5,005 ft |
| KCRS CRS | C David Campbell Fld-Corsicana Muni | CORSICANA, TX | 448 ft | 2 | 5,004 ft |
| KPKV PKV | Calhoun County | PORT LAVACA, TX | 32 ft | 2 | 5,004 ft |
| KGTU GTU | Georgetown Exec | GEORGETOWN, TX | 789 ft | 2 | 5,004 ft |
| KARM ARM | Wharton Rgnl | WHARTON, TX | 100 ft | 1 | 5,004 ft |
| KHZR HZR | False River Rgnl | NEW ROADS, LA | 39 ft | 1 | 5,003 ft |
| KREG REG | Louisiana Rgnl | GONZALES, LA | 14 ft | 1 | 5,003 ft |
| KIER IER | Natchitoches Rgnl | NATCHITOCHES, LA | 121 ft | 2 | 5,003 ft |
| 60R | Navasota Muni | NAVASOTA, TX | 229 ft | 1 | 5,003 ft |
| KAXH AXH | Houston/Southwest | HOUSTON, TX | 68 ft | 1 | 5,002 ft |
| 3R7 | Jennings | JENNINGS, LA | 22 ft | 3 | 5,002 ft |
| TX0 | Shank N Bank | LA WARD, TX | 29 ft | 1 | 5,002 ft |
| 0R7 | The Red River | COUSHATTA, LA | 177 ft | 1 | 5,002 ft |
| 6R3 | Cleveland Muni | CLEVELAND, TX | 150 ft | 1 | 5,001 ft |
| 4R7 | Eunice | EUNICE, LA | 42 ft | 1 | 5,001 ft |
| KOCH OCH | Nacogdoches A L Mangham Jr Rgnl | NACOGDOCHES, TX | 343 ft | 1 | 5,001 ft |
| KPSX PSX | Palacios Muni | PALACIOS, TX | 14 ft | 3 | 5,001 ft |
| KUXL UXL | Southland Fld | SULPHUR, LA | 10 ft | 1 | 5,001 ft |
| KIYA IYA | Abbeville Chris Crusta Meml | ABBEVILLE, LA | 15 ft | 2 | 5,000 ft |
| KACP ACP | Allen Parish | OAKDALE, LA | 107 ft | 1 | 5,000 ft |
| 3T5 | Fayette Rgnl Air Center | LA GRANGE, TX | 324 ft | 1 | 5,000 ft |
| KMCB MCB | Mc Comb/Pike County/John E Lewis Fld | MC COMB, MS | 413 ft | 1 | 5,000 ft |
| KLXY LXY | Mexia-Limestone County | MEXIA, TX | 544 ft | 1 | 5,000 ft |
| KVKS VKS | Vicksburg Muni | VICKSBURG, MS | 107 ft | 1 | 5,000 ft |
| KTFP TFP | Ingleside Rgnl | INGLESIDE, TX | 17 ft | 1 | 4,999 ft |
| 5R8 | De Quincy Industrial Airpark | DE QUINCY, LA | 82 ft | 1 | 4,997 ft |
| 1R1 | Jena | JENA, LA | 216 ft | 1 | 4,901 ft |
| KBEA BEA | Beeville Muni | BEEVILLE, TX | 272 ft | 2 | 4,553 ft |
| L66 | Pollock Muni | POLLOCK, LA | 203 ft | 1 | 4,499 ft |
| 3R4 | Hart | MANY, LA | 318 ft | 1 | 4,402 ft |
| 2H5 | Houston Fort Bend | HOUSTON, TX | 105 ft | 1 | 4,400 ft |
| KRFG RFG | Rooke Fld | REFUGIO, TX | 54 ft | 1 | 4,361 ft |
| KHPY HPY | Baytown | BAYTOWN, TX | 33 ft | 1 | 4,334 ft |
| T69 | Sinton | SINTON, TX | 47 ft | 2 | 4,323 ft |
| KLVJ LVJ | Pearland Rgnl | HOUSTON, TX | 43 ft | 1 | 4,313 ft |
| 3R2 | Le Gros Meml | CROWLEY, LA | 14 ft | 2 | 4,304 ft |
| 45R | Hawthorne Fld | KOUNTZE/SILSBEE, TX | 70 ft | 1 | 4,303 ft |
| KELA ELA | Eagle Lake | EAGLE LAKE, TX | 184 ft | 1 | 4,280 ft |
| T41 | La Porte Muni | LA PORTE, TX | 25 ft | 2 | 4,165 ft |
| KRFI RFI | Rusk County | HENDERSON, TX | 441 ft | 2 | 4,005 ft |
| KBMT BMT | Beaumont Muni | BEAUMONT, TX | 31 ft | 1 | 4,001 ft |
| KLHB LHB | Hearne Muni | HEARNE, TX | 284 ft | 1 | 4,001 ft |
| 50R | Lockhart Muni | LOCKHART, TX | 531 ft | 1 | 4,001 ft |
| KCFD CFD | Coulter Fld | BRYAN, TX | 366 ft | 1 | 4,000 ft |
| KGYB GYB | Giddings-Lee County | GIDDINGS, TX | 484 ft | 1 | 4,000 ft |
| KDKR DKR | Houston County | CROCKETT, TX | 348 ft | 1 | 4,000 ft |
| 61R | Newton Muni | NEWTON, TX | 322 ft | 1 | 4,000 ft |
| 4F2 | Panola County-Sharpe Fld | CARTHAGE, TX | 248 ft | 1 | 4,000 ft |
| 84R | Smithville Crawford Muni | SMITHVILLE, TX | 323 ft | 1 | 4,000 ft |
| T74 | Taylor Muni | TAYLOR, TX | 600 ft | 1 | 4,000 ft |
| 09R | Tyler County | WOODVILLE, TX | 388 ft | 1 | 4,000 ft |
| KINJ INJ | Hillsboro Muni | HILLSBORO, TX | 685 ft | 1 | 3,998 ft |
| F44 | Athens Muni | ATHENS, TX | 444 ft | 1 | 3,988 ft |
| KIWS IWS | West Houston | HOUSTON, TX | 111 ft | 1 | 3,953 ft |
| L39 | Leesville | LEESVILLE, LA | 281 ft | 1 | 3,807 ft |
| T78 | Liberty Muni | LIBERTY, TX | 69 ft | 1 | 3,801 ft |
| 66R | Robert R Wells Jr | COLUMBUS, TX | 242 ft | 1 | 3,800 ft |
| 78R | San Augustine County | SAN AUGUSTINE, TX | 443 ft | 1 | 3,800 ft |
| KMKV MKV | Marksville Muni | MARKSVILLE, LA | 78 ft | 1 | 3,799 ft |
| T12 | Kirbyville | KIRBYVILLE, TX | 121 ft | 2 | 3,746 ft |
| 00R | Livingston Muni | LIVINGSTON, TX | 150 ft | 1 | 3,704 ft |
| 0R4 | Concordia Parish | VIDALIA, LA | 54 ft | 1 | 3,701 ft |
| KRBO RBO | Nueces County | ROBSTOWN, TX | 79 ft | 1 | 3,700 ft |
| T24 | Pineland Muni | PINELAND, TX | 260 ft | 1 | 3,700 ft |
| T90 | Chambers County/Winnie Stowell | WINNIE/STOWELL, TX | 24 ft | 1 | 3,600 ft |
| L33 | Tensas Parish | ST JOSEPH, LA | 74 ft | 1 | 3,509 ft |
| F86 | Caldwell Parish | COLUMBIA, LA | 66 ft | 1 | 3,501 ft |
| 33R | Groveton/Trinity County | GROVETON, TX | 340 ft | 1 | 3,500 ft |
| 2TX | Salado | SALADO, TX | 689 ft | 1 | 3,494 ft |
| KRAS RAS | Mustang Beach | PORT ARANSAS, TX | 5 ft | 1 | 3,482 ft |
| T85 | Yoakum Muni | YOAKUM, TX | 365 ft | 1 | 3,444 ft |
| T51 | Dan Jones Intl | HOUSTON, TX | 166 ft | 1 | 3,440 ft |
| KGOP GOP | Gatesville Muni | GATESVILLE, TX | 905 ft | 1 | 3,400 ft |
| 26R | Jackson County | EDNA, TX | 61 ft | 1 | 3,393 ft |
| X09 | Covey Trails | FULSHEAR, TX | 130 ft | 1 | 3,352 ft |
| 68F | Teague Muni | TEAGUE, TX | 525 ft | 1 | 3,300 ft |
| KRWV RWV | Caldwell Muni | CALDWELL, TX | 390 ft | 1 | 3,252 ft |
| 2R9 | Kenedy Rgnl | KENEDY, TX | 288 ft | 1 | 3,218 ft |
| 34R | Hallettsville Muni | HALLETTSVILLE, TX | 277 ft | 1 | 3,210 ft |
| 51R | Madisonville Muni | MADISONVILLE, TX | 286 ft | 1 | 3,205 ft |
| F88 | Jonesboro | JONESBORO, LA | 255 ft | 1 | 3,204 ft |
| 07R | Bishop-Windham | BISHOP, TX | 55 ft | 1 | 3,200 ft |
| T35 | Cameron Muni Airpark | CAMERON, TX | 402 ft | 1 | 3,200 ft |
| T20 | Roger M Dreyer Meml | GONZALES, TX | 354 ft | 1 | 3,200 ft |
| 67T | Old Hoppe Place | AGUA DULCE, TX | 96 ft | 1 | 3,164 ft |
| C71 | Crosby Muni | CROSBY, MS | 336 ft | 1 | 3,127 ft |
| T25 | Aero Estates | FRANKSTON, TX | 445 ft | 2 | 3,100 ft |
| 1R4 | Woodworth | WOODWORTH, LA | 140 ft | 1 | 3,100 ft |
| 9F1 | Valley Mills Muni | VALLEY MILLS, TX | 751 ft | 2 | 3,028 ft |
| T15 | Marlin | MARLIN, TX | 410 ft | 1 | 3,021 ft |
| T54 | Lane Airpark | ROSENBERG, TX | 94 ft | 1 | 3,013 ft |
| 2R6 | Bunkie Muni | BUNKIE, LA | 62 ft | 1 | 3,005 ft |
| T00 | Chambers County | ANAHUAC, TX | 21 ft | 2 | 3,005 ft |
| 0R5 | David G Joyce | WINNFIELD, LA | 146 ft | 1 | 3,002 ft |
| F89 | Winnsboro Muni | WINNSBORO, LA | 78 ft | 1 | 3,001 ft |
| 7F7 | Clifton Muni/Isenhower Fld | CLIFTON, TX | 760 ft | 1 | 3,000 ft |
| LA3 | Feliciana Airpark | JACKSON, LA | 204 ft | 1 | 3,000 ft |
| 2R1 | Le Maire Meml | JEANERETTE, LA | 14 ft | 1 | 3,000 ft |
| 2L0 | Pineville Muni | PINEVILLE, LA | 100 ft | 2 | 3,000 ft |
| 73F | Wings For Christ Intl Flt Academy | WACO, TX | 455 ft | 1 | 3,000 ft |
| L83 | Thibodaux Muni | THIBODAUX, LA | 9 ft | 1 | 2,999 ft |
| L32 | Jonesville | JONESVILLE, LA | 56 ft | 1 | 2,993 ft |
| T26 | Flying V Ranch | LOUISE, TX | 60 ft | 1 | 2,990 ft |
| KRCK RCK | H H Coffield Rgnl | ROCKDALE, TX | 474 ft | 1 | 2,962 ft |
| 3T2 | Wolfe Air Park | MANVEL, TX | 55 ft | 1 | 2,910 ft |
| T71 | Cuero Muni | CUERO, TX | 214 ft | 1 | 2,800 ft |
| 6X0 | Tarrant Fld | MOUNT SELMAN, TX | 590 ft | 1 | 2,700 ft |
| 6R1 | Welsh | WELSH, LA | 18 ft | 2 | 2,700 ft |
| T79 | Skyway Manor | PEARLAND, TX | 55 ft | 1 | 2,525 ft |
| 3T8 | Wildcat Canyon | CHINA SPRING, TX | 660 ft | 1 | 2,450 ft |
| 9R5 | Hunt | PORTLAND, TX | 38 ft | 2 | 2,350 ft |
| 81D | Flyin Tiger | ANGLETON, TX | 30 ft | 2 | 2,261 ft |
| 94R | Gav Air | WHARTON, TX | 90 ft | 1 | 2,167 ft |
| 7R9 | Bailes | ANGLETON, TX | 21 ft | 1 | 2,060 ft |
| 6R5 | Alvin Airpark | ALVIN, TX | 43 ft | 3 | 1,500 ft |
162 public-use airports within this chart's coverage, ordered by runway length. A further 485 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Texas is available as a single 393.0 MB archive (2,019 charts) — see the Texas airports.
It spans 27.6°N to 32.3°N and 97.9°W to 90.4°W. Airports on the sheet fall within Louisiana, Mississippi and Texas. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (47.2 MB). Take the PDF to print it or read it on a second screen (102.2 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
San Antonio to the west, New Orleans to the east, Memphis to the north-east, Dallas-Ft Worth to the north-west and Brownsville to the south-west. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
FAA public-domain products, mirrored unmodified. Fly Away Simulation is not affiliated with or endorsed by the FAA. Chart licensing and terms.
