Terminal Procedures

Y47 — Oakland Southwest

NEW HUDSON, MI · 2 FAA charts · cycle 6 Aug 2026

Elevation 926 ft1 runwayLongest 3,128 ftNon-toweredFuel 100LL avgasVolume EC-1Not for navigation

1 published instrument approach: 1 RNAV (GPS).

All 2 Y47 charts in one download Every approach, departure, arrival and minimums page for this airport, sorted into folders, as a single ZIP. Taken one at a time on the free tier, 2 charts is roughly 13 sec of downloading — they queue one behind another.

PRO members only

Instrument approach procedures

	Chart	Amendment
	RNAV (GPS)-A	0	PDF

Takeoff and alternate minimums

	Chart	Amendment
	TAKEOFF MINIMUMS	—	PDF

Minimums pages cover a whole volume, so the same document is shared by every airport in it.

Y47 airport information

Control tower: No
Attendance: All mon-fri 0830-1700
ARTCC: Cleveland Center
Flight service: Lansing
NOTAM facility: LAN (NOTAM-D available)
Magnetic variation: 7W
Beacon: White-green (lighted land airport), sunset to sunrise
Wind indicator: Lighted
Segmented circle: Yes
Fuel: 100LL avgas
Bottled oxygen: None
Parking: Tie-downs
Customs: Landing rights airport
Activated: October 1946
Airport area: 67 acres
Ownership: Publicly owned
Sectional: Detroit
Last FAA inspection: 2025-08-21

From the FAA NASR 28-day subscription, cycle 6 Aug 2026.

Y47 radio frequencies

Service	Frequency	Call sign
CTAF	122.7
Approach	132.35	Detroit

Civil VHF frequencies from the FAA NASR 28-day subscription. Discrete sector and military frequencies are not listed.

Runways

Runway layout at Y47, drawn to scale from FAA published runway-end coordinates and true alignments. Runways served by an ILS are highlighted.

Runway	Length	Width	Surface	Lighting
08/26	3,128 ft	40 ft	Asphalt Excellent	Low intensity
08 71°T	VASI (2-bar) 4° · displaced threshold 867 ft
26 251°T	VASI (2-bar) 4° · displaced threshold 864 ft

Runway and approach-aid data from the FAA NASR 28-day subscription.

Where Y47 is

Latitude, longitude42.5031240, -83.6237010

Elevation926 ft

From New Hudson1 nm SW

Paste the coordinates into a simulator’s world map to drop straight onto the field.

FAA remarks for Y47

ESTABD BFR 1959.
ACTVT LIRL RWY 08/26 - CTAF. VASI RWY 08 & 26 OTS INDEFLY.
HNGR AVBL BY PRIOR ARNGMT CTC AMGR.
-4 FT DITCH, 40 FT DIST; SCATTERED 5-30 FT TREES & BRUSH, 0-199 FT DIST, 125 FT L & R.
15-40 FT TREES & BRUSH, 0-90 FT DIST, 110 FT L.
CTLG OBSTN EXCEEDS A 45 DEG SLP. APCH RATIO 2:1 TO DTHR OVR +22 FT TREE, 62 FT DIST, 125 FT R.
CTLG OBSTN EXCEEDS A 45 DEG SLP. APCH RATIO 0:1 TO DTHR OVR +12 FT TREE, 0 FT DIST, 115 FT L. +30 FT PLINE, 697 FT DIST; +20 FT TREES, 110 FT L; +15-50 FT TREES, MOST QUADS.
TREES & BRUSH IN PRIMARY SFC 70-120 FT L & R.
FOR CD CTC DETROIT APCH AT 734-955-1404.
DEER & LRG BIRDS ON & INVOF ARPT.

Published verbatim from the FAA NASR subscription. Abbreviations are the FAA's own.

Airports near Y47

ID	Airport	City	Distance	Charts
1D2	Canton-Plymouth-Mettetal	PLYMOUTH, MI	12 nm SE	2
KPTK	Oakland County Intl	PONTIAC, MI	13 nm NE	25
KYIP	Willow Run	DETROIT, MI	16 nm S	27
KOZW	Livingston County/Spencer J Hardy	HOWELL, MI	18 nm NW	21
KARB	Ann Arbor Muni	ANN ARBOR, MI	18 nm S	24
9G2	Prices	LINDEN, MI	19 nm N	4
KVLL	Oakland/Troy	TROY, MI	20 nm E	19
KDTW	Detroit Metro Wayne County	DETROIT, MI	21 nm SE	107

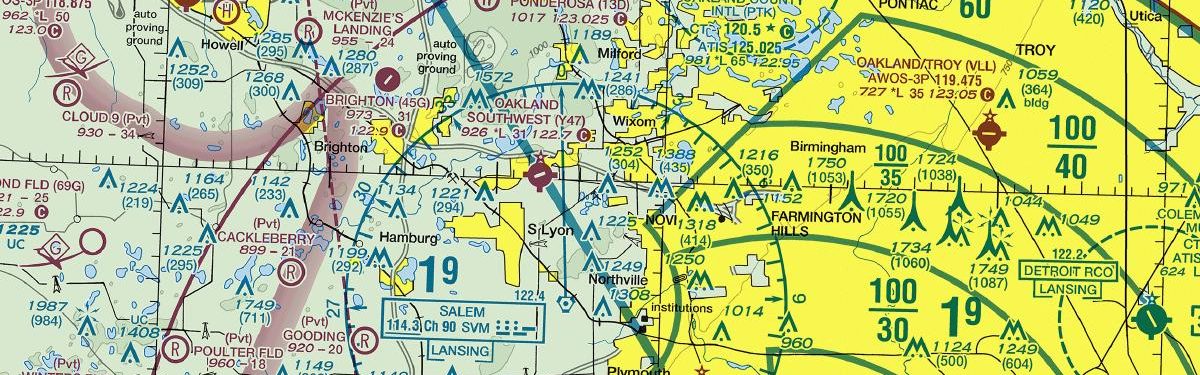

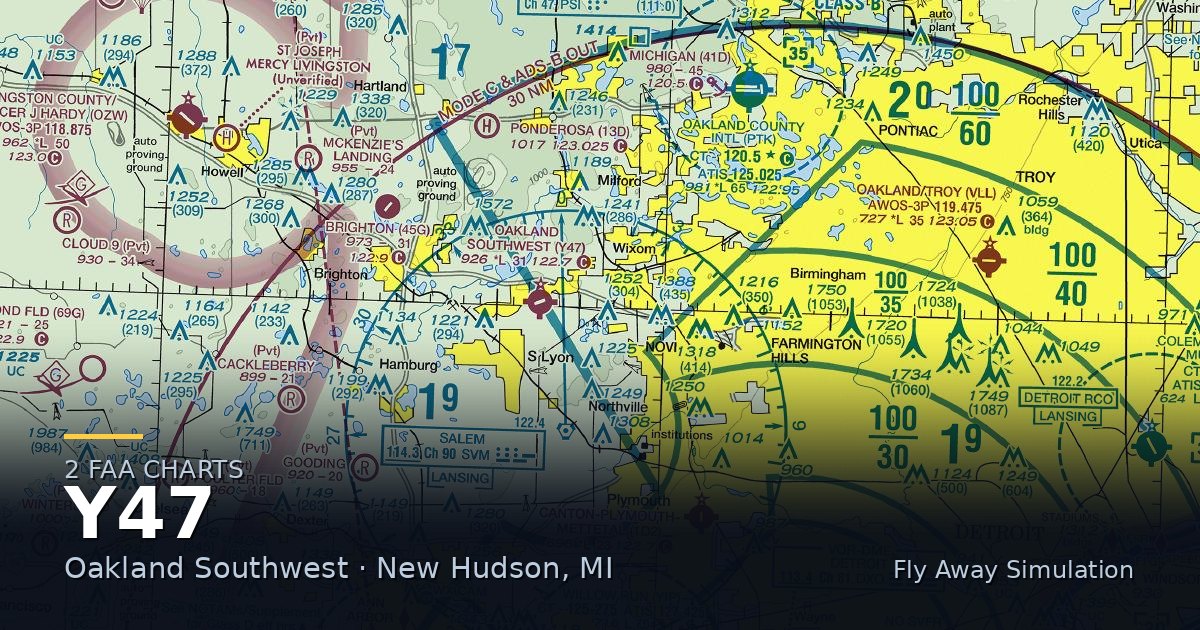

VFR charts covering Y47

DetroitHelicopter Route Chart DetroitSectional Chart DetroitTerminal Area Chart

Common questions about Y47

What charts are available for Y47?

2 current FAA charts for Oakland Southwest, including 1 instrument approach. All are free to download as PDFs from this page, from the 6 August 2026 cycle.

What are the radio frequencies for Y47?

CTAF 122.7. Full civil VHF list, with sector notes, is in the frequencies table on this page — from the FAA NASR subscription.

How long is the runway at Y47?

Oakland Southwest has 1 runway. The longest is 08/26 at 3,128 ft by 40 ft, asphalt. Full runway dimensions, lighting and approach aids are listed on this page.

Does Y47 have an ILS approach?

No ILS is published. In total Y47 has 1 published instrument approach, of which 1 are RNAV (GPS).

Is Y47 a towered airport?

No — Oakland Southwest has no control tower. Traffic co-ordinates on a common frequency rather than with a controller, which is listed in the frequencies table on this page.

Are these Y47 charts current?

They are from the FAA cycle effective 6 August 2026, which is superseded on 3 September 2026. We publish each new cycle on its effective date. They are for flight simulation and reference only — not for real-world navigation.
