Official FAA digital chart — free GeoTIFF and PDF download
| Format | What you get | Size | |
|---|---|---|---|
| GeoTIFF | Georeferenced raster at 300 dpi, with world file and FGDC metadata | 22.5 MB | Download |
| Print-ready chart, no georeferencing | 45.4 MB | Download |
Not for navigation. For flight simulation and reference use only. Check the effective dates above, and obtain official charts from the FAA for real-world flight.
These are big files. This chart alone is 45.4 MB. Guest downloads are rate limited; PRO members get full-speed, unthrottled downloads across every chart and all 24,000+ add-ons in the library.

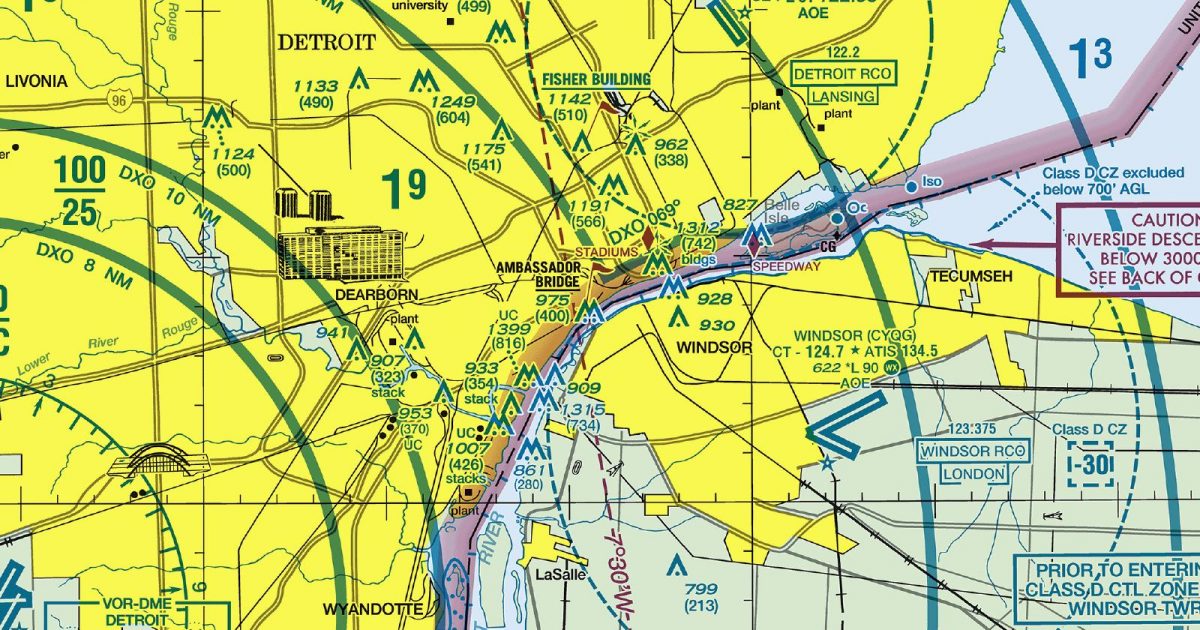

Go PRODetroit’s cross-border urban corridor sits at the centre of this sheet, with coverage extending across south-eastern Michigan, north-western Ohio, north-eastern Indiana and adjoining southern Ontario. Dense development follows the Detroit River and the shores of Lake St Clair and western Lake Erie, while flatter farmland spreads west and south. Water, shoreline and the international boundary are therefore prominent geographical references alongside the broad metropolitan footprint.
The chart reaches north beyond the Detroit conurbation, west across southern Michigan, south into the Toledo region and east across the river into Ontario. At roughly 123 nautical miles across, it holds the terminal area and useful surrounding context on one sheet. The Cleveland Terminal Area Chart adjoins to the south-east, continuing towards northern Ohio and the Lake Erie shore.
For a wider regional view, the Sectional Aeronautical Chart covers the same area at a smaller scale. The Helicopter Route Chart provides more specialised coverage for helicopter operations, while this chart presents the Detroit terminal area at the more detailed scale associated with the Terminal Area Chart series.
| ID | Airport | City | Elev | Rwys | Longest |
|---|---|---|---|---|---|
| KDTW DTW | Detroit Metro Wayne County | DETROIT, MI | 645 ft | 7 | 12,003 ft |
| KTOL TOL | Eugene F Kranz Toledo Express | TOLEDO, OH | 683 ft | 2 | 10,600 ft |
| CYQG | Windsor | WINDSOR | 622 ft | 2 | 9,000 ft |
| KLAN LAN | Capital Region Intl | LANSING, MI | 860 ft | 3 | 8,506 ft |
| KYIP YIP | Willow Run | DETROIT, MI | 715 ft | 2 | 7,543 ft |
| KPTK PTK | Oakland County Intl | PONTIAC, MI | 980 ft | 3 | 6,521 ft |
| KJXN JXN | Jackson County/Reynolds Fld | JACKSON, MI | 1,000 ft | 2 | 5,351 ft |
| KOEB OEB | Branch County Meml | COLDWATER, MI | 958 ft | 3 | 5,350 ft |
| KDET DET | Coleman A Young Muni | DETROIT, MI | 624 ft | 1 | 5,092 ft |
| KOZW OZW | Livingston County/Spencer J Hardy | HOWELL, MI | 962 ft | 1 | 5,002 ft |
| KADG ADG | Lenawee County | ADRIAN, MI | 802 ft | 2 | 5,001 ft |
| KJYM JYM | Hillsdale Muni | HILLSDALE, MI | 1,184 ft | 1 | 5,000 ft |
| KTTF TTF | Custer | MONROE, MI | 615 ft | 1 | 4,997 ft |
| KONZ ONZ | Grosse Ile Muni | DETROIT/GROSSE ILE, MI | 590 ft | 4 | 4,846 ft |
| KDUH DUH | Toledo Suburban | LAMBERTVILLE, MI | 671 ft | 1 | 4,807 ft |
| KANQ ANQ | Tri-State Steuben County | ANGOLA, IN | 995 ft | 1 | 4,540 ft |
| 22T | Tecumseh Mills | TECUMSEH, MI | 797 ft | 2 | 4,278 ft |
| D98 | Romeo State | ROMEO, MI | 738 ft | 1 | 4,003 ft |
| KTEW TEW | Mason Jewett Fld | MASON, MI | 919 ft | 1 | 4,002 ft |
| 9G2 | Prices | LINDEN, MI | 919 ft | 1 | 3,999 ft |
| KUSE USE | Fulton County | WAUSEON, OH | 780 ft | 2 | 3,882 ft |
| 7N4 | Raymond L Kussmaul Jr Meml | CLINTON, MI | 825 ft | 1 | 3,800 ft |
| 34G | Merillat | TECUMSEH, MI | 820 ft | 1 | 3,608 ft |
| KVLL VLL | Oakland/Troy | TROY, MI | 727 ft | 1 | 3,549 ft |
| KFPK FPK | Fitch H Beach | CHARLOTTE, MI | 891 ft | 2 | 3,510 ft |
| KARB ARB | Ann Arbor Muni | ANN ARBOR, MI | 839 ft | 2 | 3,505 ft |
| KRMY RMY | Brooks Fld | MARSHALL, MI | 941 ft | 2 | 3,501 ft |
| CYPT | Pelee Island | PELEE ISLAND | 571 ft | 2 | 3,300 ft |
| 4D0 | Abrams Muni | GRAND LEDGE, MI | 841 ft | 2 | 3,200 ft |
| Y47 | Oakland Southwest | NEW HUDSON, MI | 926 ft | 1 | 3,128 ft |
| 45G | Brighton | BRIGHTON, MI | 973 ft | 1 | 3,105 ft |
| 76G | Marine City | MARINE CITY, MI | 613 ft | 1 | 3,070 ft |
| 65G | Maple Grove | FOWLERVILLE, MI | 906 ft | 2 | 3,050 ft |
| 3W2 | Put In Bay | PUT IN BAY, OH | 595 ft | 1 | 2,870 ft |
| 6G8 | Brooklyn | BROOKLYN, MI | 981 ft | 1 | 2,829 ft |
| 3NP | Napoleon | NAPOLEON, MI | 963 ft | 2 | 2,740 ft |
| 60G | Skyway Estates | EATON RAPIDS, MI | 931 ft | 1 | 2,653 ft |
| 3TE | Al Meyers | TECUMSEH, MI | 812 ft | 2 | 2,649 ft |
| 44G | Betz | BLISSFIELD, MI | 691 ft | 1 | 2,602 ft |
| W87 | Buzzwick | CARLETON, MI | 609 ft | 1 | 2,575 ft |
| 57D | Ray Community | RAY, MI | 632 ft | 2 | 2,495 ft |
| 75G | Rossettie | MANCHESTER, MI | 1,005 ft | 1 | 2,480 ft |
| 69G | Richmond Fld | GREGORY, MI | 921 ft | 1 | 2,471 ft |
| D99 | Robertson Fld | RICHMOND, MI | 649 ft | 1 | 2,455 ft |
| C43 | Hiram Cure | SUNFIELD, MI | 853 ft | 1 | 2,314 ft |
| 1D2 | Canton-Plymouth-Mettetal | PLYMOUTH, MI | 696 ft | 1 | 2,302 ft |
| 43G | Belleville | BELLEVILLE, MI | 695 ft | 1 | 2,253 ft |
| 89D | Kelleys Island Land Fld | KELLEYS ISLAND, OH | 598 ft | 1 | 2,202 ft |
| 26W | Wolf Lake | NAPOLEON, MI | 980 ft | 1 | 2,155 ft |
| 6H4 | Van Wagnen | NAPOLEON, MI | 988 ft | 1 | 2,105 ft |
| 3W9 | Middle Bass-East Point | MIDDLE BASS ISLAND, OH | 582 ft | 1 | 2,085 ft |
| 41G | University Airpark | BATH, MI | 856 ft | 1 | 1,994 ft |
| 3T7 | Middle Bass Island | MIDDLE BASS ISLAND, OH | 579 ft | 1 | 1,852 ft |
| 3X5 | North Bass Island | NORTH BASS ISLAND, OH | 594 ft | 1 | 1,804 ft |
| 49G | Wend Valley | CHARLOTTE, MI | 859 ft | 1 | 1,800 ft |
| 51C | Orban | DEWITT, MI | 882 ft | 1 | 1,700 ft |
56 public-use airports within this chart's coverage, ordered by runway length. A further 43 private and restricted landing facilities are not listed. Source: FAA NASR 28-day subscription.
Approach plates and airport diagrams for every airport in the states this sheet covers:
Flying the area on this sheet? Every approach plate and airport diagram for Michigan is available as a single 116.2 MB archive (546 charts) — see the Michigan airports.
It spans 41.6°N to 42.9°N and 85.1°W to 82.3°W. Airports on the sheet fall within Indiana, Michigan and Ohio. The full list of public-use airports within its coverage is on this page.
Take the GeoTIFF if you are loading the chart into moving-map software or a flight planner — it is georeferenced, so the software can place it correctly on a map, and it ships with a world file and FGDC metadata at 300 dpi (22.5 MB). Take the PDF to print it or read it on a second screen (45.4 MB); it is the same chart without georeferencing.
This is the FAA edition effective 9 July 2026, which is superseded on 3 September 2026. Visual charts are reissued every 56 days and we publish each new edition on the day it takes effect. It is for flight simulation and reference only — not for real-world navigation.
Cleveland to the south-east. Each is linked from this page, so a route running off one edge can be continued on the next sheet.
Yes, with no account required. FAA charts are United States Government works and are not subject to copyright protection in the US under 17 U.S.C. § 105. Guest downloads are speed-capped, so a sheet this size takes a while; PRO members download at full line speed and can take the whole family as one archive.
FAA public-domain products, mirrored unmodified. Fly Away Simulation is not affiliated with or endorsed by the FAA. Chart licensing and terms.
